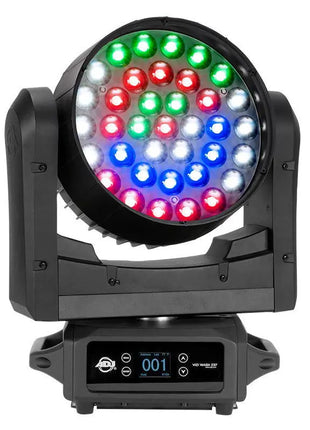

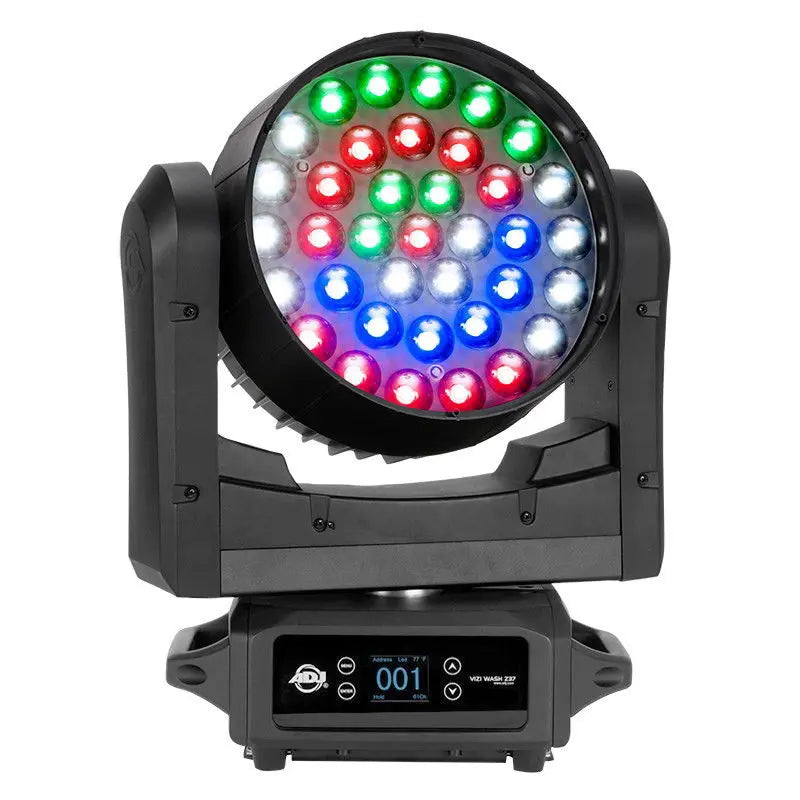

The Vizi Wash Z37 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and 37x 20W Quad (RGBW / 4-IN-1) LEDs. It features 11 zones of LED block control or 4 zones of LED ring control smooth 16bit dimming control from 0-100% Locking Power In/Out to daisy chain power both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.
There are 64 built-in colour macros 44 Colour Temperature DMX Presets from 2700K-7000K 16bit fine zoom control and 9 DMX control modes. This fixture is ideal for washing stages theatres churches nightclubs concert venues and event productions.
Specifications:
Source
• 37 OSRAM RGBW QUAD-LEDs
• Max. 9710 Lumens (Zoom out Full on)
• 1250 Lux @5m at 60°
• 17609 Lux @5m at 10°
Optics
• Motorized Zoom 10°-60° (Field Angle)
Control
• 2 Operational Modes: Program Mode & DMX Control
• 9 DMX Channel Mode: 14 15 17 18 19 38 39 72 or 73 Channels
• RDM compatible (Remote Device management)
• 16bit Electronic Dimming 0-100%
• 6 Dim Modes (Standard Stage TV Architectural Theatre Stage 2)
• Adjustable Dimmer Delay Time: 0.1secs - 10 secs
• 4 Dim Curves: Linear Square Inv. Square S-curve.
• Display: Colour display with 4-button function menu
• 11-Zone or 4 Ring-Control
• 16bit Pan 540°
• 16bit Tilt 270°
• Pan/Tilt Target Mode
• 3 Fan Modes : Auto/High/Silent
Colours
• RGBW Colour Mixing
• 64 Colour Presets
• Built-In Zone Chase Patterns
• 44 Colour Temperature Presets 2700K - 7000K
Construction
• PVC molding
• Includes Quicklock Omega Brackets
Electrical
• Power voltage: AC100-240V 50/60Hz (Multi-voltage)
• Power consumption: 525W

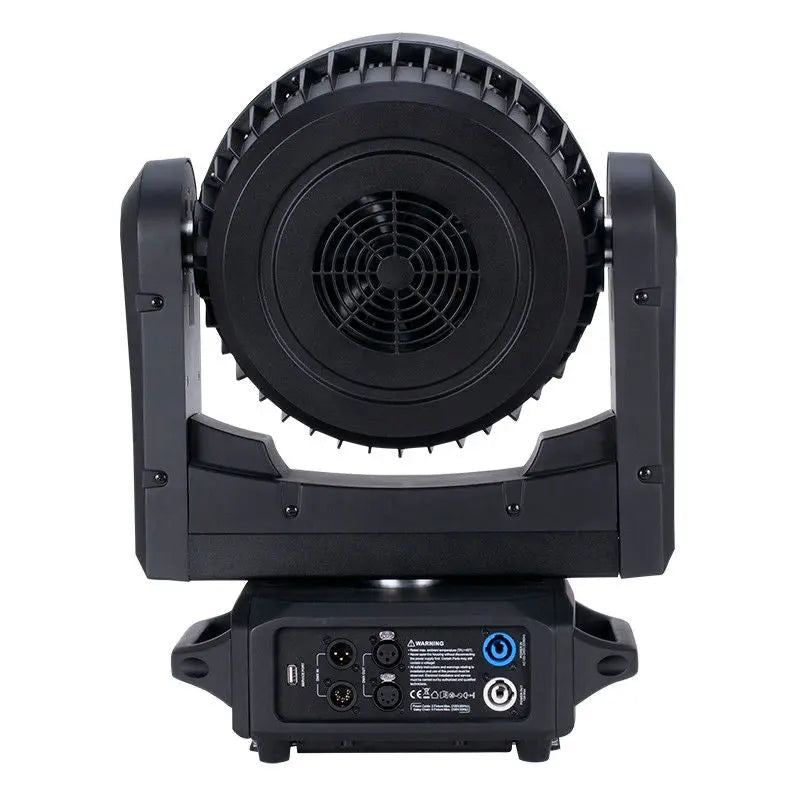

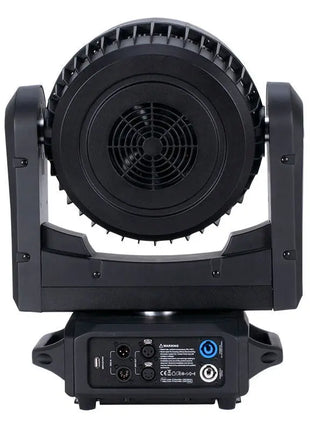

Connections
• 3-& 5pin Locking DMX In/Out connections
• Locking Power In connection
• USB-Service Port for Firmware updates
Dimensions & Weight
• Dimension: 4084 × 226 × 5203
• Weight: 18 kg.
