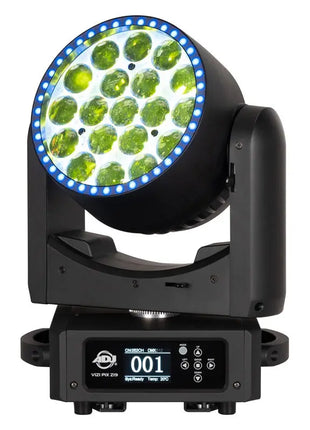

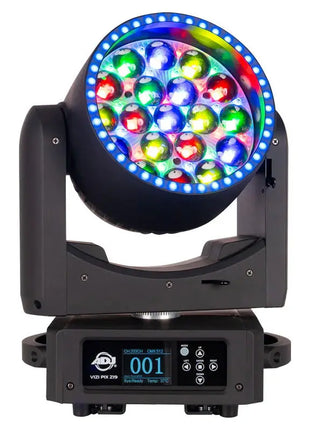

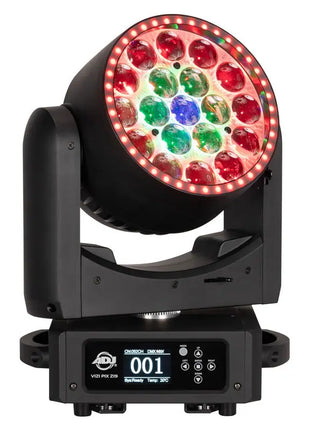

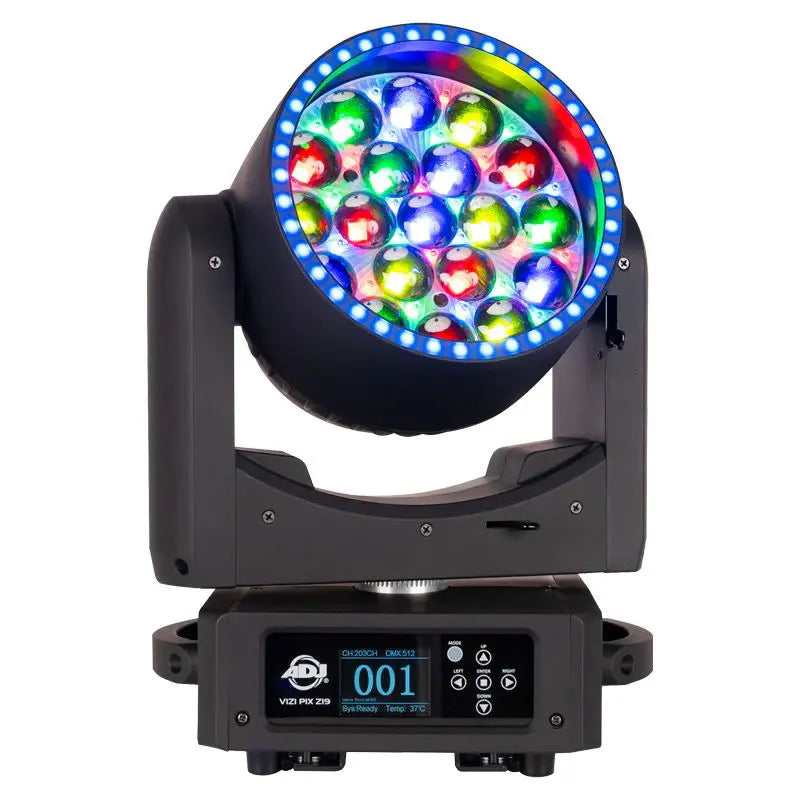

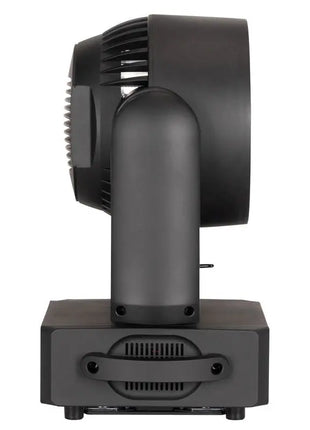

Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant colour effects and captivating visuals for professional stages and live events._x005F_x005F
Equipped with nineteen 30-Watt RGBL LEDs the fixture offers advanced virtual CMY colour mixing a wide motorized zoom range and smooth electronic dimming making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and colour macros further expand its creative possibilities.
_x005F_x005F
Control options include DMX Artnet sACN RDM and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves selectable LED refresh rates and a white colour temperature range from 2700K to 10000K ensure flexibility across diverse environments from live performances to broadcast studios.
_x005F_x005F
With robust pan/tilt locks durable Seetronic power and data connections and a lightweight low-maintenance build the Vizi Pix Z19 is the ultimate tool for creating striking professional-grade lighting displays with unmatched precision and versatility.
_x005F
SPECIFICATIONS
Optical (Foreground LEDs):
19x 30W RGBL (4-IN-1) LEDs 30000 Hour Average LED Life CRI: 86 15000 Lux (Zoomed In to 7° @ 5 meters) 7° to 42° Beam Angle 9° to 60° Field Angle
Optical (Background LEDs):
30x 0.5W SMD RGB LEDs 50000 Hour Average LED Life
Optical (Ring LEDs):
40x 0.5W SMD RGB LEDs 50000 Hour Average LED Life
Features:
Moving Light Pixel Wash with Effects Individual Pixel Control (Foreground & Background LEDs) RGB LED Ring Built-In Pixel Effect Programs Aria X2 Wireless Management System Electronic Strobe / Dimmer Pan/Tilt: 630/540° x 270° Motorized Zoom Colour Calibrated Pixels so units match from batch to batch Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Selectable LED Refresh Rates (900Hz~25kHz) Selectable Dim Modes: Standard Stage TV Arch. Theatre Stage 2 and user settable Dim Speed (0.1S~10S) 4 Dim Curves: Square Linear Inv. Square and S. Curve 0-100% smooth dimming Fan Cooled
Colours:
19x RGBL LEDs (Red Green Blue and Lime) 70x RGB LEDs (Red Green and Blue) Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Built-In Colour Macros 2700K ~ 10000K Linear White Colour Temperature Control Colour Temperature Presets: 2700 3000 3200 4000 4500 5000 5600 6500 8000 and 10000K
Effects:
19x 30W RGBL (4-IN-1) Foreground LEDs Fully pixel mappable 30x 0.5W RGB Background LEDs Fully pixel mappable 40x 0.5W RGB Ring LEDs three channel control Variable Strobe & Pulse effects (0.5Hz to 33Hz) Motorized Zoom (7° to 42°)
Connections:

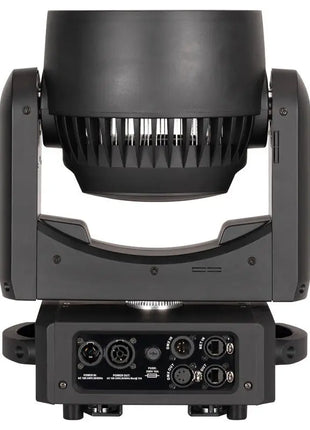

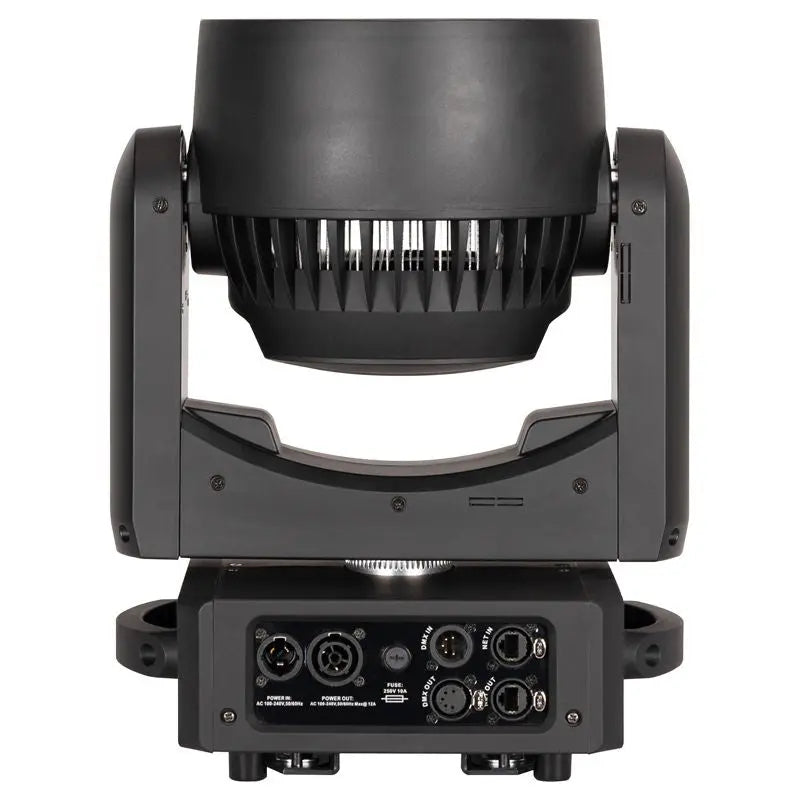

Seetronic IP65 locking power In & Thru Connections Seetronic IP20 5-pin In & Out DMX Connections 2x IP20 RJ45 network ports
Control:
Aria X2 Wireless Management System DMX-512 RDM (Remote Device Management) Artnet sACN 7 DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 & 133 channels Built-In Effect Pixel Programs with Speed and Fade Control With Wired Digital Communication Network
Pan/Tilt:
Pan: 630° or 540° Tilt: 270° 16-Bit Fine Pan & Tilt Pan & Tilt Locks
Electrical:
Multi-voltage operation: AC100-230V 50/60Hz Max power consumption: 690W @ 230V
Dimensions & Weight:
Dimensions (LxWxH): 310x230x408mm Weight: 10.1 kg.
What's Included:
108mm Omega Brackets (2x) 1x 2M IP65-rated locking power cable
Approvals / Rating:
IP20
Specifications are subject to change without notice.
