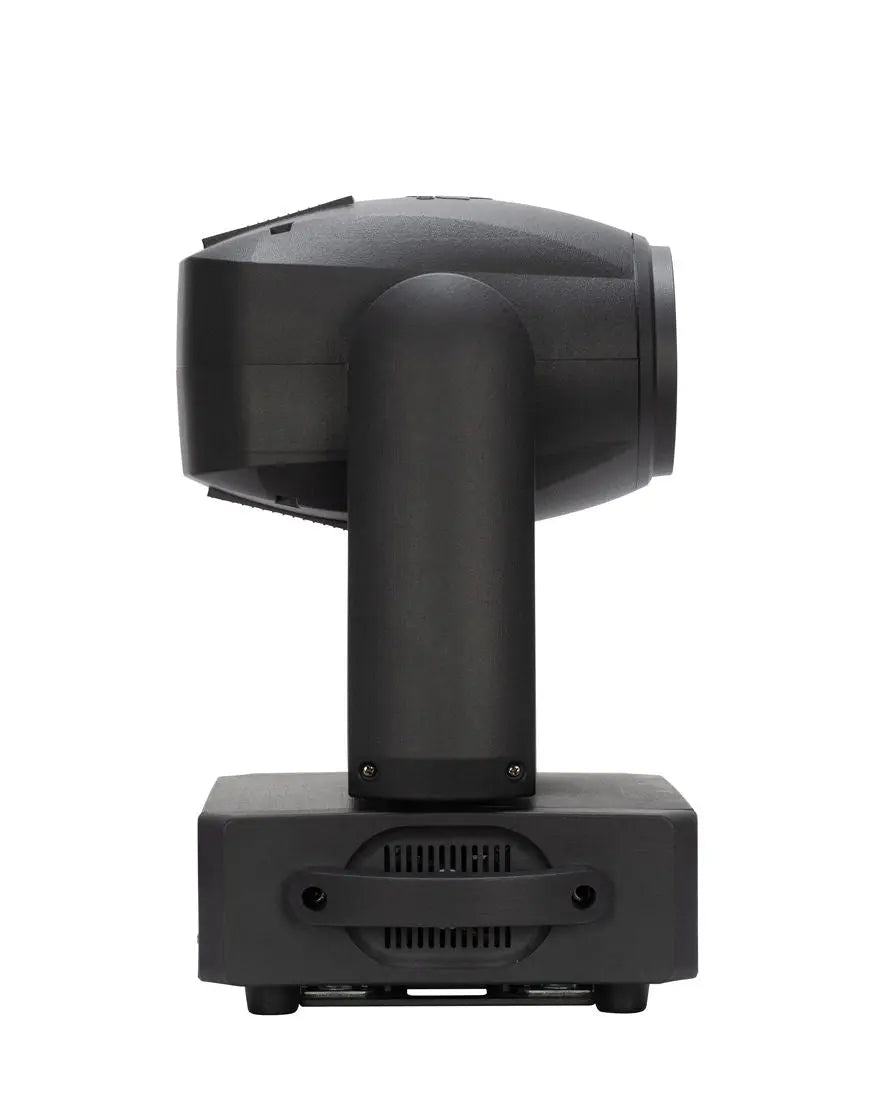

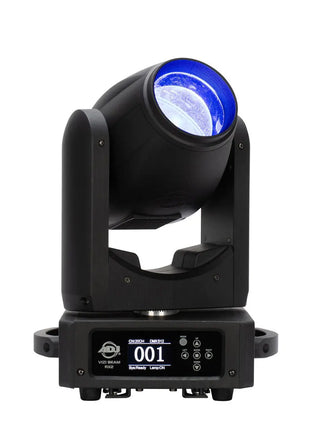

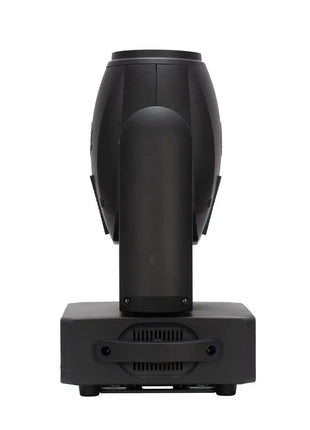

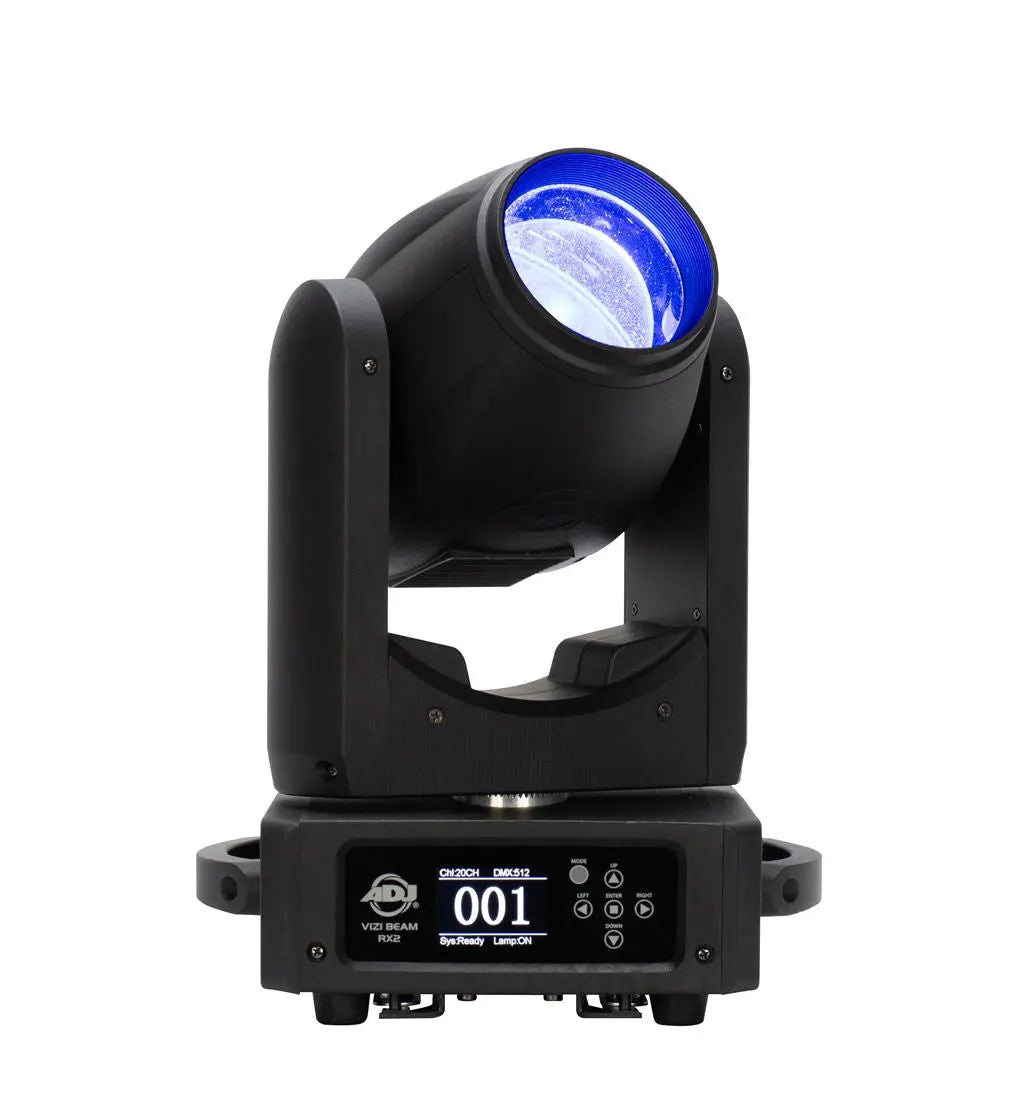

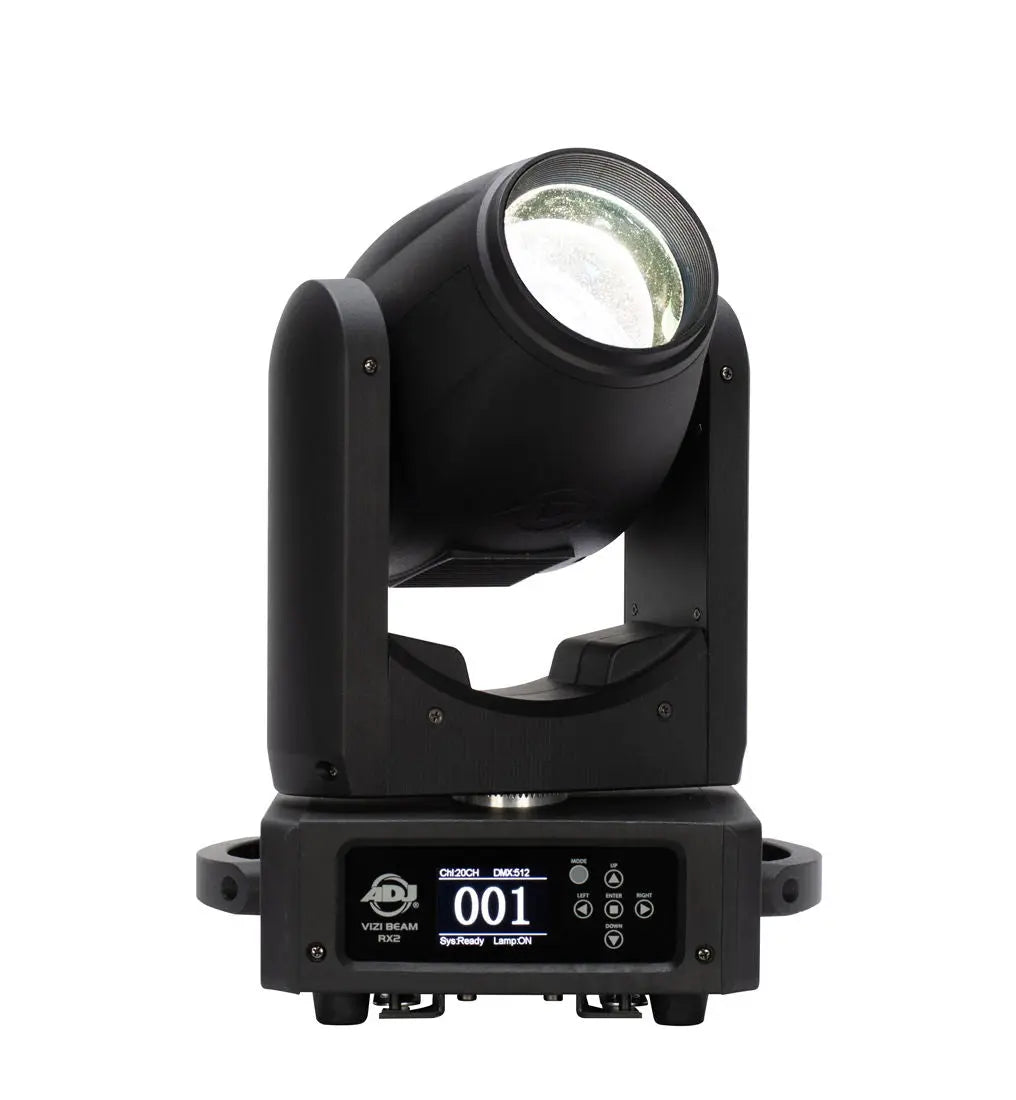

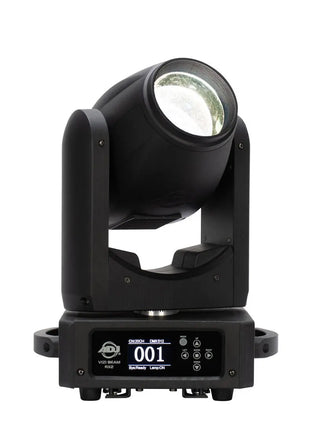

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2 a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6000-hour lifespan this potent fixture delivers stunning visuals with a precise 2-degree beam angle as well as high speed 3-phase pan/tilt motors for maximum performance.
Unlock a wealth of features including on-board wireless DMX two prism wheels (16-facet circular & 4-facet linear) a frost effect motorized focus (with 16-bit fine focus) along with a 14-color dichroic wheel that includes CTO (3200K) CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

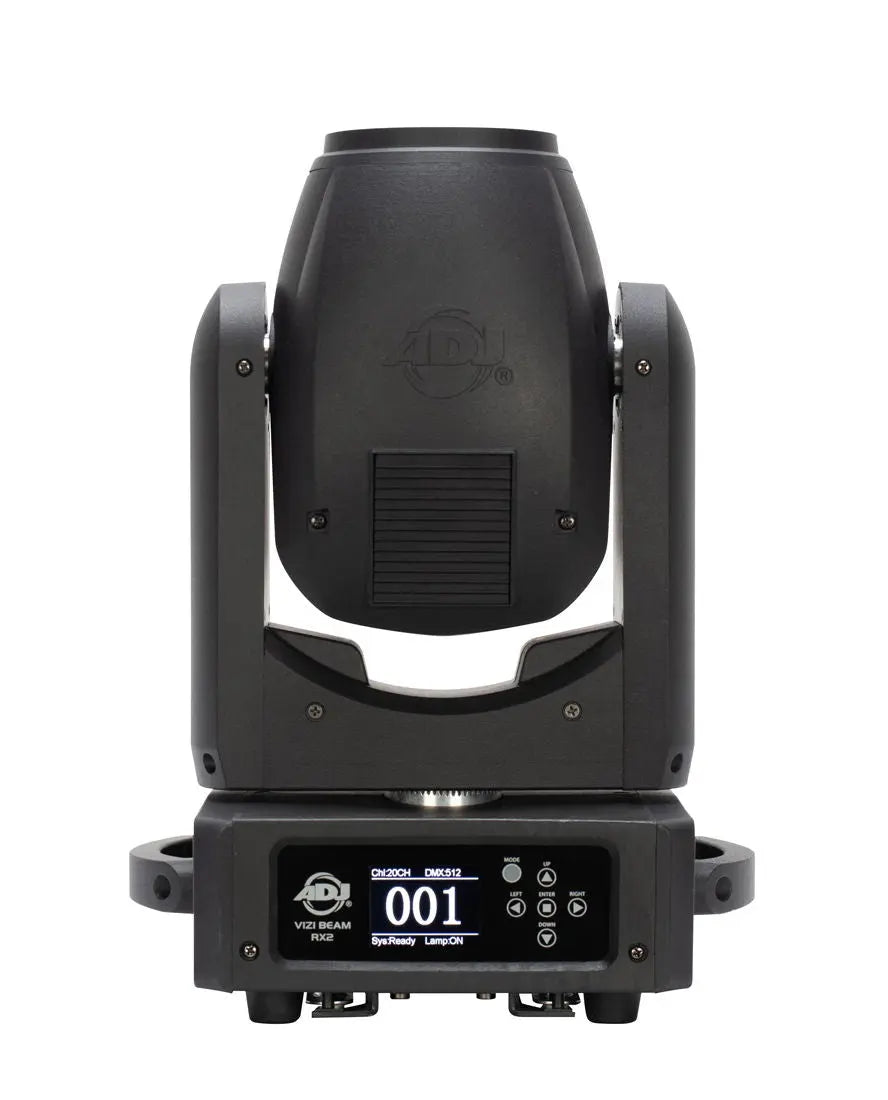

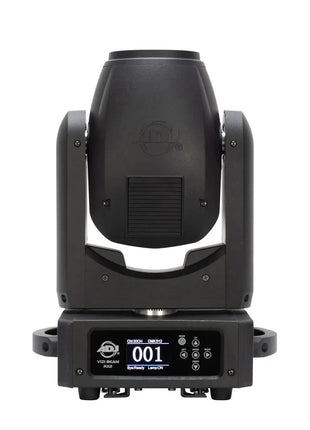

Designed for convenience it features outdoor-rated In/Out locking connections for power daisy-chaining 5-pin In/Out DMX sockets and a colour LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.
SPECIFICATIONS:
LIGHT SOURCE:
OSRAM Sirius HRI 100W Discharge Lamp (6000 hr.) Colour temperature: 9000K (+/- 300K)
FEATURES:
On-Board Wireless DMX Motorized Focus + 16-Bit Fine Focus 2-Degree beam angle Frost Filter (to create wash effect) High Quality Glass Lens 2 Rotating Prisms 0-100% Smooth Dimming Various Strobe Speeds OTA wireless firmware updates Fan cooled
COLOR WHEEL:
14 Dichroic Colours + white (Includes CTO (3200K) CTB (9000K) & UV) Indexable Colour Wheel (for Split Colours)
GOBO WHEEL:
15 static GOBOs + open (3 GOBOs are beam reducers) GOBO Shake Effect
PRISM WHEEL:
2 Rotating prisms 16-Facet circular and 4 facet linear prisms
CONTROL:
Protocols: DMX512 & RDM Control Mode: DMX512 & Manual (On-board Controls) Aria X2 Wireless Management / DMX System 2 DMX Channel Modes: 16/20 Channels Colour LCD display with 4-button function menu 0-100% smooth dimming Various strobe speeds
PAN/TILT:
Pan: 540 Degrees (plus 16-bit fine pan) Tilt: 270 degrees (plus 16-bit fine tilt) 3-Phase High Speed Pan/Tilt Motors
CONNECTIONS:

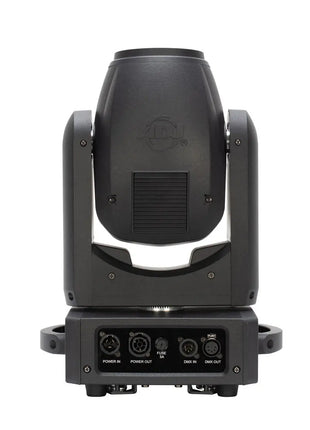

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures) Power Connections: Outdoor locking In/Out connections to daisy chain power
ELECTRICAL:
Multi-voltage Operation: 100-240V 50/60Hz Max power consumption: 157W
DIMENSIONS / WEIGHT:
Dimension: 230 x 304 x 416mm Weight: 7.5 kg.
APPROVALS / RATINGS:
CE cETLus (Pending)
WHAT’S INCLUDED:
2x Omega Brackets (107 Type - Also available as a spare part: 9900027829) 1x 2M Outdoor Locking 14AWG Power Cord
Specifications subject to change. Preliminary Data!
