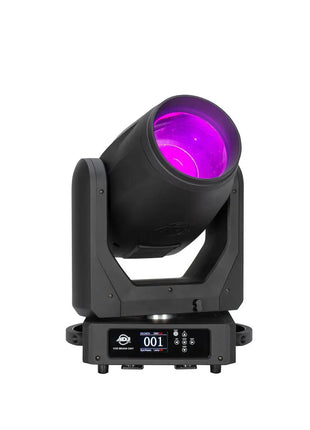

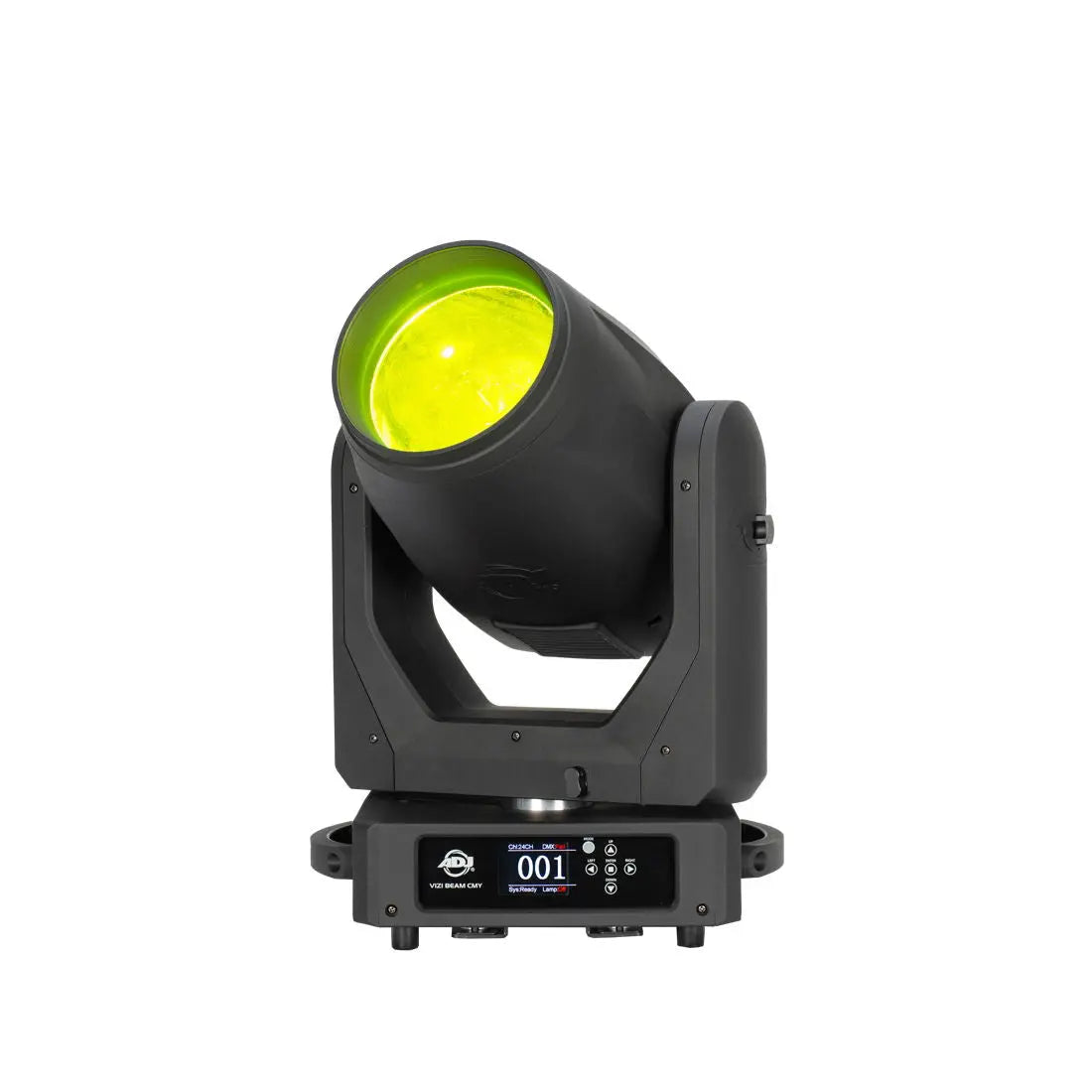

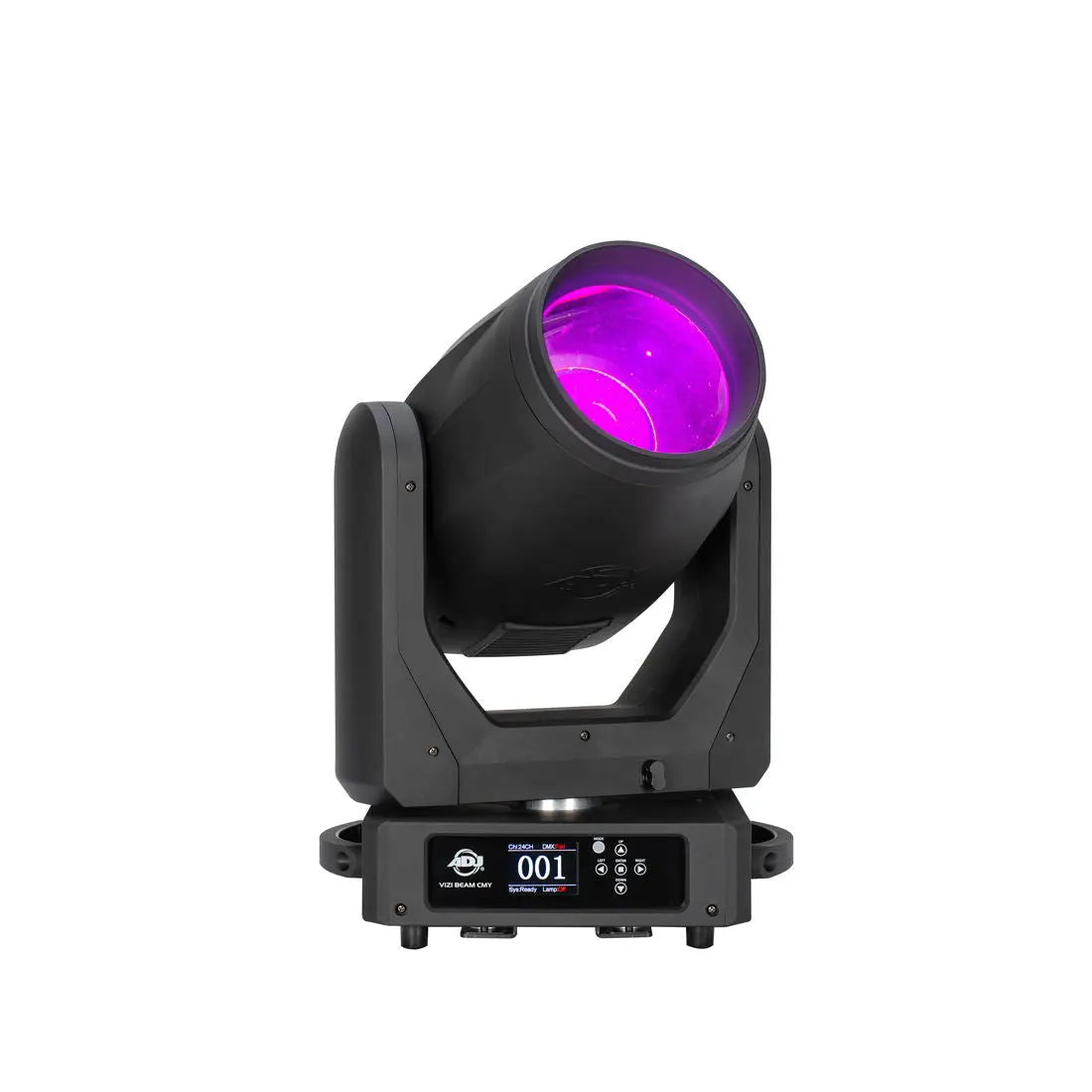

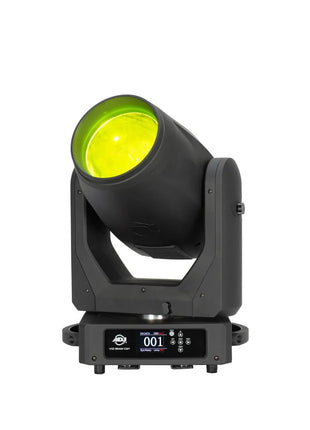

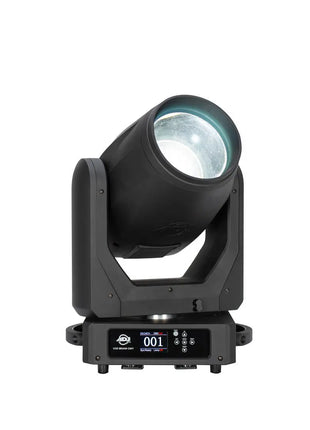

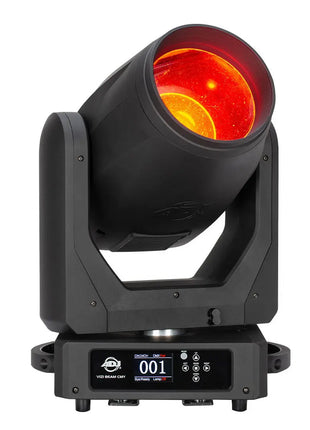

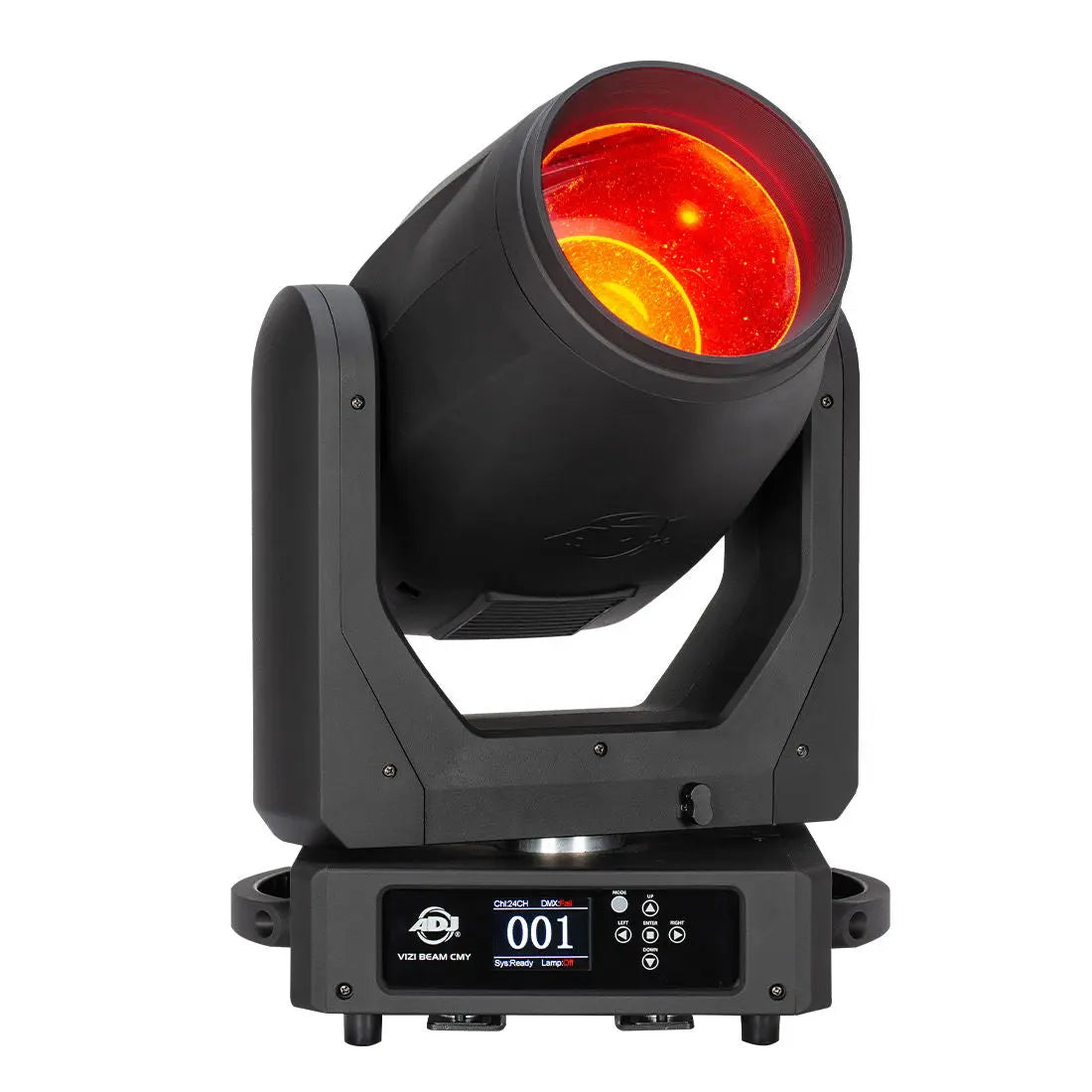

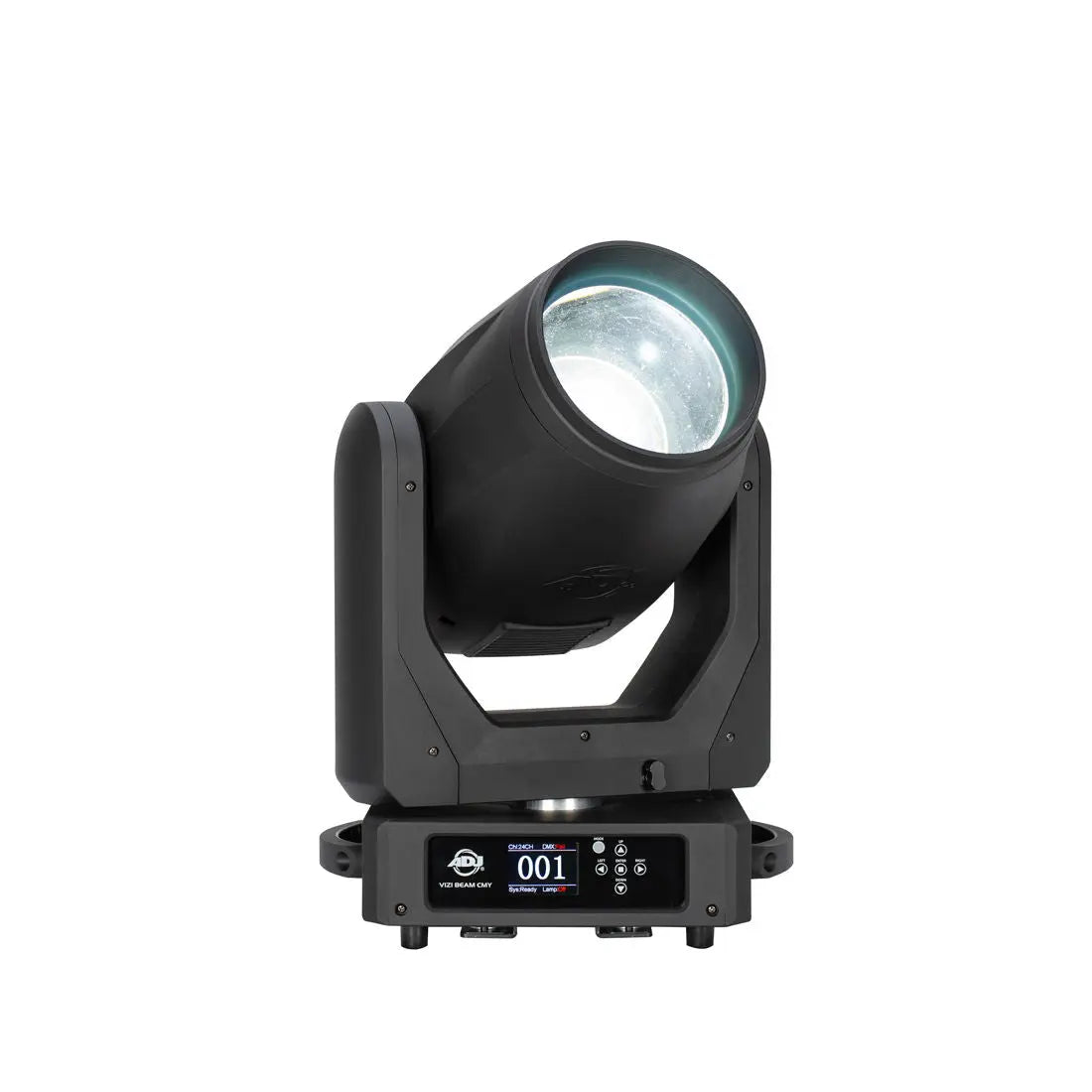

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY a cutting-edge moving head beam fixture designed for the modern lighting professional. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6000-hour lifespan the Vizi Beam CMY delivers stunning visuals with a precise 2-degree beam angle as well as 3-Phase motors for high speed pan/tilt for maximum performance.
Unlock a spectrum of possibilities with CMY colour mixing a 14-color dichroic wheel includes CTO (3200K) CTB (9000k) & UV) and a versatile gobo wheel with 17 static gobos (4 GOBOs are beam reducers) and the dynamic GOBO Shake Effect. Enjoy the flexibility of on-board wireless DMX motorized focus and 16-bit fine focus for meticulous control.
The fixture boasts advanced features including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay) a frost filter for creating wash effects and pan/tilt locks for added stability. With a colour LCD display 0-100% smooth dimming and various strobe speeds the Vizi Beam CMY offers intuitive control.
Designed for convenience it features outdoor locking connections for power daisy-chaining and 5-pin DMX connections. With multi-voltage operation and CE approval the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY – where innovation meets performance.
Light Source:
OSRAM Sirius HRI 310W PRO Discharge Lamp (6000 hr.) Colour temperature: 7850K (+/- 500K) CRI: 86 (+/- 5) LUX: 2025094 (@ 5M) Lumens: 7267
Features:
CMY Colour Mixing On-Board Wireless DMX Motorized Focus + 16-bit fine focus 2-degree beam angle Frost Filter to create wash effect High quality glass lens 2 Rotating prisms 0-100% smooth dimming Pan/Tilt locks Various strobe speeds OTA wireless firmware updates Fan cooled
Colour Wheel:
14 dichroic colours + white (Includes CTO (3200K) CTB (9000K) & UV) Indexable colour wheel for split colours Separate Multi-Colour Effect
GOBO Wheel:
17 static GOBOs + open (4 GOBOs are beam reducers) GOBO Shake Effect
Prism Wheels:
2 Rotating prisms 16 facet circular and 6 facet linear prisms Prisms Overlay
Control:
Protocols: DMX512 & RDM Control Mode: DMX512 & Manual (On-board Controls) 2 DMX Channel Modes: 20/24 Channels Aria X2 Wireless Management / DMX System Colour LCD display with 4-button function menu 0-100% smooth dimming Various strobe speeds With Wired Digital Communication Network
Pan/Tilt:
Pan: 540 degrees (plus 16-bit fine pan) Tilt: 270 degrees (plus 16-bit fine tilt) 3-phase High Speed Pan/Tilt motors
Connections:

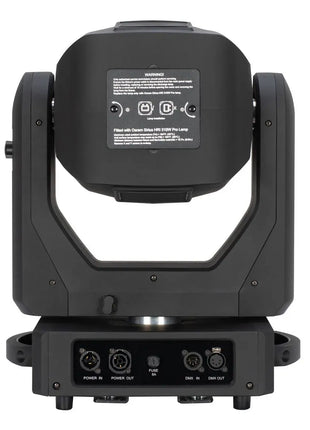

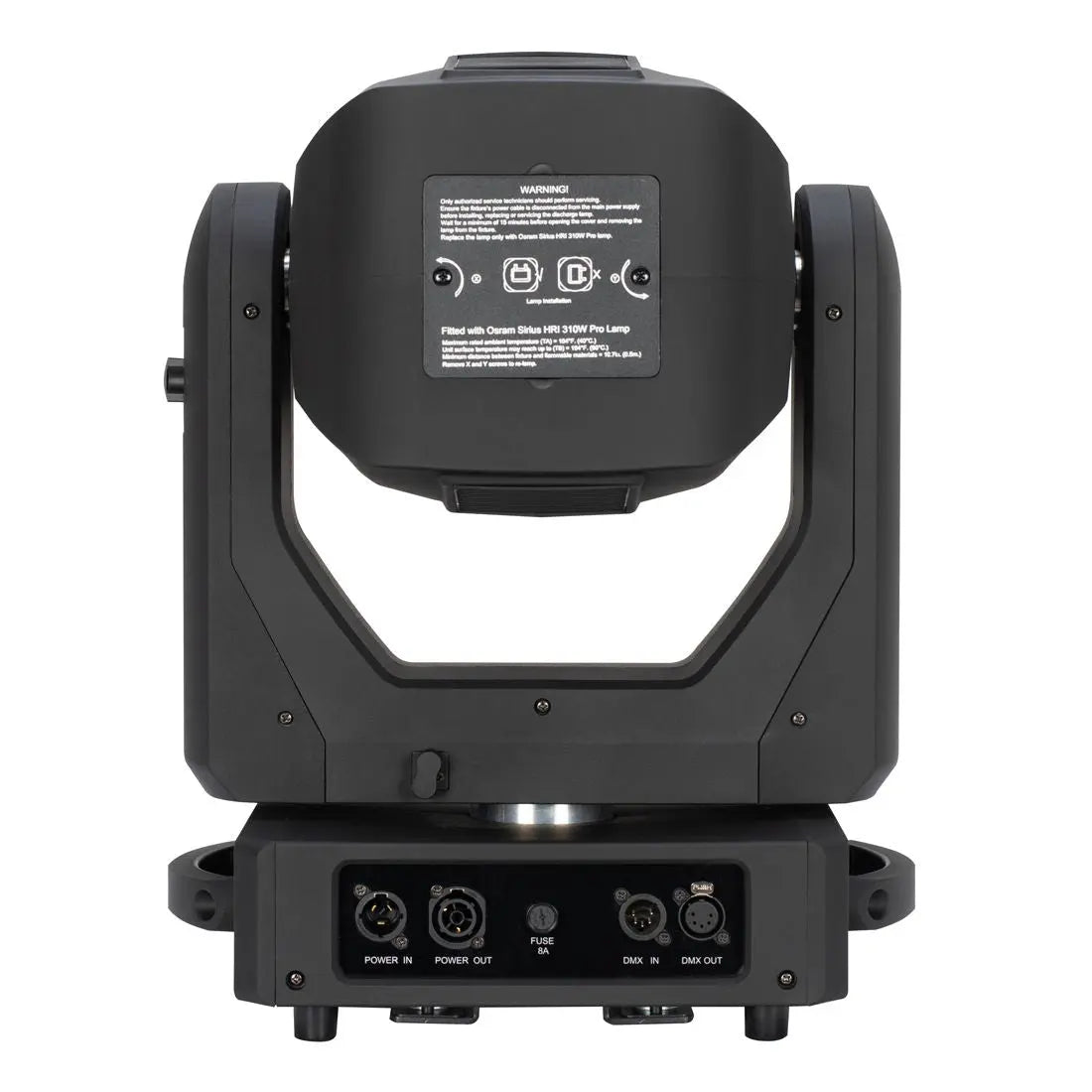

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures) Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical:
Multi-voltage operation: 100-240V 50/60Hz Max power consumption: 390W (@230V) Fuse Protected: 6.5A
Dimensions & Weight:
Dimension: 248 x 364 x 536mm Weight: 18.7 kg
What's Included:

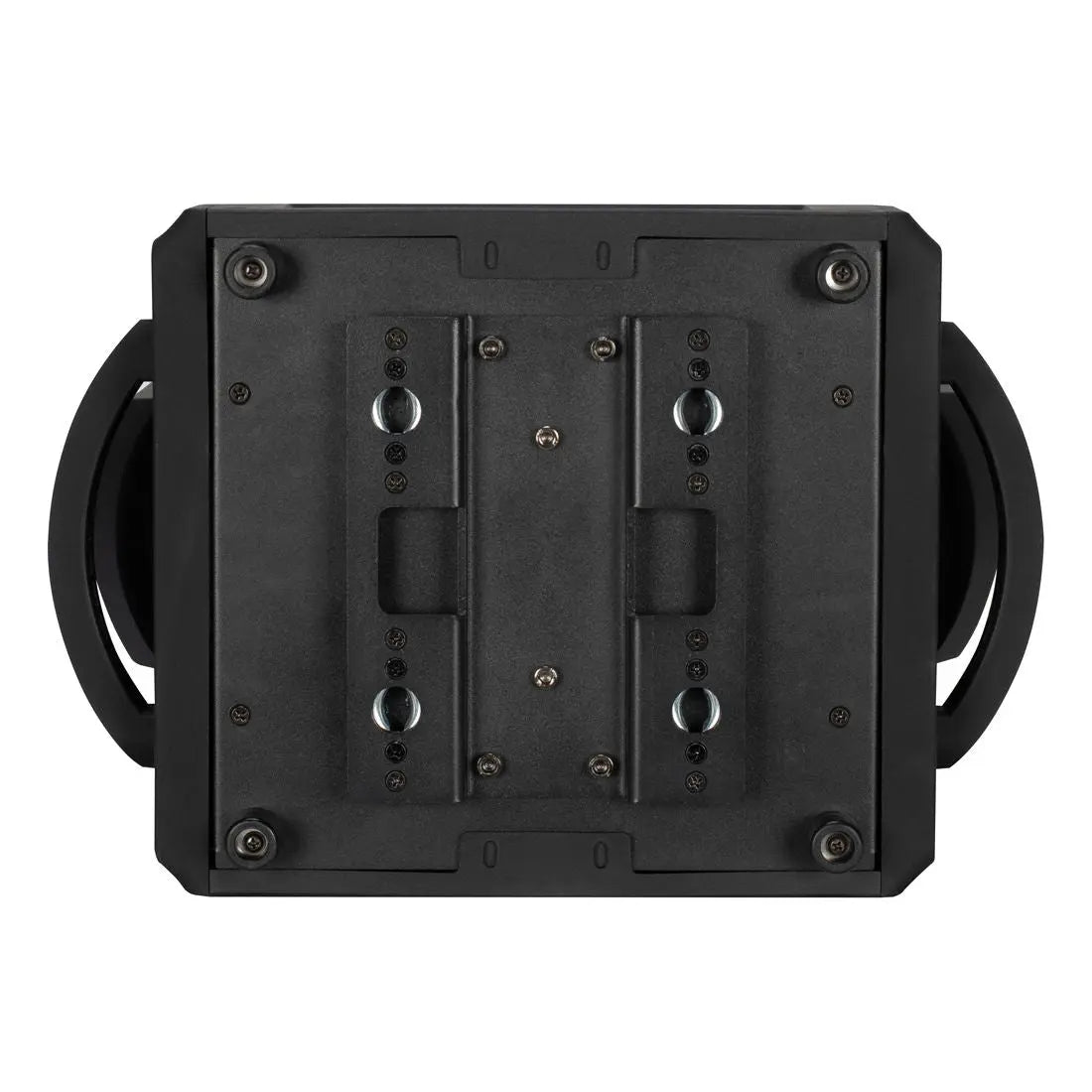

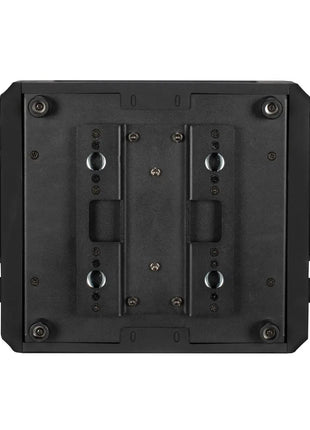

2x Omega Brackets (107 Type - Also available as a spare part: 9900027829) 2M outdoor locking 14AWG power cord
Specifications are subject to change without notice.
