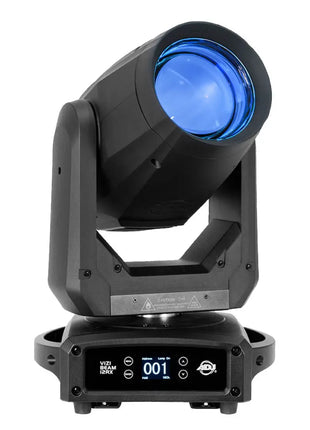

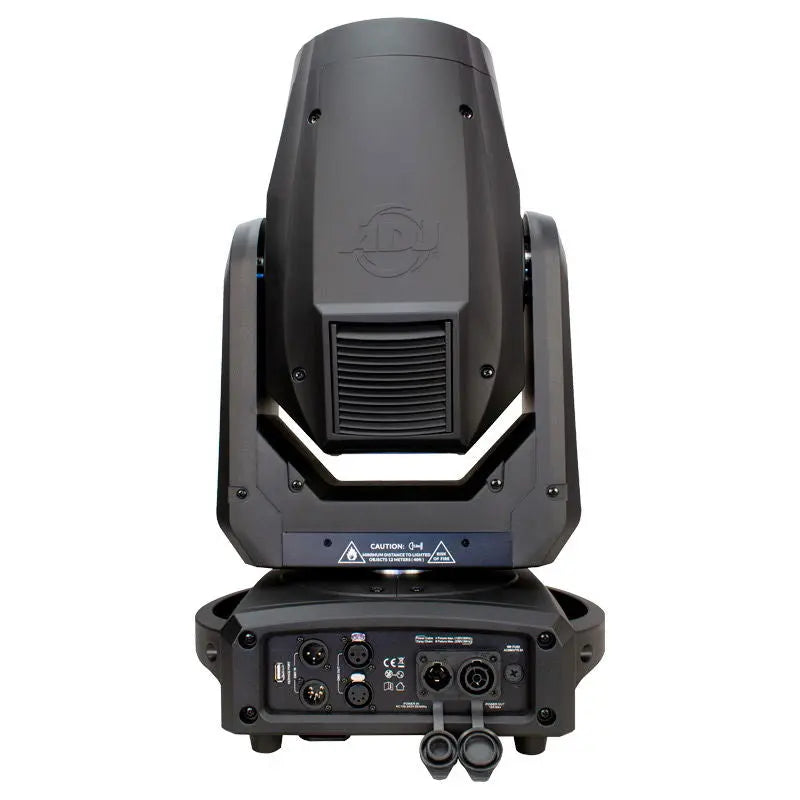

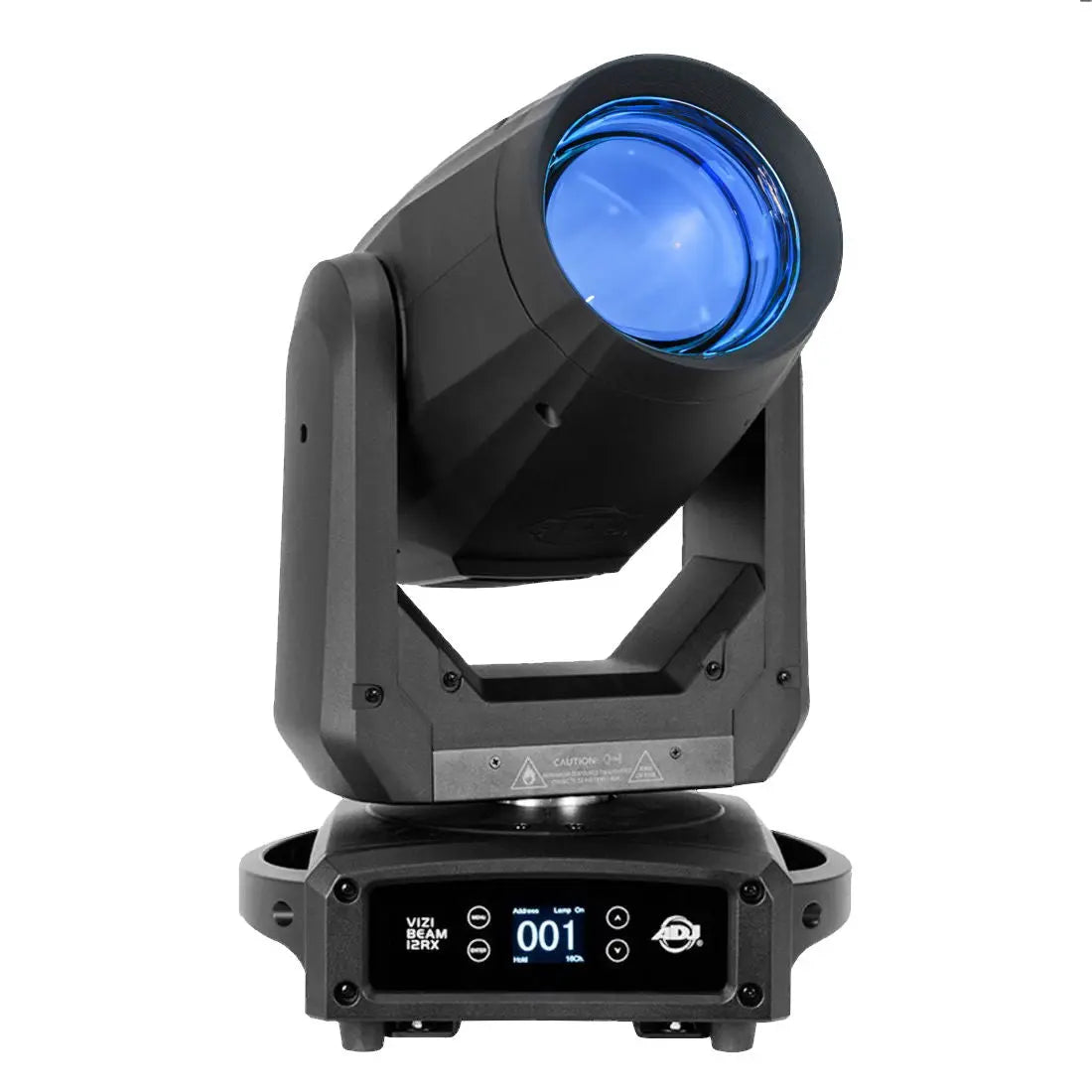

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6000 hr.). It produces a razor sharp 0.8° beam of light with motorized focus. It comes with 14 colours + open (including UV CTO & CTB with colour indexing) 16 fixed GOBOs + open (with GOBO indexing) and a frost filter for wash effects. To create breathtaking aerial effects the Vizi Beam 12RX is fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism.
The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a colour display with 4-button internal menu system.
Specifications
Source
Philips Platinum 12R long-life discharge Lamp wattage: 260W Average lifetime: 6000h Colour temperature: 7500K CRI: 74 Lux: 70000 @ 20m
Optics
Beam angle: 0.8° Field angle: 1.8° High-quality glass lens 24-facet rotating circular prism 6-facet rotating linear prism Linear frost filter Motorised 16-bit focus
Control
2 operational modes: internal programs or DMX 2 DMX channel modes: 14 or 16 channels RDM compatible (Remote Device Management) 16-bit pan: 540° 16-bit tilt: 270° Various strobe effects Colour display with 4-button menu
Colours
1 colour wheel with 11 colours + CTO + CTB + UV + white Split colours
Gobos
1 metal gobo wheel with 12 static gobos + 4 beam reducers + open
Construction
PVC moulding Includes omega brackets
Electrical
Power voltage: AC100-240V 50/60Hz (multi-voltage) Power consumption: 371W
Connections

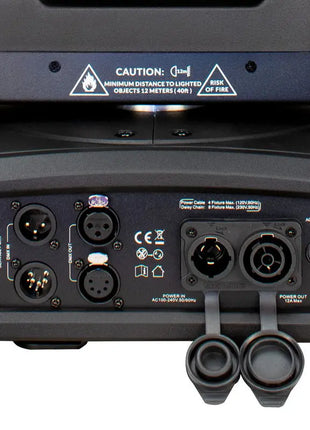

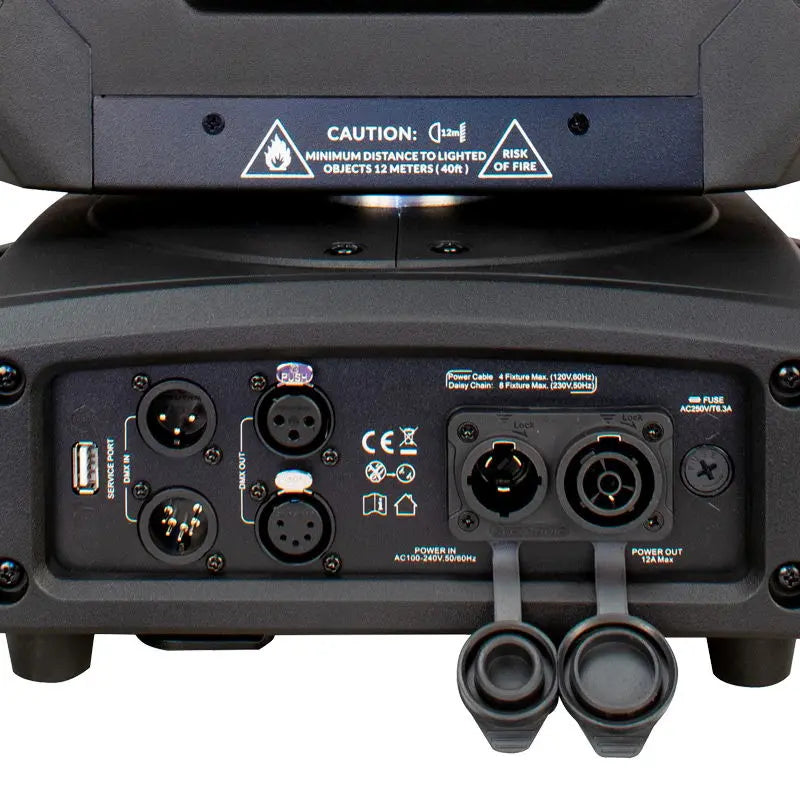

3 & 5-pin locking DMX in/out IP65 locking power in/out USB service port (software updates)
Dimensions & Weight
350 x 343.5 x 565mm Weight: 18kg
Specifications are subject to change
