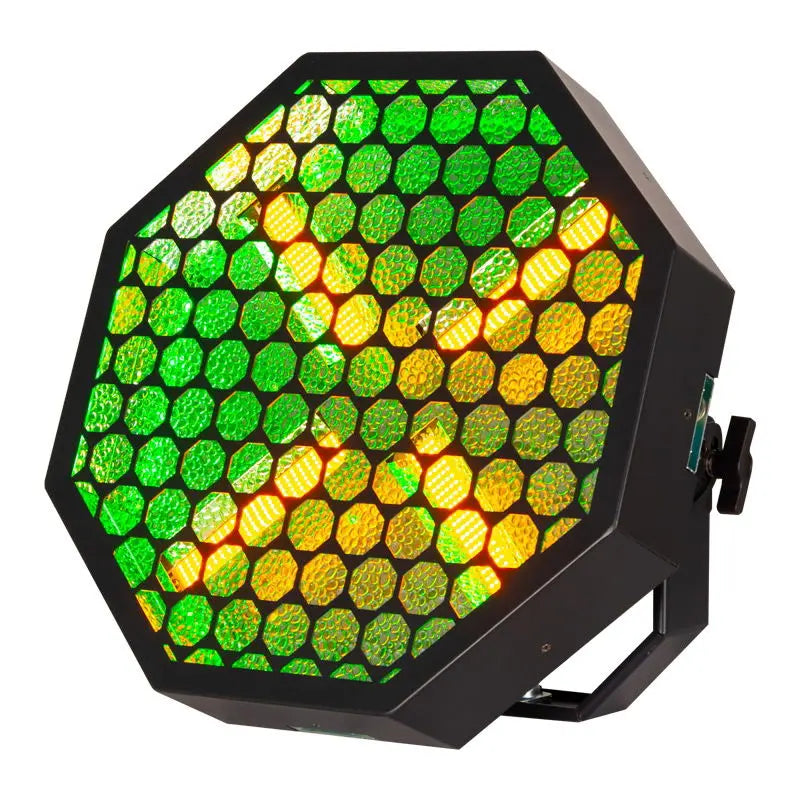

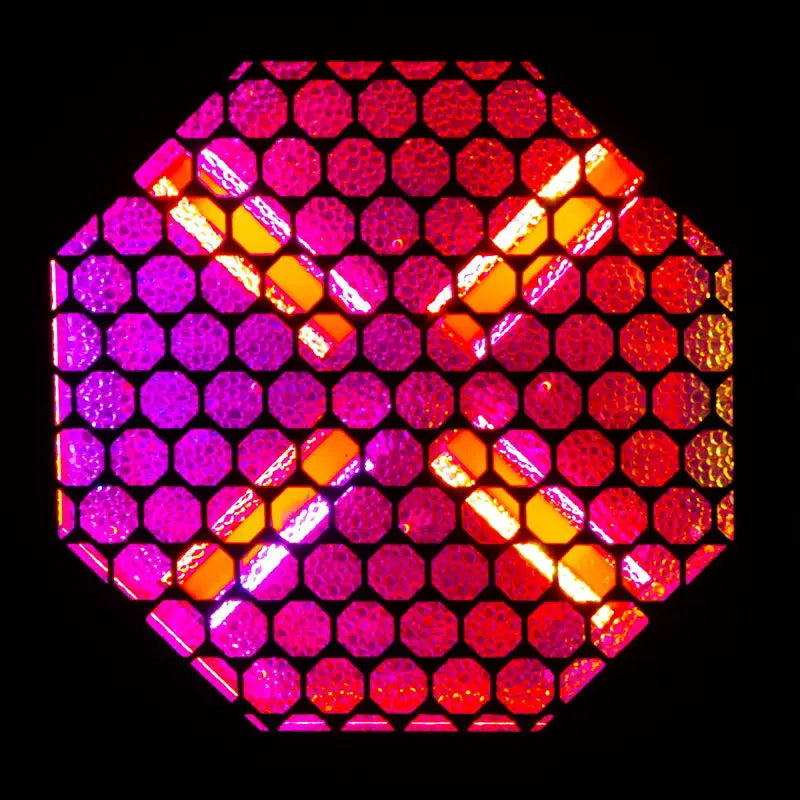

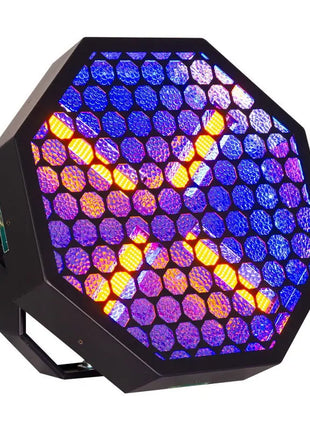

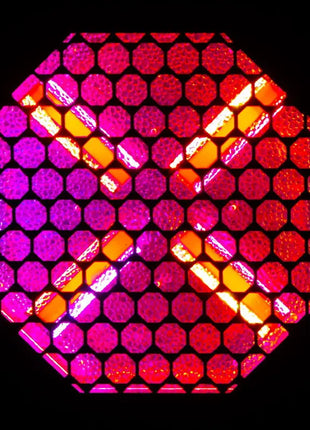

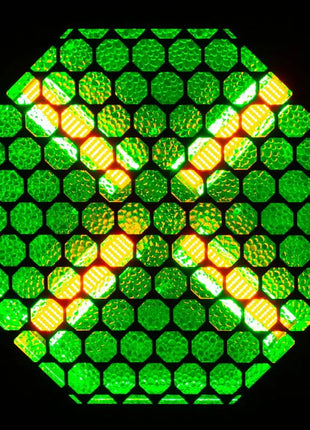

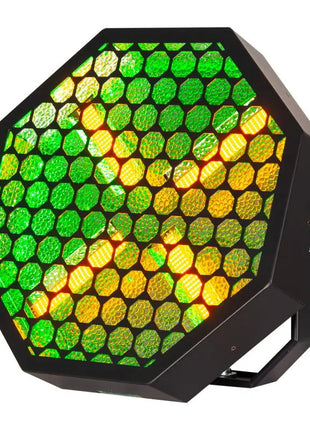

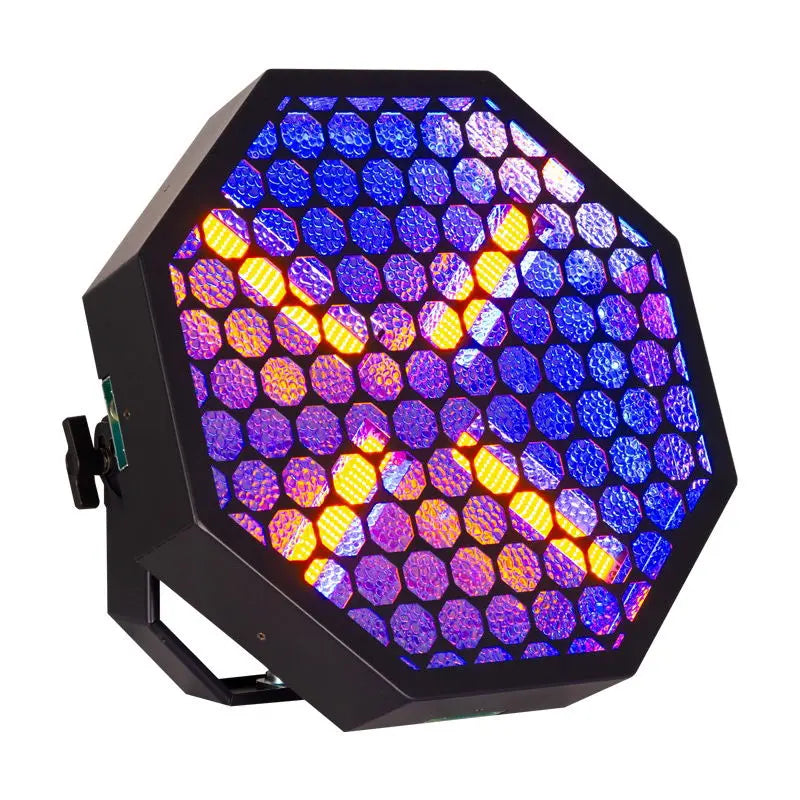

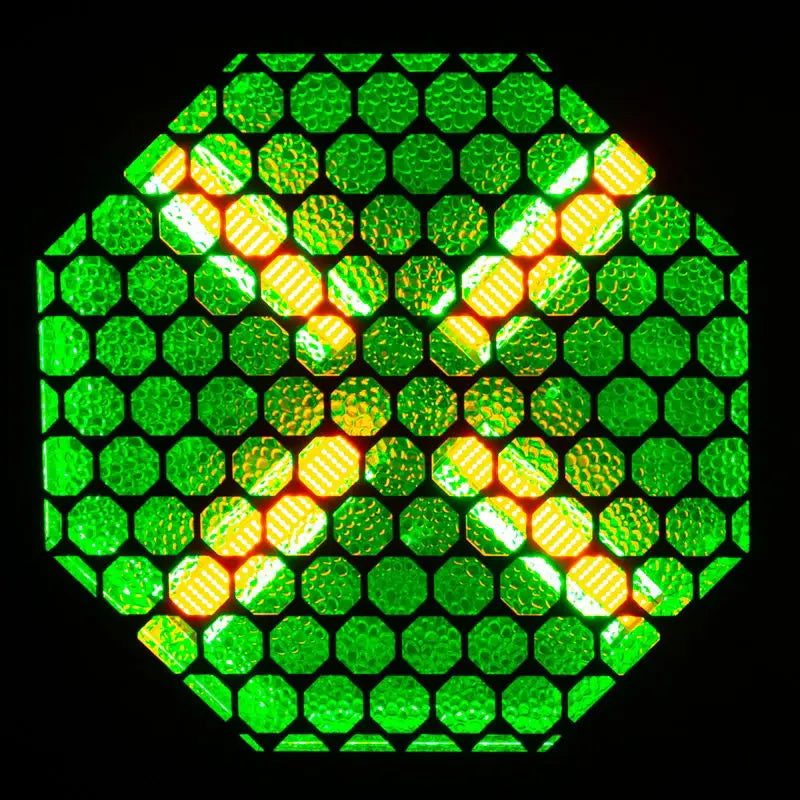

Vintage X is a highly adaptable scenic lighting fixture that sparks creativity and captures attention with its dual-purpose design. Featuring four 60-watt foreground amber LEDs (2000K) it emulates the warm glow of tungsten for a retro blinder effect while 64 vibrant 3-watt RGB LEDs deliver rich dynamic colour tones and stunning effects. This combination allows for smooth dimming transitions and bold captivating lighting displays in an intriguing octagon shaped fixture.
With its wide 150-degree field angle the Vintage X ensures excellent light coverage making it perfect for stage productions live events and theatrical applications. Additional features include advanced strobing effects retro background lighting and silent operation while its flicker-free performance guarantees smooth visuals. The fixture also boasts a user-friendly OLED display and compatibility with DMX RDM Bluetooth and Aria X2.
Designed for flexibility the Vintage X supports multiple control modes and interlocking making it ideal for immersive lighting environments. Combining classic vintage aesthetics with cutting-edge technology it offers both creative versatility and reliable performance for modern lighting designs.
SPECIFICATIONS
Source:
(4) 60W 2000K Amber Foreground LEDs (64) 3W RGB Background LEDs 50000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.Optical:
Amber: 2000K (+/- 50K) RGB: 2700K ~ 10000K White Colour Temperature Range Output: 220 Lux 7000 to 8000 Lumens 140°Beam Angle 150°Field Angle
Features:
4 Foreground Amber LEDs 64 Background RGB LEDs All LEDs are Individually Controllable via DMX Built-In Foreground LED Programs Built-In Background LED Programs Variable White Colour Temperature Control (2700K ~ 10000K) (RGB LED) User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (0.1Hz ~ 20Hz) Electronic Dimming
Physical:

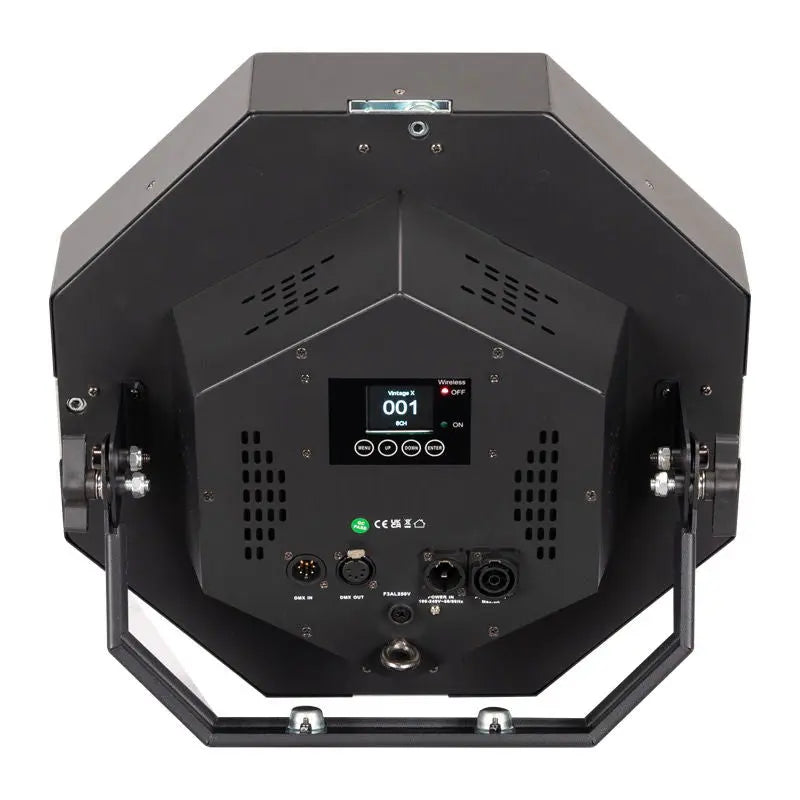

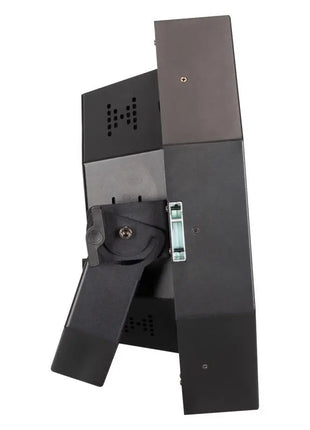

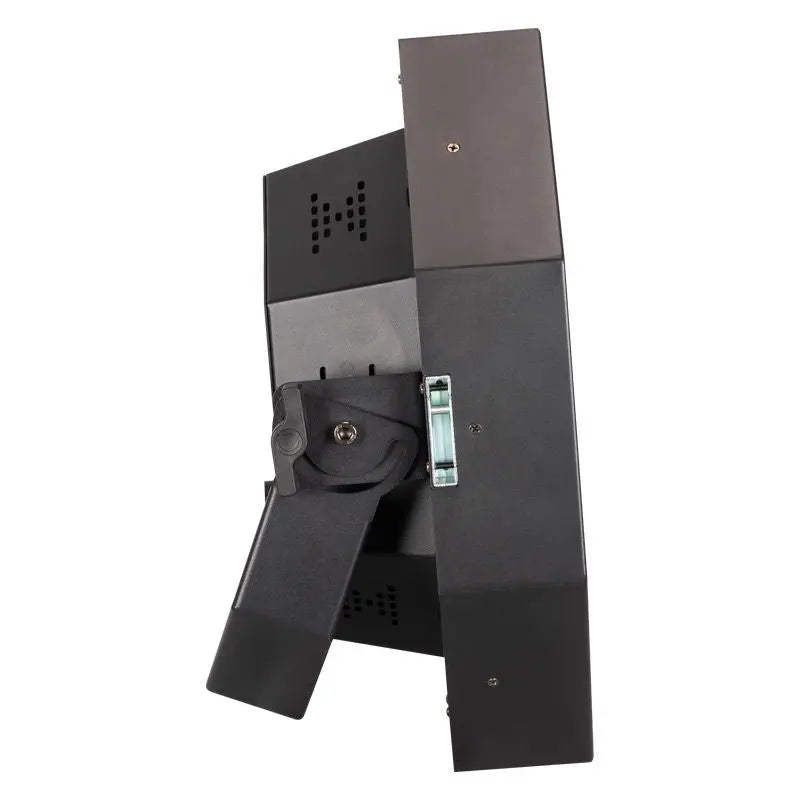

IP20 Metal Housing Safety Eyelet Digital Display Coffin Lock System to Interlock up to 8 Vintage X units Adjustable Hanging Bracket Omega Clamp Receivers (Omega Clamp Sold Separately
Control:
DMX512 Aria X2 Wireless Management / DMX System Bluetooth RDM and RDM Net Compatible (9) DMX Channel Modes (8 13 22 39 43 196 200 208 & 211 Channel modes) On-board Manual Control Mode Primary / Secondary Mode
Connections:

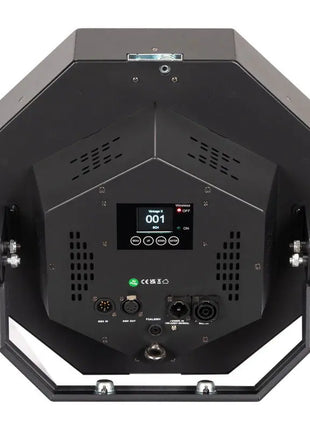

5-pin XLR DMX In/Out Sockets IP65 Locking Power In & Thru Sockets
Dimensions & Weight:
Length: 398.4mm Width: 398.4mm Height: 194mm Weight: 8.2 kg
Power:
AC100-240V/50Hz-60Hz Input 200W Power Consumption Link 4 pieces @ 230VAC
Thermal:
Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°C
Certifications & IP Rating:
IP20
Included Accessories:
(1) IP65 Locking Power Cable
Optional Accessories:
Omega Clamp (107mm)
Specifications and documentation subject to change without notice.
