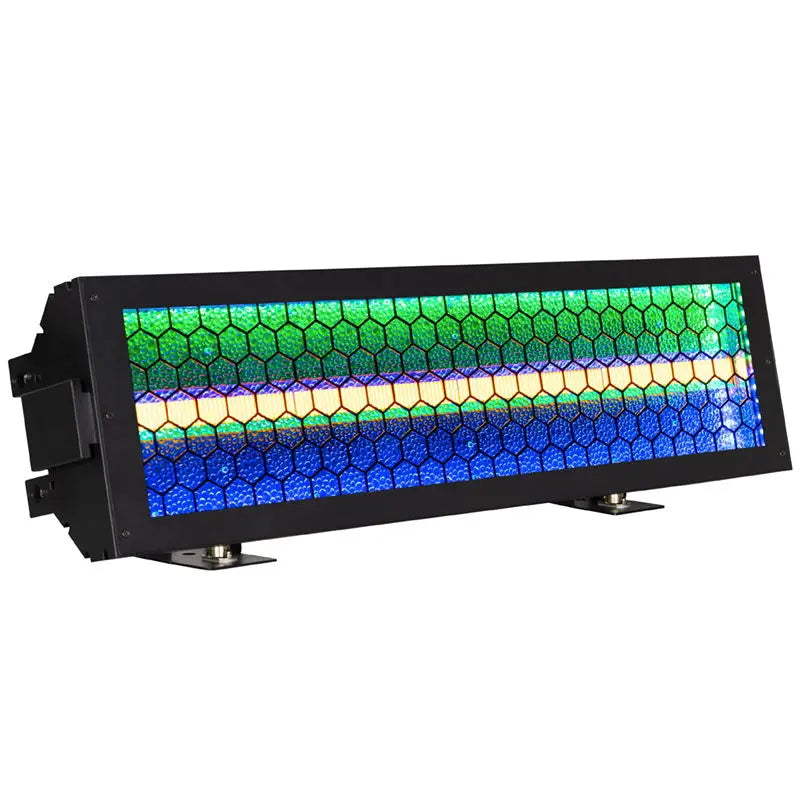

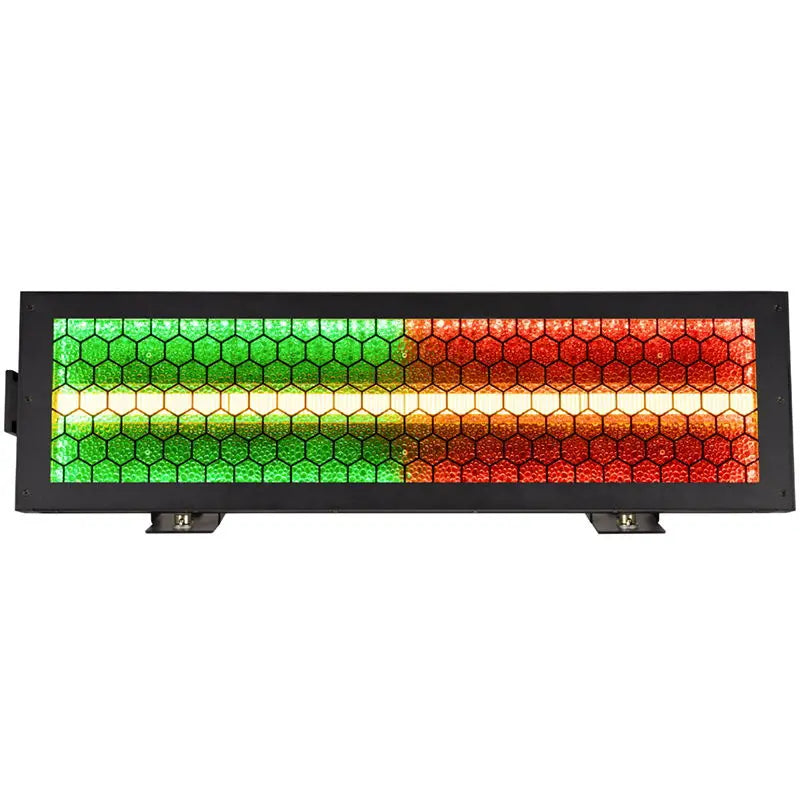

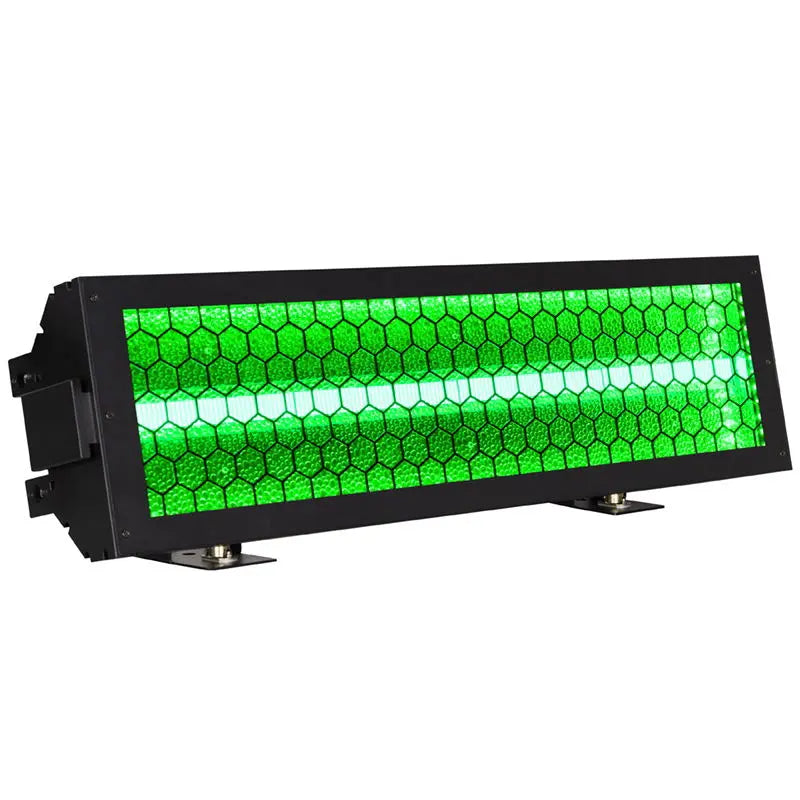

Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2000K) for a retro blinder effect combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting stunning multi-colour eye candy effects and smooth dimming transitions.
Its wide field angle of 160° ensures exceptional light dispersion making it ideal for stage productions events theatrical applications. The fixture features advanced strobing retro background effects and silent operation. Additional highlights include flicker-free performance a user-friendly OLED display and support for DMX RDM and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.
Built for flexibility the Vintage Bar offers multiple control modes pixel mapping and interlocking capability making it perfect for immersive lighting setups. With robust engineering and creative potential it combines vintage charm with modern functionality for modern lighting designs.
SPECIFICATIONS
Main Technical Parameters:
• Primary Light Source: 4 pcs high-power 150W COB Amber LED
CCT: 2000K Lumens: > 27000 Lux: 647 @ 5 meters CRI: 70 Field Angle: 160°
Secondary Light Source:
120 pcs SMD 5050 RGBL LEDs (0.8W each) Configured into 20 pixel groups (6 LEDs per group)
Special Effects:
Powerful strobe 0.5 to 33Hz Unique retro RGBL background effect Silent operation with low noise
Additional Features:

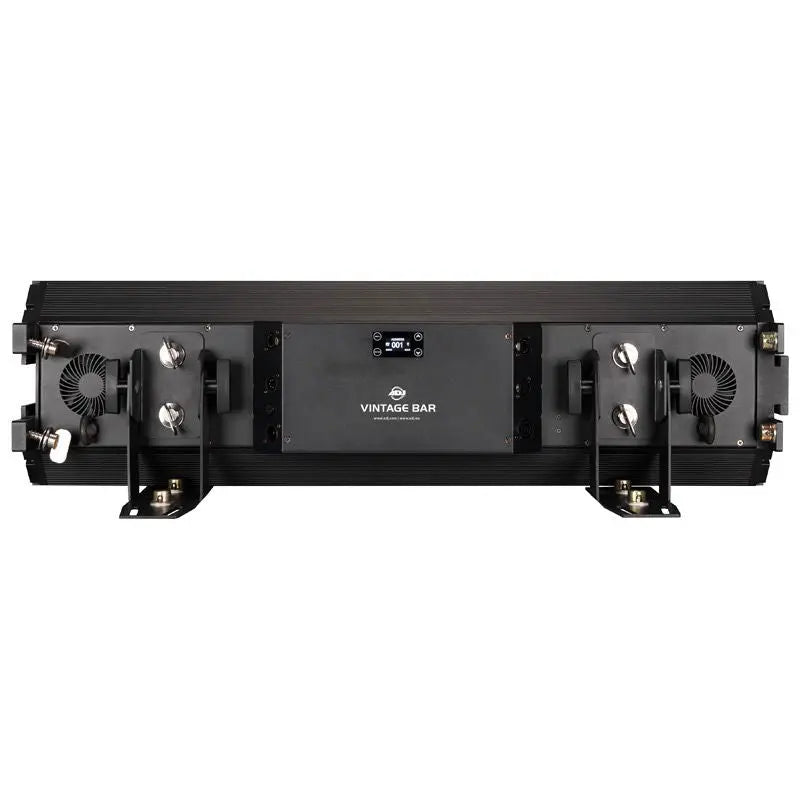

Aria X2 Management System Flicker-free OLED display with a 4-button touch menu Capable of interlocking multiple units together Dimmer: 0-100% linear dimming system
Control Modes:
Primary/Secondary synchronization Stand-alone mode DMX512 control mode 10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels) DMX RDM and Art-NET protocol support
Connections:
IP20 indoor 5-pin DMX Input and Thru IP20 indoor RJ45 Ethernet IP65 outdoor power locking Input and Thru
Dimensions & Weight:
Dimensions (LxWxH): 908x292x257mm Weight: 19 kg
Power:
Input: AC100-230V/50Hz-60Hz Power Consumption: 750W @ 230V Power Link: 2 pieces @ 230V
Optional Accessories:

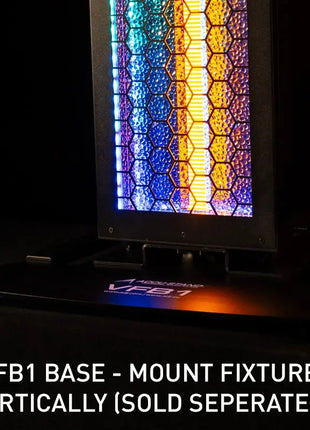

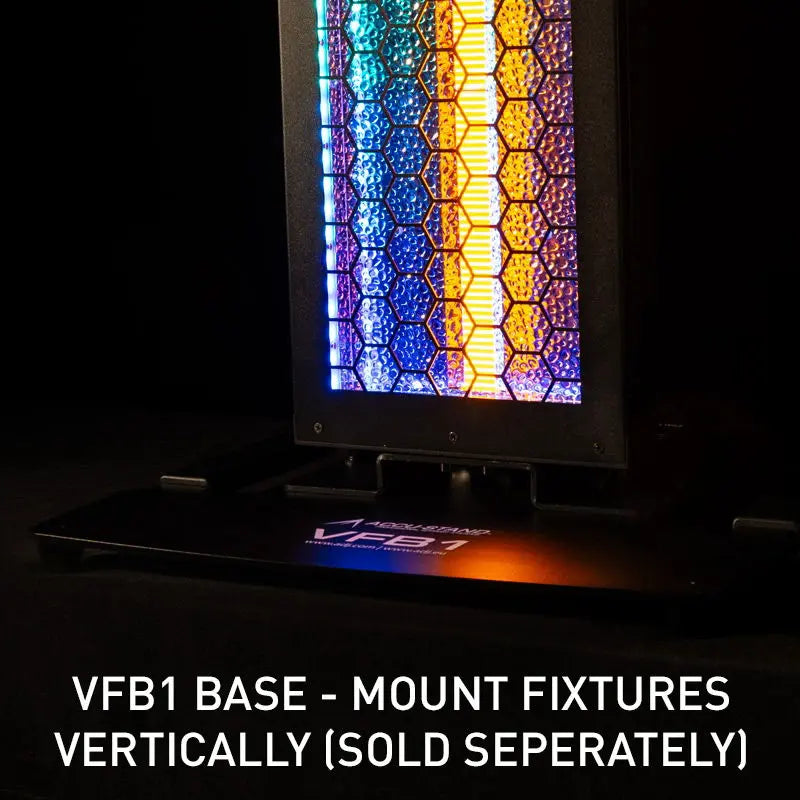

VFB (Floor Base for Vertical Stand) VFB-VBA (Adapter to Adapt Vintage Bar to VFB Floor Base. One Adapter is Required per Floor Base)
Specifications are subject to change without notice.
