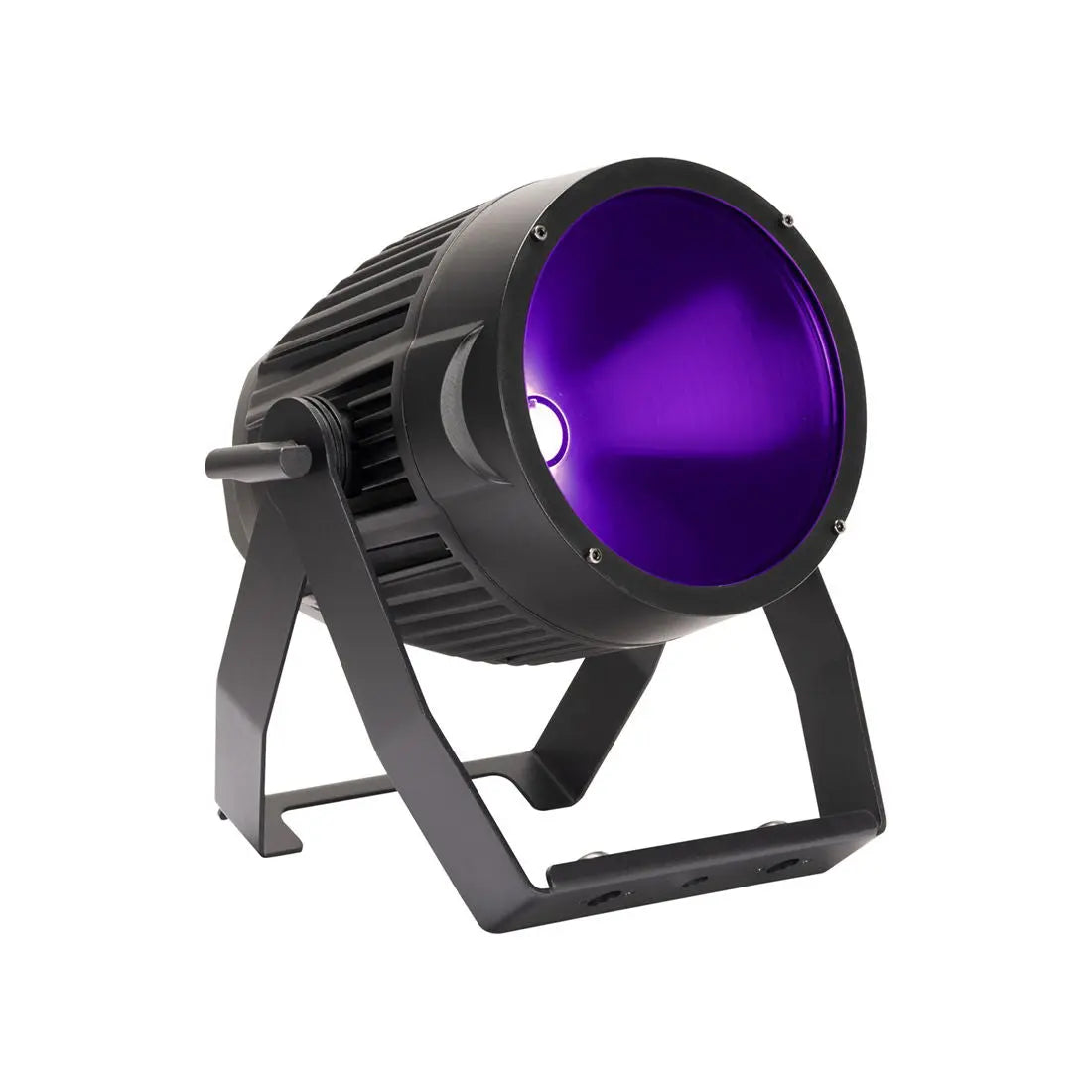

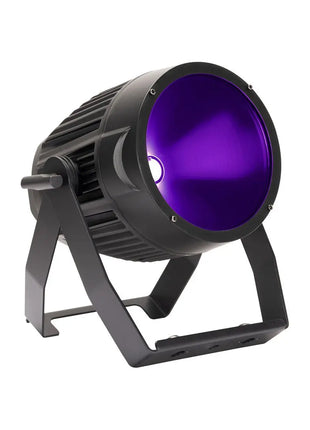

The UV PAR 100IP is a robust and adaptable ultraviolet LED fixture perfect for professional lighting stages and venues that require a strong black light effect. Its IP65 rating ensures dependable protection from dust sand and moisture making it suitable for both indoor and outdoor environments. Featuring a 100-Watt C.O.B. (Chip On Board) UV LED it provides a massive 120-degree beam angle and operates in the 390-399nm wavelength range delivering vibrant and consistent UV lighting.
Designed for ultimate control the UV PAR 100IP supports DMX and RDM protocols offering a range of dimming modes and curves for tailored lighting. It provides a full 0-100% dimming range and comes with linear pulse and random strobe effects. Adjustable LED refresh rates from 900Hz to 25kHz guarantee flicker-free performance even for video and camera applications. The OLED display with a 4-button touch interface ensures easy operation. Additionally the UV Par 100IP is equipped with the Aria X2 wireless management system.
Durable and designed for tough environments the UV PAR 100IP features IP65-rated DMX and power locking inputs. It's all metal housing includes a scissor yoke with Omega bracket receivers for flexible mounting options. CE FCC and cETLus certified this fixture is both safe and dependable for professional use.
SPECIFICATIONS
Light Source:
1x 100W C.O.B. Ultraviolet LED 120° Beam Angle Wavelength: 390-399nm 30000 Hour Average LED Life
Features:
Aria X2 Wireless Management System Control Protocol: DMX & RDM DMX Modes: 4 (1 2 3 & 6 Channel Modes) Dim Modes: 6 Presets (Standard Stage TV Architectural Theatre & Stage 2) Dim Curves: 4 Presets (Square Linear Inv. Curve & S-Curve) Dim Speed control (0.1~10 Seconds) Dimming: 0 - 100% Linear Pulse and Random Strobe control Adjustable LED Refresh Rates (900~25k Hz) With Wired Digital Communication Network Display: OLED display with 4-button touch menu
Connections:
Data Input: IP65 rated 5pin DMX In/Out Power Input: IP65 power locking In/Out (with protective rubber caps)
Electrical:
100-240V 50Hz/60Hz (Auto Sensing) Max. Power Consumption: ?W
Physical:

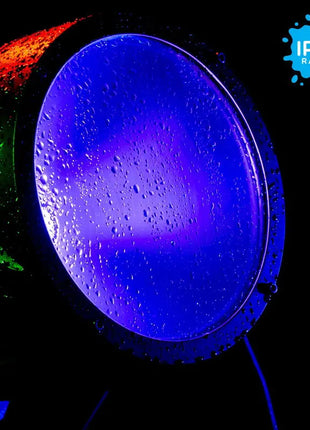

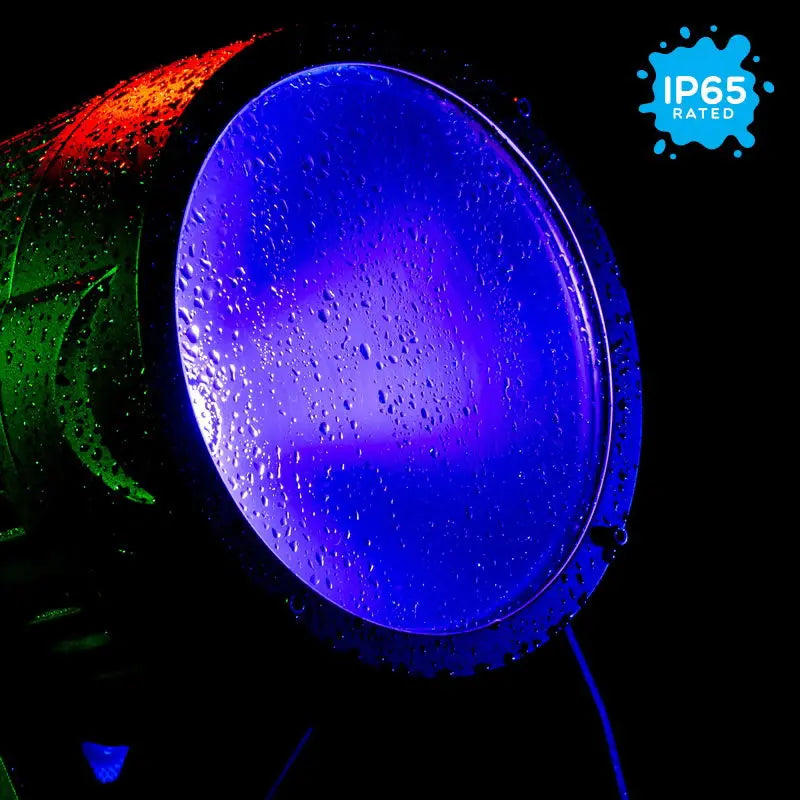

Outdoor Rated IP65: protects from dust sand moisture liquid. 6 (Protection against Dust); 5 (Protection against Water) Please note: you must use IP65 data and power cables in order for this fixture to be IP65 outdoor rated. Safety Cable Loop Scissor yoke with Omega bracket receivers (108mm Omega Bracket sold separately 1226100419)
Dimensions / Weight:
Length: 367mm Width: 316mm Height: 111mm Weight: 6.4kg
What's Included:
1x IP65 6' locking power cable (1.83m)
Approvals:
IP65-Rated
Specifications are subject to change without notice.
