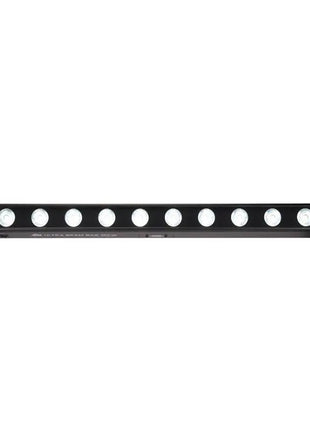

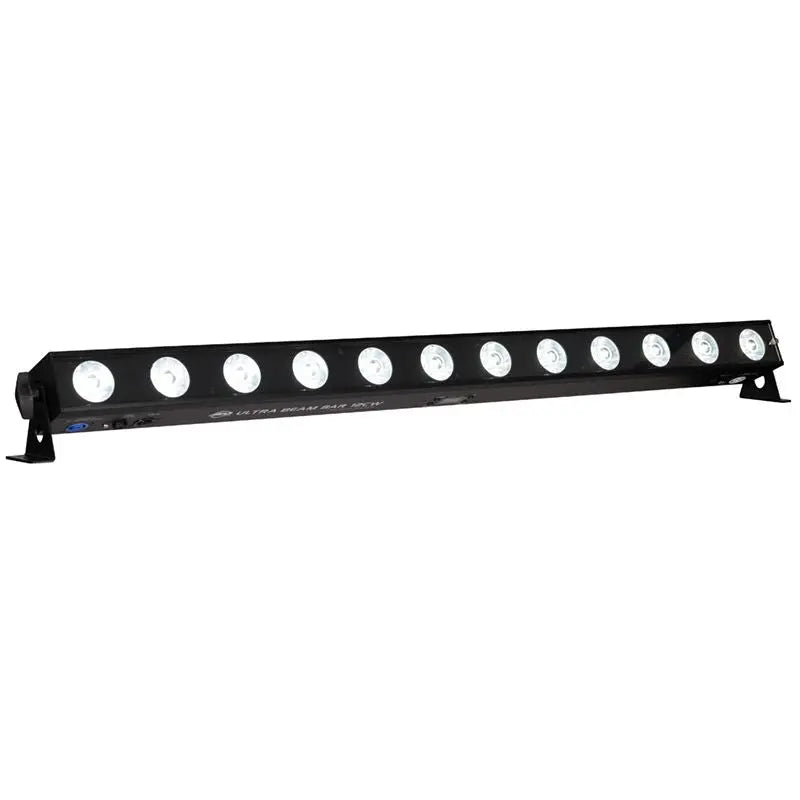

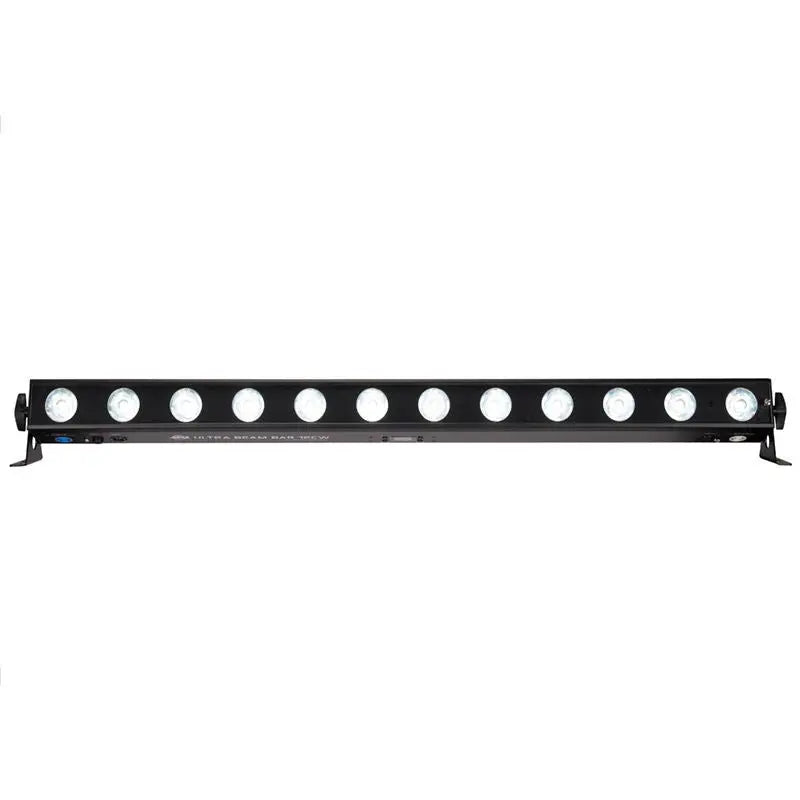

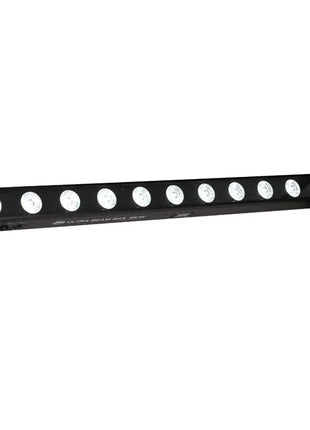

The Ultra Beam Bar 12CW is a powerful versatile LED lighting solution designed for energetic indoor environments like stages clubs and entertainment venues. Measuring 1 meter this sleek linear bar is equipped with twelve high-performance 20W cool white LEDs offering an impressive 6200K colour temperature and 5-degree beam angle per pixel for sharp precise illumination.
With individual pixel control via DMX and a wide range of built-in programs including synchronized and random strobe effects the Ultra Beam Bar 12CW allows for stunning visual effects and dynamic lighting design. The fixture offers 13 built-in programs and a customizable strobe rate from 0.3Hz to 11Hz giving you full creative control over your lighting setup.
For added convenience the Ultra Beam Bar 12CW includes the UC-IR remote for easy operation and supports DMX RDM and RDM Net for seamless remote monitoring and control. It also features 0-100% electronic dimming multiple dim modes and dim curves to suit any environment from stages to TV sets.

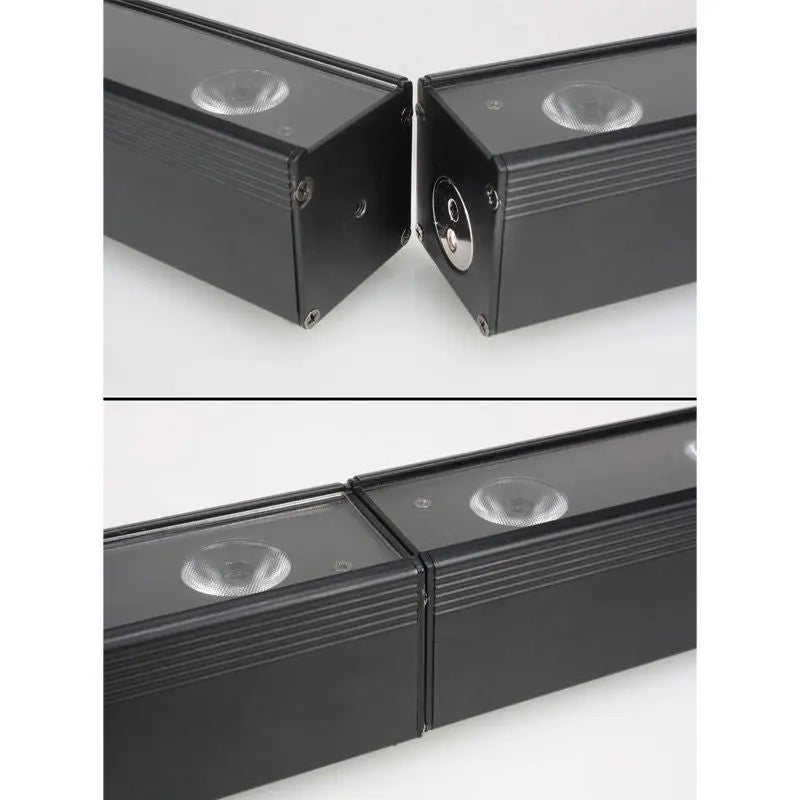

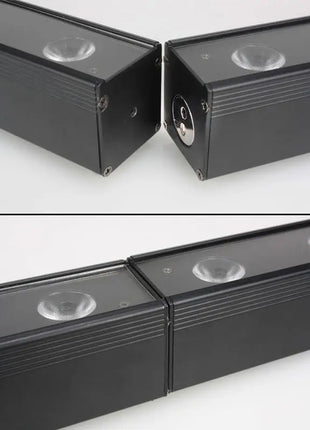

Like other ADJ Ultra Bar Series fixtures the Ultra Beam Bar12CW has magnets on the end caps allowing seamless fixture alignment when using multiple fixtures together. With its compact design easy installation and linkable power capabilities the Ultra Beam Bar CW12 is the ideal lighting solution for any professional lighting setup.
SPECIFICATIONS
Light Source:
12 x 20W Ultra bright (6200K Cool White) LEDs Long Life LEDs (Rated at approximately 50000 hrs.) 1340 Lumens 5° beam angle (Per pixel) Pixel Pitch: 85.5mm
Features:
12 Sharp Beams Primary / Secondary stand alone control mode 13 Built-In Programs Compatible with the ADJ UC-IR remote. Operates at a distance of up to 32.8 feet (10 meters). UC-IR included. Horizontal Magnetic Alignment feature (Built-In) DMX RDM and RDM NET Compliant Pixel Flip mode
Control:

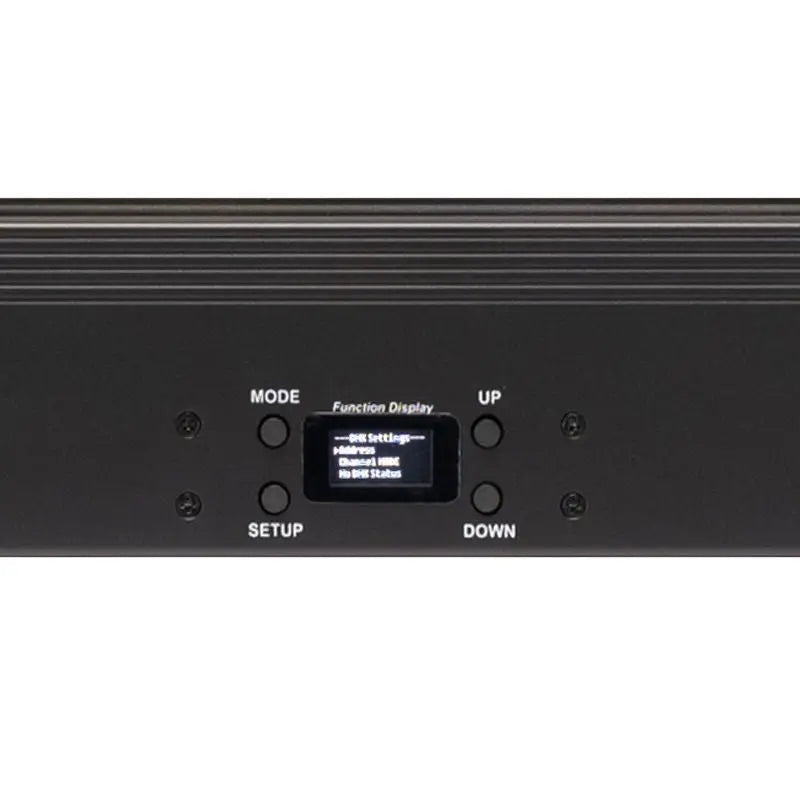

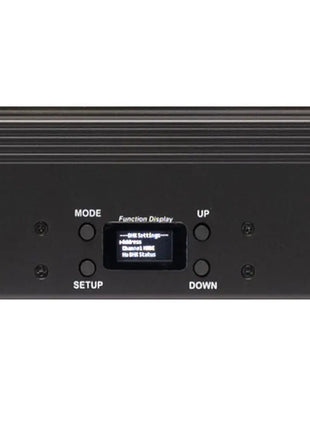

OLED Display with 4-buttons 5 DMX Channel Modes: 1 3 12 14 & 19 Channels Individual pixel controllable in 12 14 and 19 channel DMX modes 5 operational modes: Manual Pixel Manual Program Program Sound Trigger and DMX-512 Modes LED Refresh Rate: 1.9KHz 6 selectable Dim Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Square Linear Inv. Square & S. Curve) Built-In Microphone for sound trigger Synchronized pulse and random strobing Electronic Dimming: 0-100%
Connections:

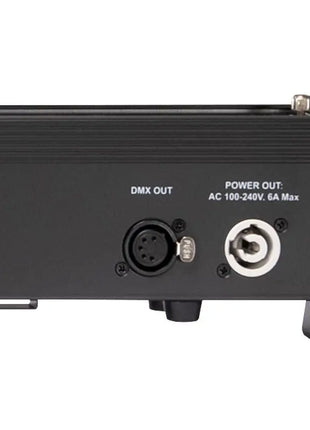

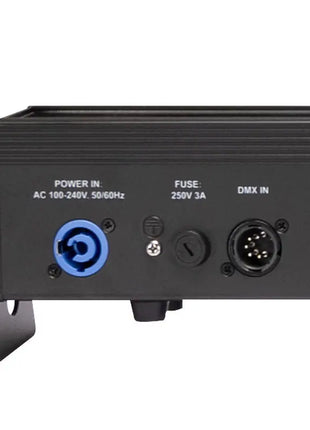

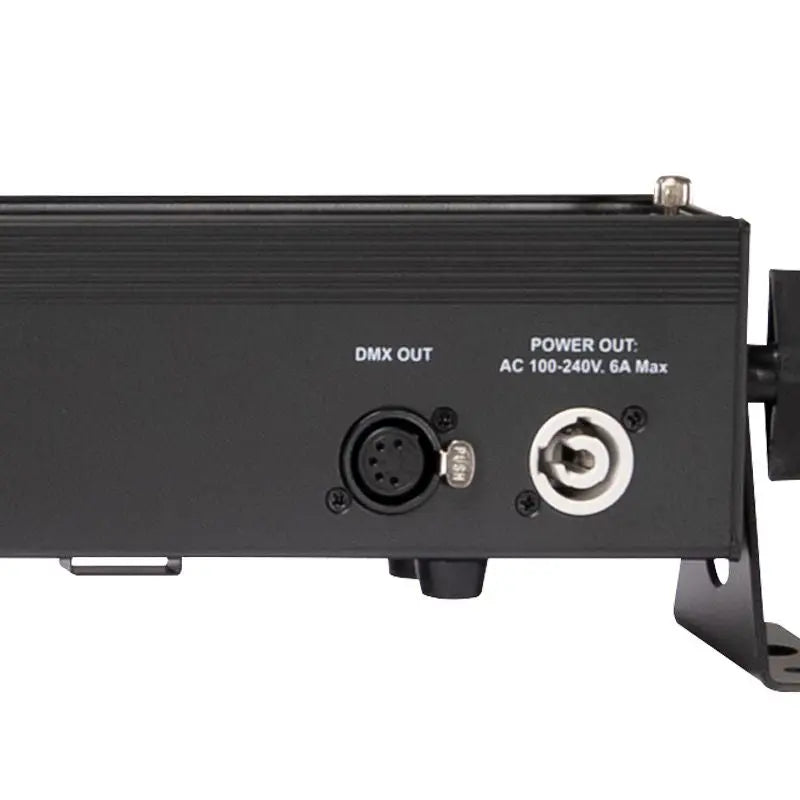

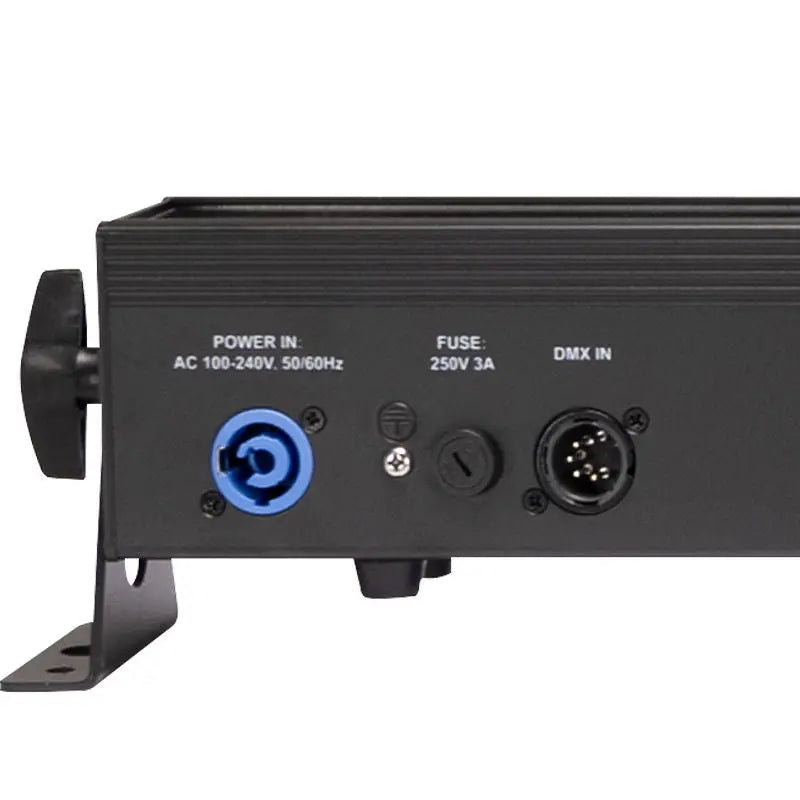

Linkable: DMX via 5-pin XLR cable Indoor Locking power In/Out to daisy chain power Safety Loop
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz Power Draw: 60W Daisy-chain power link (Up to 32 can be linked @230V)
Dimensions / Weight:
Dimensions (LxWxH): 75x1082x106.7mm Weight: 3.4kg
Certifications / IP Rating:
IP20
Environment:
Operational Temperature Range: -20°C ~ 45°C
Storage Temperature: -20°C ~ 45°C
What's Included:
(1) Indoor Locking Power Cord (1) UC-IR (1) 5° Beam Filter (1) Safety Cable Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
Optional Accessories:
(1) 1x40° Linear Diffusion Lens
Note: Specifications are subject to change without notice.
