The ADJ Lighting UBL12H from the unrivalled Ultra Series is a professional-grade lime-infused 1-meter HEX LED linear fixture that sets a new standard in event lighting. Powered by twelve ultra-bright 20-Watt HEX LEDs (Red Green Blue Amber Lime and UV) this fixture is a versatile powerhouse that seamlessly blends colour with precision.
The UBL12H takes linear wash lighting to the next level with its high CRI output and linear colour temperature control ranging from 2300K to 9900K. The added lime chip enhances colour indexing ensuring a superior visual experience with a CRI exceeding 90. This fixture empowers lighting designers and event producers to craft captivating displays on walls floors and ceilings.
Featuring a 17° beam angle and a pixel pitch of 85.5mm the UBL12H offers smooth RGBAL+UV colour mixing and a unique Horizontal Magnetic Alignment feature allows for seamless colour output across multiple fixtures. Control is at your fingertips with the OLED display and 4-buttons offering linear colour temperature control and compatibility with the ADJ UC-IR24 remote. The UBL12H supports seven DMX channel modes and offers five operational modes including Auto Run Program Mode Sound Trigger RGBAL+UV Manual and DMX-512 Mode. This fixtures is RDM compatible.
With an array of features such as LED refresh rate of 1.9KHz 64 built-in Colour Macros and selectable Dim Modes and Curves the UBL12H provides unmatched flexibility. Linkable via DMX this fixture supports daisy-chaining power for up to 17 units (120V) or 32 units (230V). Designed for reliability the UBL12H is cETLus CE FCC certified and has an IP20 rating.
The UBL12H comes complete with an indoor locking power cord UC-IR24 remote and a 20° diffusion filter. Expand the beam angle to 1x40-degrees with the UBL912 linear diffusion lens kit (sold separately). Mount it on the ground or truss with the included brackets. Elevate your lighting experience with the ADJ Lighting UBL12H where innovation meets versatility for unforgettable visual displays.
SPECIFICATION
Light Source:
12 x 20W Ultra bright (Red Green Blue Amber Lime and UV) LEDs Long Life LEDs (Rated at approximately 50000 hrs.) 17° beam angle CRI >90 Pixel Pitch: 85.5mm
Features:
Linear Colour Temperature Control (2300K to 9900K) Smooth RGBAL+UV colour mixing Horizontal Magnetic Alignment feature (Built-In) Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters) RDM Compatible
Control:
Linear Colour Temperature Control (2300K to 9900K) OLED Display with 4-buttons 7 DMX Channel Modes: 6 11 13 16 36 43 & 46 Channels 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36 43 & 46 channel modes 5 operational modes: Auto Run Program Mode Sound Trigger RGBAL+UV Manual and DMX-512 Mode LED Refresh Rate: 1.9KHz 64 built-in Colour Macros 6 selectable Dim Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Square Linear Inv. Square & S. Curve) Built-In Microphone for sound trigger LED pulse and strobe effect Electronic Dimming: 0-100
Connections:
Linkable: DMX via 5-pin XLR cable Indoor Locking power In/Out to daisy chain power
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz Power Draw: 61W Daisy-chain power link (Up to 32 UBL12H's can be linked @230V)
Dimensions / Weight:
Dimensions (LxWxH): 75 x 1082 x 106.7mm Weight: 3.4 kg
Certifications / IP Rating:
CE FCC IP20
Environment:
Operational Temperature Range: -20°C ~ 45°C
Storage Temperature: -20°C ~ 45°C
What's Included:

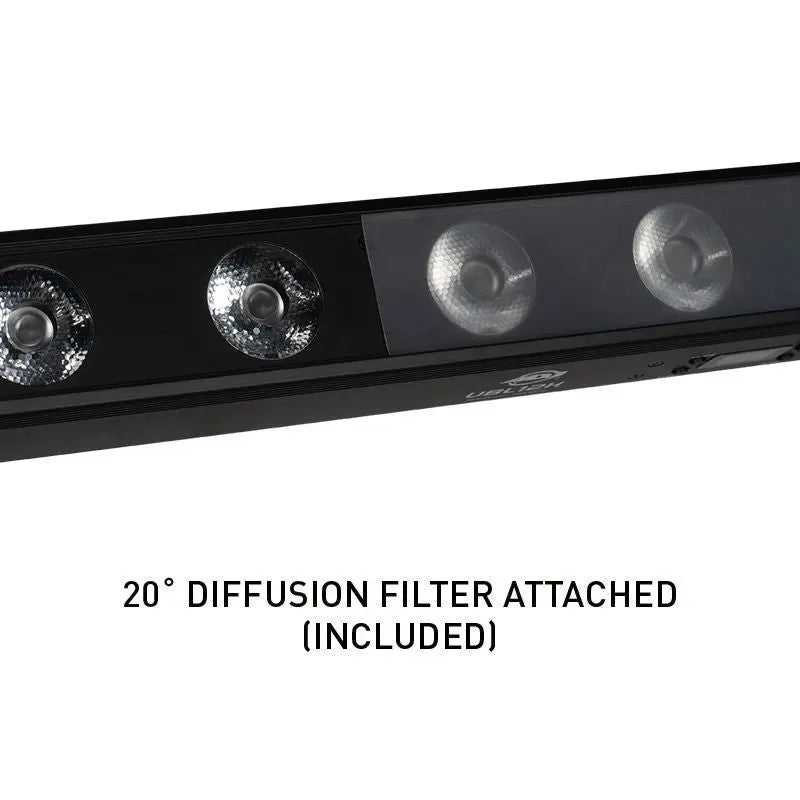

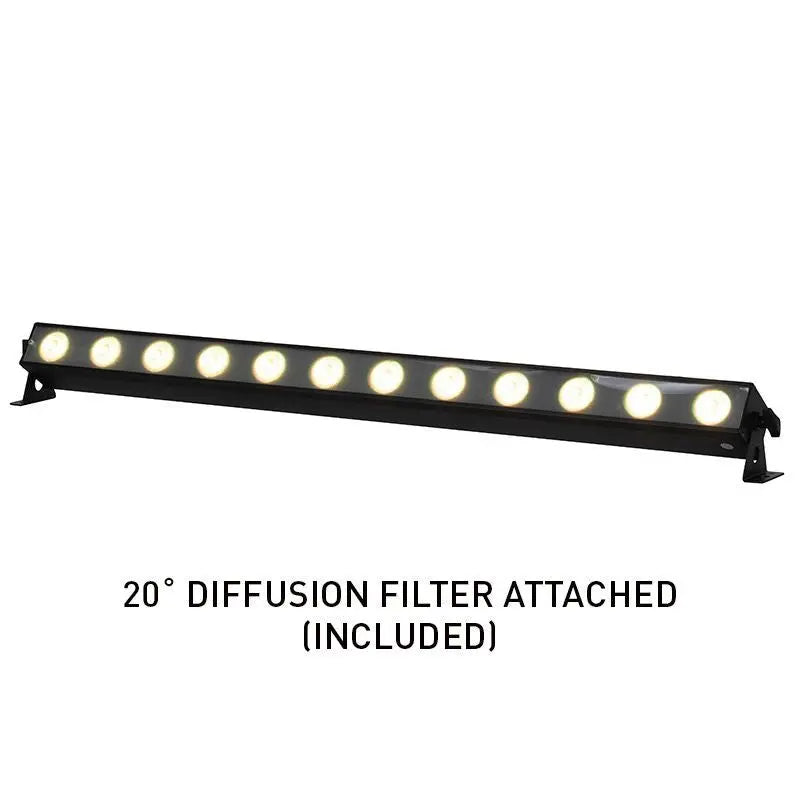

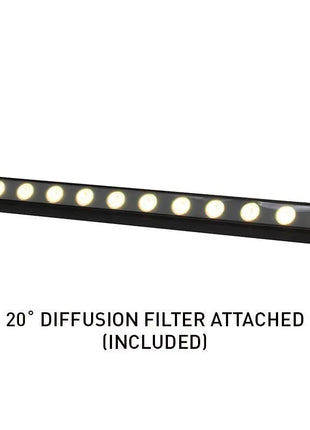

(1) Indoor Locking Power Cord (1) UC-IR24 (1) 20° Diffusion Filter Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
Optional Accessories:
(1) 1x40° Linear Diffusion Lens
Note: Specifications are subject to change without notice.
