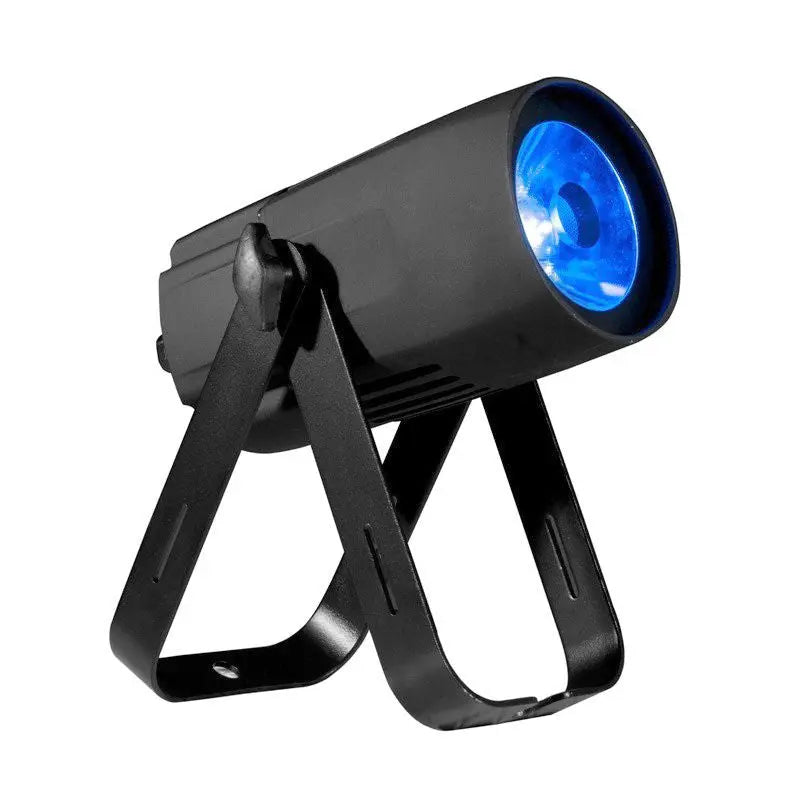

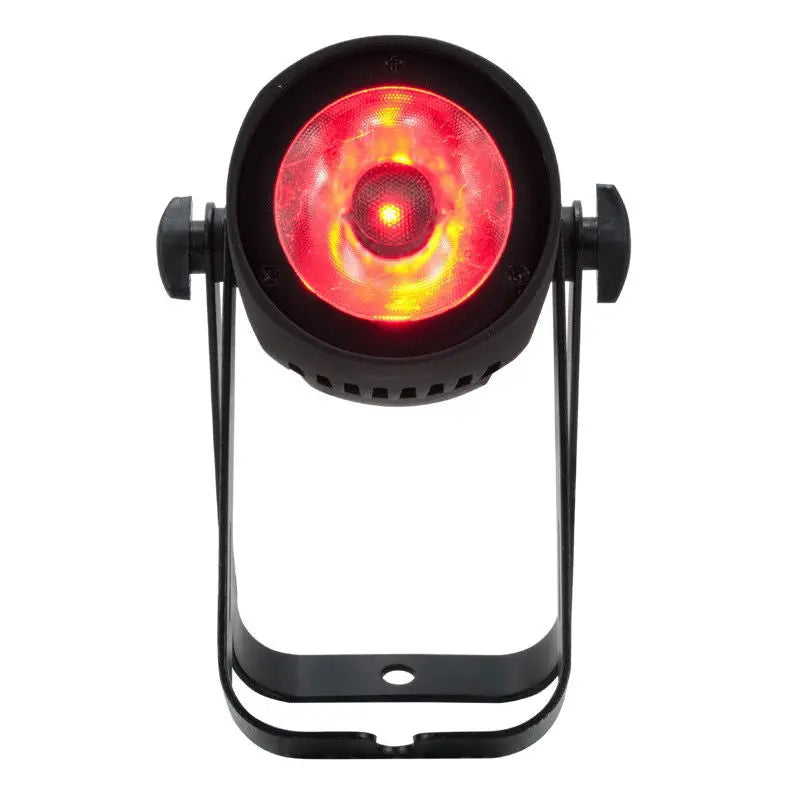

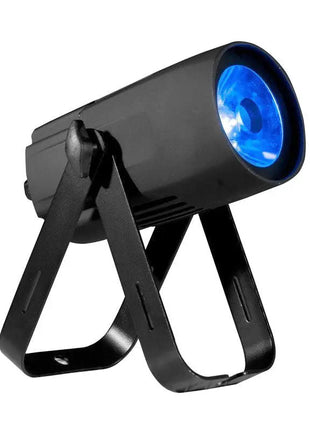

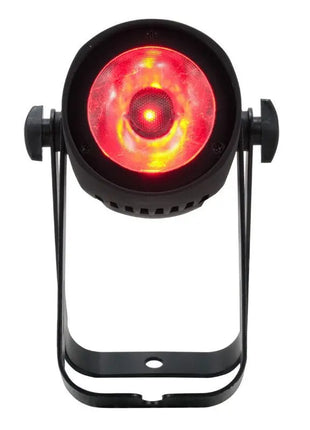

The Saber Spot RGBW is a compact Pinspot with smooth RGBW colour mixing from one 15W 4-in-1 Quad LED and features DMX-512 flicker-free operation 64 built-in colour macros strobing electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle. Included are 2 additional fresnel lenses of 10 & 45 degres
The Saber Spot RGBW has a scissor bracket system that allows the fixture to be hung or set on the ground and is ideal for performance stages installations table spotting lighting retail stores.
Specifications:
Source
• Source: RGBW 4-in-1 QUAD-LED
• Individual LED wattage : 15W
• Average LED lifetime: approx. 10000hrs
• Flicker-free operation for film and television
Optics
• Beam angle: 4 degree
• 2 additional fresnel lenses included (10° & 45°)
Control
• 3 Operational modes: Show Mode Manual Mode and DMX-512 Mode
• 12 DMX Channel modes: 3 (HSI) 4 4A(HSI+) 5 6 6A 8 8A 9(HSI Max) 11 or 12 channels
• 16bit Dimming
• 5 Dim Curves: Standard/Stage/TV/Architectural/Theatre
• Strobe & pulse effects
• LCD display with 4-button control
Colour
• RGBW Colour Mixing
• 64 Colour Macros
Construction
• Metal Black Housing
• Scissor bracket system allows fixture to be hung or set on the ground
Electrical
• Multi-voltage operation: 100-240V 47/63Hz
• Power Draw: 14W max
Connections
• 3-pin XLR In/Out pigtails
• Locking Power In/Out Locking Power cable included
Dimensions & Weight
• Dimensions (LxWxH): 135 x 108 x 170mm
• Weight: 12 kgs.
