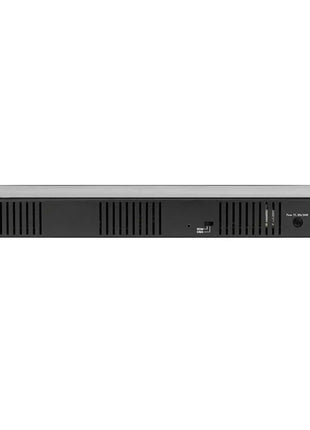

ADJ RDM XS8

The ADJ Lighting RDM XS8 is a 19-inch rack mount 8-way DMX and RDM data splitter.
With one 5-pin input one 5-pin thru and eight 5-pin outputs the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.

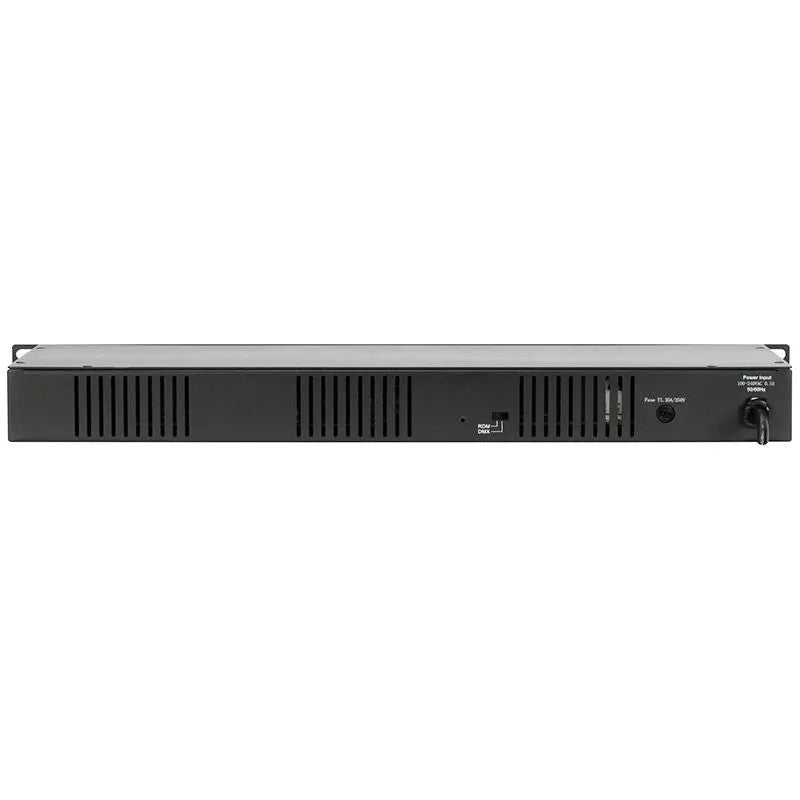

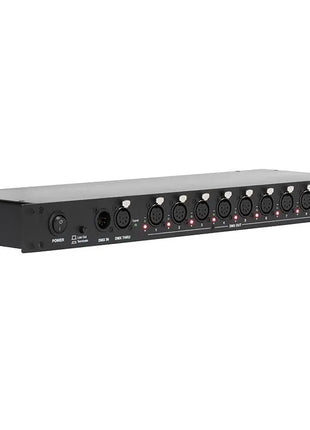

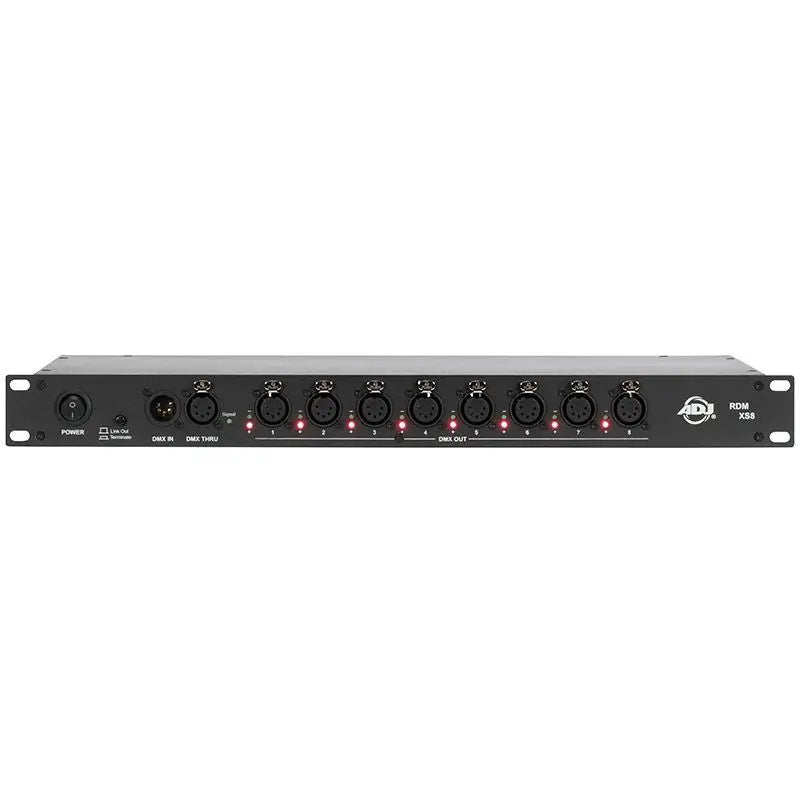

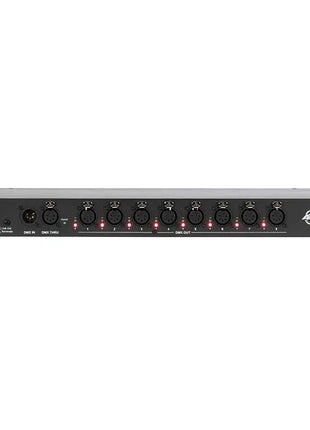

Its slim 1U configuration includes 1x 5-pin XLR input 1x 5-pin XLR thru 8x 5-pin XLR outputs plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
SPECIFICATIONS
Protocols:
DMX512 RDM
Physical:
19 inch Rack Mount (1 rack space) 1x 5-pin XLR Input 1x 5-pin XLR Thru 8x 5-pin XLR Outputs Link Out Termination Switch DMX / RDM Protocol Switch
Dimensions & Weight:
Length: 152.4mm Width: 482mm Height: 44mm Weight: 2.21kg
Electrical:
AC Input: 100-230V 50/60Hz Power Consumption: 3.3W @ 230V Power Input Protection: Fuse T1.25A/250 (5.2x20mm)
Thermal:
Ambient Operational Temperature: -20°C to 45°C Humidity: <75% Storage Temperature: 25°C
Product form

ADJ RDM XS8

Free pickup in our shop(s)

£154.00

  • Available
  • Fast tracked delivery
  • Service excellence guaranteed
    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: ADJ1321000087

    Trustpilot

    The ADJ Lighting RDM XS8 is a 19-inch rack mount 8-way DMX and RDM data splitter.
    With one 5-pin input one 5-pin thru and eight 5-pin outputs the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.
    Its slim 1U configuration includes 1x 5-pin XLR input 1x 5-pin XLR thru 8x 5-pin XLR outputs plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
    SPECIFICATIONS
    Protocols:
    DMX512 RDM
    Physical:
    19 inch Rack Mount (1 rack space) 1x 5-pin XLR Input 1x 5-pin XLR Thru 8x 5-pin XLR Outputs Link Out Termination Switch DMX / RDM Protocol Switch
    Dimensions & Weight:
    Length: 152.4mm Width: 482mm Height: 44mm Weight: 2.21kg
    Electrical:
    AC Input: 100-230V 50/60Hz Power Consumption: 3.3W @ 230V Power Input Protection: Fuse T1.25A/250 (5.2x20mm)
    Thermal:
    Ambient Operational Temperature: -20°C to 45°C Humidity: <75% Storage Temperature: 25°C
