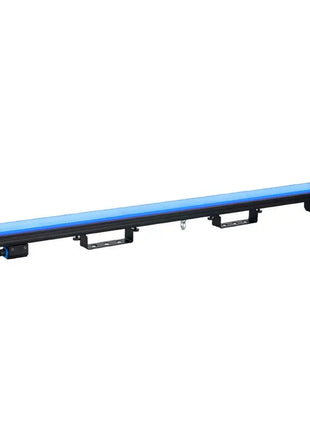

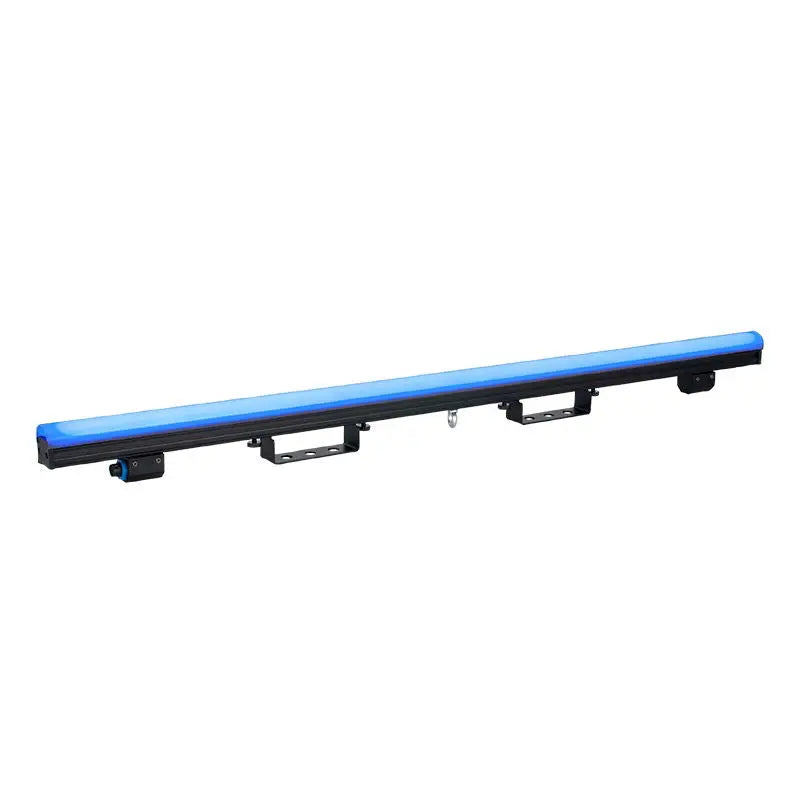

The PIXIE STRIP 60™ is a 1 meter indoor LED pixel strip featuring (60) tri-colour RGB SMD LEDs with a 16.5mm pixel pitch a refresh rate of 44000Hz for flicker free operation for broadcast TV and FILM applications. Each pixel strip is housed in a lightweight aluminium housing featuring magnetic end caps which allow seamless end-to-end pixel spacing two integrated adjustable mounting brackets a safety cable loop and includes square and rounded frosted lens attachments.
Easy and versatile control options are handled by the Pixie Driver 2000™ V2 (sold separately) which provides simple on-board programs manual dimming and strobe control as well as full pixel mapping control of 2040 max pixels via Kling-Net Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary 4pin combo cables (sold separately) which are available in lengths from 03 (1 cable included) to 15m
Specifications
Source:
60 SMD RGB 3-in-1 LEDs Individual LED Wattage: 02W PWM: 44kHz
Optics:

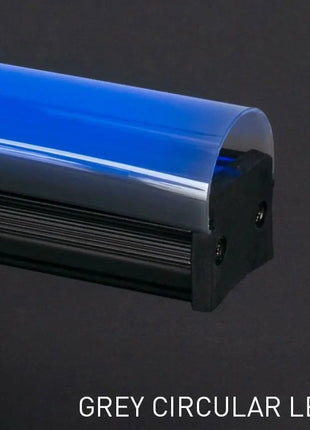

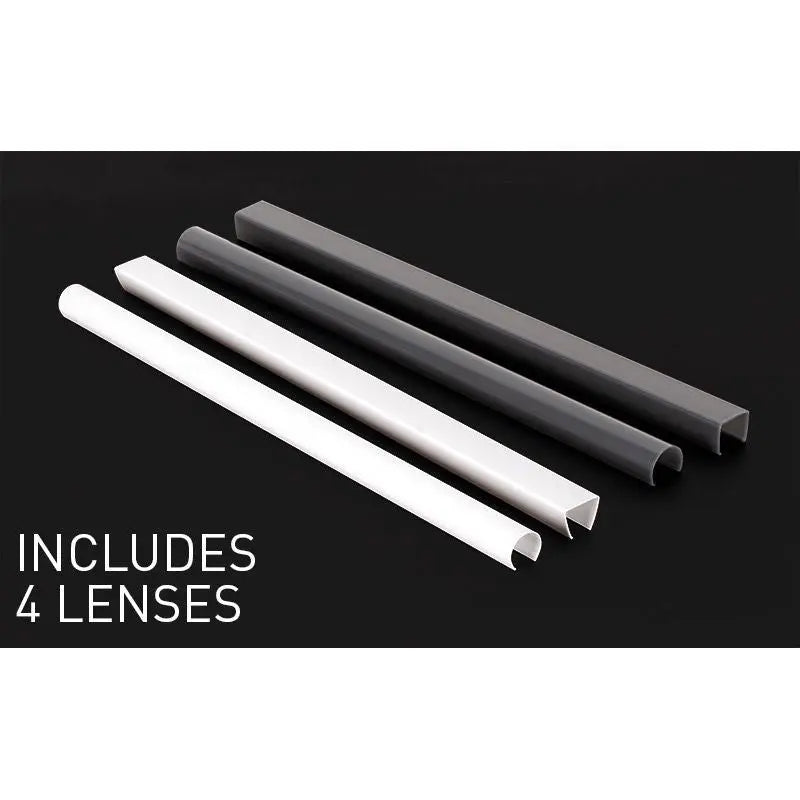

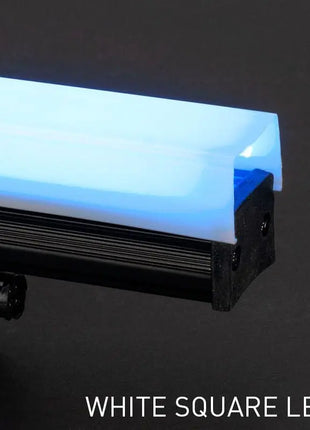

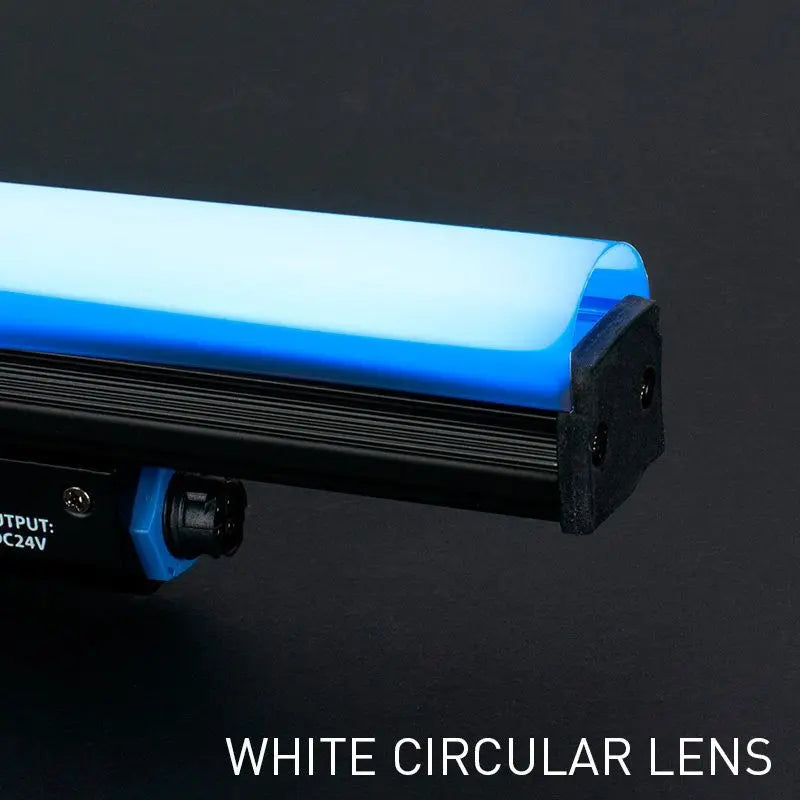

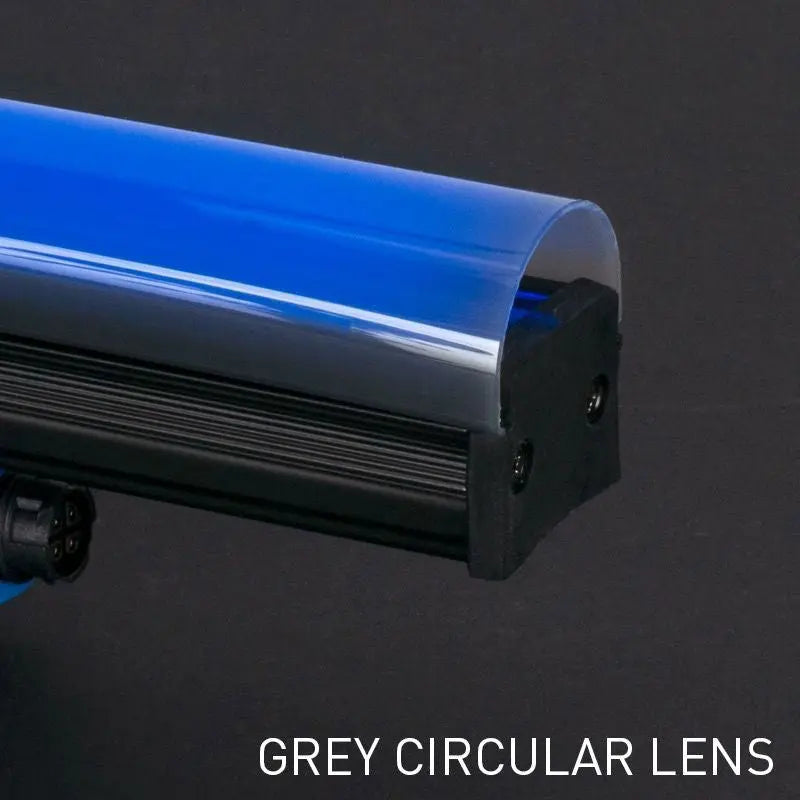

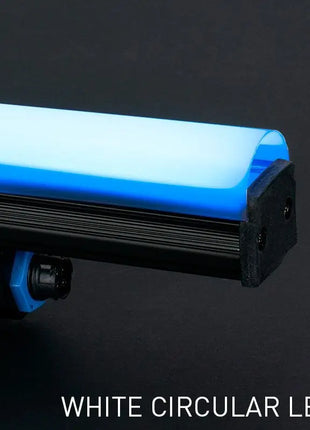

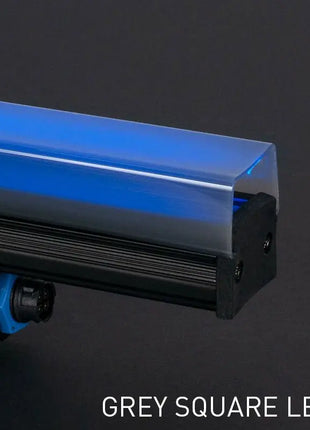

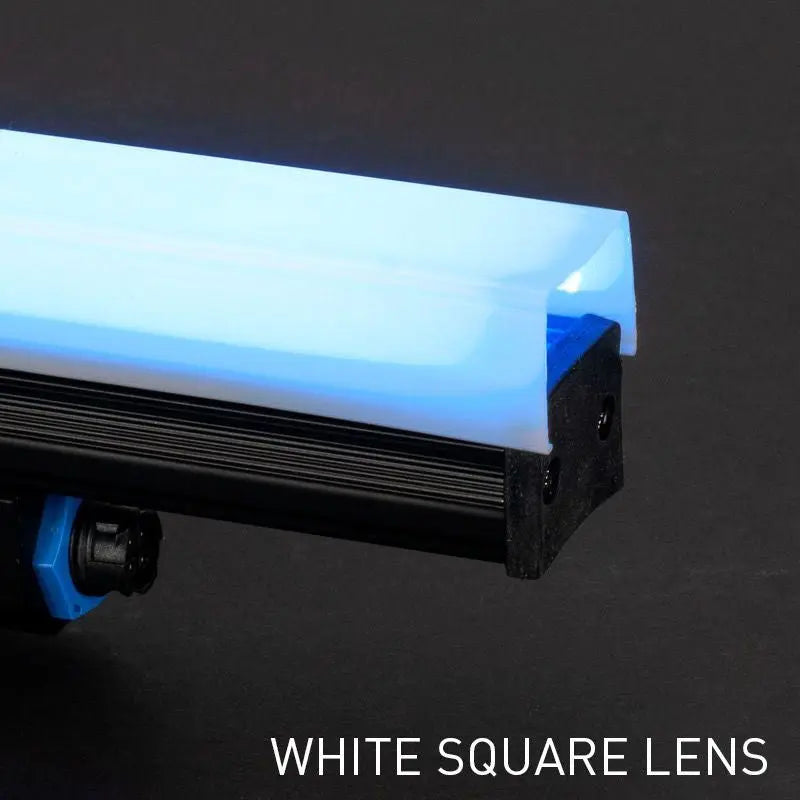

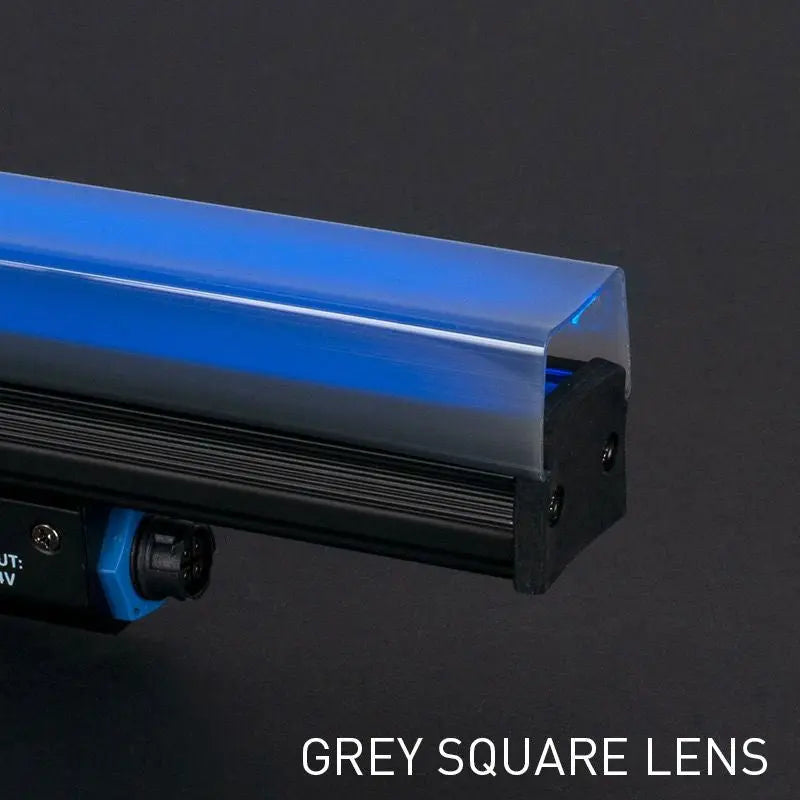

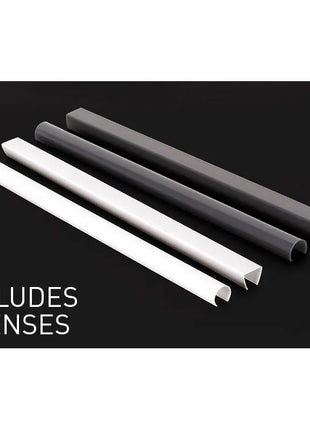

Viewing Angle : 120 x 120 degrees Pixel Pitch: 165mm 60 pixels/m 4 Frost lenses included (1 white rounded 1 white square 1 smoked rounded 1 smoked square)
Control:
Controlled by Pixie Driver 2000 V2 (code 1226200065) through Klingnet ArtNet or sACN
Colours:
RGB Colour Mixing Colour Resolution : 8-bit per colour / 24-bit per pixel
Construction: Extruded Aluminium Metal Housing Magnetic end-caps Includes 1 adjustable Hanging bracket
Electrical:
24V In/Out Max. Power consumption: 12W
Connections:
4-pin proprietary Power/Data In/Out connections
Dimensions & Weight:
Dimensions (LxWxH): 1000 x 32 x 67mm Weight: 12kg.
