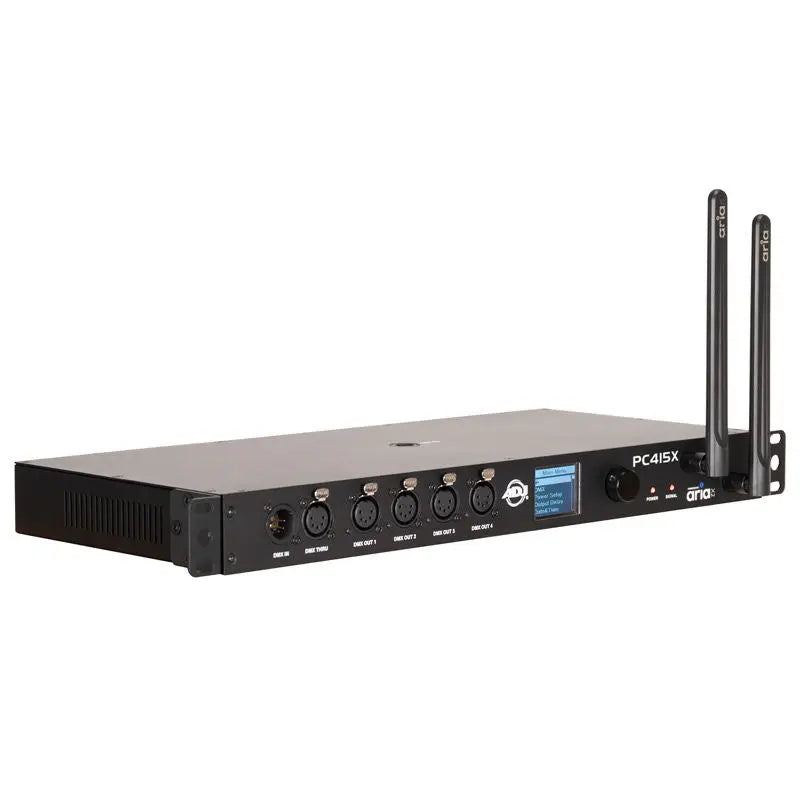

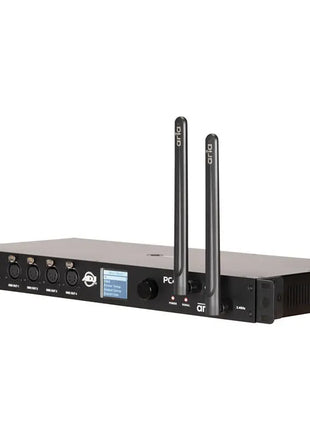

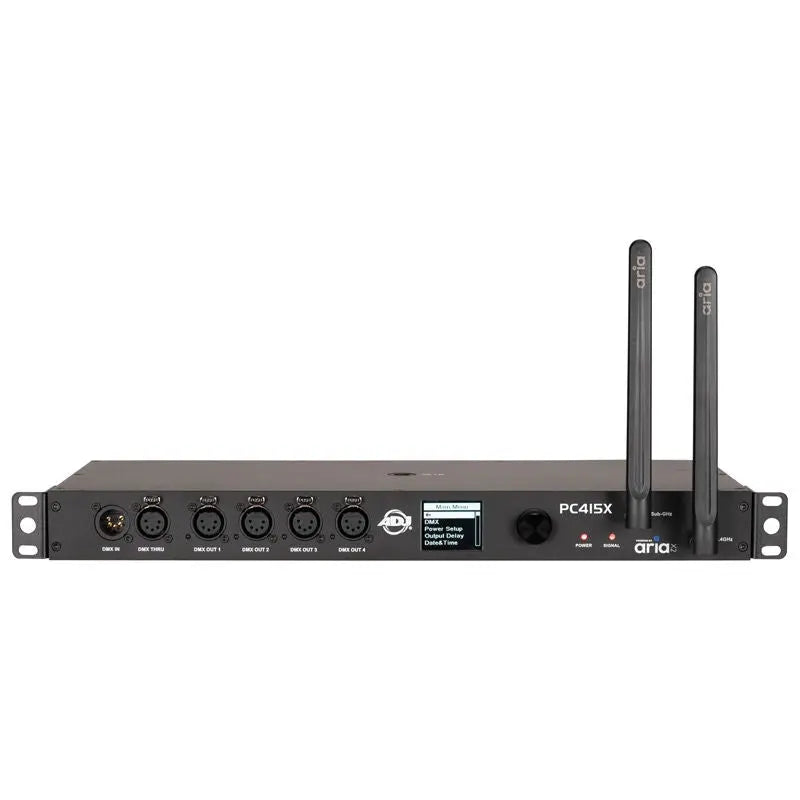

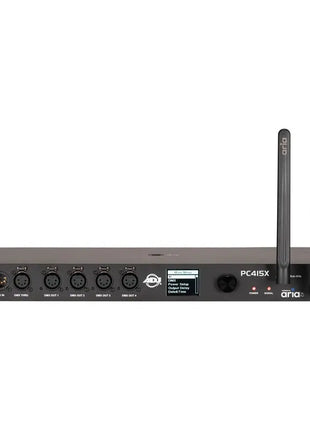

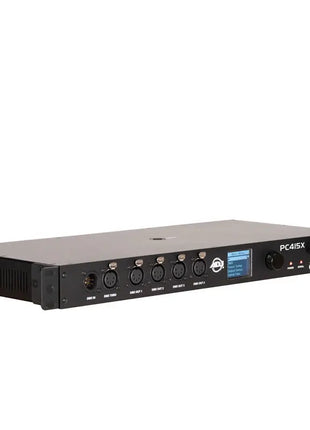

The PC415X is an innovative all-in-one solution for lighting professionals venues and production teams seeking a reliable efficient and versatile power distribution and DMX control hub. This state-of-the-art device seamlessly integrates three essential features into one compact rack-mountable unit: a 4-output power distribution centre an advanced Aria X2 wireless DMX transceiver and a 4-output DMX/RDM splitter. This powerful combination provides users with an unprecedented level of control and flexibility making it an invaluable asset for live events stage productions touring and fixed installations.
SPECIFICATIONS
Key Features:
Multi-functional Design: The PC415X offers 4 power outputs 4 power outputs an Aria X2 transceiver and DMX/RDM splitter in one device. Flexible DMX Channel Modes: Operate in 1 2 or 4 DMX channel modes ensuring compatibility across different setups User-Friendly Control: Navigate with ease using the push button and encoder wheel complemented by an OLED control menu display Event Scheduler: Manage power and DMX outputs with an internal On/Off scheduler for automated operation Single DMX Universe: Works seamlessly as a single DMX universe transmitter ideal for precise control over lighting configurations Multi-Protocol Support: Features Sub-GHz 2.4 GHz WiFi Bluetooth and proprietary Aria X2 Mesh Protocol for reliable wireless communication Future-Ready: Configuration via front panel and app support (app coming soon) for on-the-go adjustments Mounting Flexibility: Rack-mountable and truss-mountable for versatile installation options
Supported Protocols:
DMX/RDM: Designed for DMX lighting control with RDM support planned in a future software release Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication plus Bluetooth 5.2 for versatile device connectivity
RF Characteristics:
Frequency Range: Operates between 2404-2480 MHz with additional EU (863-870 MHz) and US (902-928 MHz) bands Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference Over-the-Air Updates: Future-proof your setup with OTA updates
Standards & Compliance:
Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation Health & EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards ensuring safety and low interference
Connectors:

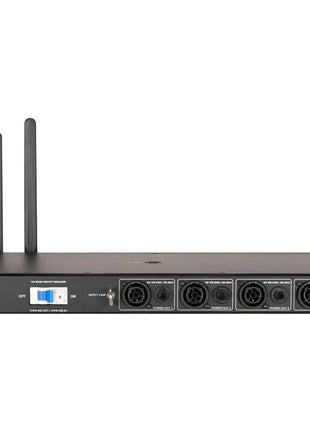

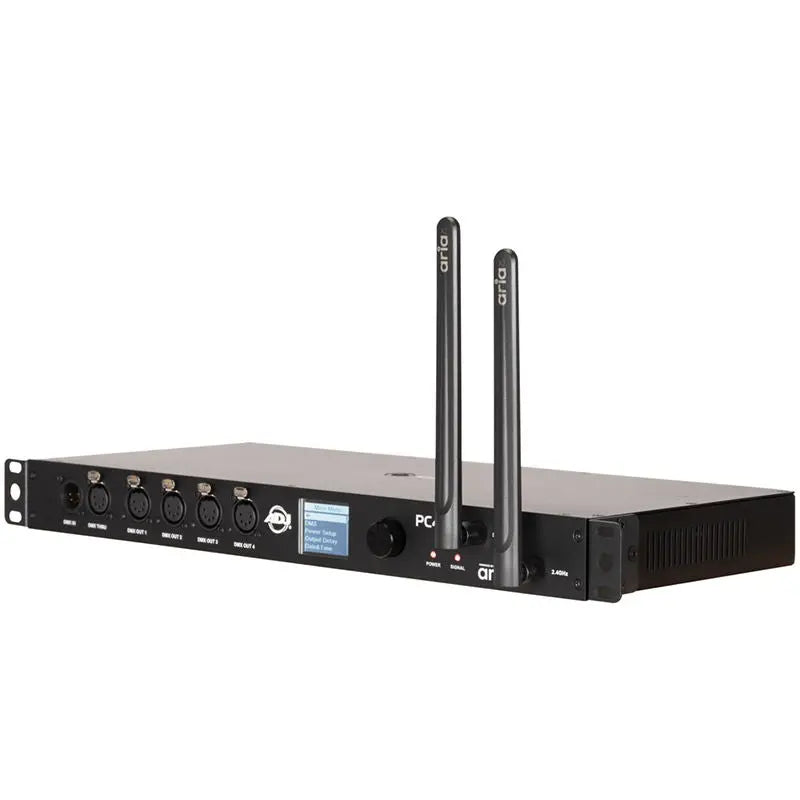

DMX and Power Options: Features (1) DMX input (4) DMX outputs and (4) IP65 locking power outputs with 15A resettable breakers Antenna Compatibility: Equipped with dual 5G JT SMA antennas
Power Requirements:
Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch Low Power Consumption: Runs efficiently with minimal power requirements and features on a CR2032 lithium battery for critical backup
Physical Specifications:

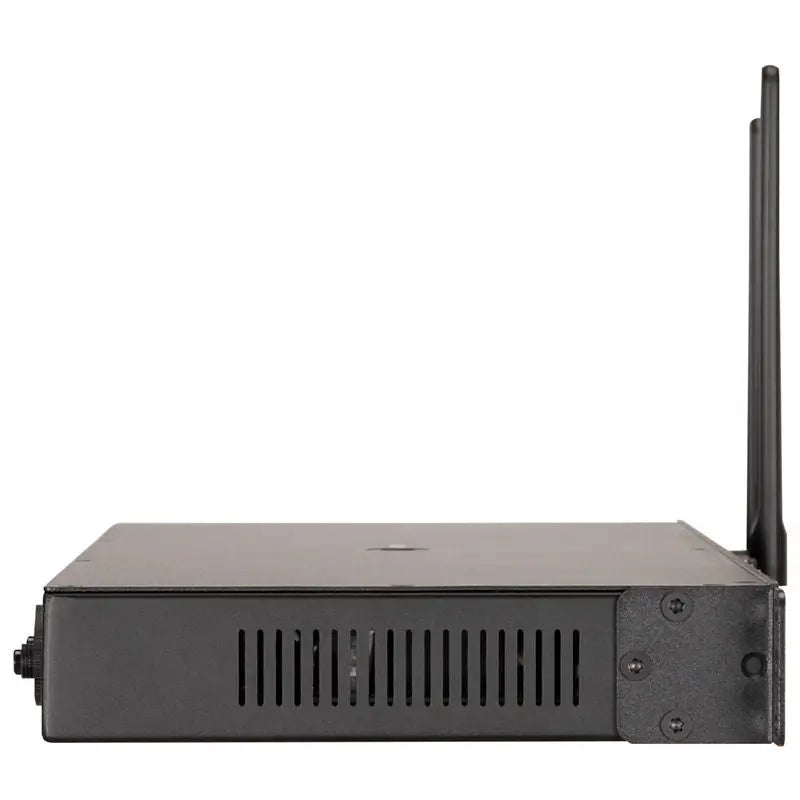

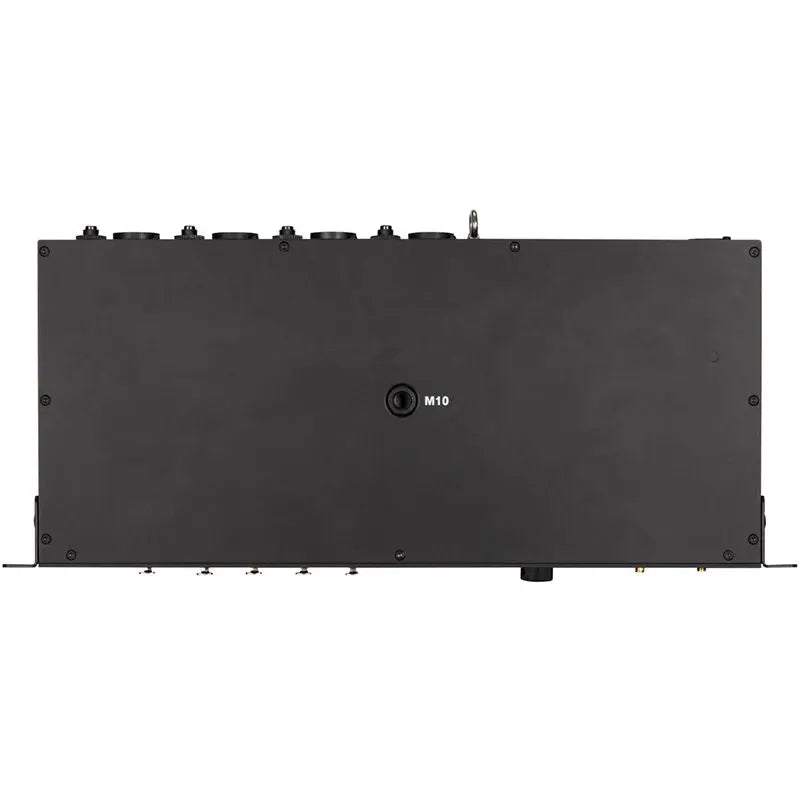

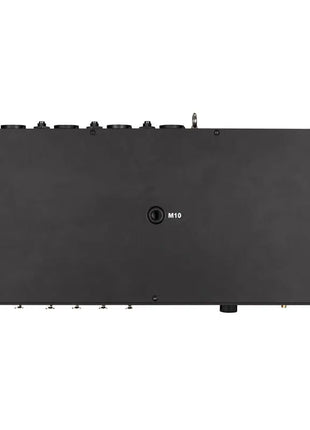

Robust Design: Durable IP20 metal enclosure with a digital screen rotary knob and safety eyelet Temperature Tolerant: Operates in ambient temperatures up to 45° C and humidity below 75% Compact Dimensions: At just 3.36 kg it is designed for easy handling and secure installation
Dimensions & Weight:
Length: 482mm Width: 249.17mm Height: 43.80mm Weight: 3.36 kg
Approvals & Included Accessories:
Approvals: IP20-rated for indoor use Accessories: Comes with rack ears for a standard 19-inch rack mount two Aria X2 antennas and one IP65 locking power cable
Specifications are subject to change without notice.
