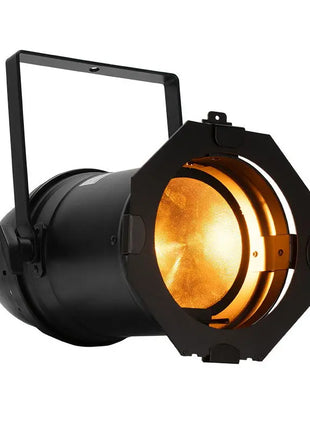

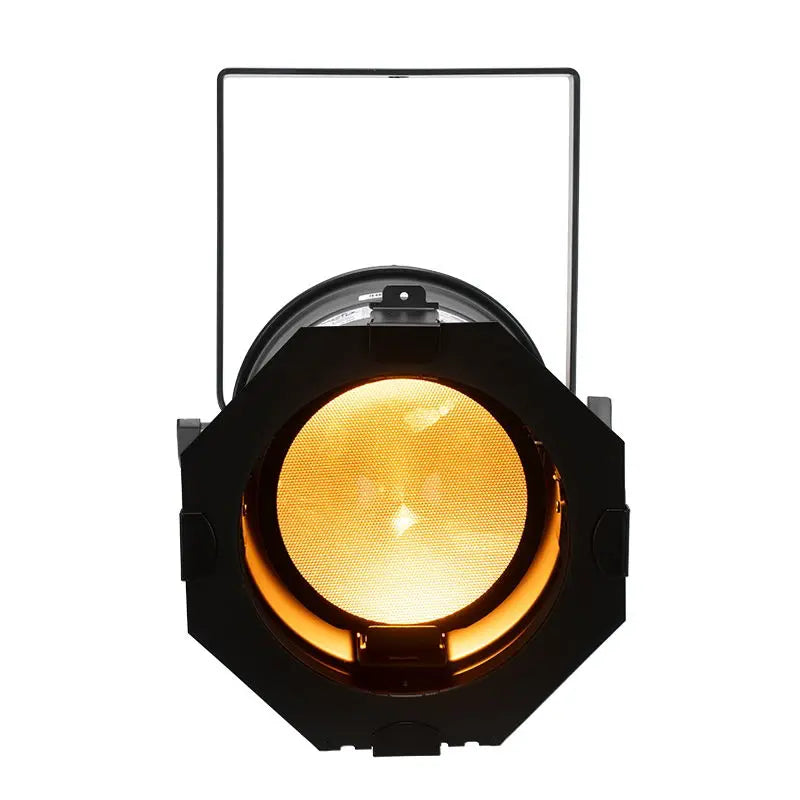

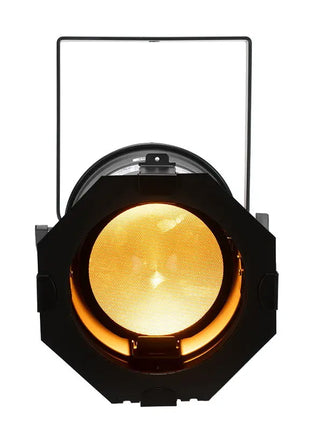

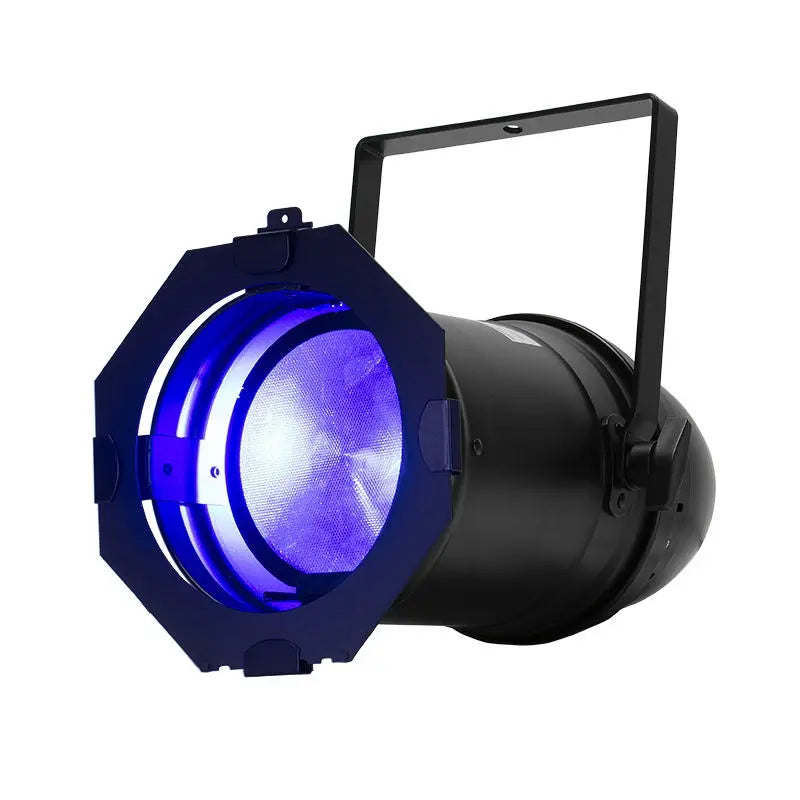

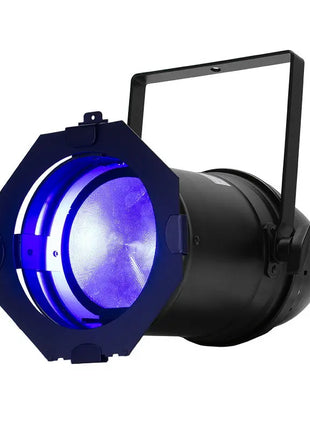

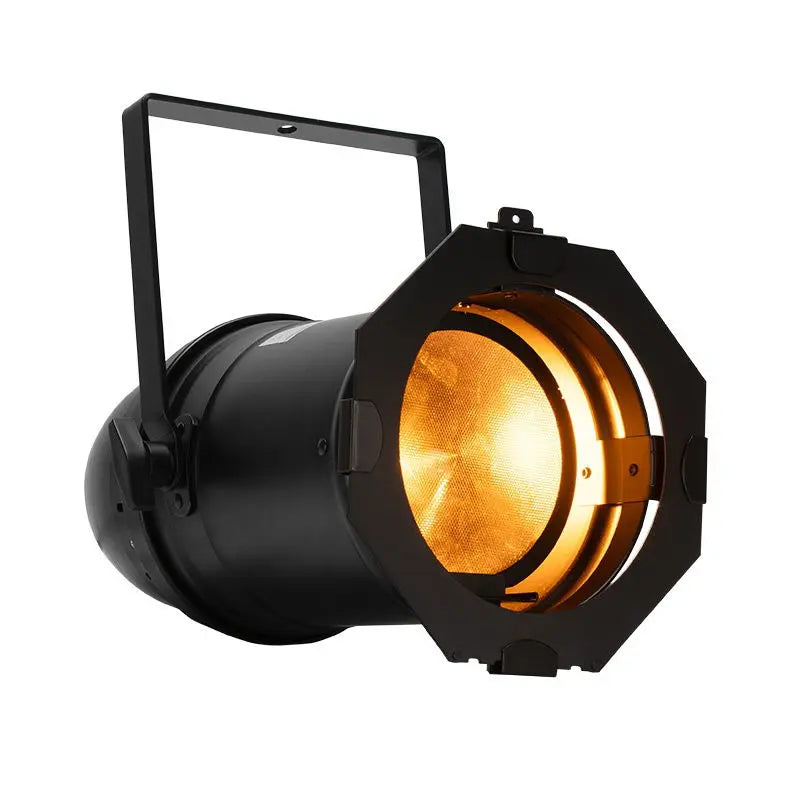

Blending the classic look of the traditional Par Can with the efficiency of modern LED technology ADJ’s Par Z Series offers versatile wash lighting for a wide range of applications. The Par Z300 RGBA features a robust 300-watt quad-colour (red green blue and amber) COB LED engine providing a wide array of colour options including adjustable white light with colour temperatures from 2300K to 9900K. It also includes the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.
Its COB (Chip On Board) technology ensures consistent output without colour shadows while a high CRI of over 90 offers accurate colour rendering ideal for illuminating scenery décor or performers with natural skin tones and enhanced depth. With 64 colour macros and additional white-light temperature macros programming is quick and efficient. The fixture also includes six dimming modes four dimming curves and an onboard colour balance feature allowing for customization across various applications and preferences.

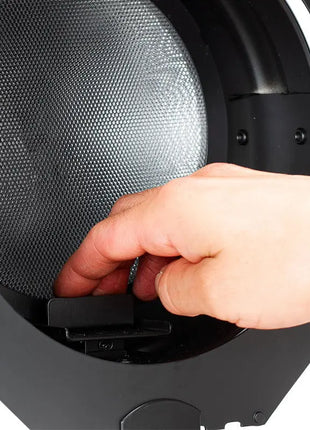

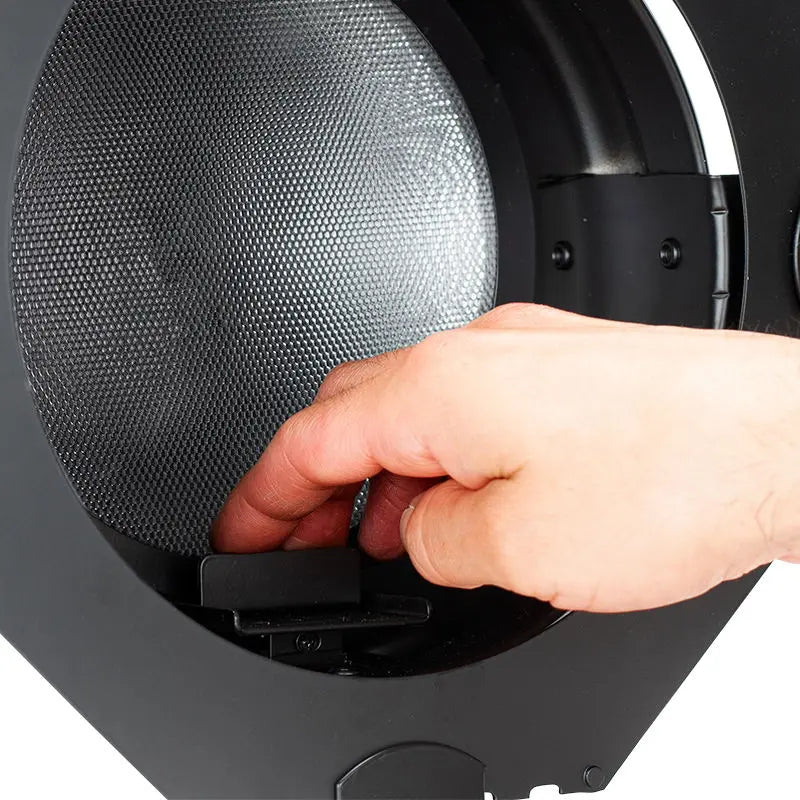

The unit offers seven manually adjustable beam angles (9° 15° 20° 25° 30° 35° or 40°) and comes with a gel frame for optional diffusion filters (sold separately) to expand the light spread. The LED engine also provides smooth dimming variable-speed strobing and adjustable refresh rates. With a lifespan of 50000 hours the LED light source minimizes the need for frequent replacements.

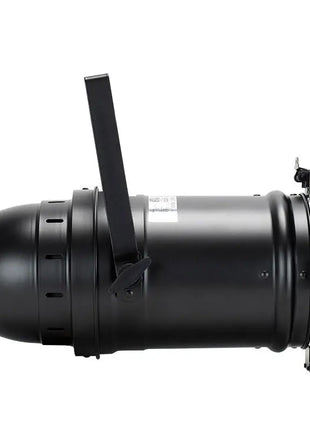

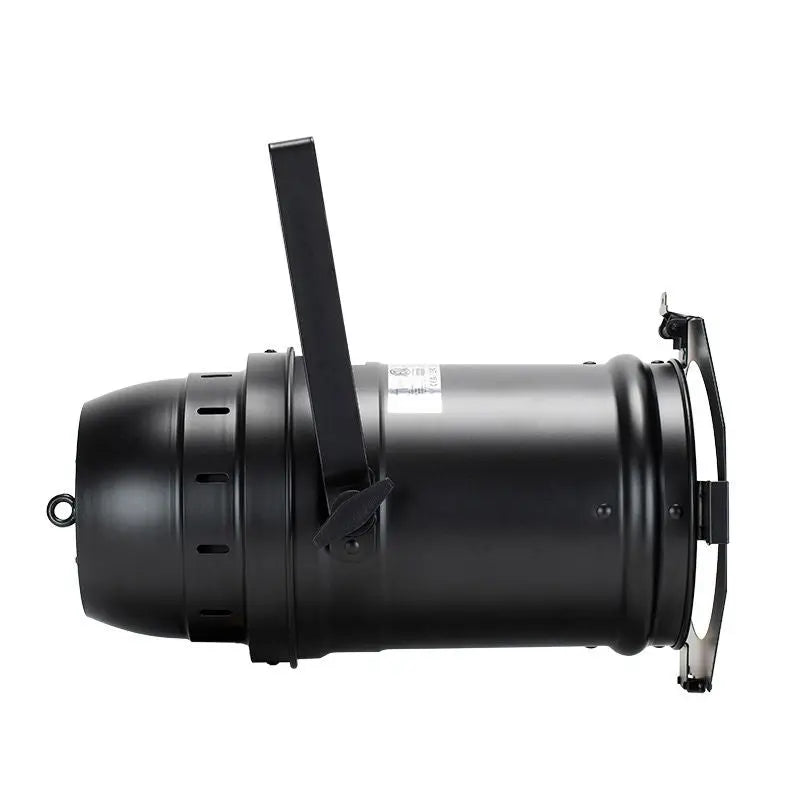

An adjustable yoke secured with large thumb screws allows flexible positioning on trusses or stands. The rear panel includes 5-pin DMX input and output locking power sockets for daisy-chaining multiple units an LED display and four push buttons for mode selection and DMX addressing. The fixture is also RDM-compatible for remote addressing.
Specifications
Optical:
300-Watt Quad RGBA C.O.B. LED (Chip On Board - Red Green Blue & Amber) Life expectancy: rated at 50000 hrs. Manual Zoom: 9 15 20 25 30 35 or 40-degrees Zoom Ration: 4.4:1
Photometrics:
5230 Lux (Zoomed In to 9°) 597 Lux (Zoomed Out to 40°) CRI: >90
Connections:
DMX: 5-pin DMX In/Out With Wired Digital Communication Network Locking power In/Out connections
Control:
DMX-512 and Aria X2 Wireless DMX / APP 9 DMX control modes: (4/5/9A/9B/13 & 15 Ch. modes) RDM and RDM Net Compatible Primary/Secondary stand-alone mode On-board manual control mode
Features:
Aria X2 Wireless Management System Linear white colour temperature control (2300K ~ 9900K) Color Temperature Presets (2300K ~ 9900K) 4-button DMX menu display on rear panel OLED display Adjustable latch to manually change beam angle Includes gel frame for diffusion filters (Diffusion filter sold separately) 64 Built-in Colour Macros 13 Built-in Internal Programs Strobe Rate: 0.6Hz to 7.5Hz Selectable Refresh Rates: 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 10KHz 15KHz 20KHz 25KHz Electronic Dimming: 0 - 100% 6 Dim Modes 4 Dim Curves On-board colour balance feature for each colour (RGBA)
Electrical:
Power Draw Total (All LED' s @ Full On): 320W Power Consumption: 1.5A @ 220V/50Hz Multi-voltage operation: AC 100-240V 50/60Hz Daisy chain: 4 fixtures @ 230V Fuse protected: 8A/250V
Ambient Temperature Range (For Use):
-20°C ~ 40°C
Storage Temperature Range:
-30°C ~ 45°C
Dimensions / Weight:
Dimensions (LxWxH): 510 x 389.3 x 257.5mm Weight: 6kg.
IP Rating / Approvals:
IP20
Included Accessories:
Gel Frame UCIR24 Wireless Remote Power Cord
Specifications subject to change without notice.
