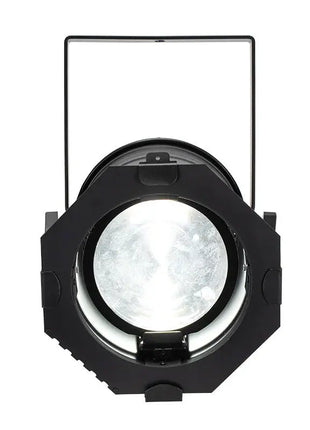

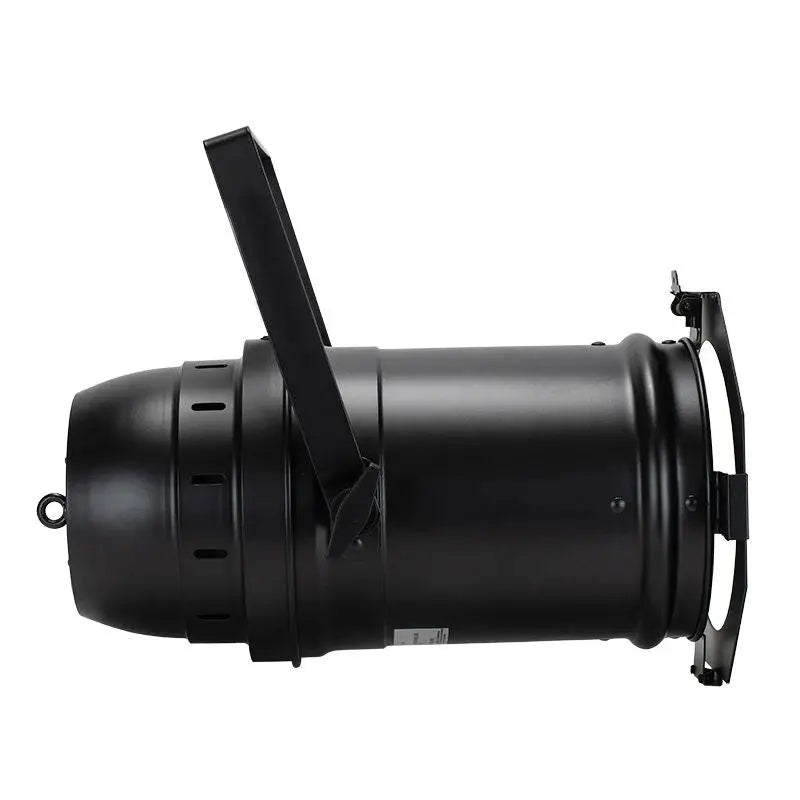

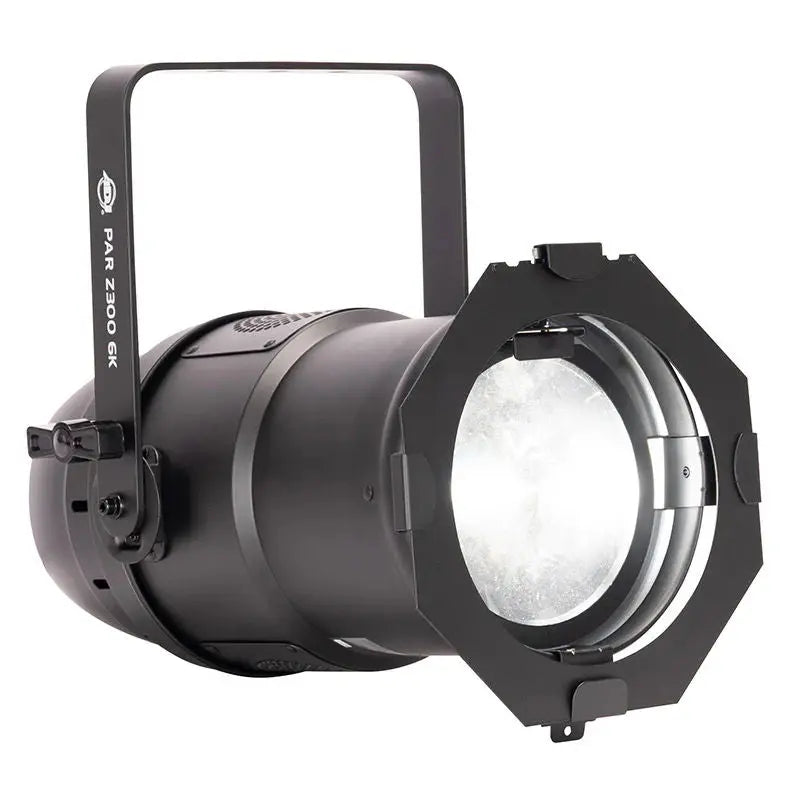

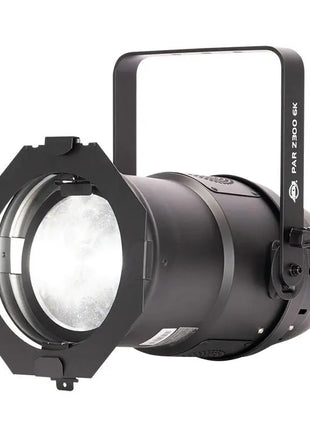

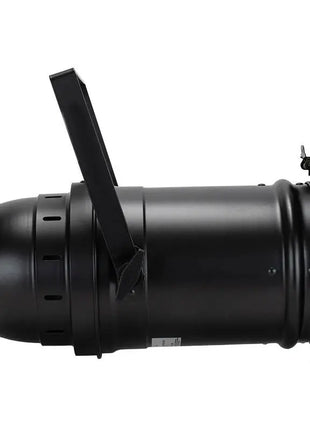

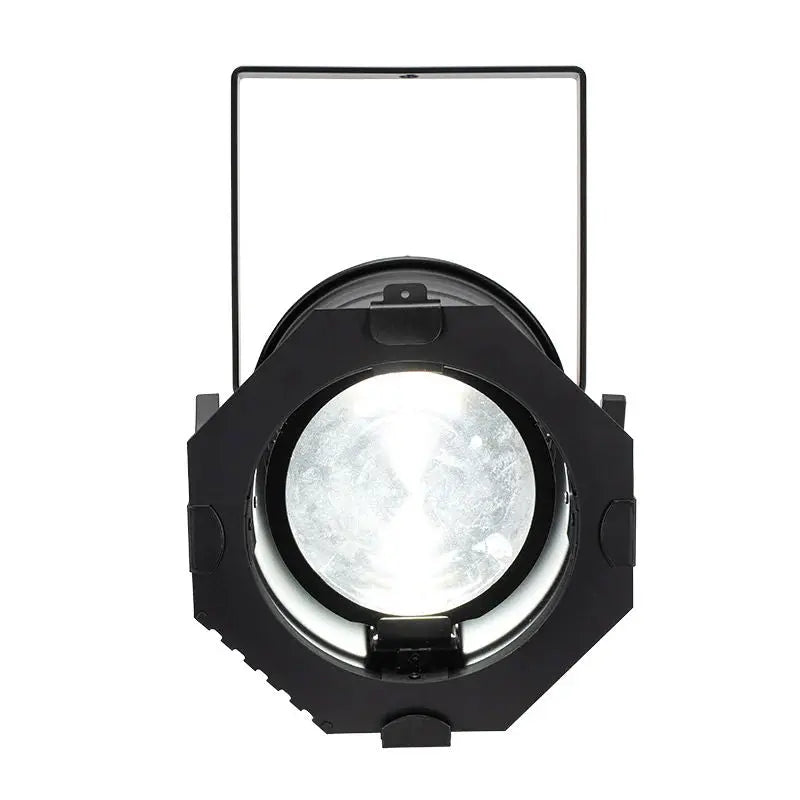

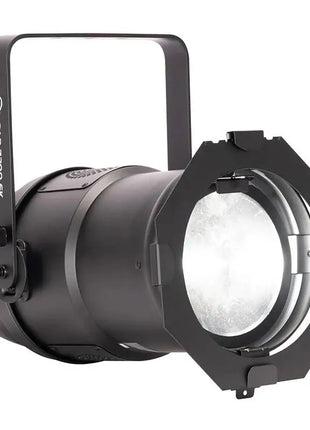

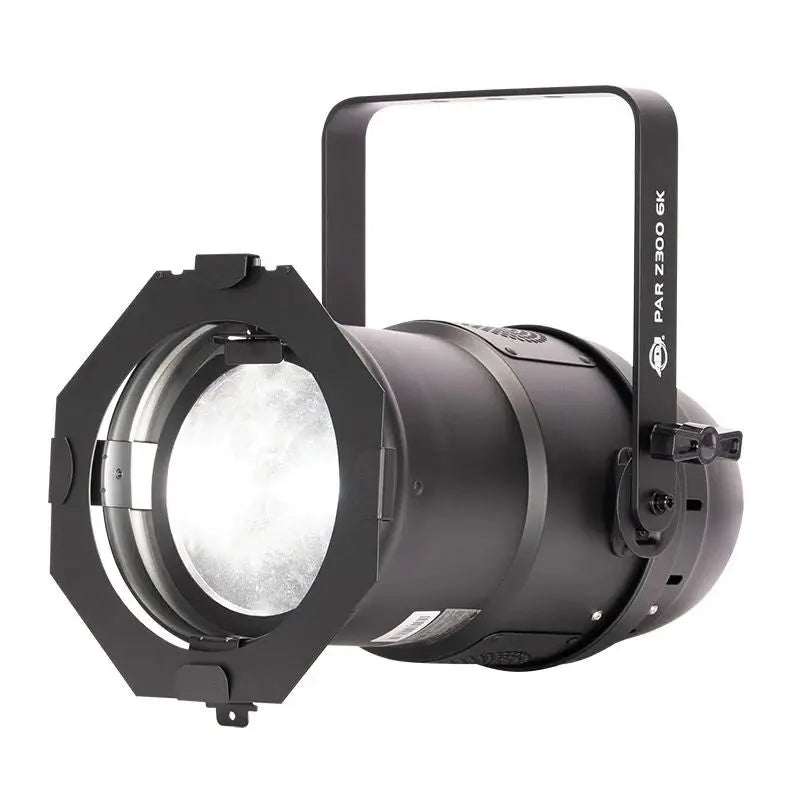

The Par Z300 6K combines the traditional par can aesthetic with the advantages of LED technology. Although it retains the classic black Par Can appearance inside it features a high-performance LED light source. Delivering brightness comparable to a 1000W sealed beam Par while generating significantly less heat it's perfect for stage lighting that keeps performers comfortable.
The Par Z300 6K is powered by a robust 300-Watt 6000K cool white COB LED engine with a CRI over 90. The 6000K colour temperature closely mimics ‘daylight white.” It offers seven manual zoom beam angles—9° 15° 20° 25° 30° 35° and 40°—and includes a traditional Par Can gel frame for adding diffusion filters to further control light output.

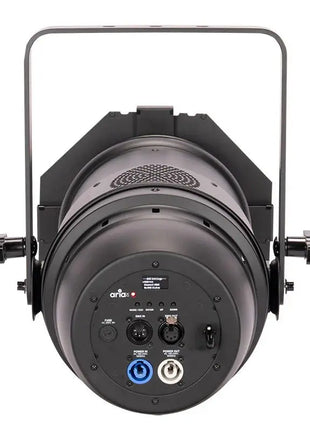

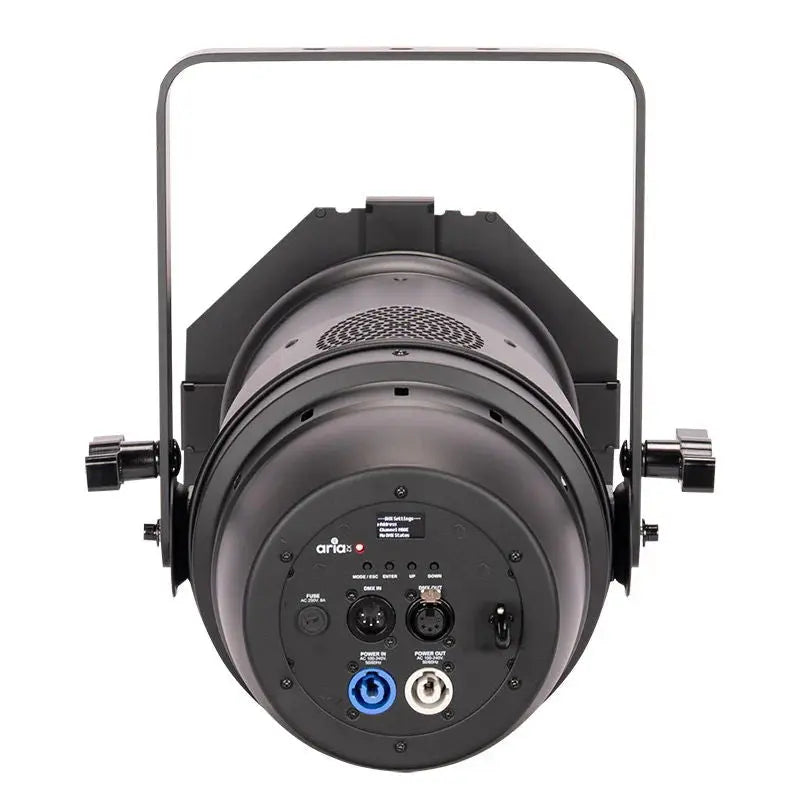

Advanced features include the Aria X2 wireless management system for over the air firmware/software updates for streamlined control a 4-button DMX OLED display menu adjustable strobe refresh rates six dimming modes and electronic dimming from 1-100%. The fixture is compatible with both RDM and RDM Net protocols. The rear panel has locking power In/Out sockets for daisy-chaining power as well as 5-pin DMX In/Out connections for data.
Specifications
Optical:
300W 6000K cool white COB LED (chip-on-board) Life expectancy: 50000h Manual zoom: 9° 15° 20° 25° 30° 35° 40° Zoom ratio: 4.4:1
Photometrics:
13980 lux @ 5m (zoomed to 9°) 1828 lux @ 5m (zoomed to 25°) CRI: 95
Connection:
DMX: 5-pin in/out Wired digital communication network Locking IP20 power in/out
Control:
DMX-512 3 DMX modes: 1 / 3 / 4 channels RDM & RDM Net compatible Primary/secondary & stand-alone mode On-board manual control mode
Features:

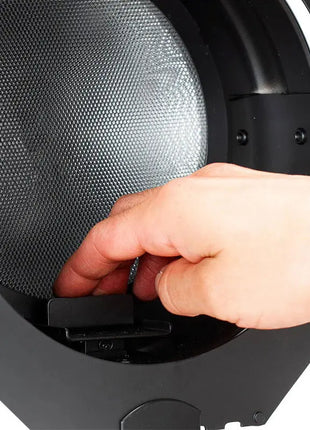

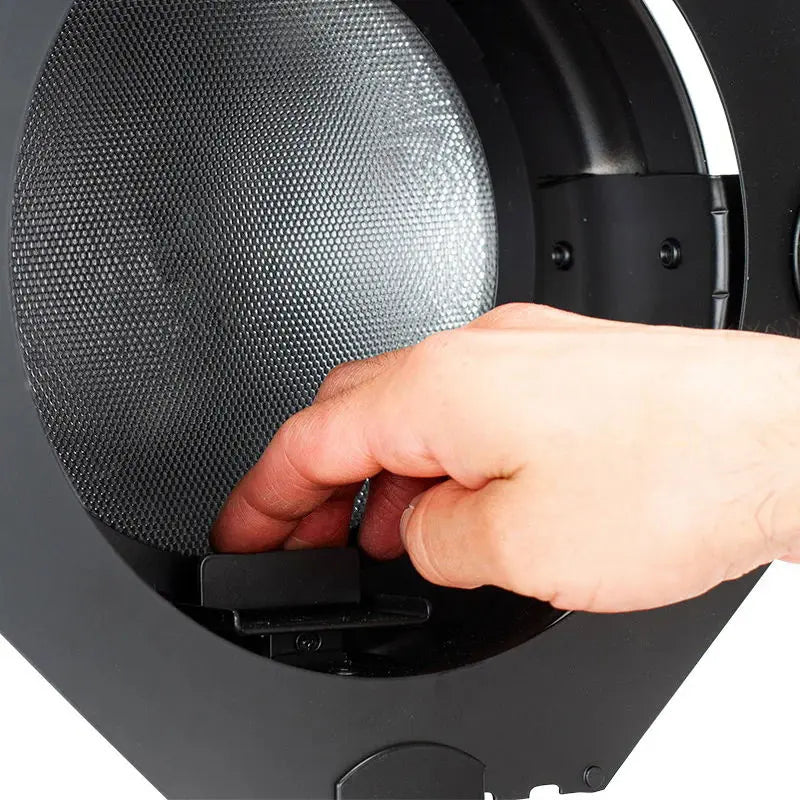

Aria X2 wireless management system 4-button DMX menu display on rear panel OLED display Adjustable latch for manual beam angle change Includes gel frame for diffusion filters (filter sold separately) Strobe rate: 0.6Hz–7.5Hz Selectable refresh rates: 900Hz 1kHz 1.1kHz 1.2kHz 1.3kHz 1.4kHz 1.5kHz 2.5kHz 4kHz 5kHz 10kHz 15kHz 20kHz 25kHz Electronic dimming: 0–100% 6 dim modes
Electrical:
Power draw: 320W (full on) Power consumption: 1.5A @ 220V/50Hz Multi-voltage: AC 100-240V 50/60Hz Daisy chain: 4 fixtures @ 230V Fuse protected: 8A/250V
Ambient Temperature Range (Use):
-20°C to 40°C
Storage Temperature Range:
-30°C to 45°C
Dimensions / Weight:
510 x 389.3 x 257.5mm Weight: 6kg
IP Rating / Approvals:
IP20
What's Included:
Gel frame Power cord
Specifications subject to change without notice
