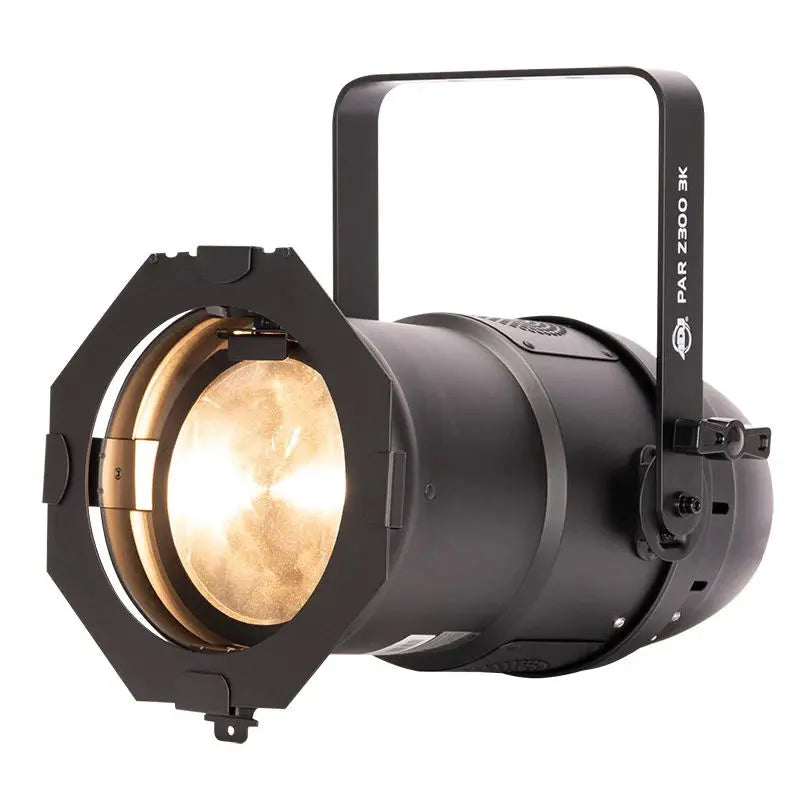

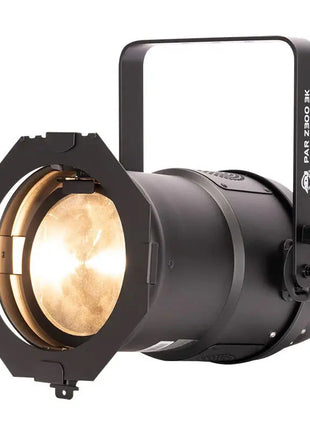

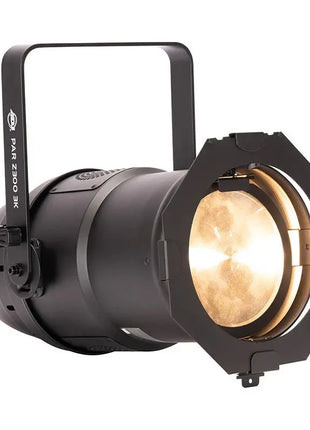

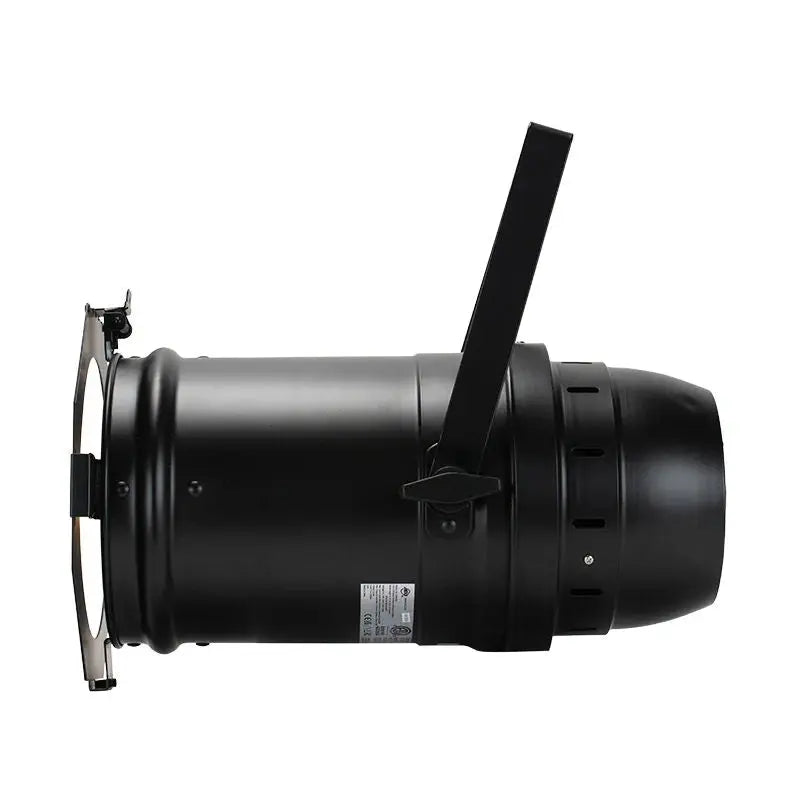

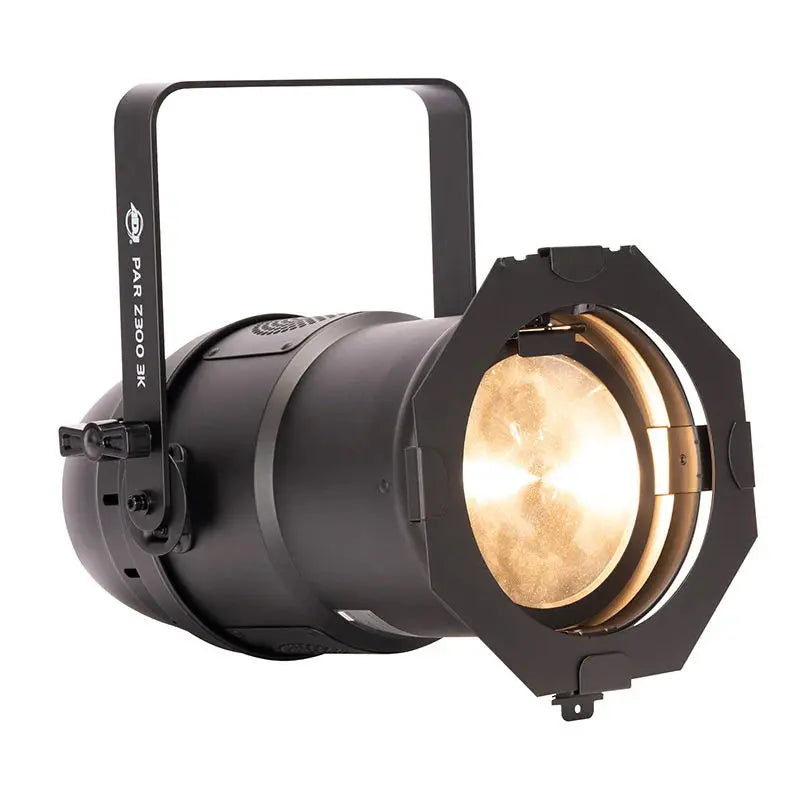

The Par Z300 3K combines the traditional par can aesthetic with the advantages of LED technology. Although it retains the classic black Par Can appearance inside it features a high-performance LED light source. Delivering brightness comparable to a 1000W sealed beam Par while generating significantly less heat it's perfect for stage lighting that keeps performers comfortable.

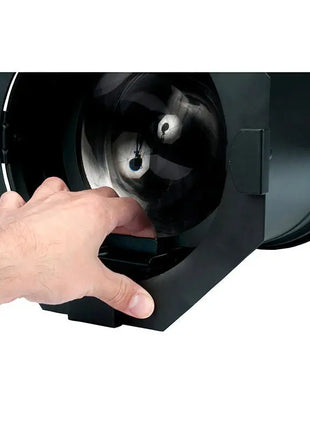

The Par Z300 3K is powered by a robust 300-Watt 3000K warm white COB LED engine with a CRI over 90. The 3000K colour temperature closely mimics the warmth of a conventional lamp. It offers seven manual zoom beam angles—9° 15° 20° 25° 30° 35° and 40°—and includes a traditional Par Can gel frame for adding diffusion filters to further control light output.

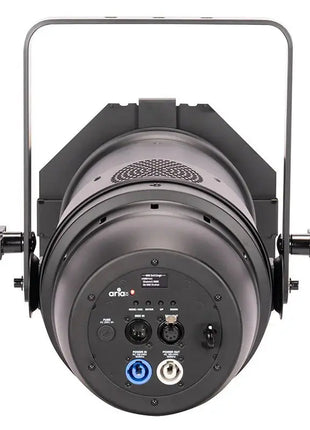

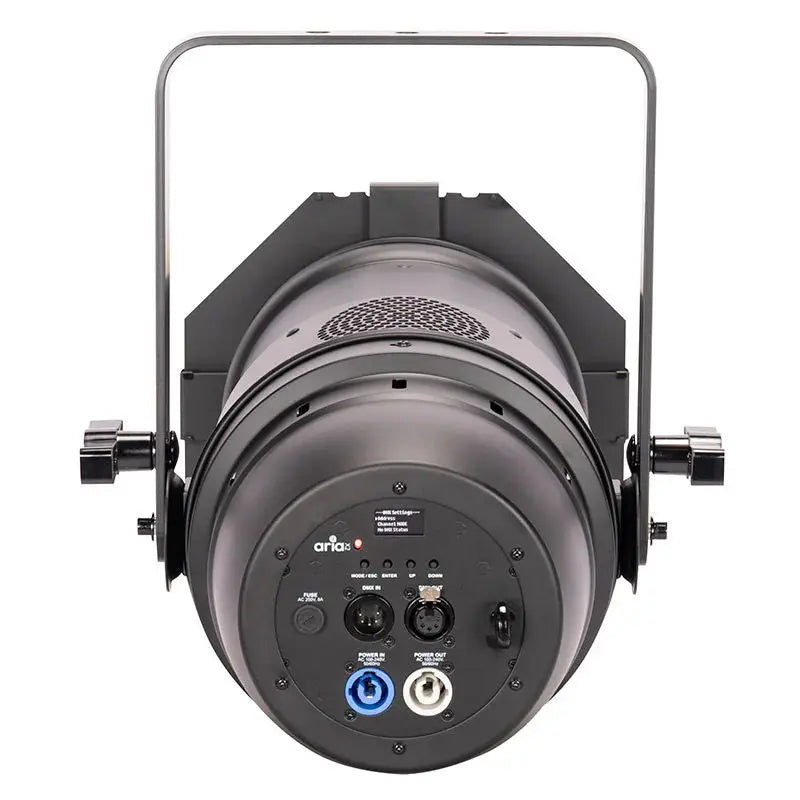

Advanced features include the Aria X2 wireless management system for over the air firmware/software updates for streamlined control a 4-button DMX OLED display menu adjustable strobe refresh rates six dimming modes and electronic dimming from 1-100%. The fixture is compatible with both RDM and RDM Net protocols. The rear panel has locking power In/Out sockets for daisy-chaining power as well as 5-pin DMX In/Out connections for data.
Specifications
Optical:
300-Watt 3000K Warm White C.O.B. LED (Chip On Board) Life expectancy: rated at 50000 hrs. Manual Zoom: 9° 15° 20° 25° 30° 35° and 40° Zoom Ratio: 4.4:1
Photometrics:
8878 Lux (Zoomed In to 9° @ 5 meters) 1208 Lux (Zoomed Out to 25° @ 5 meters) CRI: 97
Connection:
DMX: 5-pin DMX In/Out With Wired Digital Communication Network Locking IP20 Power In/Out connections
Control:
DMX-512 3 DMX control modes: (1 3 & 4 Ch. modes) RDM and RDM Net Compatible Primary/Secondary stand-alone mode On-board manual control mode
Features:

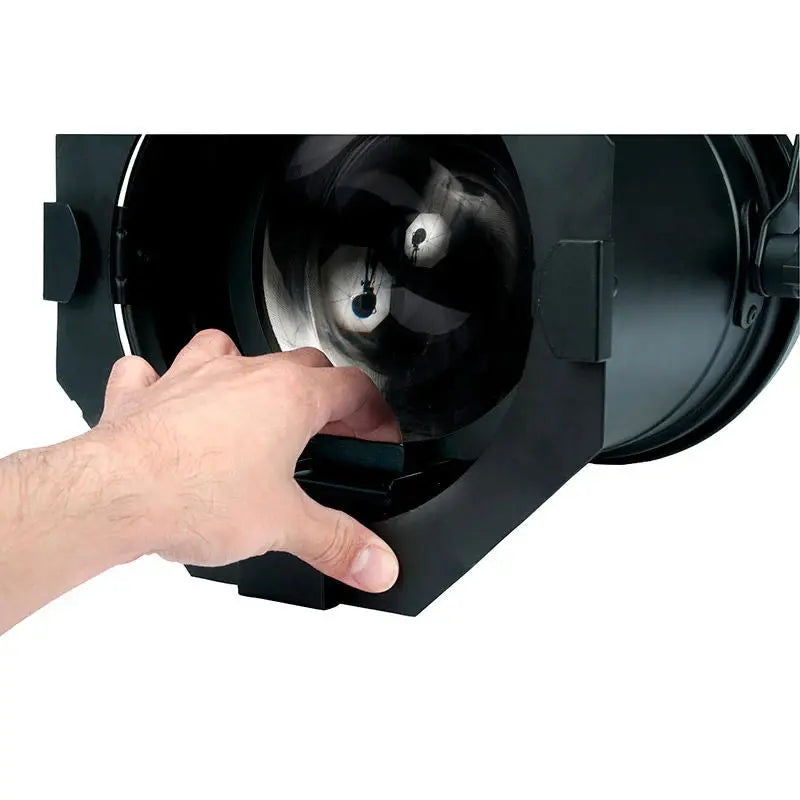

Aria X2 Wireless Management System 4-button DMX menu display on rear panel OLED display Adjustable latch to manually change beam angle Includes gel frame for diffusion filters (Diffusion filter sold separately) Strobe Rate: 0.6Hz to 7.5Hz Selectable Refresh Rates: 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 10KHz 15KHz 20KHz 25KHz Electronic Dimming: 0 - 100% 6 Dim Modes
Electrical:
Power Draw Total (@ Full On): 320W Power Consumption: 1.5A @ 220V/50Hz Multi-voltage operation: AC 100-240V 50/60Hz Daisy chain: 4 fixtures @ 230V Fuse protected: 8A/250V
Ambient Temperature Range (For Use):
-20° C ~ 40° C
Storage Temperature Range:
-30° C ~ 45° C
Dimensions / Weight:
Dimensions (LxWxH): 510 x 389.3 x 257.5mm Weight: 6kg
IP Rating / Approvals:
IP20
What' s Included:
Gel Frame Power Cord
Specifications subject to change without notice.
