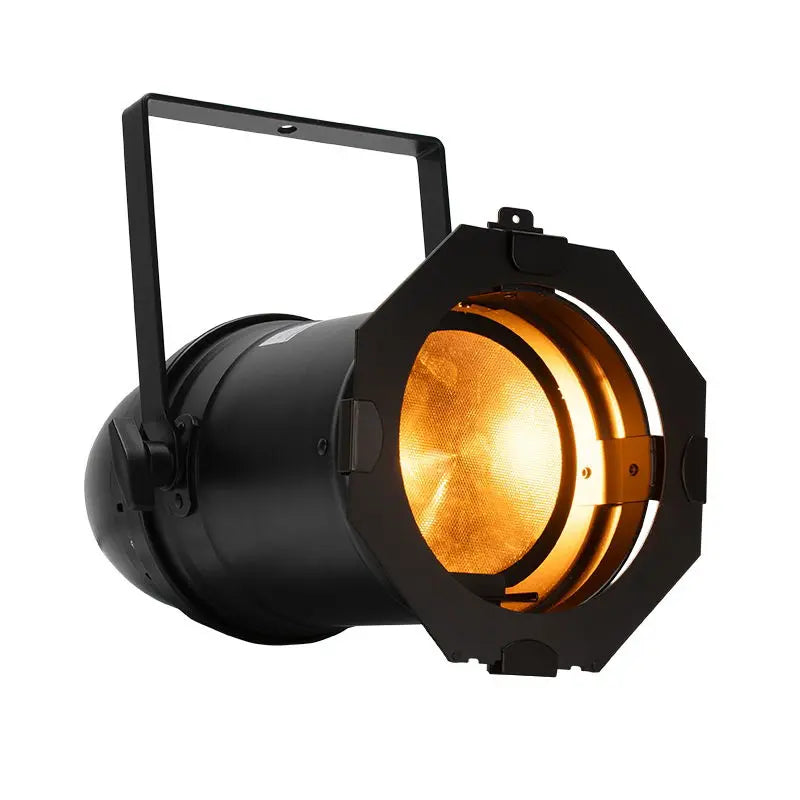

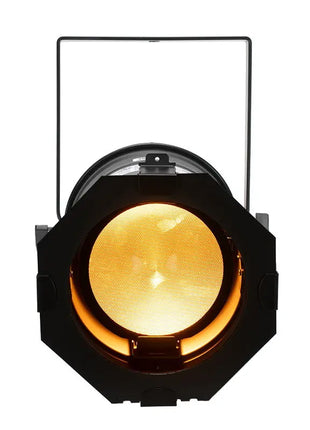

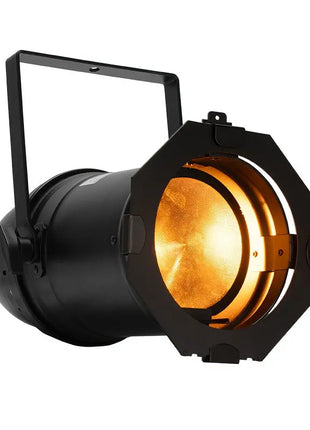

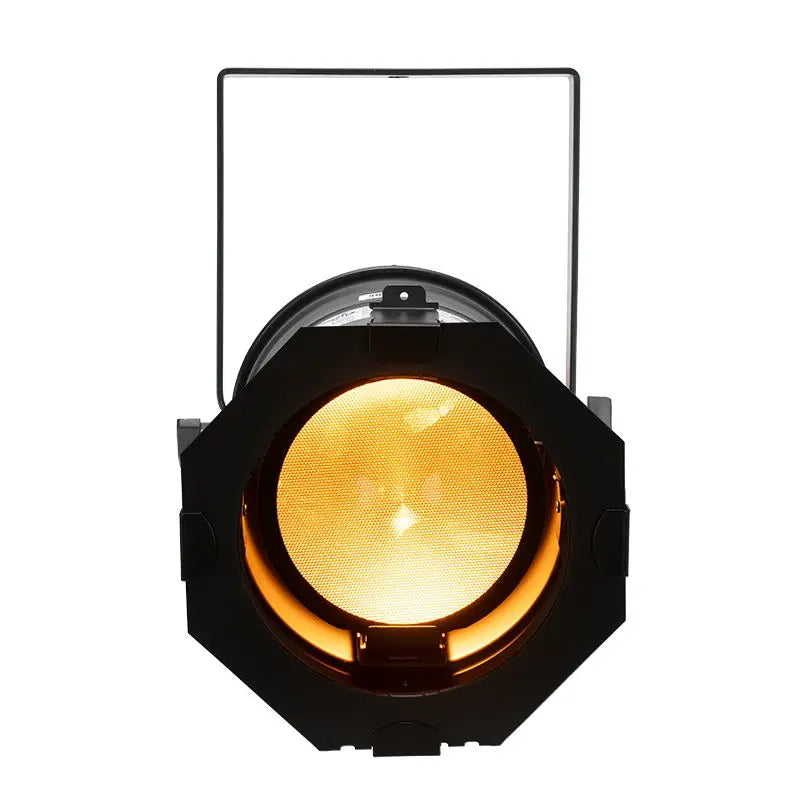

Combining the classic aesthetic of the traditional Par Can with the power-saving and heat-reducing advantages of a modern LED light source ADJ’s Par Z Series provides flexible wash lighting solutions for a wide variety of applications. The battery-powered Par Z150 RGBA Plus model harnesses the power and versatility of a 150-Watt quad colour (red green blue and amber) C.O.B. LED engine which delivers a huge spectrum of colour options including white light with colour temperature variable between 2300K and 9900K and is equipped with the Aria X2 wireless management system. Its built-in rechargeable lithium-ion battery makes it ideal for use in locations without a nearby power socket offering unmatched portability and convenience.
C.O.B (Chip On Board) technology ensures uniform output with no colour shadows while a high CRI of >90 means that colours are rendered more accurately when the fixture is used to illuminate scenery décor or performers which is particularly important to ensure natural skin tones and enhanced depth. 64 built-in colour macros along with additional white light colour temperature macros allow for quick and efficient programming. A choice of six dimming modes four dimming curves and an onboard colour balance feature allows the fixture to be customized for different applications and user preferences.

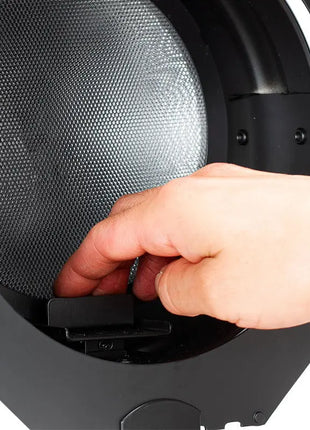

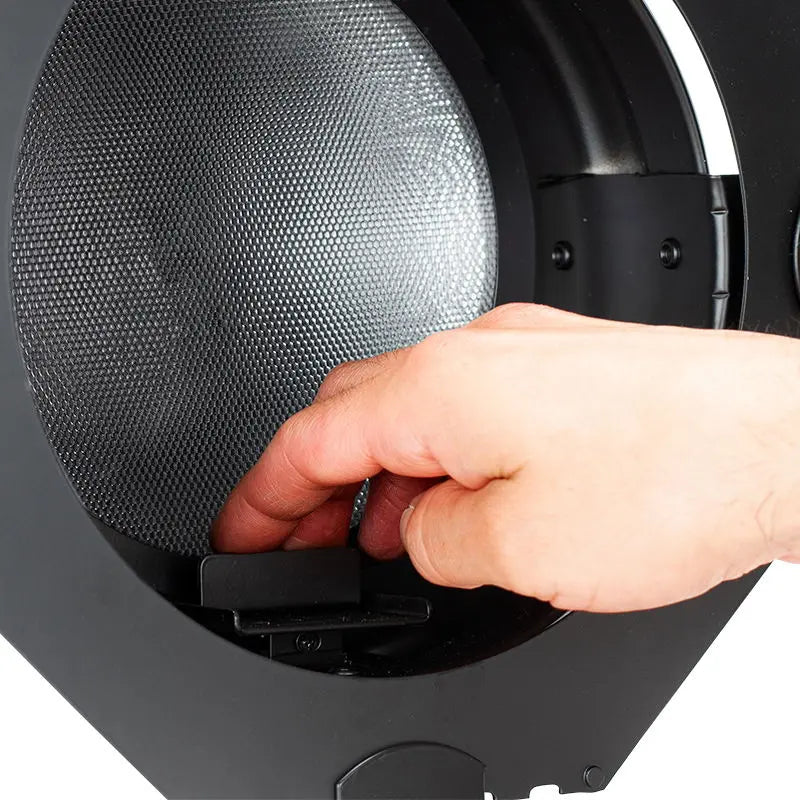

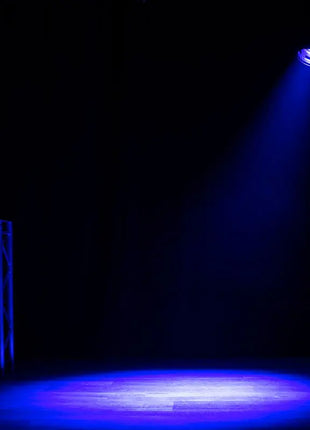

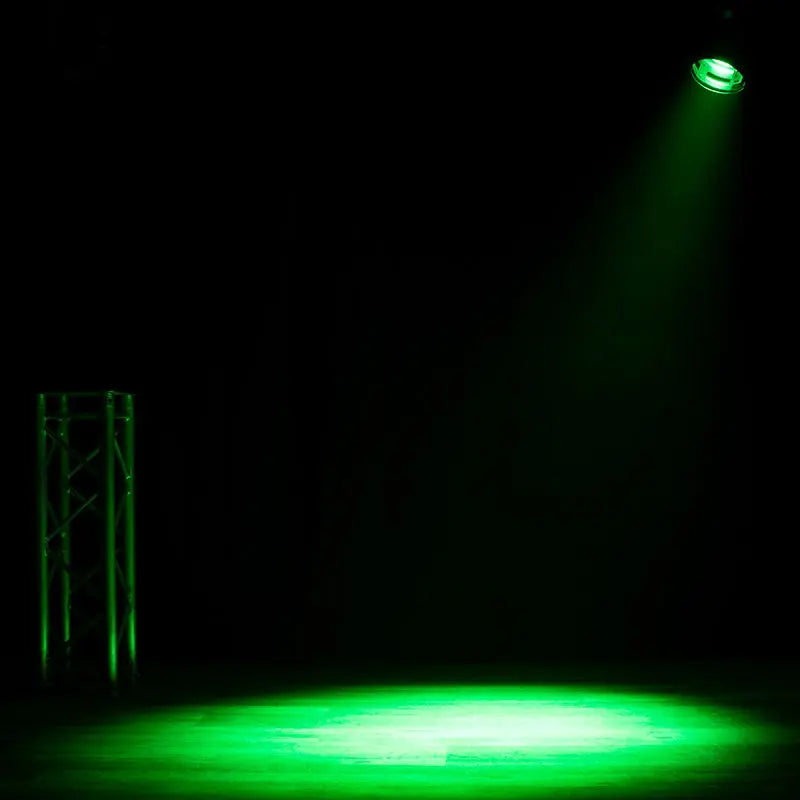

The luminaire offers five beam angle options (7° 11.5° 16° 20.5° or 25°) and is supplied with a gel frame that can be used to add a diffusion filter (sold separately) allowing an even wider spread to be achieved. As well as smooth dimming control the LED engine allows for variable-speed strobing effects with a flash rate of between 0.6Hz and 7.5Hz. Another advantage of the LED light source is its long-life expectancy of 50000 hours which essentially removes the cost and inconvenience of regular lamp replacement.
An adjustable bracket locked in place using a pair of large plastic thumb screws allows the fixture to hang from a truss or lighting stand at any desired angle. On the rear panel are 5-pin DMX input and output sockets as well as locking power input and output sockets which allow the electrical supply for multiple fixtures to be daisy-chained from a single outlet. Mode selection and DMX addressing is facilitated by an LED display and four corresponding push buttons also located on the rear panel. In addition to standard DMX the fixture is also compatible with the RDM protocol to allow remote fixture addressing.
Specifications
Optical:
150-Watt Quad RGBA C.O.B. LED (Chip On Board - Red Green Blue & Amber) Life expectancy: rated at 50000 hrs. Manual Zoom: 7 11.5 16 20.5 or 25-degrees Zoom Ratio: 3.3:1
Photometrics:
1360 Lux (Zoomed In to 7°) 487 Lux (Zoomed Out to 25°) CRI: >90
Connections:
DMX: 5-pin DMX In/Out With Wired Digital Communication Network Locking power In/Out connections
Control:
DMX-512 and Aria X2 Wireless DMX / APP 9 DMX control modes: (4/5/6/7/8/9/10/11 & 12 Ch. modes) RDM and RDM Net Compatible Primary/Secondary stand-alone mode On-board manual control mode
Features:
Aria X2 wireless management system built-in Linear white colour temperature control (2300K ~ 9900K) Colour Temperature Presets (2300K ~ 9900K) 4-button DMX menu display on rear panel OLED display Adjustable latch to manually change beam angle Includes gel frame for diffusion filters (Diffusion filter sold separately) 64 Built-in Colour Macros 13 Built-in Internal Programs Strobe Rate: 0.6Hz to 7.5Hz Refresh Rate: 3KHz Electronic Dimming: 0 - 100% 6 Dim Modes 4 Dim Curves On-board colour balance feature for each colour (RGBA)
Electrical:
Power Draw Total (All LED's @ Full On): 157W Power Consumption: 0.7A @ 220V/50Hz Multi-voltage operation: AC100-240V 50/60Hz Daisy chain: 17 fixtures @ 230V Fuse protected: 3A/250V
Battery:
Rechargeable Lithium-ion Battery Capacity: 7000mAh Battery Voltage: 22.2V Charge Time: 6 Hours (To Full) Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged Battery Cycles: 500 Battery On/Off button
Ambient Temperature Range (For Use):
-20°C ~ 45°C
Storage Temperature Range:
-30°C ~ 45°C
Dimensions / Weight:
Dimensions (LxWxH): 489 x 277.7 x 272.1mm Weight: 5.8 kg
IP Rating / Approvals:
IP20
Included Accessories:
Gel Frame UCIR24 Wireless Remote Power Cord
Specifications subject to change without notice.
