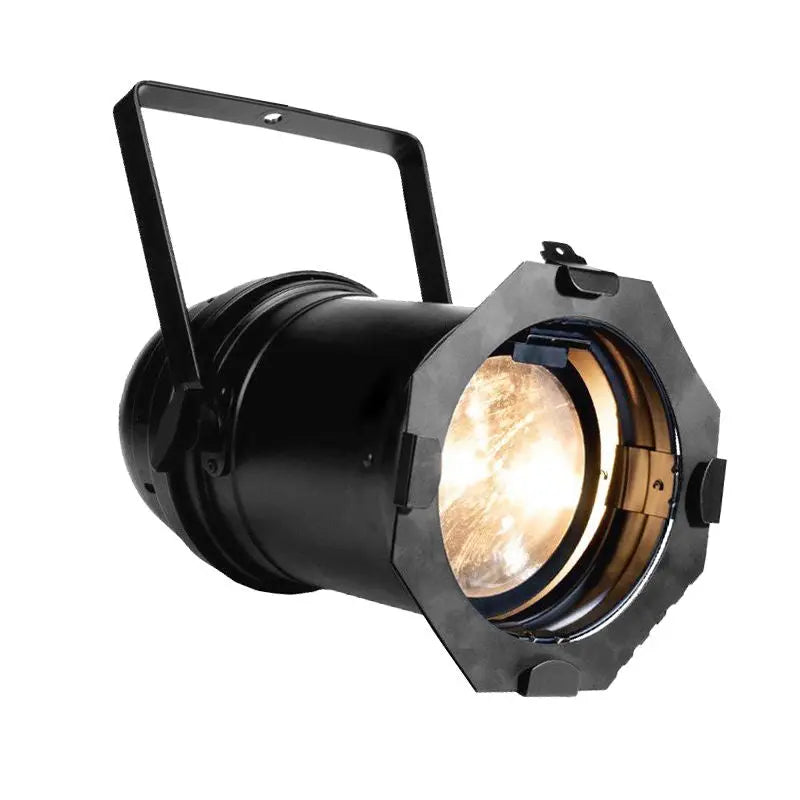

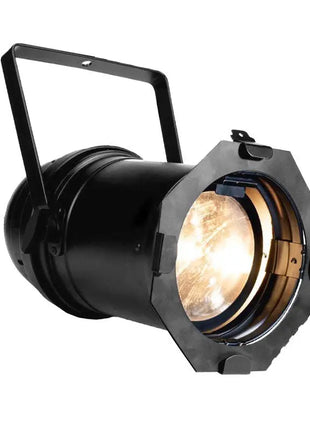

The Par Z100 3K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a colour temperature of 3000K. Its output is comparable to a 1000W halogen sealed beam Par. It is equipped with 5 different beam angle options that may be changed by hand. Locking Power In/Out allows for the fixture to be daisy chained while 5-pin DMX control offers a variable strobe rate and 5 different dimming curve options.
The Par Z100 3K allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw fixture and performers won’t get hot on stage DMX control of dimming and strobe. There are no dimmer packs need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.
Specifications:
Source
• Source: WW COB-LED
• Individual LED wattage : 100W
• Average LED lifetime: approx. 50000hrs
• Colour Temperature: 3000K

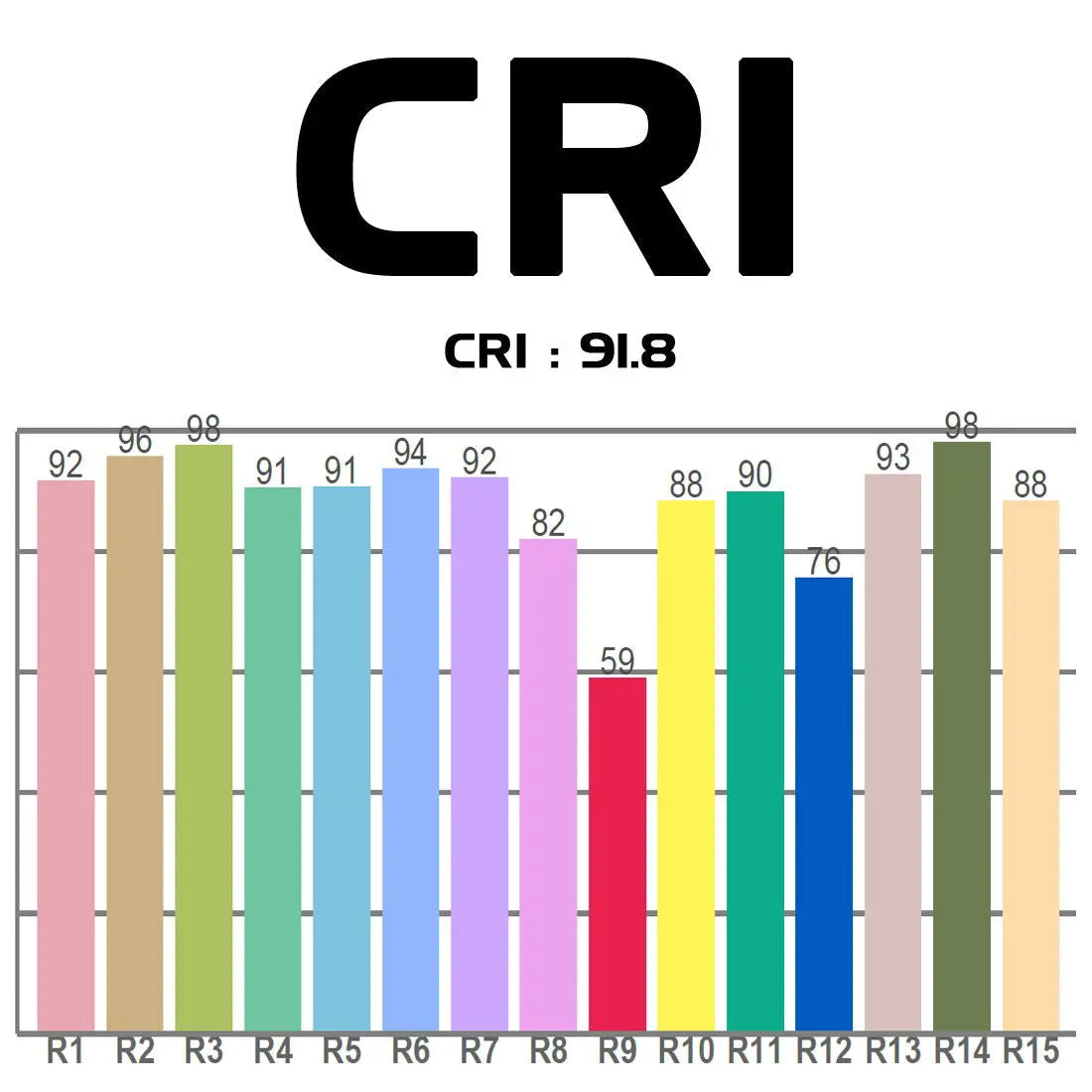

• CRI: 91.8
• LUX: 7135 (9?); 4440 (15?); 2236 (20?); 1266 (25?); 812 (30?)
Optics
• Beam angle: 9 15 20 25 0r 30-degree (manual adjustment)
Control
• 3 DMX channel modes: 1 2 & 3 channels
• RDM compatible (Remote Device Management)
• 5 Dim Curves: Standard/Stage/TV/Architectural/Theatre
• Adjustable Gamme Brightness
• Strobe & pulse effects
• LCD display with 4-button control
Colour
• Warm White 3000K
Construction
• Aluminium housing

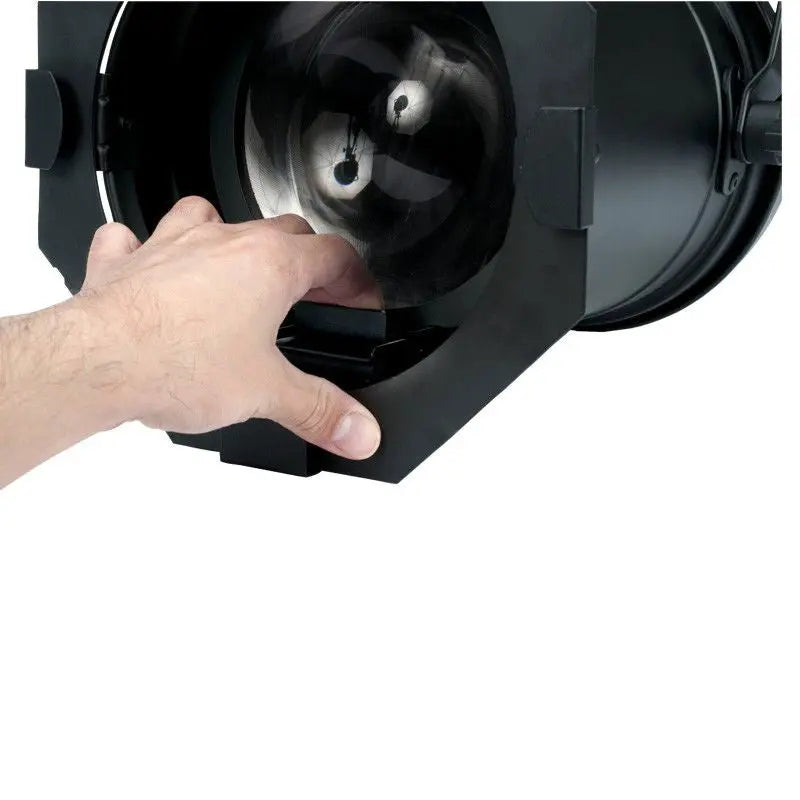

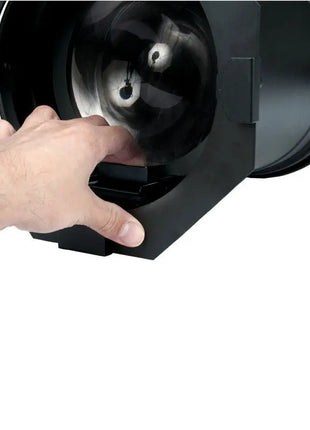

• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Yoke included
Electrical
• Multi-voltage operation: 100-240V 50/60Hz
• Maximum power draw: 115W

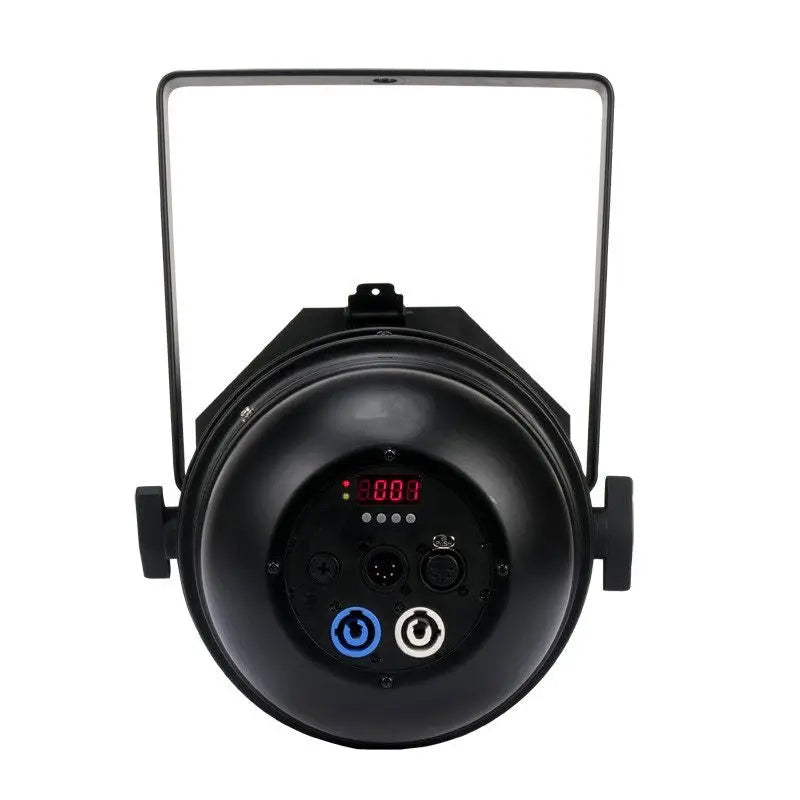

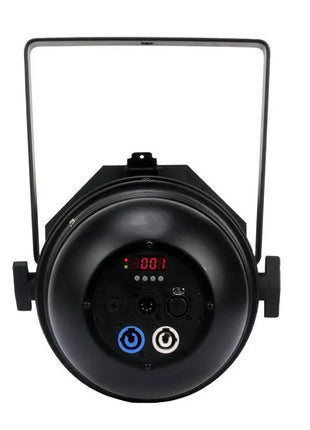

Connections
• Data In/Out: Locking 5-pin DMX
• Power In/Out: Locking Power
Dimensions & Weight
• Dimensions (LxWxH): 491 x 272 x 273mm
• Weight: 34 kg.
