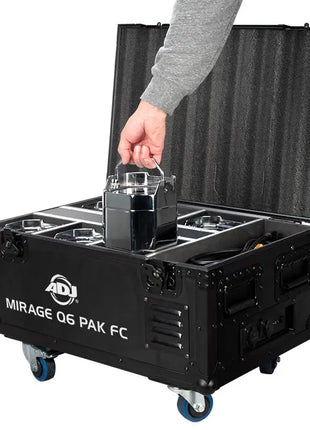

The ADJ Lighting Mirage Q6 PAK is an all-in-one event up lighting system with six IP65 rated battery powered fixtures and a durable flight case with an on-board battery charging solution.
Each Mirage Q6 IP fixture is powered by four 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain snow dust and sand). Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller also with WiFLY EXR wireless DMX up to 2500 feet (700M) away.

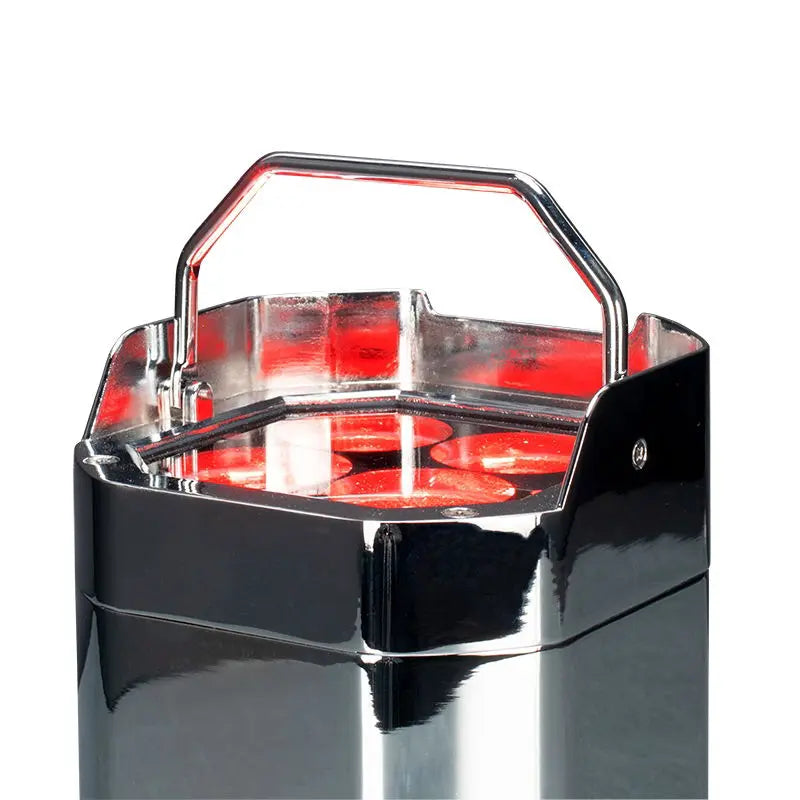

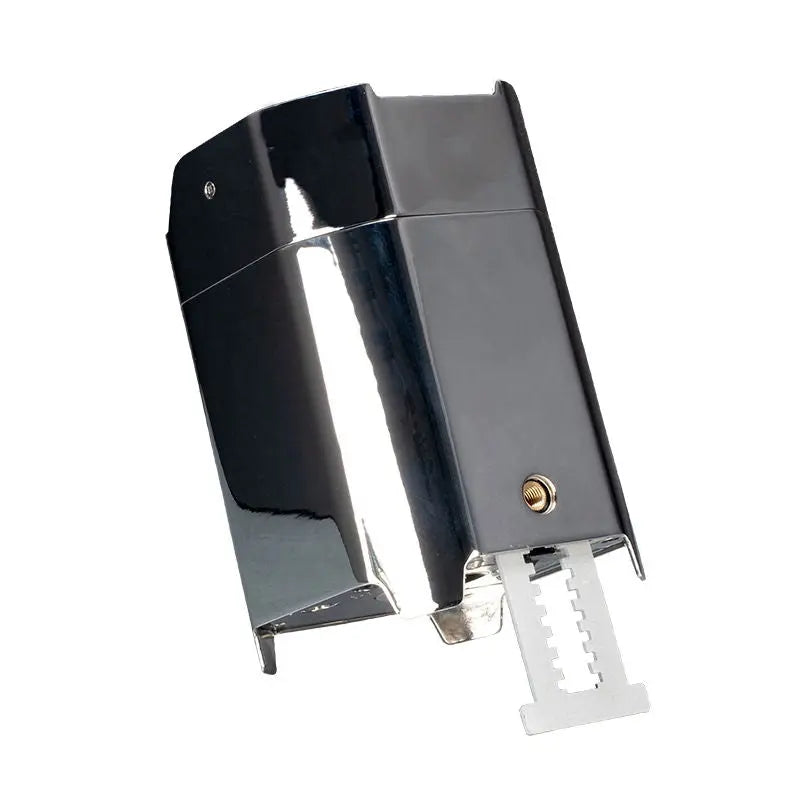

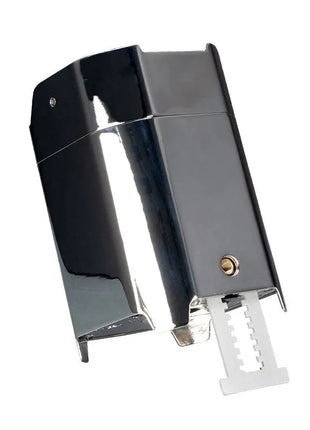

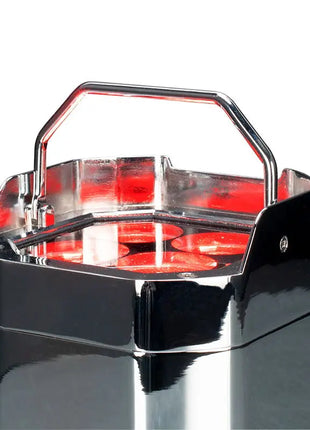

Ideal for wall washing Mirage Q6 IP fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.
Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on the fixture will make a beeping sound and strobe in red.
The robust battery will operate up to 40 hours on a single colour (20 hours changing colours). The battery charge time is 7 hours.
IMPORTANT NOTICE:
To achieve the full battery lifetime units must be fully charged prior to the first use and then initialized.
Please find initializing instructions under the User Instructions tab below!
Please note: Shipping charges may applySpecification

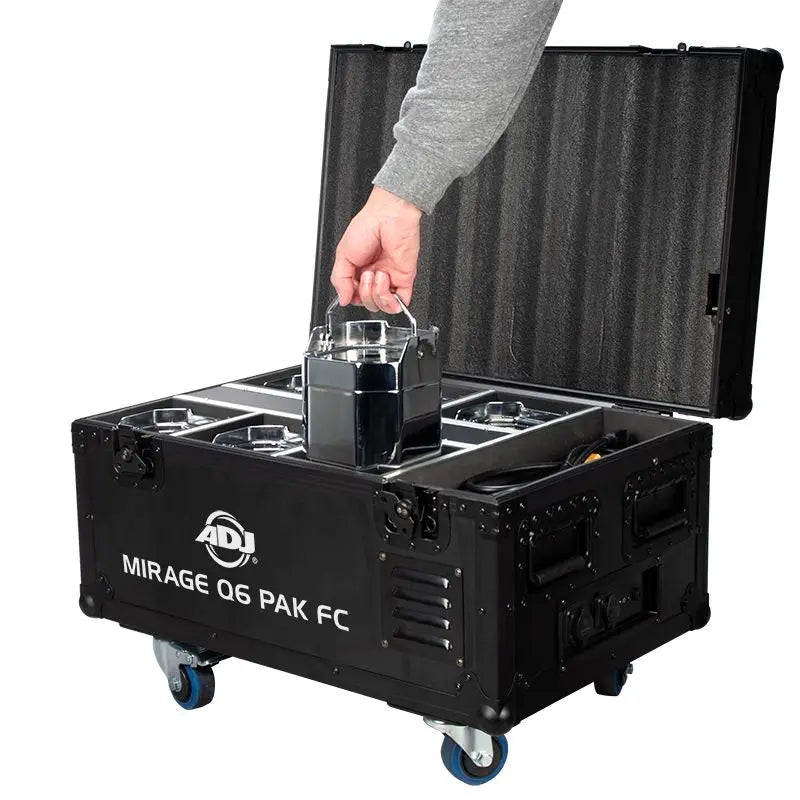

Mirage Q6 Pak includes:
(6) MIRAGE Q6 IP Fixtures (1) MIRAGE Q6 FC Flight Case (6) MIRAGE Q6 IPCB Charging bases and power supplies (1) UC-IR Wireless Infrared Controller (1) IP65 Locking Power Cable
Mirage Q6 Pak Features:
Houses / Transports and Charges (6) MIRAGE Q6 IP™ fixtures
Mirage Q6 Pak Dimensions & Weight (with 6 fixtures):
Length: 26.4” (671mm) Width: 18.2” (461mm) Vertical Height: 18.1” (459mm) Loaded Weight: 97.9 lbs. (44.4 kg)
Pak Electrical & Thermal:
Power Input: AC100VAC~240VAC 50/60Hz IP65 Power Locking Input and Output Max Power Consumption: 400 Watts Power Draw: 4A Charge status indicator 14°F to 113°F (-10°C to 45°C)

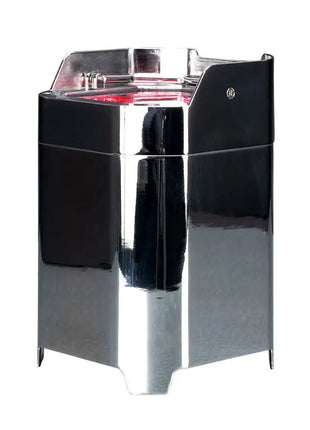

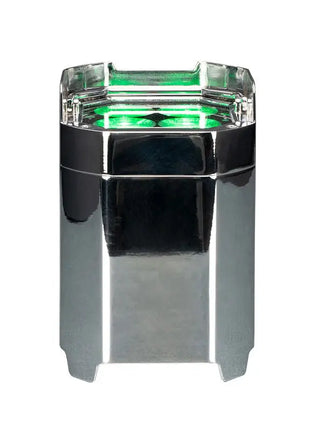

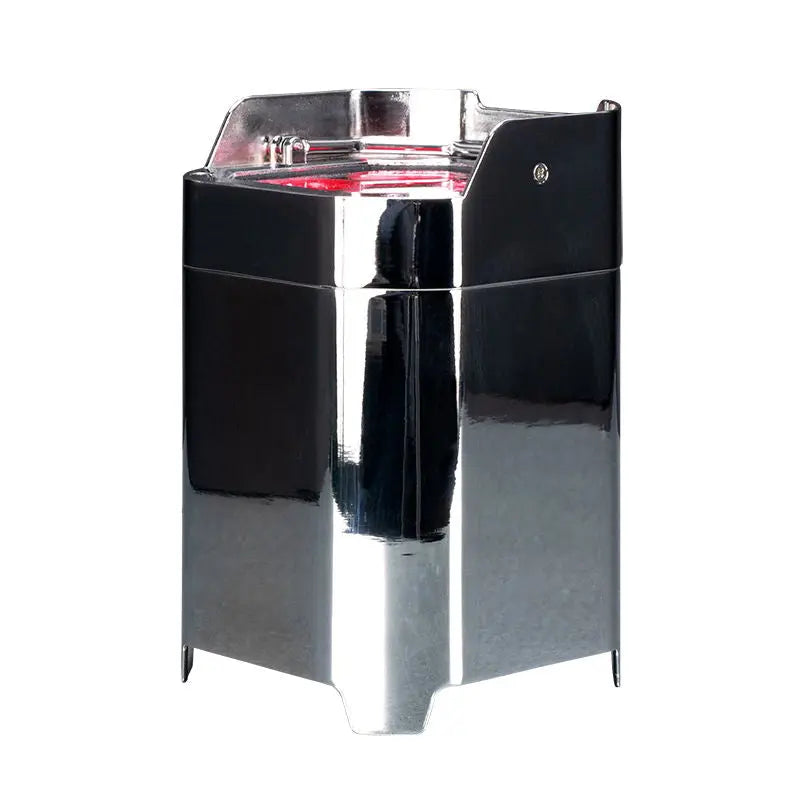

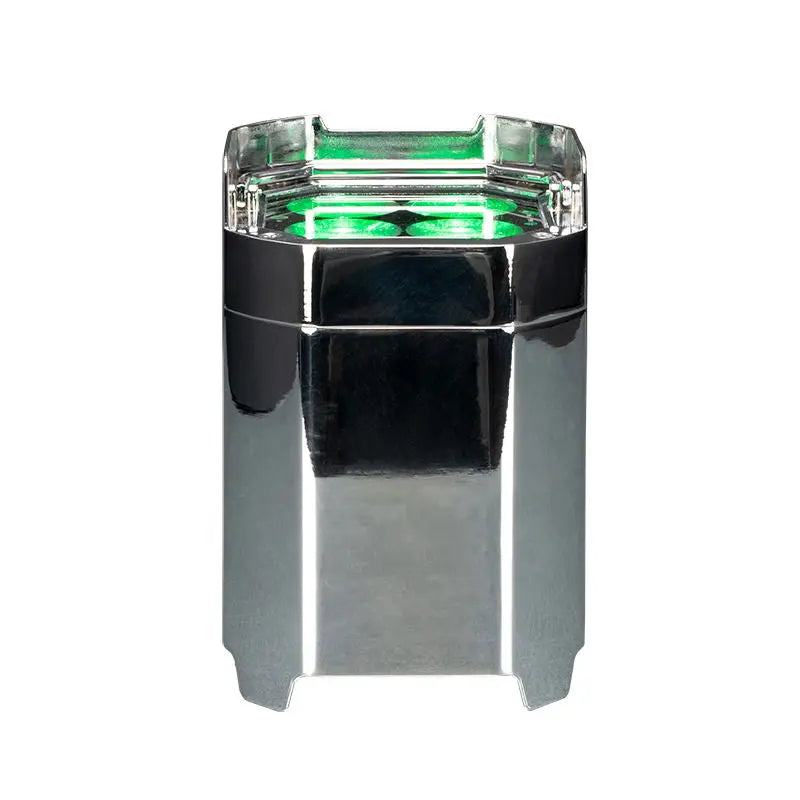

MIRAGE Q6 IP FIXTURE
Source:
4 x 10-Watt RGBA LEDs (4-in-1 - Red Green Blue & Amber) 50000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Photometrics:
LUX: 9903 @ 2M; 2303 @ 4M
Optics:
11-degree beam angle
Control & Connections:
Control protocol: WiFLY EXR Wireless DMX 11 DMX Channel modes: 4 6 7 8 9A 9B 10 11 12 15 or 18 channels Remote control: WiFLY EXR DMX UC-IR24 (Included) 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs & 1 colour/fade combo mode); Static Colour mode; and Wireless DMX Control Contact Charging system. 6x Charging bases and power supplies included in flight case
Features:

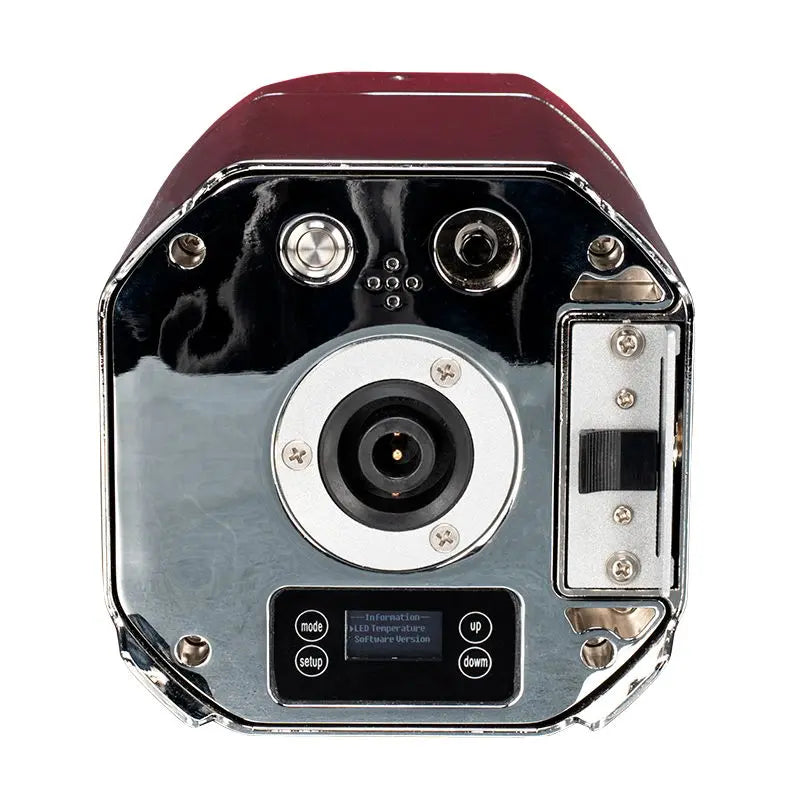

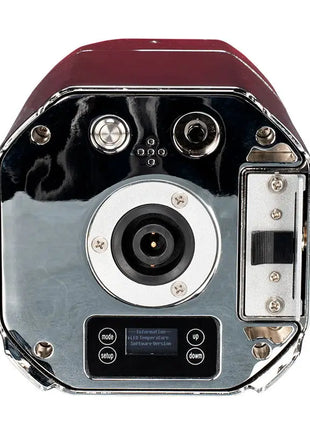

IP65 Outdoor Rated Built-in kickstand to angle fixture when sitting on the floor 4-touch button OLED display on rear panel Built-in WiFLY EXR wireless DMX: Up to 2500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver 64 built-in Colour Macros Variable RGBA colour mixing offers a smooth seemingly unlimited colour palette - Great for Wall Washing! LED pulse and strobe effect (0.2Hz-11Hz) Flicker Free Operation Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves Run all night – No duty cycle Energy Save Mode Built-in alarm system with On/Off Battery charge indicator on each fixture Die-cast aluminium housing
Battery:
Battery Type: Fixed lithium battery Battery Energy: 162.8WH (Watt Hours) Battery Weight: 0.84 kg. Battery Voltage: 14.8V Battery Capacity: 11000mAh (Typical Capacity) Total Lithium Ion Cells: 20 pieces Battery Wrap Material: PVC sleeving + highland barley paper Battery Charge Time: 7 Hours Battery Life: 14 hours (When colour changing in Battery Saver Mode 14); 40 hours (When set to a single colour in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
Dimensions & Weight:
Length: 143.2mm Width: 143.2mm Vertical Height: 211mm Weight: 4.01kg
Electrical & Thermal:
Power Input: DC 17.3V Power Draw: 2A 40W Max Power Consumption (each unit) -10°C to 45°C
