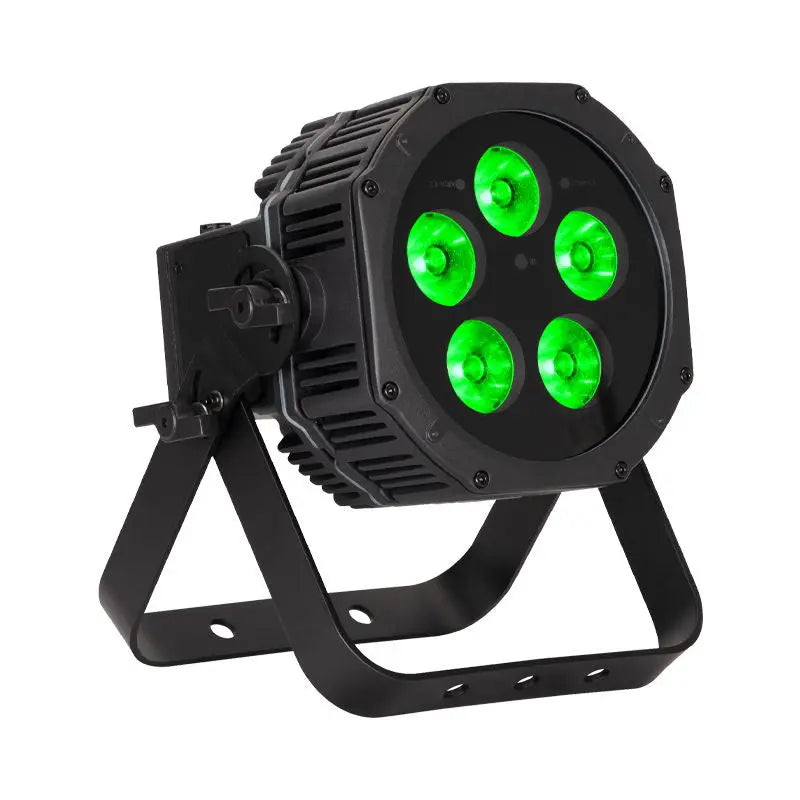

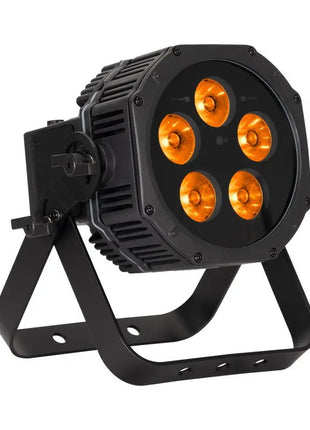

The Mirage Par H IP LED fixture is a versatile high-performance lighting solution perfect for events installations and stage productions. Equipped with five 20W Hex Colour RGBAL+UV LEDs it delivers a dynamic range of colour including lime and UV for unique lighting effects. With an adjustable white colour temperature from 2300K to 9900K the Mirage Par H IP allows access to massive gamut of colours.
This light can be powered via wall outlet or its rechargeable lithium-ion battery providing user selected 5 to 20 hours of operation. Control options are expansive including DMX512 Aria X2 wireless system for over the air firmware/software updates Bluetooth RDM and an IR remote. With a robust IP65-rated housing it is weather-resistant making it ideal for outdoor or indoor use.
Advanced features include variable refresh rates (900Hz to 25K) six dimming modes four dimming curves built-in programs and electronic strobing and full dimming giving users complete control over intensity and effects.
The Mirage Par H IP is both compact and rugged ensuring easy setup striking and transport. This versatile LED Par is designed for lighting professionals who need reliability colour versatility adaptable power options and all-weather protection in one durable package.
Specifications
Features:
5 Pixel Hex Colour LED (RGBAL+UV) LED Par Battery or Wall Powered Battery operation can be selected by the user for durations ranging from 5 to 20 hours Built-In Programs Variable White Colour Temperature Control (2300K ~ 9900K) User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (0.3Hz ~ 11Hz) Electronic Dimming
Source:
(5) 20W Hex Colour RGBAL+UV LED's 50000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Optical:
2300K ~ 9900K White Colour Temperature Range 17° Beam Angle
Physical:

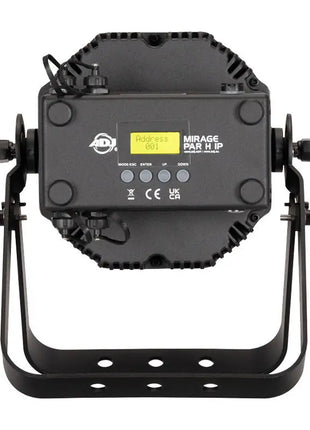

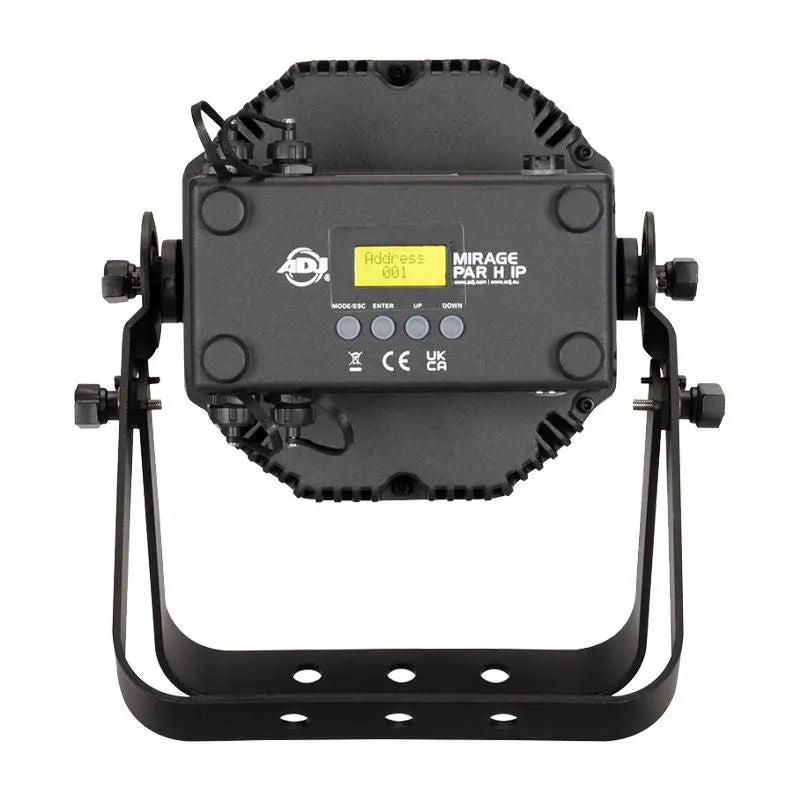

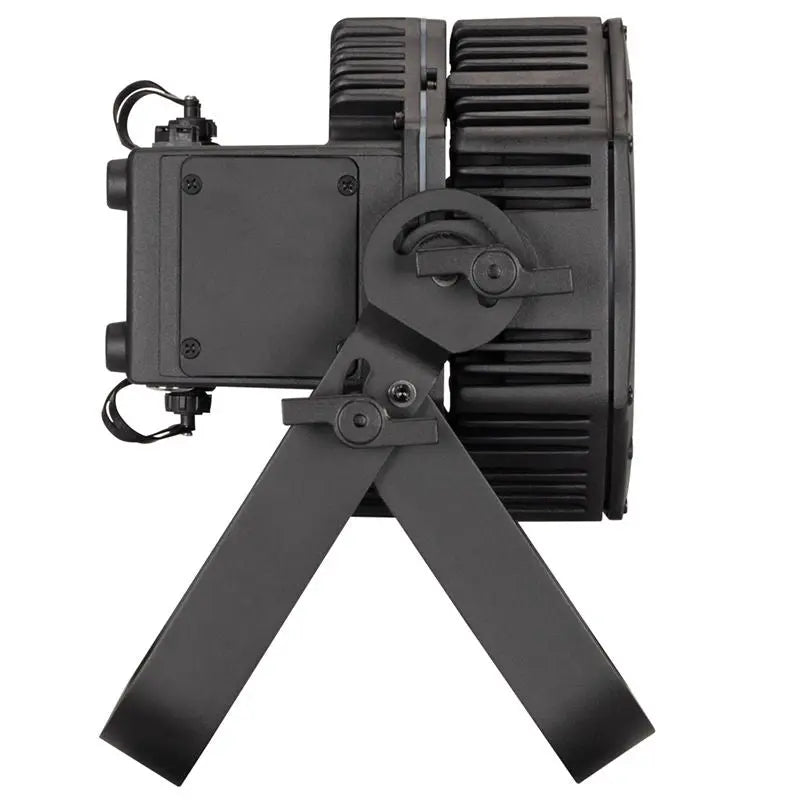

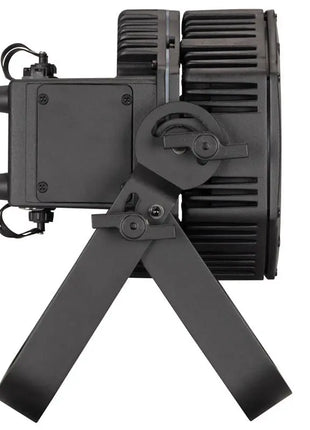

IP65 Housing Digital display Adjustable hanging / kick stand bracket
Control:
DMX512 Aria X2 Wireless Management / DMX System Bluetooth RDM and RDM Net Compatible IR (Includes UCIR24 wireless remote) (6) DMX Channel Modes (5 6 9A 9B 15 & 17 Channel modes) On-board Manual Control Mode Primary / Secondary Mode
Connections:
4-pin proprietary Power In/Out connections 3-pin proprietary IP65 DMX In/Out connections
Dimensions & Weight:
Dimensions (LxWxH): 282mm x 269mm x 191mm Weight: 5.4 kg
Power:
AC100-240V/50Hz-60Hz Input 60W Power Consumption Link 28 pieces @ 230VAC
Battery:
Rechargeable Lithium ion Battery Capacity: 6600mAh Battery Voltage: 22.2V Charge Time: 5 Hours (To Full) Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged Battery Cycles: 500
Thermal:
Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°C
Certifications & IP Rating:
IP65
Included Accessories:

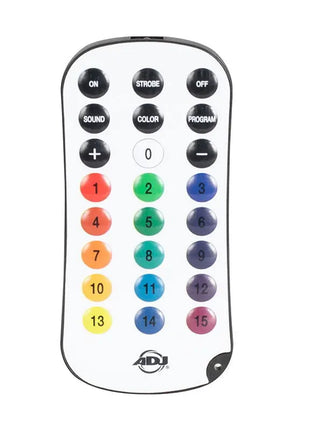

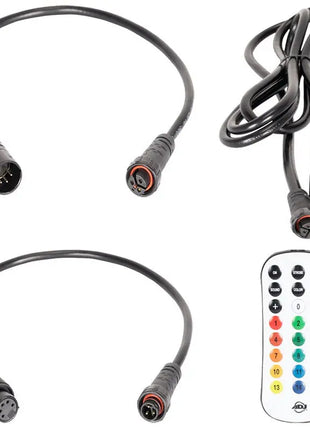

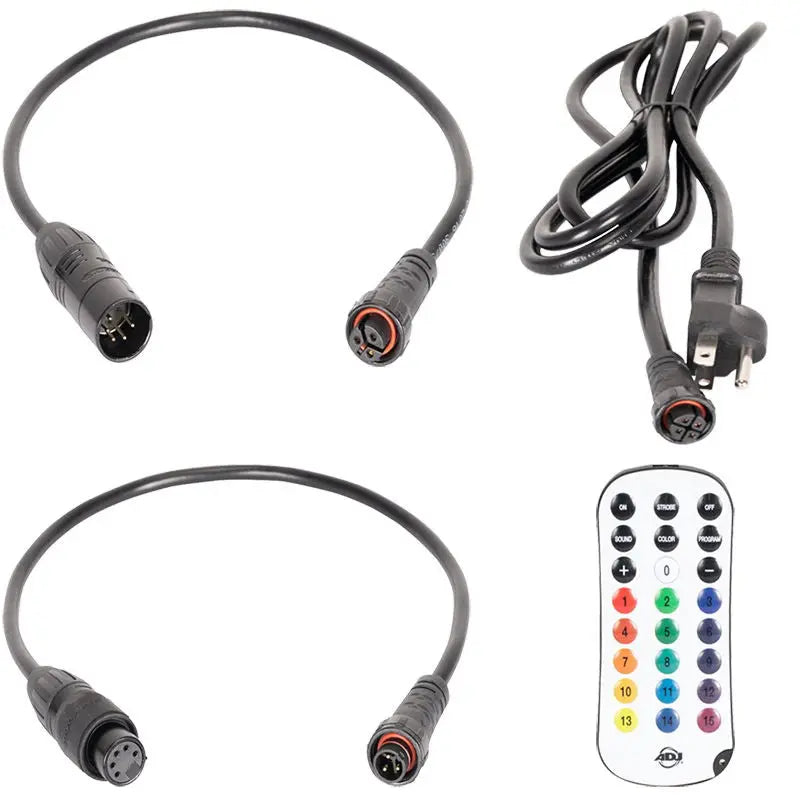

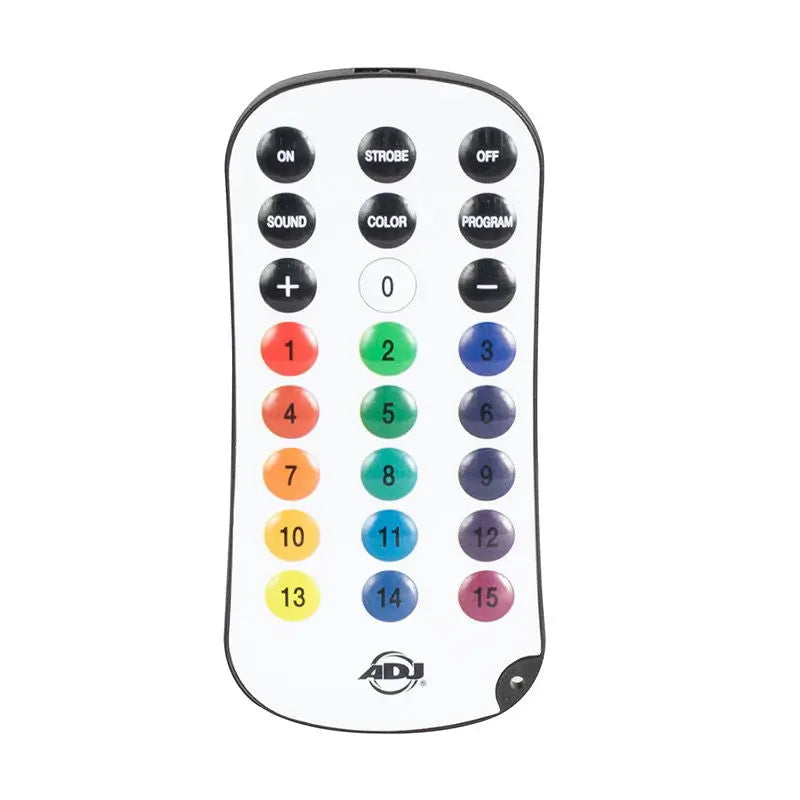

(1) Outdoor Locking Power Cable (1) Floor / Mounting Bracket (1) UCIR24 Remote
Specifications and documentation subject to change without notice.
