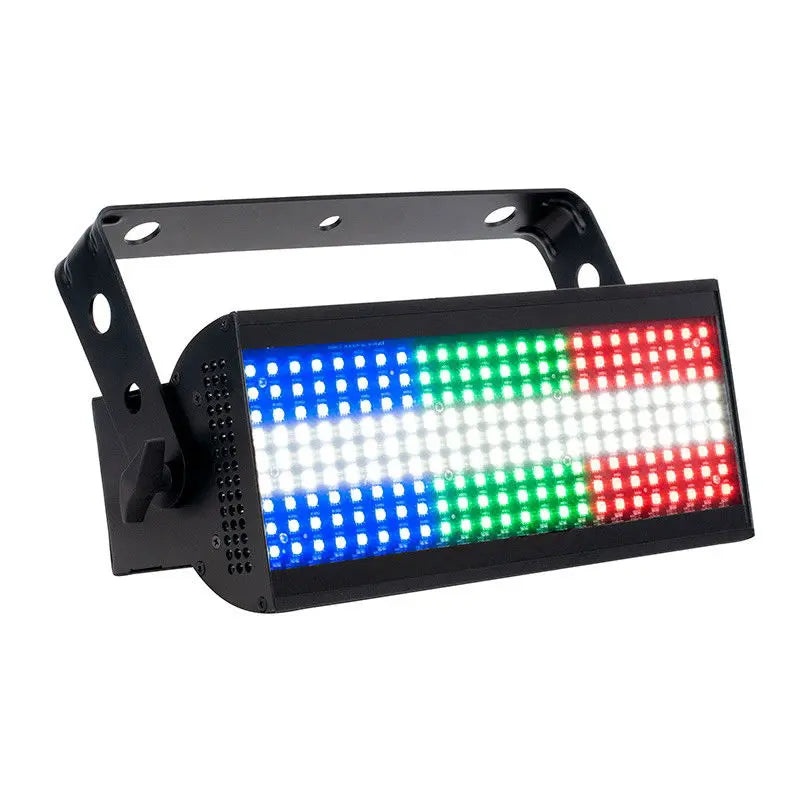

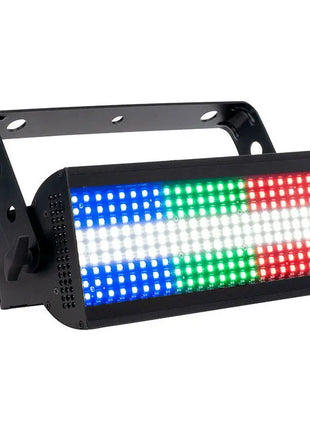

The ADJ Jolt 300 is an innovative multi-use strobe / eye candy fixture. It uses 144 1.5W RGB SMD LED for colour strobing and eye candy effects and 144 .5W white SMD LED located in the centre of fixture to create the traditional look of a strobe. Zone chasing control provides an eye candy effect when used together with the white LEDs. The Jolt 300’s massive light output is specifically designed for large stages nightclubs live events and touring.

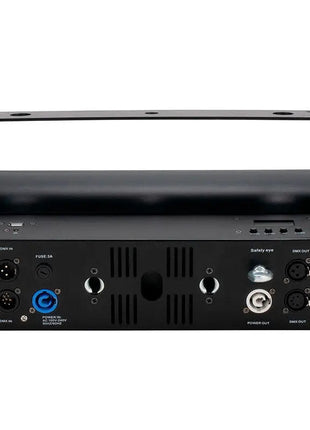

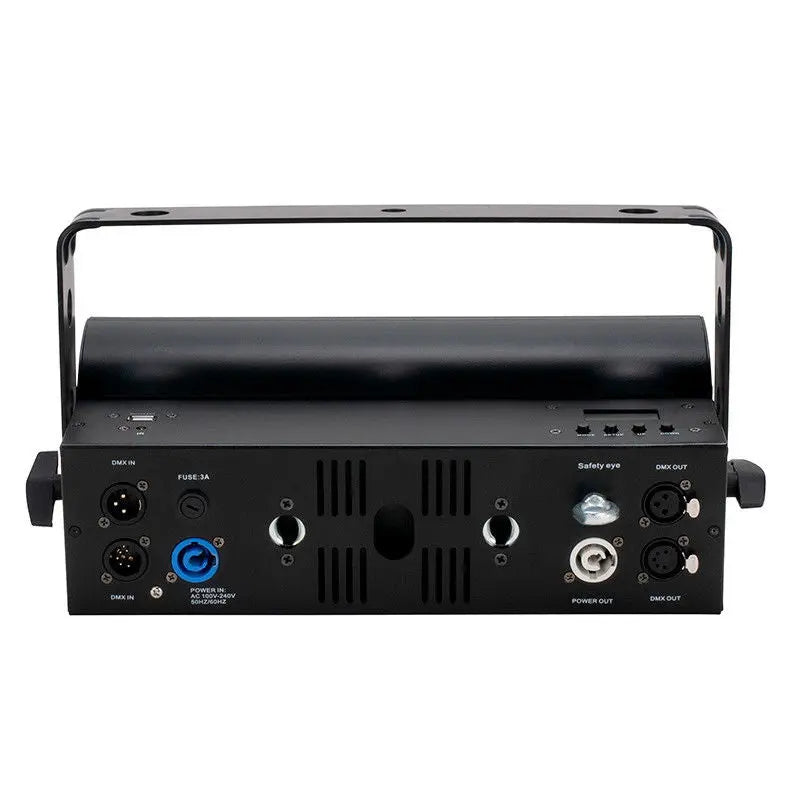

The rear panel has conveniently located connections with 3-pin and 5-pin DMX input connections along with a Locking Power input to receive power. On the other side of the rear panel are the 3-pin and 5-pin DMX outs and the locking power out connections. This enables the unit to receive and pass through power and data to another Jolt 300 fixture. There is also a USB input that allows uses a fast and convenient way to update firmware.
The Jolt 300 offers users an easy way to navigate the built-in features from a LCD display with a 4-button menu system. The display allows users to change dimming modes dimming speed programs colour macros LED refresh rate gamma settings and DMX channel modes.

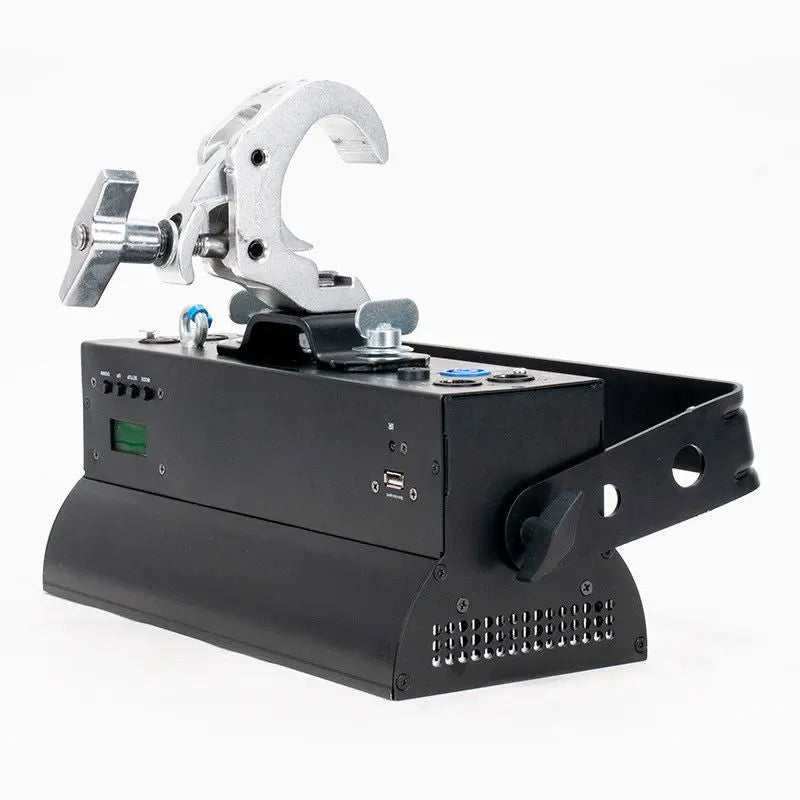

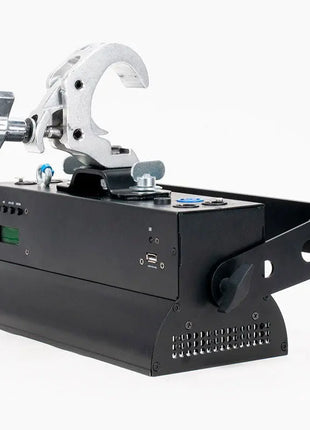

A scissor yoke and an omega bracket come with the fixture so the it can be attached to a clamp and hung on truss.
Light Source:
• 144x 1.5W RGB SMD LEDs + 144x .5W Cool White SMD LEDs
• 120-degree Beam Angle
• 6000k Colour Temperature (White LED’s only)
• 50000 Hour Average LED Life
Features:
• 3 Section RGB control
• 64 built-in Colour Macros
• 32 built-in programs
Control:
• Control Protocol: DMX
• 6 DMX Modes: 4 8 10 10a 1215 18 and 18a
• Dim Modes: 6 Presets (Standard Stage TV Architectural Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• 0-100% Dimming
• Strobe shutter & pulse control
• Adjustable LED Refresh Rates (900~25kHz)
• Adjustable Gamma Settings (1.0-2.8)
• With Wired Digital Communication Network
• Display: LCD display with 4-button touch menu
• Compatible with ADJ’s UC IR wireless remote
Connections:
• Data: Locking 3-pin & 5-pin DMX In/Out
• Locking Power In/Out to daisy chain power
• Scissor yoke
• Omega bracket attachment
• Safety bolt
• USB port to update firmware
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 226W
Dimensions / Weight:
• Length: 16” (405mm)
• Width: 7” (175mm)
• Height: 5.25” (130mm)
• Weight: 8.5 lbs. (3.8kg)
What’s Included:
• 1x Omega Bracket
• 1x Quicklock Omega bracket
• 1x Locking Power power cable
• 1x UC-IR Remote
