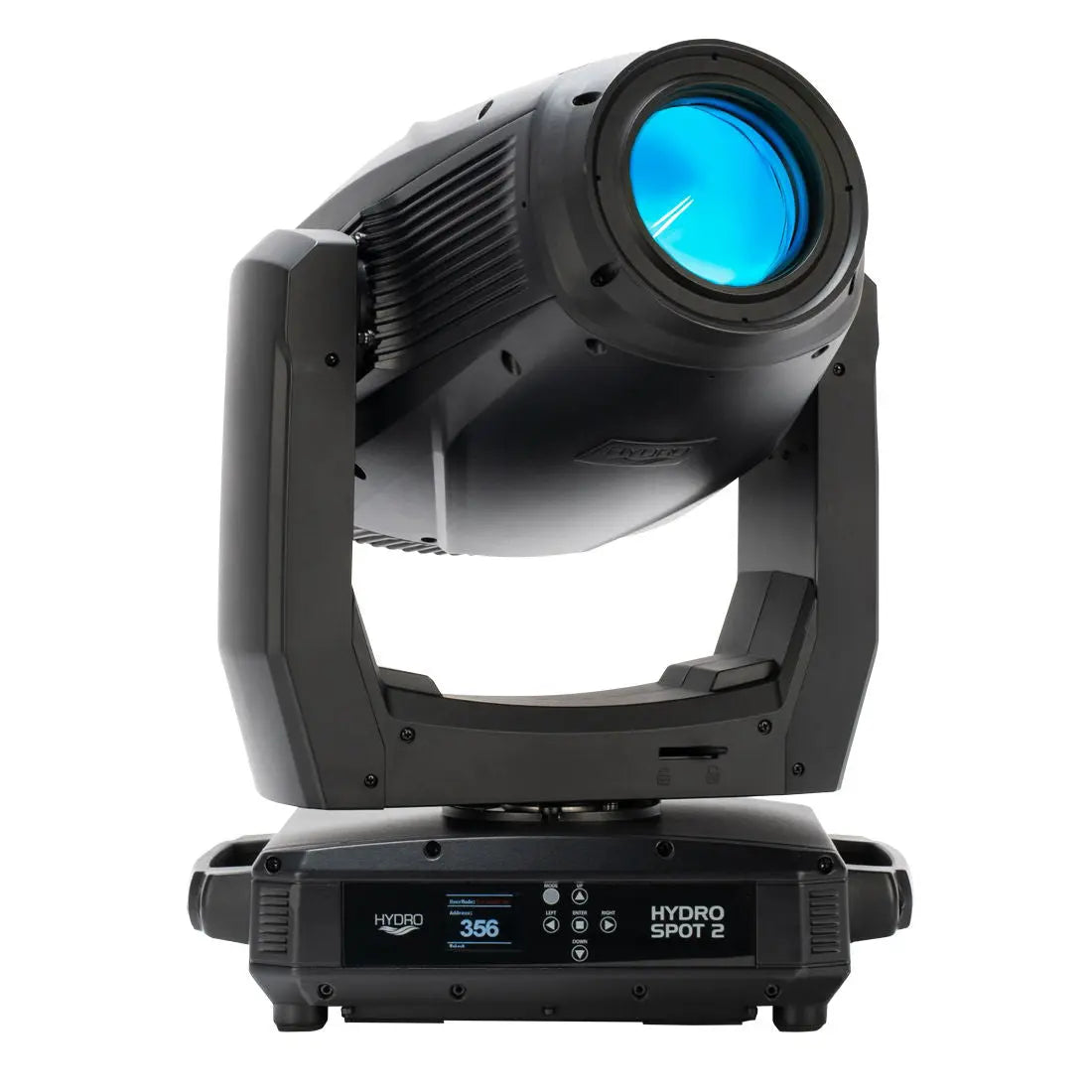

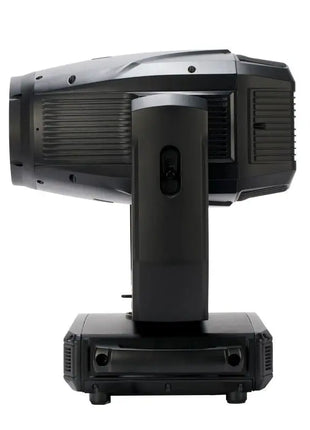

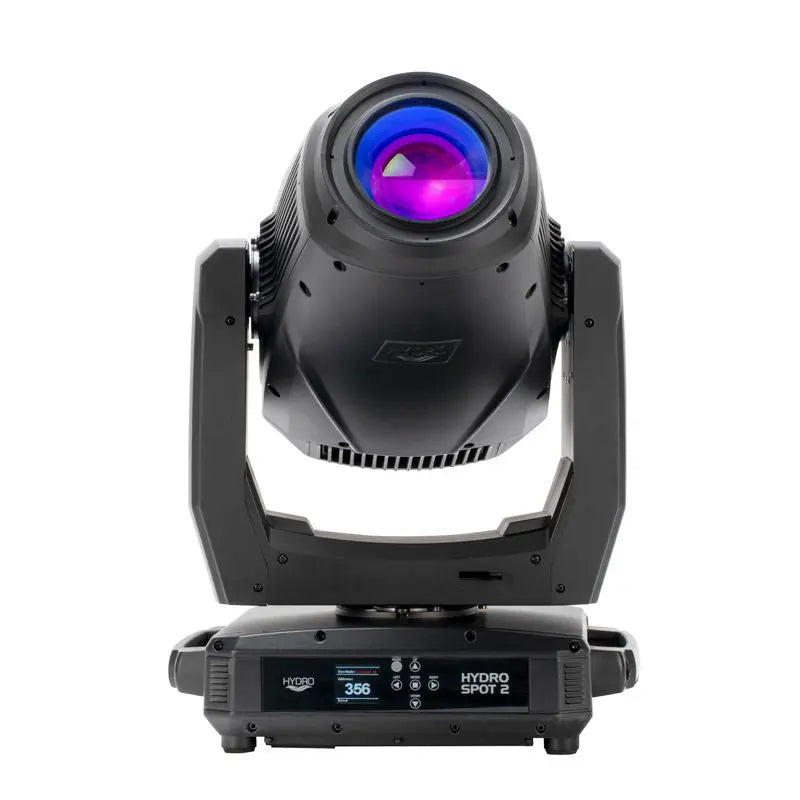

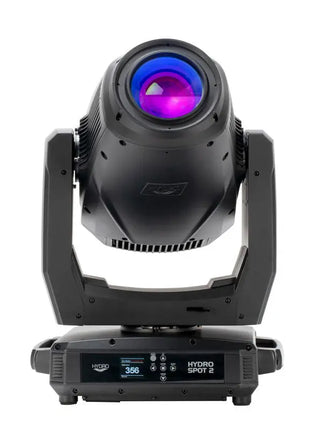

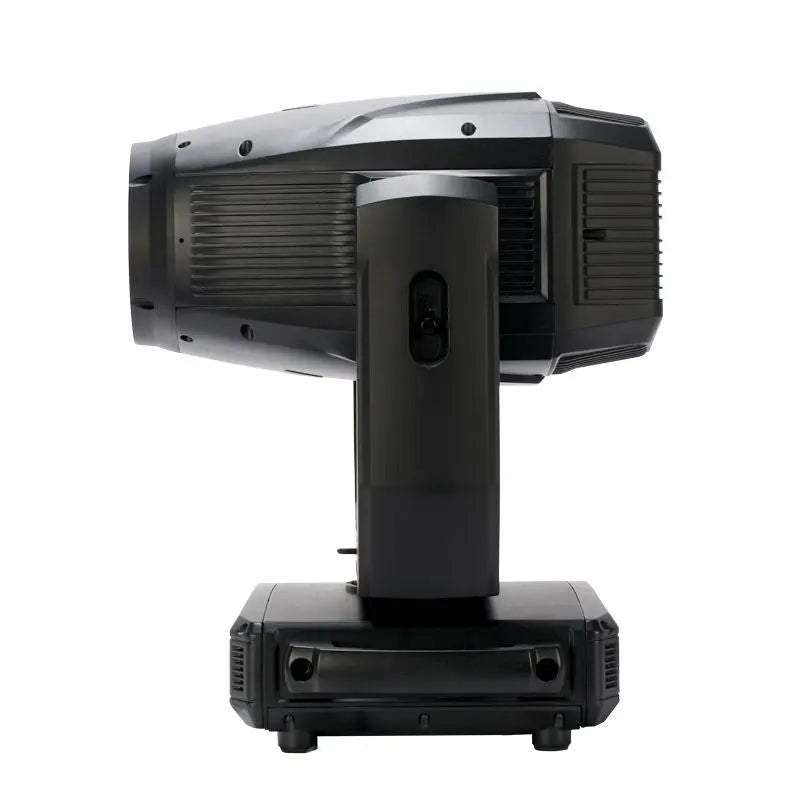

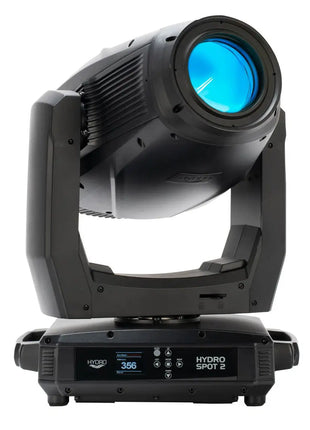

Harnessing the power of a high output 320-Watt cool white LED engine focused through precision-engineered optics the ADJ Hydro Spot 2 is a powerful and versatile professional moving head luminaire. It combines an expansive feature set with a robust IP65-rated construction to deliver a fixture that is ideal for temporary event production both indoors and outside in any weather. It is also suitable for permanent installation within all kinds of venues from concert halls to nightclubs theatres to churches where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.
Motorized zoom allows the fixture’s beam angle to be altered between a tight 8-degrees and wide 41-degrees while two frost filters can also be applied to soften the beam edges and further widen the beam angle. The medium frost filter is designed to lightly blur the edges of GOBO/prism effects while the heavy frost filter allows the fixture to be used for wash lighting duties. An almost limitless spectrum of colours can be generated by the fixture thanks to CMY colour mixing while a separate variable CTO flag allows for colour-corrected white light output. In addition a colour wheel is also provided with seven dichroic colour filters including CTB and High CRI options.
The Hydro Spot 2 offers two independent GOBO wheels one with 8 static patterns and the other with seven rotating and replaceable GOBOs (either aluminium or glass). Motorized focus can be used to ensure patterns remain sharp across varying projection distances while dynamic effects can be produced using the integrated animation wheel. Wider surface projection and aerial beam effects can be generated using a choice of two indexed rotating prisms: 5-facet linear or 6-facet circular. Finally the fixture’s 15000 lumen white light LED engine allows for smooth 0-100% digital dimming (with a choice of modes and curves) as well as variable speed strobe effects.
Source:
320W Cool White LED Engine (6.200K 50.000 hr.) CRI 70 15.000 Lumens
Features:
Motorized Focus 2 Frost Filters Motorized Zoom: 8° ~ 41° Animation Wheel 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular 0-100% smooth dimming Various strobe speeds 2 cooling fans
Colour:
CMY colour mixing system Variable CTO flag Colour wheel with 7 dichroic colours + white (includes CTB and High CRI filters
Gobo Wheels:
(1) Rotating Gobo wheel with 7 Gobos (1) Static Gobo wheel with 8 Gobos All Gobo's on rotating wheel are replaceable Gobo Shake Effect on both wheels Aluminium Gobo size: 23mm (outer); 19mm (viewable); 0.5mm (thickness) Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel:
Prism Wheel 1: Rotatable 6-facet Circular Prism Wheel 2: Rotatable 5-facet Linear Both Prisms are indexable
Frost Filters:
Frost 1: Heavy frost for wash effect Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
Control:
3 DMX Channel Modes: 23/27/34 Colour LCD display with 6-button function menu Control Mode: DMX512 or internal programs 6 Dim Modes: Standard Stage TV Architectural Theatre Stage2 4 Dim Curves: Square Linear Inv. Square and S. Curve Selectable LED Refresh Rates (900 Hz~25K Hz) 0-100% smooth dimming Various strobe speeds RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (Up to 300M line of sight)
Pan/Tilt:
Pan: 630 degrees Tilt: 270 degrees
Connections:

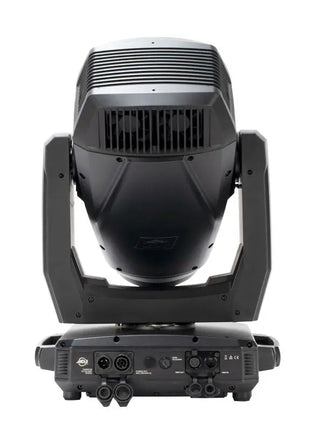

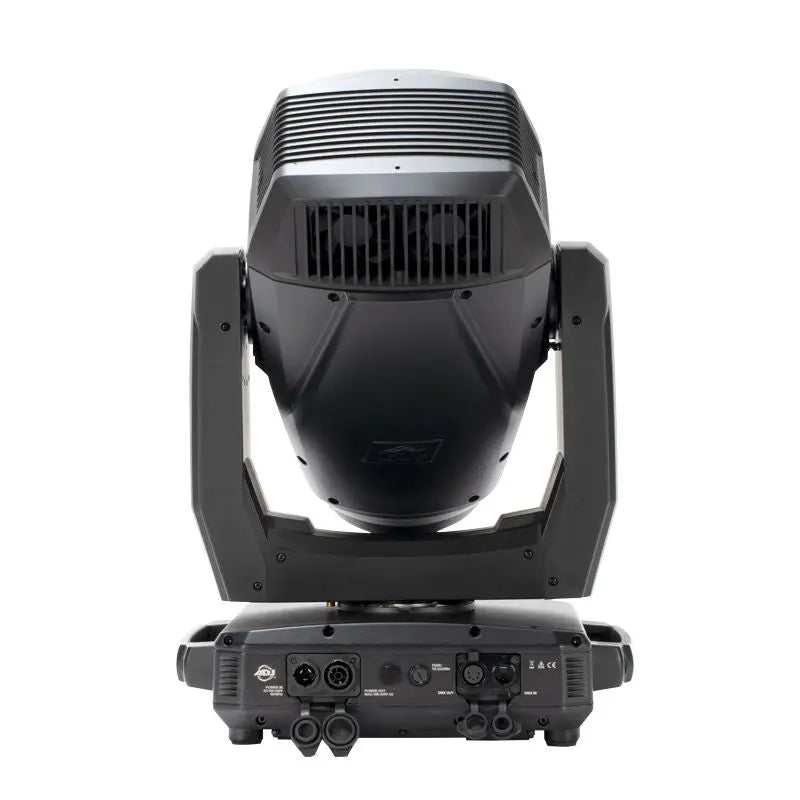

DMX Connections: 5-pin XLR In/Out Power Connections: IP65 PowerLock In/Out to daisy chain power
Electrical:
Multi-voltage operation: 90-240V 50/60Hz Max power consumption: 450W
Dimensions & Weight:
Dimensions (LxWxH): 290x424x597mm Weight: 26kg
Included Accessories:
Omega Bracket 1.83M locking power cable
Approvals / Rating:
IP65 with C4 Coated Exterior and conformal coated PCB's.
