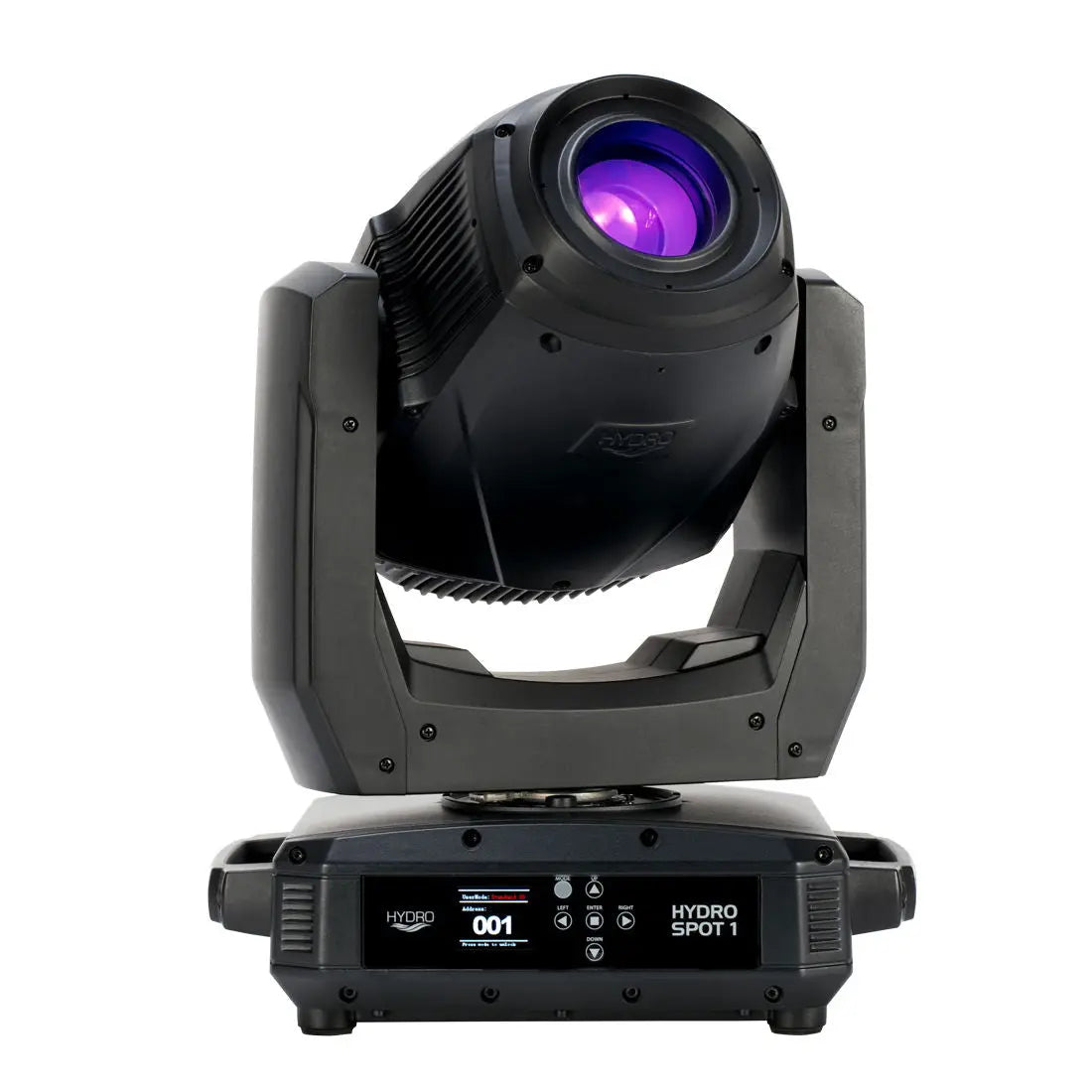

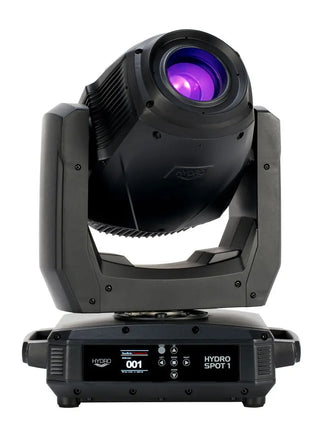

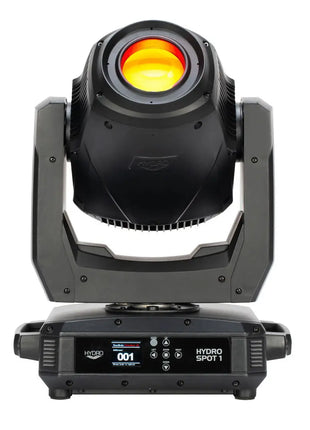

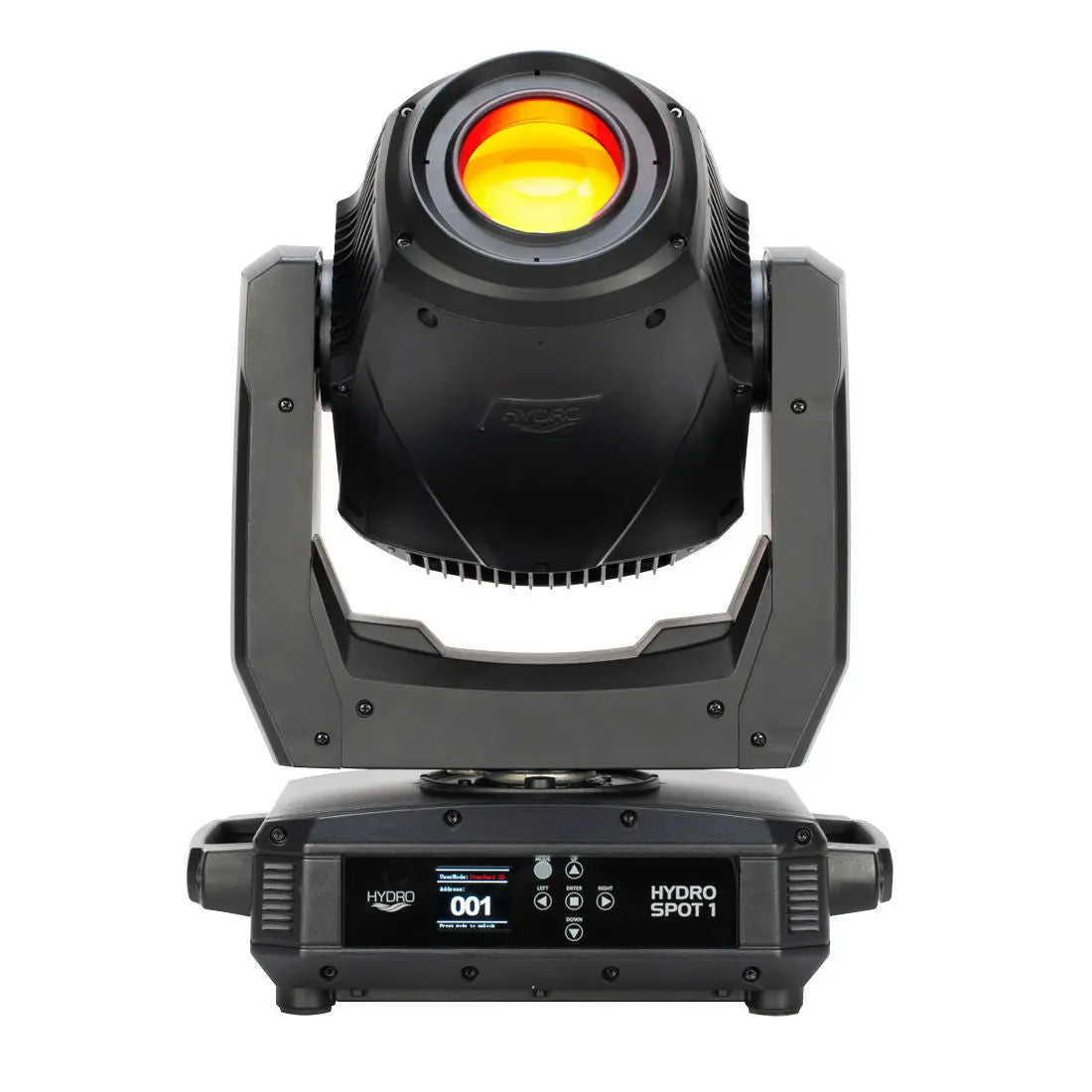

Part of ADJ’s popular Hydro Series of robust IP65-rated automated luminaires the Hydro Spot 1 is a versatile LED-powered spot fixture. It is ideal for temporary event production both indoors and outside in any weather from dusty desert festivals to cold and wet winter attractions. It is also suitable for permanent installation within all kinds of venues from nightclubs to churches where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.
Harnessing the power of a potent 200-Watt cool white LED light engine focused through precision-engineered optics the Hydro Spot 1 delivers punchy output with even coverage. The efficient LED light source is much brighter than a traditional incandescent bulb that uses the same amount of power while it’s 50000 hours of expected operational life essentially makes lamp replacement a thing of the past.
An extensive feature set provides lighting designers using the Hydro Spot 1 with a wealth of creative potential. This starts with motorized zoom allowing for a variable beam angle of 11° ~ 22° which is paired with motorized focus to ensure pattern projections remain sharp regardless of distance. The fixture features two independent colour wheels each loaded with 8 dichroic colours including CTO CTB and UV filters. It also features a separate GOBO wheel which has 6 slots for replaceable rotating glass or aluminium GOBO patterns. Two rotating prisms (5-facet linear & 6-facet circular) allow for the creation of stunning aerial effects while two frost filters (medium and heavy) allow for blurring the edges of GOBO patterns and creating a wash output respectively.
Source:
200W Cool White LED Engine (50000 hr.)
Features:
Motorized Focus Motorized Zoom: 11° ~ 22° 2 Frost Filters (Heavy and Medium) 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular 0-100% smooth dimming Various strobe speeds USB firmware update port 2 cooling fans
Colour Wheels:
(2) Colour wheels 8 dichroic colours + white on each wheel (includes CTO CTB and UV filters)
GOBO Wheels:
(1) Wheel with 6 Rotatable Gobo's All Gobo's are replaceable Gobo Shake Effect Aluminium GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness) Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel:
Prism Wheel 1: Rotatable 6-facet Circular Prism Wheel 2: Rotatable 5-facet Linear Both Prisms are indexable
Frost Filters:
Frost 1: Heavy frost for wash effect Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
Control:
3 DMX Channel Modes: 17/20/22 Colour LCD display with 6-button function menu Control Mode: DMX512 or internal programs 6 Dim Modes: Standard Stage TV Architectural Theatre Stage2 4 Dim Curves: Square Linear Inv. Square and S. Curve Selectable LED Refresh Rates (900 Hz~25K Hz) 0-100% smooth dimming Various strobe speeds RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (Up to 30M line of sight)
Pan/Tilt:
Pan: 630 degrees Tilt: 270 degrees
Connections:

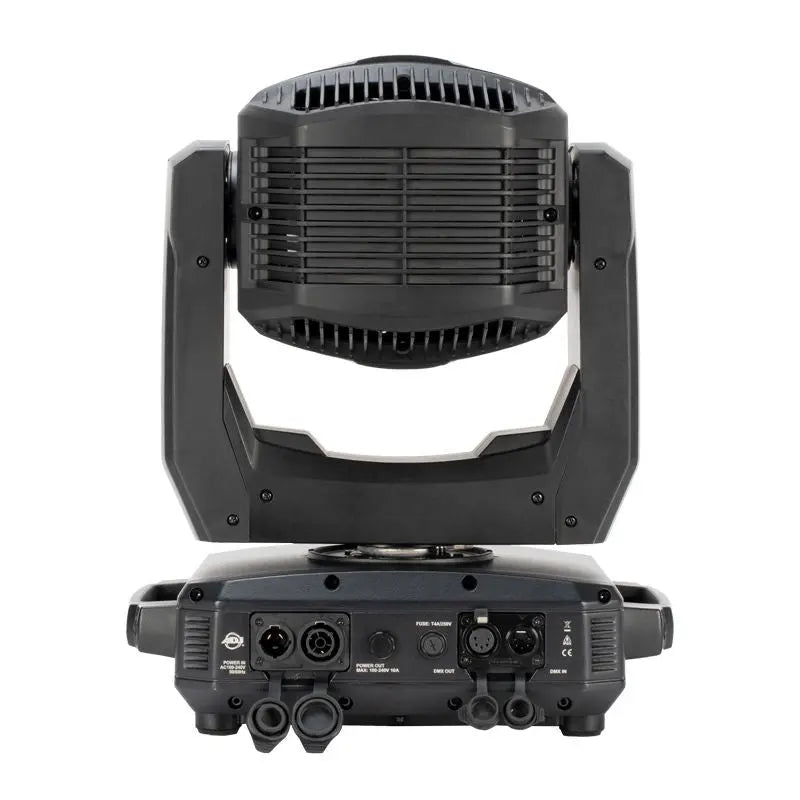

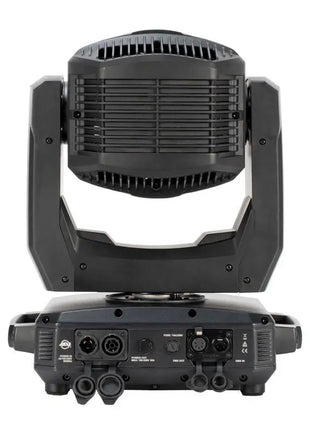

DMX Connections: 5-pin XLR In/Out Power Connections: IP65 PowerLock In/Out to daisy chain power
Electrical:
Multi-voltage operation: 90-240V 50/60Hz Max power consumption: 280W
Dimensions & Weight:
Dimensions (LxWxH): 9.49" x 14.57" x 19.21" (241x370x488mm) Weight: 35.2lbs (16kg)
What’s Included:
(2) Omega Brackets 1.83M locking power cable
Approvals / Rating:
ETL Approved / CE Certified
IP65 with C4 Coated Exterior and conformal coated PCBs
Specifications subject to change without notice
