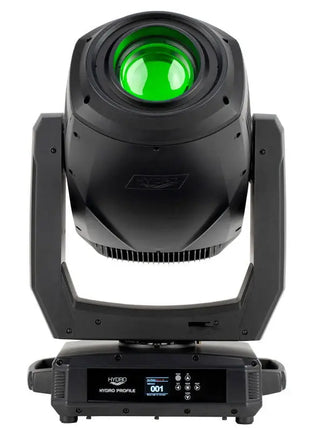

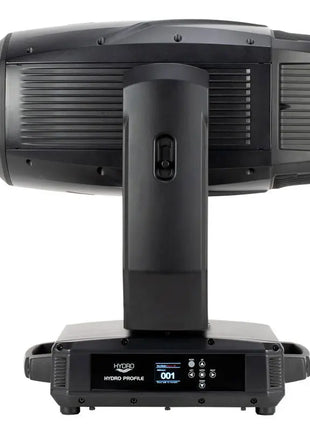

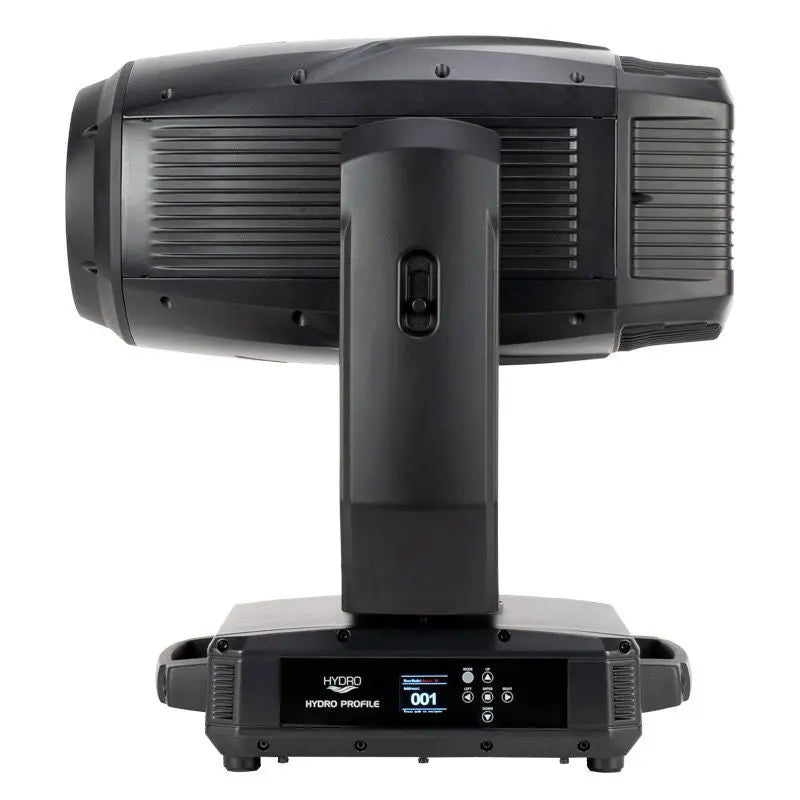

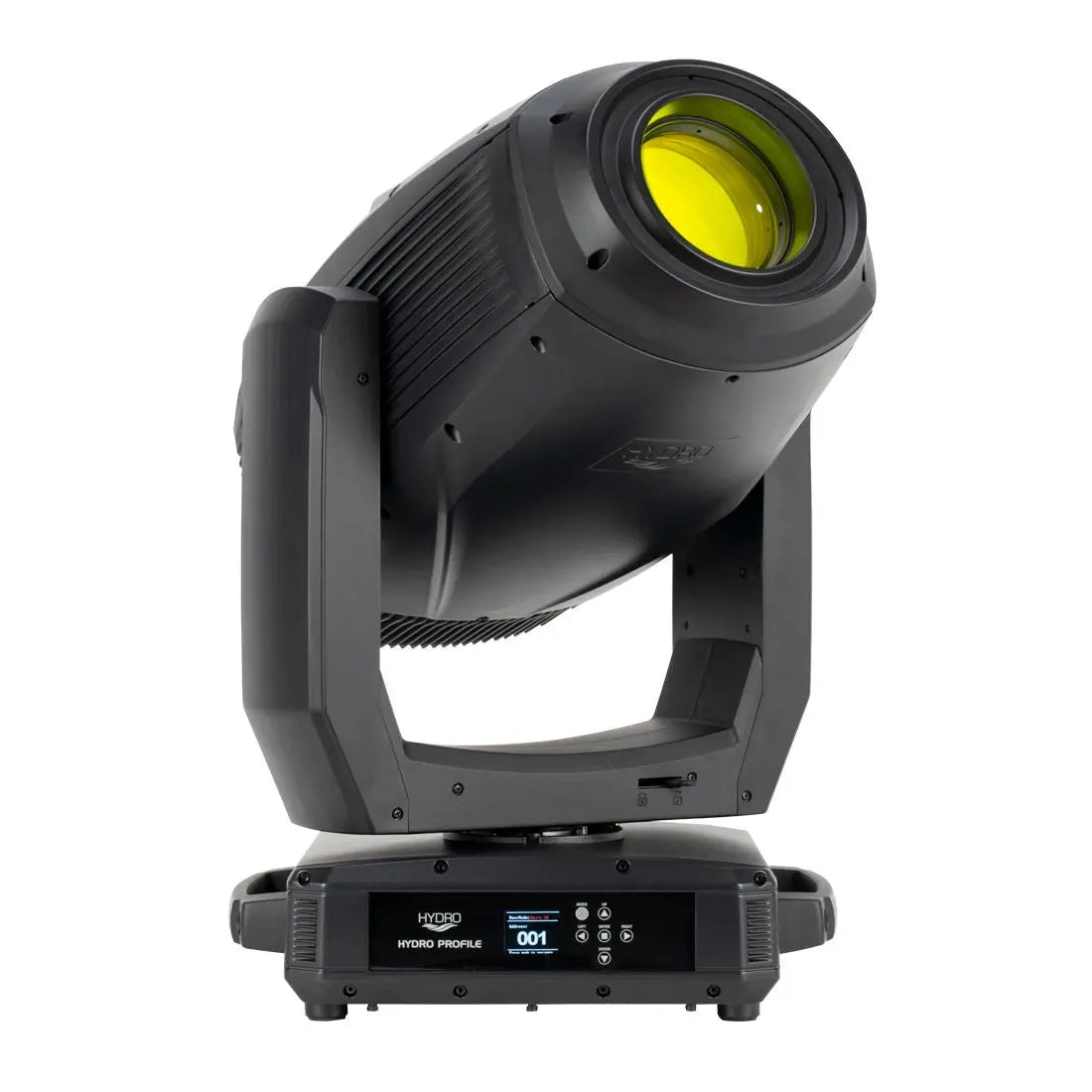

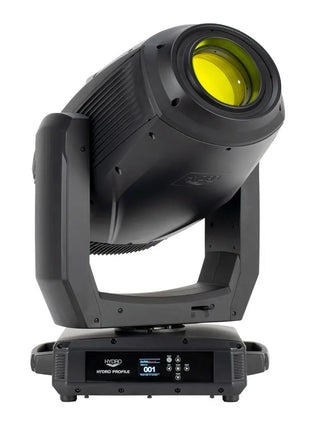

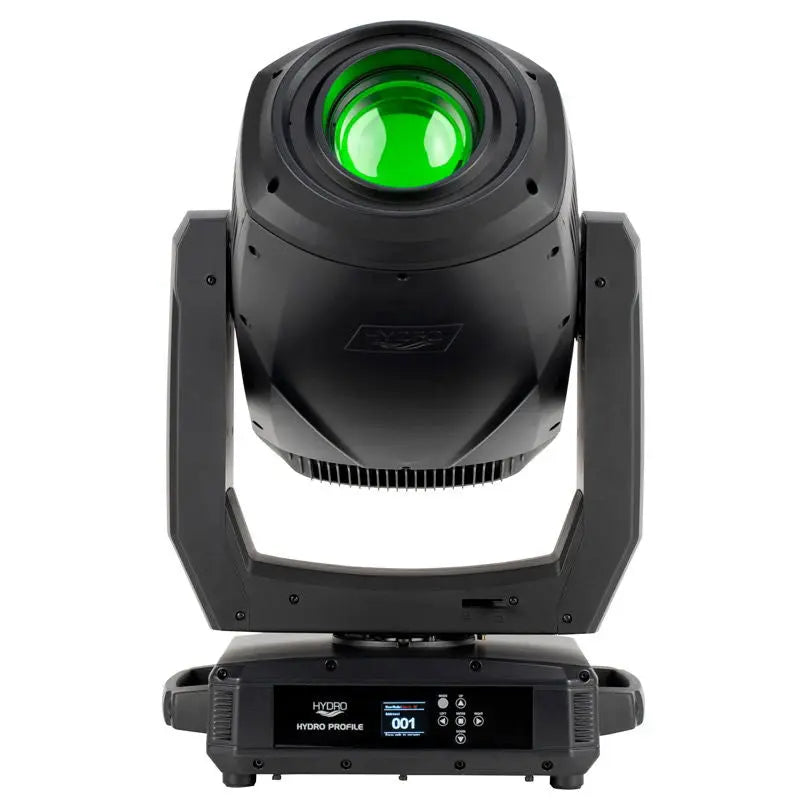

The Hydro Profile is ADJ’s first weatherproof moving head profile fixture which combines a potent 660-Watt cool white LED light engine with an expansive feature set to deliver a truly powerful and versatile luminaire. It is part of ADJ’s Hydro Series of robust IP65-rated moving heads which are all designed for a demanding life on the road. They can be used outdoors in any weather as well as for indoor productions where they are protected against everything from dust and smoke residue to spilt drinks and humidity.
Heading up the Hydro Profile’s collection of beam-shaping tools is a 4-blade framing system. Each shutter is controlled using two independent motors one for each side which allows the individual blades to be applied at any desired angle. In addition rotation of the combined shutter assembly means the shape created using the four shutters can be precisely positioned. Further manipulation of the output is provided by a motorized zoom function which can be used to alter the beam angle between 6 and 45-degrees. An even narrower beam can then be achieved utilizing the motorized iris which also offers automated pulsing effects. In addition the fixture offers two frost filters a heavy filter for creating a wash output and a medium filter for blurring the edges of GOBOs.
An almost unlimited variety of aerial effects and surface pattern projections can be created using the Focus Profile. It features two independent GOBO wheels one with 7 indexed rotatable patterns and the other with 8 fixed patterns all of which are replaceable. It also incorporates two indexed rotatable prisms – 4-facet circular and 6-facet linear – as well as an animation wheel. Any desired colour can also be selected thanks to a CMY colour mixing system with additional CTO flag. The fixture also offers a separate 7-position colour wheel which is loaded with a selection of useful dichroics including CTB and High CRI filters. The colours are all replaceable allowing for the use of custom filters should a very specific shade or hue by required for a specific production.
Please note: Shipping charges may applySource:
660W Cool White LED Engine (50000 hr.) 25000+ Lumens
Features:
Motorized Focus 2 Frost Filters Beam Angle: 5.6°-40.2° Field Angle: 6.3°-44.3° 4 Blade Framing System (+/- 60° Rotatable) Iris Animation Wheel 2 Prism FX: Rotating 6-facet Linear & rotating 4-facet Circular 0-100% smooth dimming Various strobe speeds 2 cooling fans
Colour:
CMY colour mixing system Variable CTO flag Colour wheel with 7 dichroic colours + white (includes CTB and High CRI filters) Colours on wheel are removable and replaceable
Gobo Wheels:
(1) Rotating Gobo wheel with 7 Gobos (1) Static Gobo wheel with 8 Gobos All Gobo’s are replaceable Gobo Shake Effect on both wheels Aluminium Gobo size: 23mm (outer); 19mm (viewable); 0.5mm (thickness) Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel:
Prism Wheel 1: Rotatable 6-facet Linear Prism Wheel 2: Rotatable 4-facet Circular Both Prisms are indexable
Frost Filters:
Frost 1: Heavy frost for wash effect Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
Control:
3 DMX Channel Modes: 36/50/57 Colour LCD display with 6-button function menu Control Mode: DMX512 or internal programs 6 Dim Modes: Standard Stage TV Architectural Theatre Stage2 4 Dim Curves: Square Linear Inv. Square and S. Curve Selectable LED Refresh Rates (900 Hz~25K Hz) 0-100% smooth dimming Various strobe speeds RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (Up to 30M line of sight)
Pan/Tilt:
Pan: 630 degrees Tilt: 270 degrees Pan & Tilt locks
Connections:

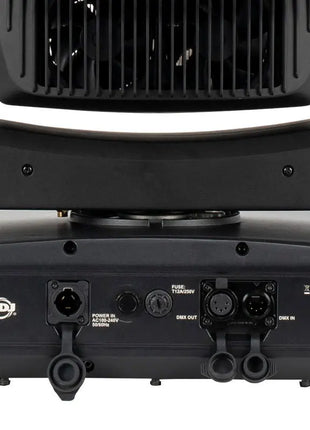

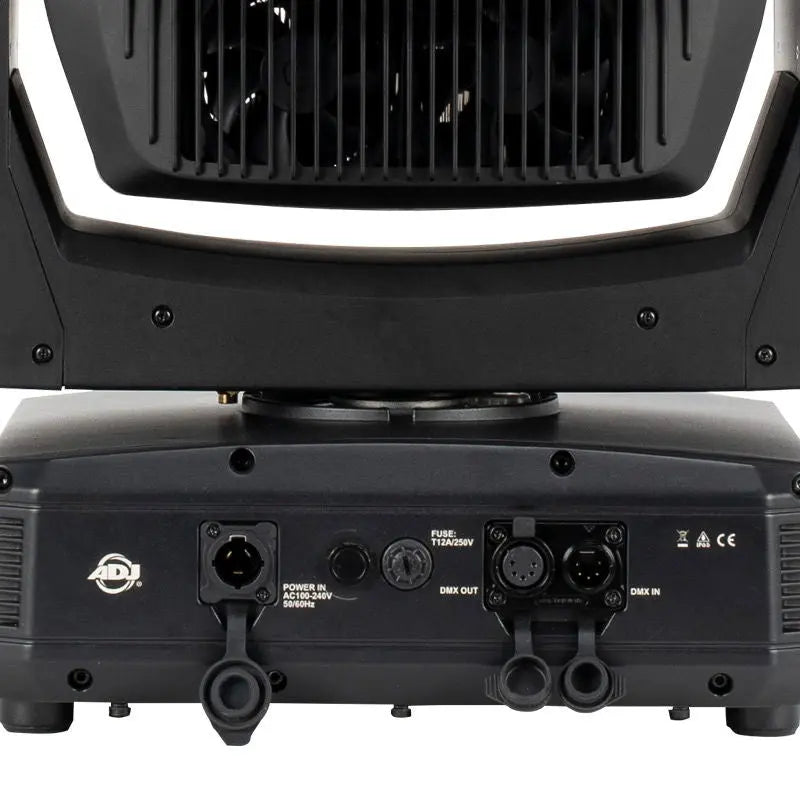

DMX Connections: 5-pin XLR In/Out Power Connections: IP65 Locking Power Input
Electrical:
Multi-voltage operation: 90-240V 50/60Hz Max power consumption: 660W
Dimensions & Weight:
Dimensions (LxWxH): 319x433x720mm Weight: 385kg
Included accessories:
Omega Bracket 1.83m IP65 locking power cable
Approvals / Rating:
ETL Approved / CE Certified
IP65 with C4 Coated Exterior and conformal coated PCBs
Specifications subject to change without notice
