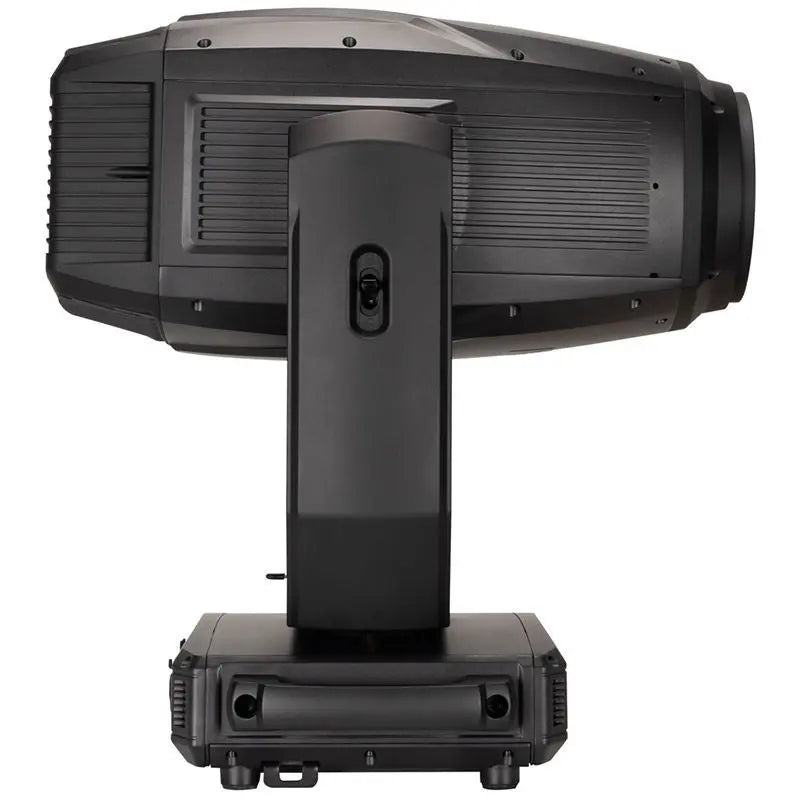

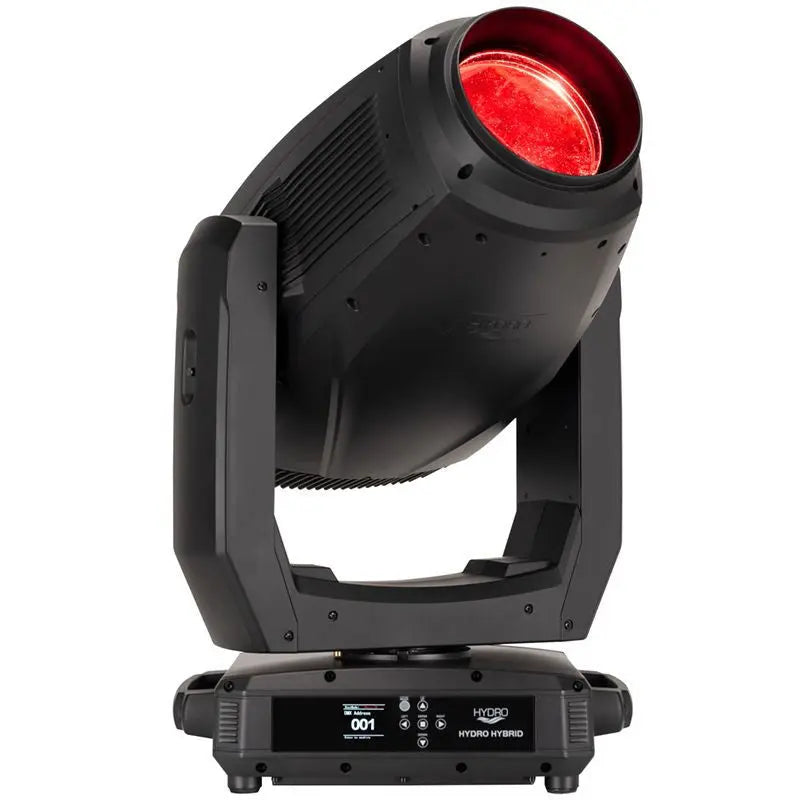

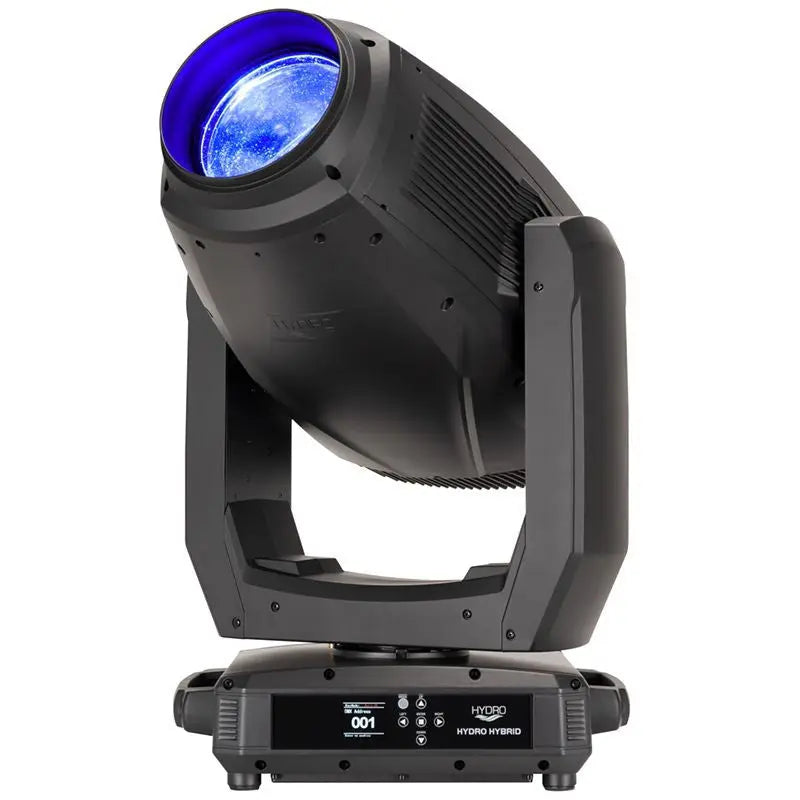

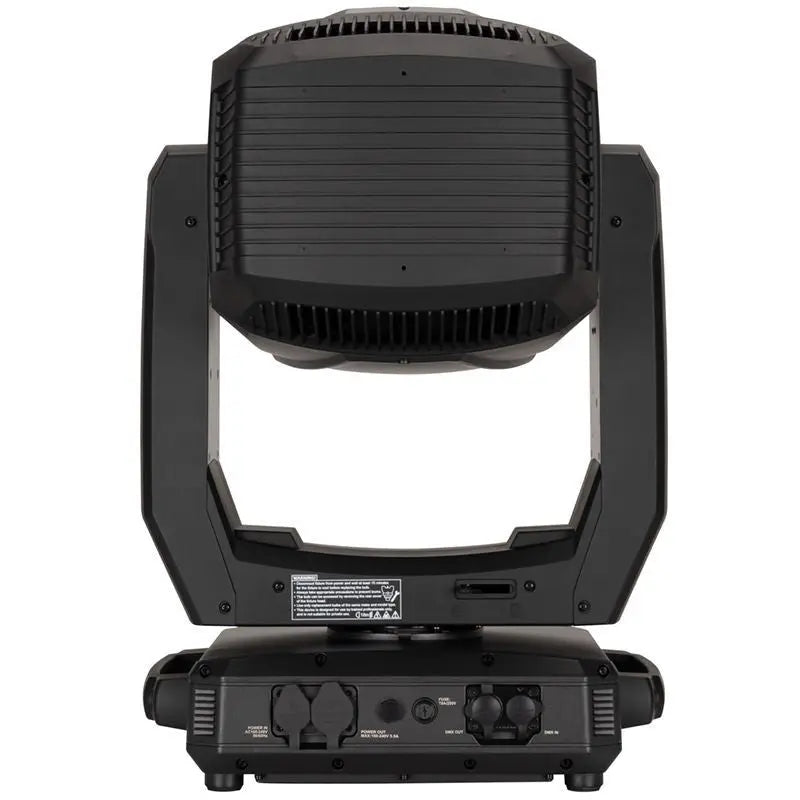

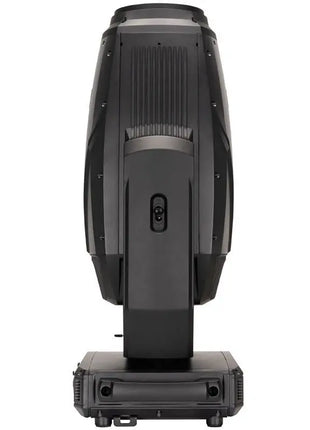

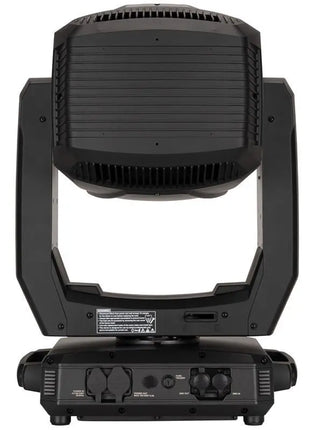

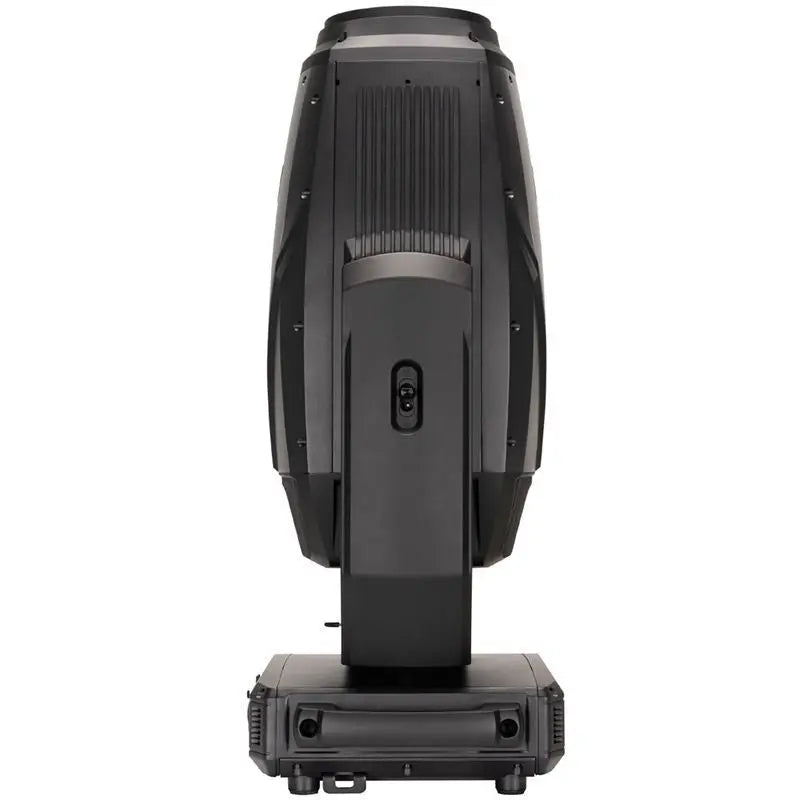

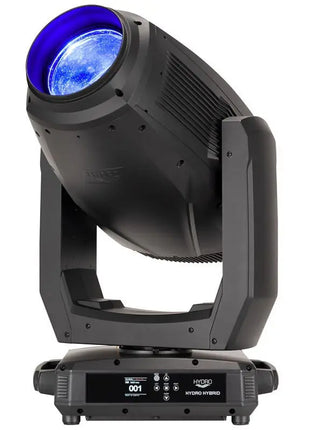

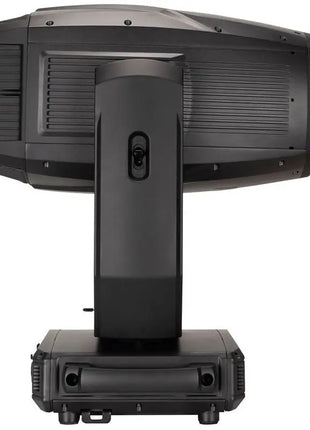

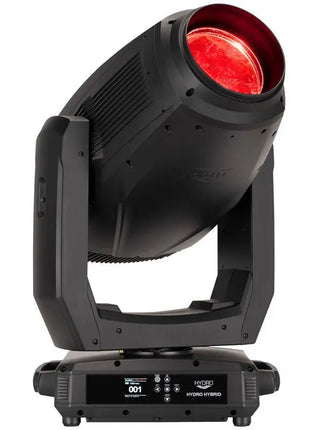

The Hydro Hybrid is one of ADJ’s most versatile fixtures capable of producing beam spot and wash effects from a single unit. Its IP65-rated housing and 420-Watt Osram SIRIUS HRI Discharge lamp (6500K) with a lifespan of 2500 hours make it perfect for both indoor and temporary outdoor event productions.
This fixture provides a range of creative beam-shaping tools sought by modern lighting designers. It includes dual-plane prisms motorized zoom and focus an animation wheel and two GOBO wheels (one with 9 rotating/removable GOBOs and one with 14 fixed GOBOs).
The CMY colour mixing system allows for the selection of any desired colour while the built-in colour wheel offers 12 colours for quick selection. Additionally preset white colour temperature macros are available for specific shades of white that can be easily adjusted on the fly. Advanced control features of the Hydro Hybrid include 3 DMX channel modes RDM and an integrated Aria X2 wireless management system.
With its IP65-rating and a rich assortment of best-in-class creative options the Hydro Hybrid offers a huge ROI for production companies and extremely artistic tool for lighting designers.
Please note: Shipping charges may applySource:
Osram SIRIUS HRI 420W Discharge Lamp Full Power (420W) Up to 2500 Hour Lamp Life
**Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Photometric Data:
Lumens: Beam Mode: 12319; Spot Mode: 14416 Lux: Beam Mode: 562600; Spot Mode: 223200 (@5m zoomed out) CRI: 77 +/- 5 Correlate colour temperature: 6500K +/- 300K Zoom Range: Beam Mode: 1.6°-17.7° / Spot Mode: 3.1°-39.2°
Effects:
Beam Spot and Wash Motorized Zoom Frost Filter (Heavy) 2 Prisms on Dual Planes Animation Wheel CMY/Colour Macros Gobo/Prism Macros Motorized Focus High Speed Shutter and Strobe Pan Degree: 540°/630° Tilt Degree: 270°
Colour:
Full CMY Colour Mixing System White Colour Temp Presets 12 Position Colour Wheel (Including: UV + CTO: 2700K 3200K 4000K) 27 Colour Macros (Colour Wheel + CMY)
Gobos:
2 Gobo Wheels Gobo Wheel 1: 9 Interchangeable-Rotating / Indexing Glass Black & White Gobos Gobo Wheel 2: 14 Static-Stamped Metal Gobos
Control / Physical:

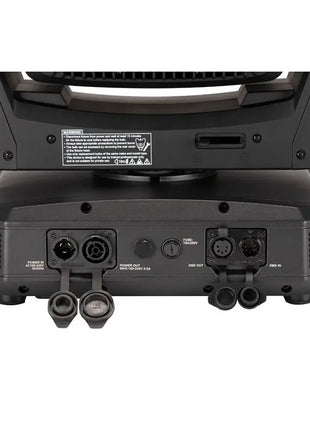

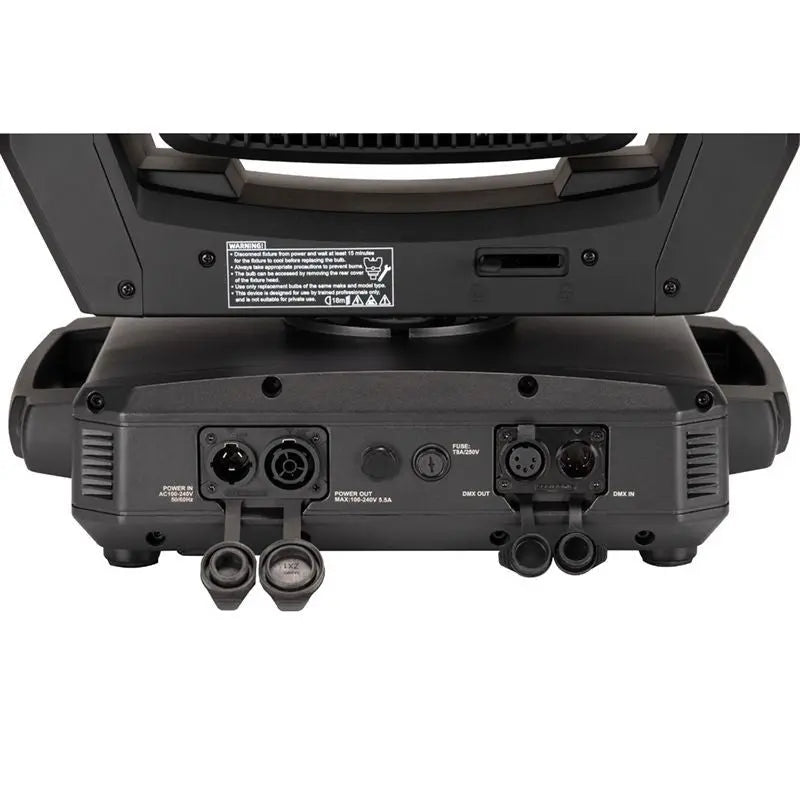

3 DMX Channel Modes (24 28 & 32) 1 User assignable DMX Channel Mode Aria X2 Wireless Management / DMX System (4) Button Touch Panel Full Colour 180° Reversible LCD Menu Display DMX & RDM Protocols Outdoor IP65 5-pin DMX In/Out Outdoor IP65 Locking Power In/Out Pan/Tilt Locks
Dimensions & Weight:
Length: 290mm Width: 414.27mm Height: 741mm Weight: 31.6 kg
Electrical:
AC 100-240V 50/60Hz 580W Max Power Consumption -20°C to 45°C Min/Max Ambient Temperature: -20°C ~ 45°C
Approvals / Ratings:
IP65-Rated IP65 with C4 Coated Exterior and conformal coated PCB's.
Specifications and documentation are subject to change without notice.
