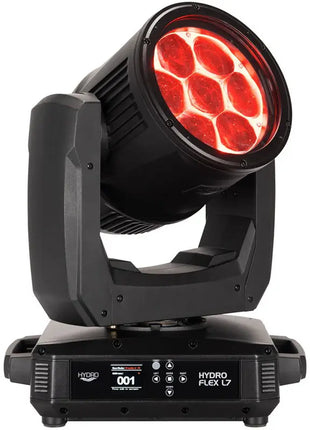

The Hydro Flex L7 powered by seven 60W RGBL LEDs delivers a versatile suite of features tailored to modern lighting professionals. Highlights include Individual Pixel Control with integrated Pixel Effect Programs Virtual CMY DMX Control Modes Linear White Colour Temperature Control with presets and Virtual Foreground and Background Colour Wheel Control. Designed for touring rental and event production this compact yet powerful fixture offers exceptional brightness and versatility ensuring reliable performance even in challenging environments.
With its rugged IP65-rated construction the Hydro Flex L7 is ideal for both indoor and outdoor use. Its durable metal housing protects against dust sand moisture and liquids making it perfect for festivals outdoor events open-air clubs and other venues requiring dependable wash lighting.
The Hydro Flex L7 also features the Aria X2 wireless management system for streamlined control along with DMX512 ArtNet sACN and KlingNet compatibility. Its IP65-rated 5-pin DMX In/Out and RJ45 networking ports are shielded by protective rubber covers ensuring consistent operation in any setting.
SPECIFICATIONS
Source:
7 x 60-Watt RGBL LEDs (50000 hr.) CRI: TBA TM30 Rf: TBA TM30 Rg: TBA Colour Temperature: 2700K ~ 10000K ? lux / 4.3° beam @ 16' (5m) ? lux / 28.3° beam @ 16' (5m) Lumens: 5600 (Zoomed Out Full On)
Features:
Moving Light Pixel Wash Individual Pixel Control Built-In Pixel Effect Programs Aria X2 Wireless Management System Electronic Strobe / Dimmer Pan/Tilt: 540/630 x 243 Motorized Zoom Beam Angle: 4° ~ 38° Field Angle: 6° ~ 54° Colour Calibrated Pixels so units match from batch to batch Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Selectable LED Refresh Rates (900 Hz~25K Hz) Selectable Dim Modes: Standard Stage TV Arch. Theatre Stage 2 and user settable Dim Speed (0.1S~10S) 4 Dim Curves: Square Linear Inv. Square and S. Curve 0-100% smooth dimming Fan Cooled
Colours:

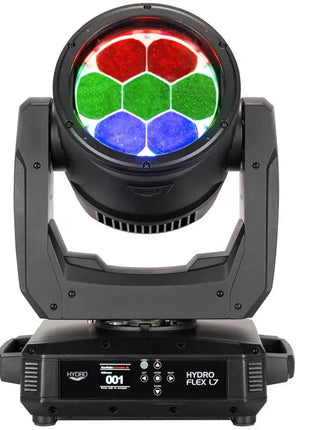

7x RGBL LEDs (Red Green Blue and Lime) Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Built-In Colour Macros 2700K ~ 10000K Linear White Colour Temperature Control Colour Temperature Presets: 2700 3000 3200 4000 4500 5000 5600 6500 8000 and 10000K
Control:
8 DMX Modes - 16/25/34/42/50/26/ 25(CMY) / 28(CMY) Channels Colour LCD display with 6-button function menu Control: DMX512 ArtNet sACN KlingNet and Aria X2 Wireless Management System Built-In Effect Pixel Programs with Speed and Fade Control RDM (Remote Device Management) compliant With Wired Digital Communication Network
Pan/Tilt:
Pan: 540/630 degrees Tilt: 243 degrees 16-Bit Fine Pan & Tilt Pan & Tilt Locks
Connections:

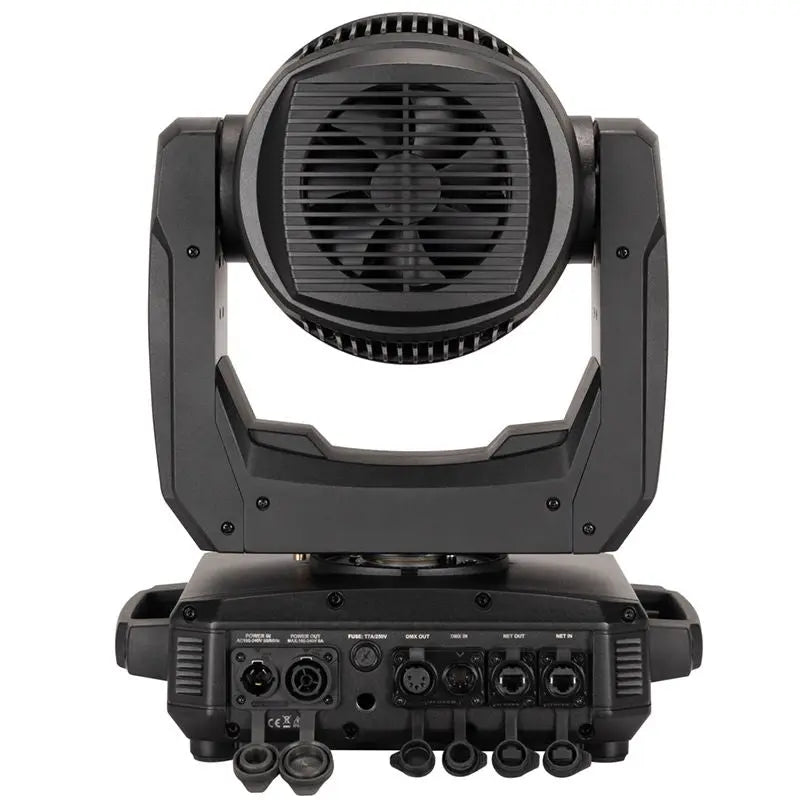

DMX Connections: IP65-rated Locking In/Out XLR Sockets IP65-rated Locking In/Out RJ45 Network Sockets Power Connections: IP65-rated Locking In/Out Power Sockets
Electrical:
Multi-voltage operation: 100-240V 50/60Hz Max power consumption: 516W (2.42Amps) @ 220V.
Dimensions & Weight:
Dimensions (LxWxH): 247x359x463mm Weight: 16kg
What's Included:
107mm Omega Brackets (2x) 1x 1.83M IP65-rated locking power cable Safety Cable
Approvals / Rating:
IP65 with C4 Coated Exterior and conformal coated PCB's.
Specifications subject to change without notice
