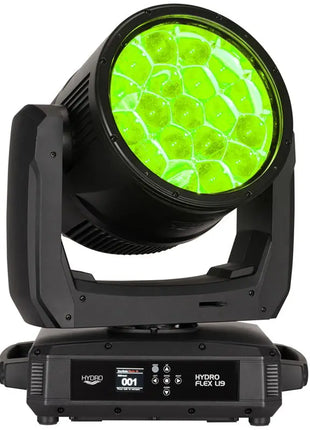

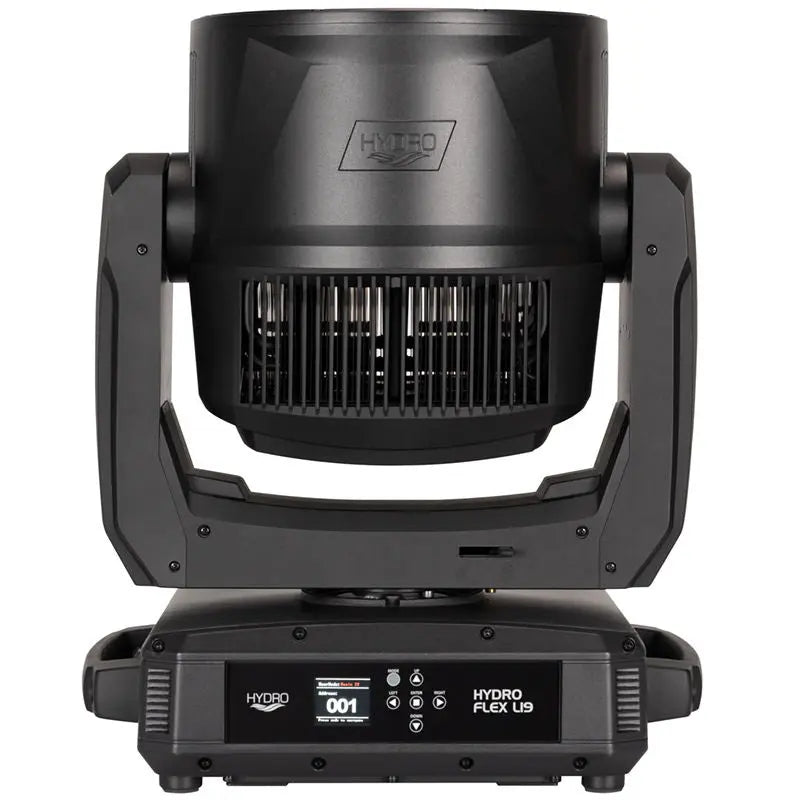

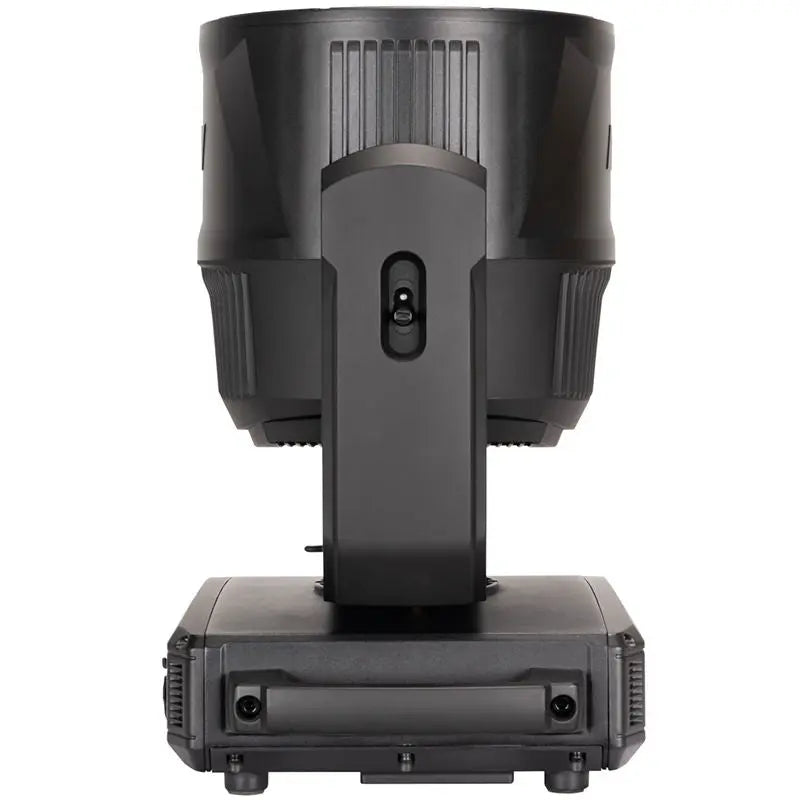

Powered by nineteen 60W RGBL LEDs the Hydro Flex L19 offers an extensive range of features designed for modern lighting professionals. These include Individual Pixel Control with built-in Pixel Effect Programs Virtual CMY DMX Control Modes Linear White Colour Temperature Control with presets and Virtual Foreground and Background Colour Wheel Control. Built for touring rental and event production applications this powerful fixture combines exceptional brightness with a versatile feature set ensuring optimal performance even in demanding conditions.
With robust IP65-rated construction the Hydro Flex L19 is suitable for both indoor and outdoor use. Its durable metal housing provides reliable protection against dust sand moisture and liquids making it a perfect choice for festivals outdoor events open-air clubs and other entertainment venues where dependable wash lighting is essential.
Additionally the Hydro Flex L19 incorporates the Aria X2 wireless management system for seamless control alongside DMX512 ArtNet sACN and KlingNet compatibility. It features IP65-rated 5-pin DMX In/Out and RJ45 networking ports all safeguarded by rubber protective covers ensuring consistent performance in any setting.
SPECIFICATIONS
Source:
19 x 60-Watt RGBL LEDs (50000 hr.) CRI: 84.2 TM30 Rf: 84.7 TM30 Rg: 99.8 Colour Temperature: 2700K ~ 10000K 54400 lux / 4.3° beam @ 16' (5m) 2090 lux / 28.3° beam @ 16' (5m) Lumens: 17000 (Zoomed Out Full On)
Features:
Moving Light Pixel Wash Individual Pixel Control Built-In Pixel Effect Programs Aria X2 Wireless Management System Electronic Strobe / Dimmer Pan/Tilt: 540/630 x 243 Motorized Zoom Beam Angle: 5° ~ 38° Field Angle: 8° ~ 56° Colour Calibrated Pixels so units match from batch to batch Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Selectable LED Refresh Rates (900 Hz~25K Hz) Selectable Dim Modes: Standard Stage TV Arch. Theatre Stage 2 and user settable Dim Speed (0.1S~10S) 4 Dim Curves: Square Linear Inv. Square and S. Curve 0-100% smooth dimming Fan Cooled
Colours:
19x RGBL LEDs (Red Green Blue and Lime) Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Built-In Colour Macros 2700K ~ 10000K Linear White Colour Temperature Control Colour Temperature Presets: 2700 3000 3200 4000 4500 5000 5600 6500 8000 and 10000K
Control:
6 DMX Modes (22 31 40 104 Standard CMY 31 Extended CMY 34) Colour LCD display with 6-button function menu Control: DMX512 ArtNet sACN KlingNet and Aria X2 Wireless Management System Built-In Effect Pixel Programs with Speed and Fade Control RDM (Remote Device Management) compliant With Wired Digital Communication Network
Pan/Tilt:
Pan: 540/630 degrees Tilt: 243 degrees 16-Bit Fine Pan & Tilt Pan & Tilt Locks
Connections:

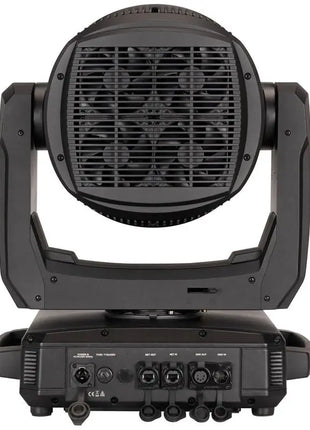

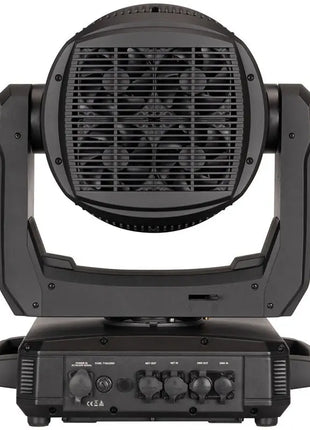

DMX Connections: IP65-rated Locking In/Out XLR Sockets IP65-rated Locking In/Out RJ45 Network Sockets Power Connections: IP65-rated Locking Input Power Socket
Electrical:
Multi-voltage operation: 100-240V 50/60Hz Max power consumption: 1350W (6.38Amps) @ 220V
Dimensions & Weight:
Dimensions (LxWxH): 318x433x517mm Weight: 27.6kg
What's Included:
180mm Omega Brackets (2x) 1x 1.83M IP65-rated locking power cable Safety Cable
Approvals / Rating:
IP65 with C4 Coated Exterior and conformal coated PCB's.
Specifications subject to change without notice
