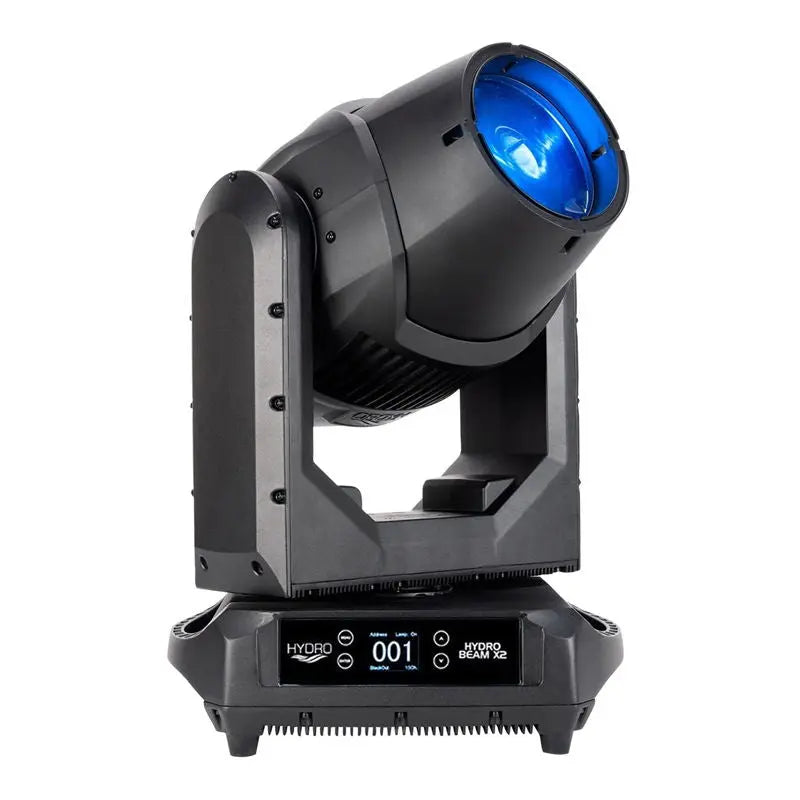

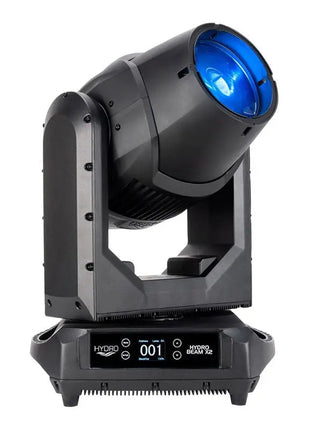

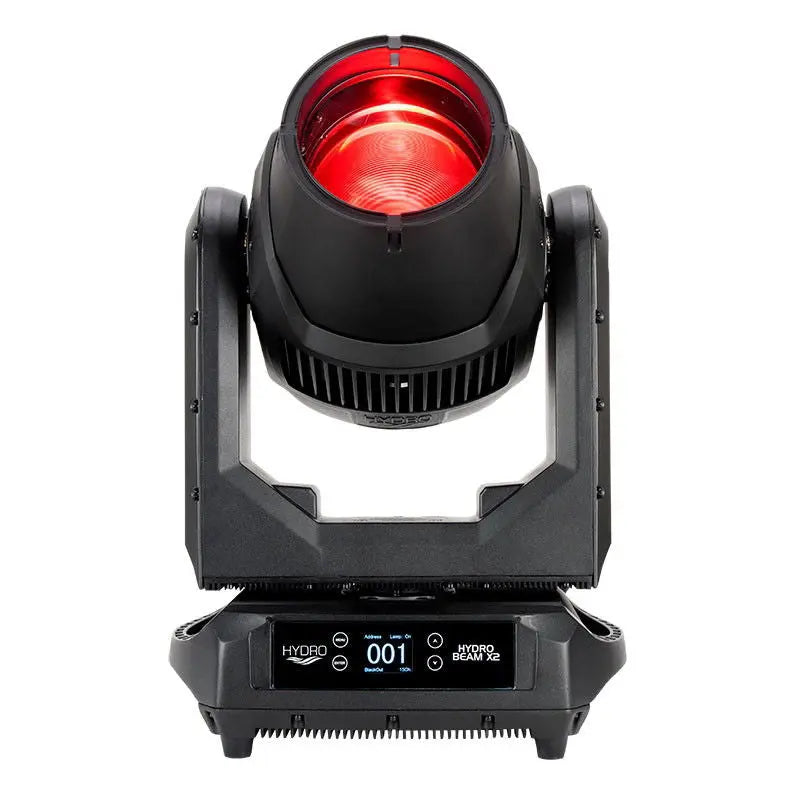

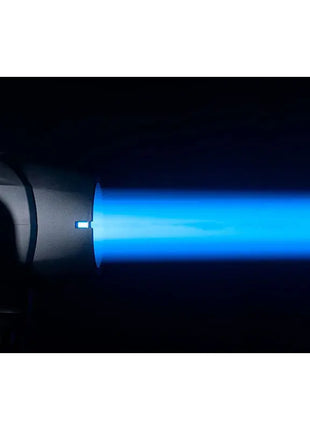

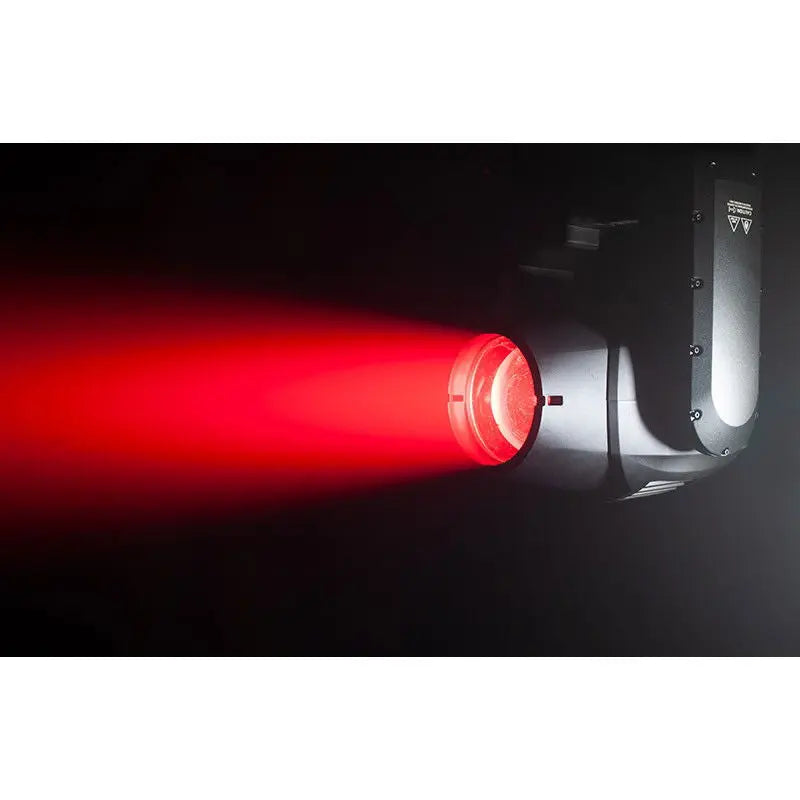

The ADJ Hydro Beam X2 is an IP65 rated professional moving head fixture with an Osram Sirius HRI 370W LL 6000 hour discharge lamp that produces a razor sharp 3-degree beam.
With robust construction and IP65-ratings the Hydro Beam X2 is designed for both indoor or outdoor use. Its durable casing protects it from dust sand moisture and liquids making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events as well as installation in open-air clubs and other outside entertainment spaces this groundbreaking fixture offer an extended operational life and reduced maintenance requirement due to their sealed casing design.
The Hydro Beam X2 has a wealth of features such has linear motorized focus 8-facet circular prism with overlay 8-facet linear prism with overlay glass and metal GOBOs that rotate and are replaceable 3 GOBO reducers and an independent frost filter for wash effects.

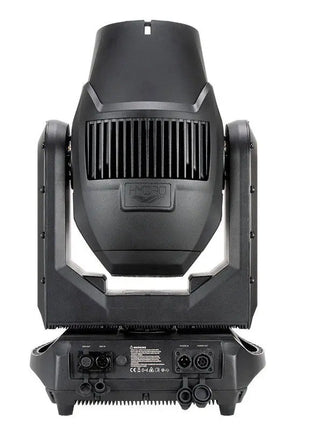

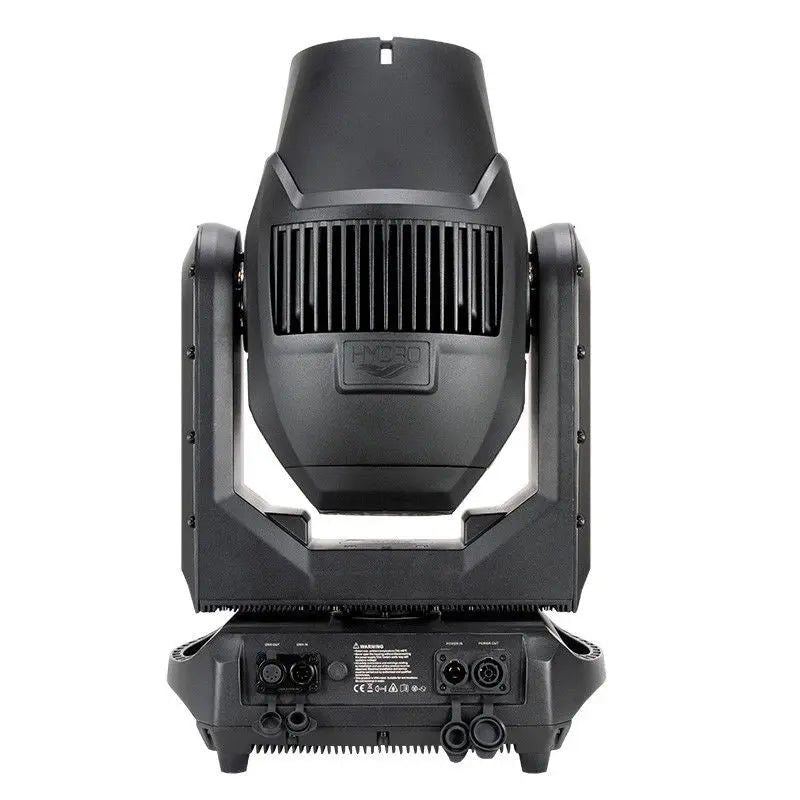

Its fitted with IP65 5-pin DMX In/Out and IP65 Locking Power In/Out connectors. All connections are IP65 rated with rubber protective covers.
The ADJ Hydro Series were awarded the 2019 PLSN Gold Star Award for “Best Range of Waterproof Fixtures”.
Specifications
Source
• Osram Sirius HRI 370W LL Long Life Discharge
• Lamp Wattage: 370W
• Average Lamp lifetime: up to 6000 hrs.
• Colour Temperature : 8000K
• CRI: 70
Optics

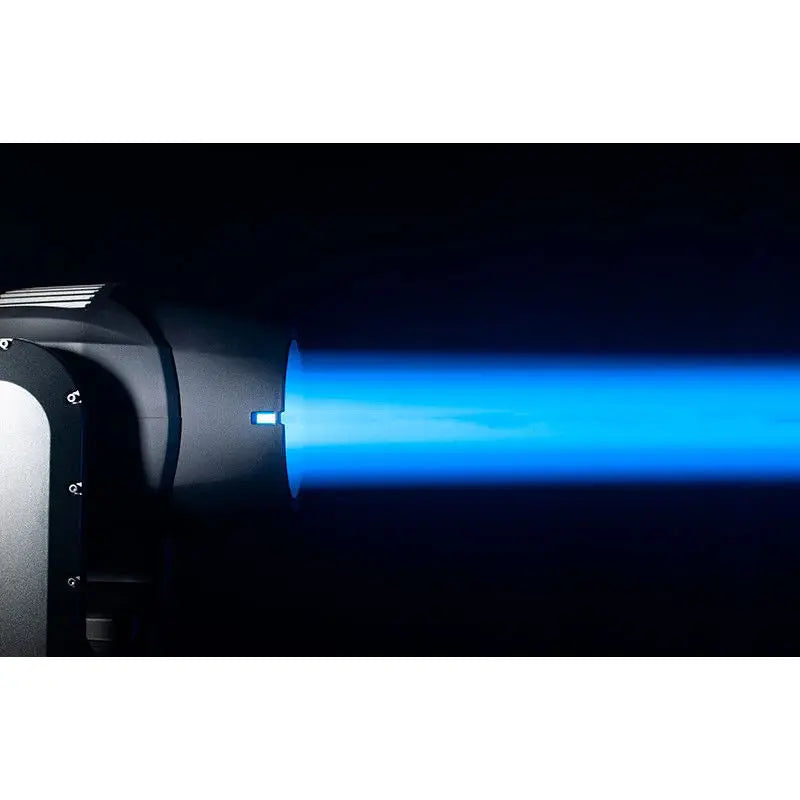

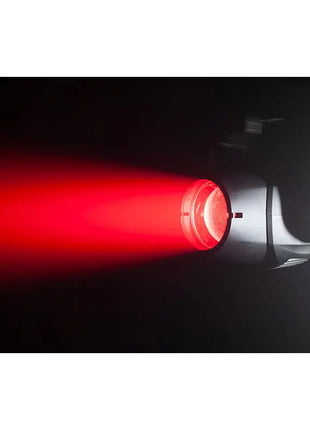

• Beam Angle: 3-degrees
• Linear motorized focus
• 1 linear 6-facet prism 1 circular 8-facet prism with prism layering
• Independent frost filter (wash effect)
Control
• 2 DMX Channel Modes: 15/17 Channels
• RDM compatible (Remote Device management)
• WiFly EXR Wireless DMX built-In
• 16bit Pan 540o
• 16bit Tilt 270o
• Various Strobe effects

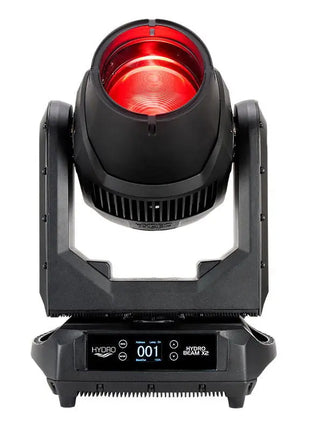

• Display: OLED display
Colours

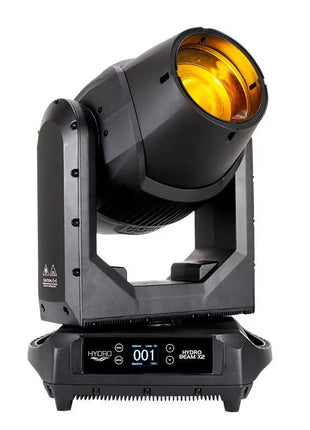

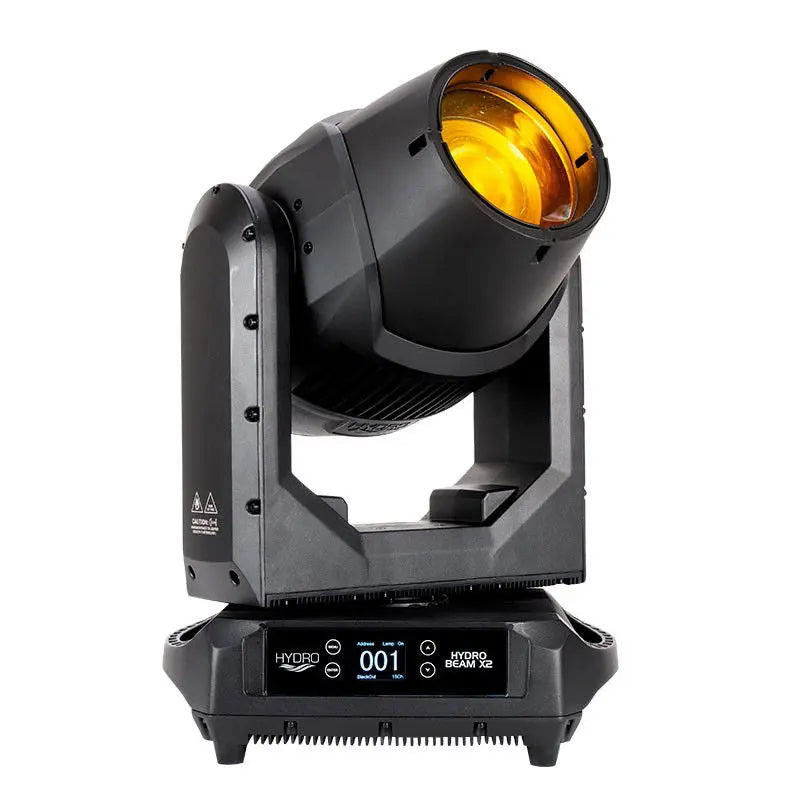

• 1 Colour Wheel with 11 colours + 3200K & 5600K + Quad-Colour + open
• Split colours
Gobos
• 1 Gobo Wheel with 5 glass Gobos 3 metal Gobos and 3 beam reducers + open
• All Gobos rotatable removable and indexable
• Gobo dimensions : Outer: 9.6mm visible: 7.5mm
Construction
• All metal case design
• Protection Rating: IP65
• Includes omega brackets
Electrical
• Power voltage: AC100-240V 50/60Hz (Multi-voltage)
• Power consumption: 490W
Connections
• Data In/Out: IP65 5-pin DMX (with rubber protective covers over connections)
• Power In/Out: IP65 Locking Power (with rubber protective covers over connections)
• USB firmware update port (with rubber protective cover)
Operating Temperature:
Minimum operating temperature: -4°F (-20C)
Maximum operating temperature: 104°F (40C)
Dimensions & Weight
• Dimension: 402 x 4195 x 630mm
• Weight: 29 kg
