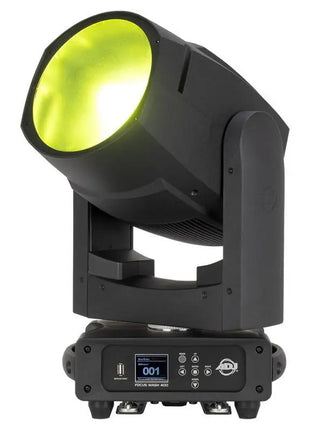

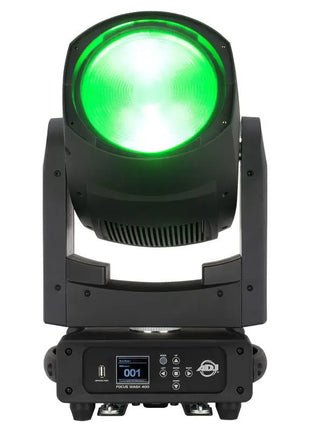

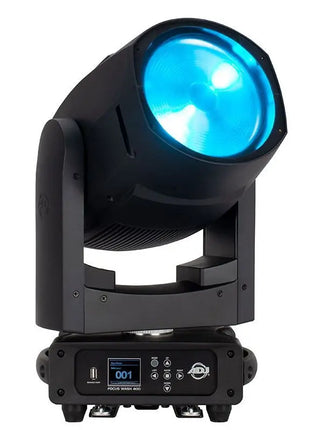

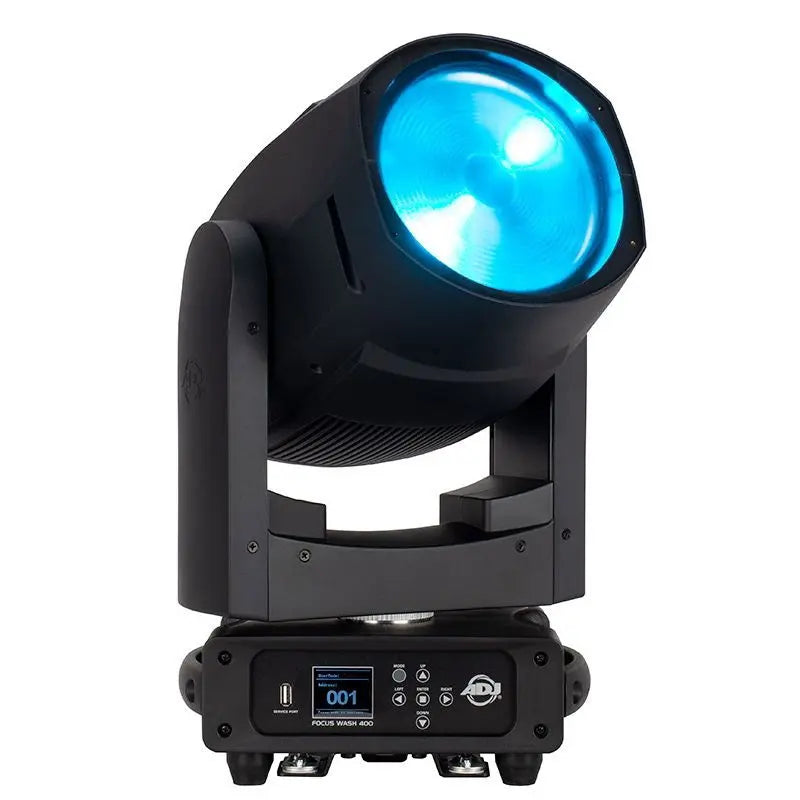

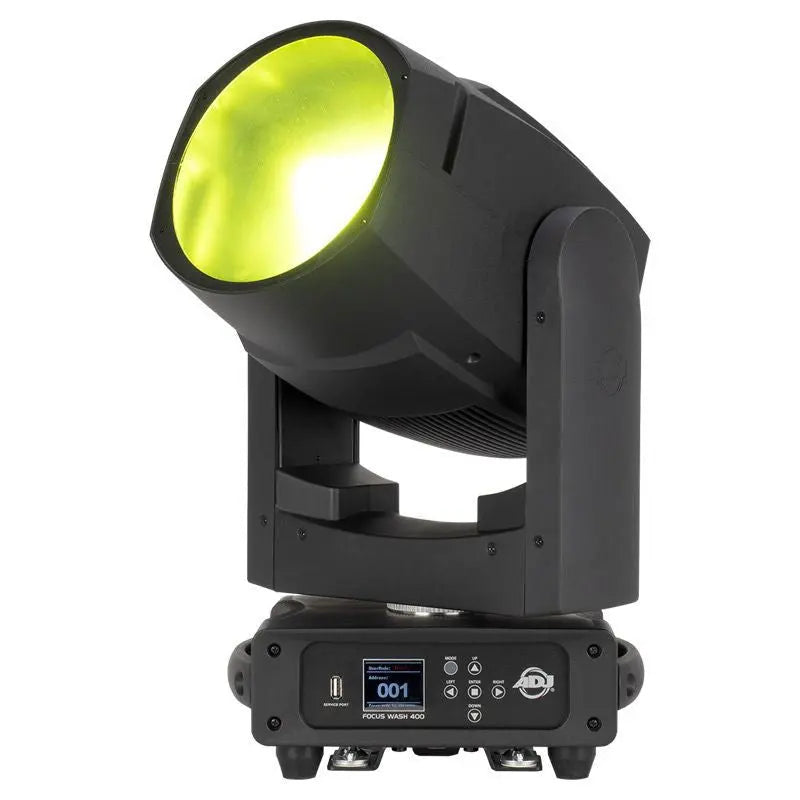

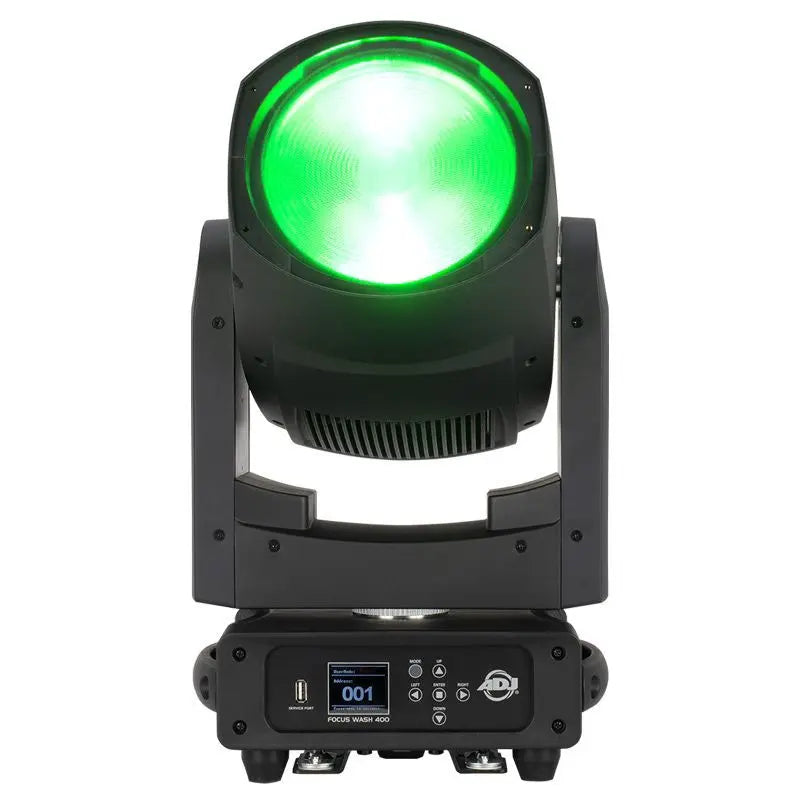

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red Green Blue Amber Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43° motorized zoom produces an even field light output.
Ideal for live broadcasting and film use this fixture has flicker free operation adjustable refresh rates from 900Hz to 25kHz a quiet fan mode linear white colour temperature control from 2700K - 10000K as well as preset white colour macros (2700K 3200K 4000K 5600K and 6500K). In addition to it’s tunable white feature the Focus Wash 400 has a virtual CMY colour mixing channel which allows users to choose any hue on a colour picker.
The FOCUS WASH 400’s unique colour engine produces a high CRI of 92+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan / tilt movement RGBACL colour mixing LED engine variable dimming modes / curves and strobe effects DMX and RDM (remote device management) protocol support.

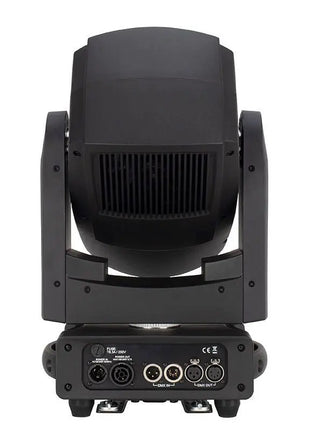

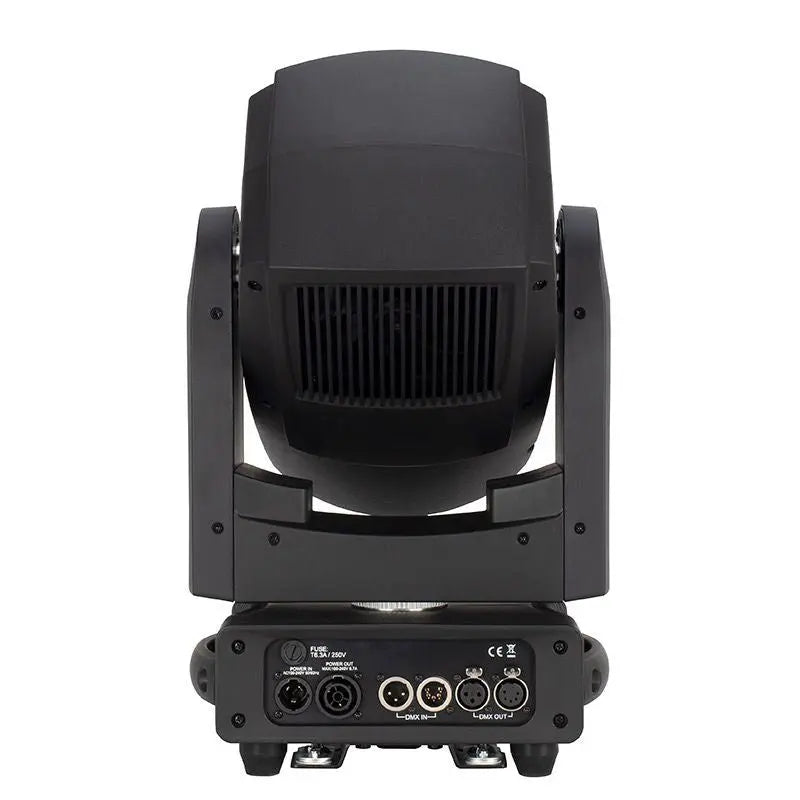

The fixture comes standard with IP65 locking power In/Out connections locking 3-pin & 5-pin DMX In/Out sockets colour LCD menu display with 6 button control panel multiple unit power linking a multi-voltage universal auto switching power supply (AC100-240V) USB port to conveniently update firmware and omega brackets with two hanging points.
Specifications
Source:
• Source: 400W RGBACL LED Engine
• 7783 Lumen
• 730 Lux@5m/43°
• 4451 Lux@5m/9°
• Average lifetime: approximately 50000 hrs
Optics:
• Zoom range: 9 - 41°
• Field Angle: 19 - 54°
• Fresnel Lens
• Motorized Zoom
Control:
• DMX-512 Protocol
• 5 DMX Channel Modes (Basic (17) Standard (22) Extended (24) CMY Standard (18) or CMY Extended (24))
• RDM compatible (Remote Device management)
• 16bit dimming 0-100%
• 6 Dimming Modes: Standard Stage TV Architectural Theatre Stage 2
• 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
• Various strobe effects
• LCD Menu Display with 6-button Control
• 3 Fan settings : Auto High and Low Noise
Colours:
• RGBACL Colour Mixing (Red Green Blue Amber Cyan Lime)
• CRI: 94
• Preset Colour Temperatures (2700k 3200k 4000k 5600k and 6500k)
Construction:
• Metal casting with ABS housing

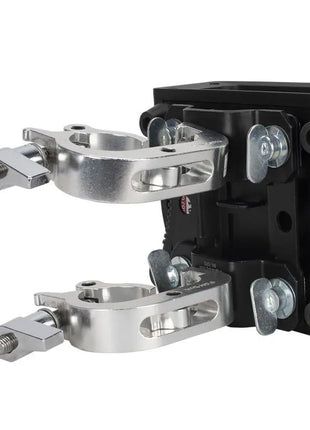

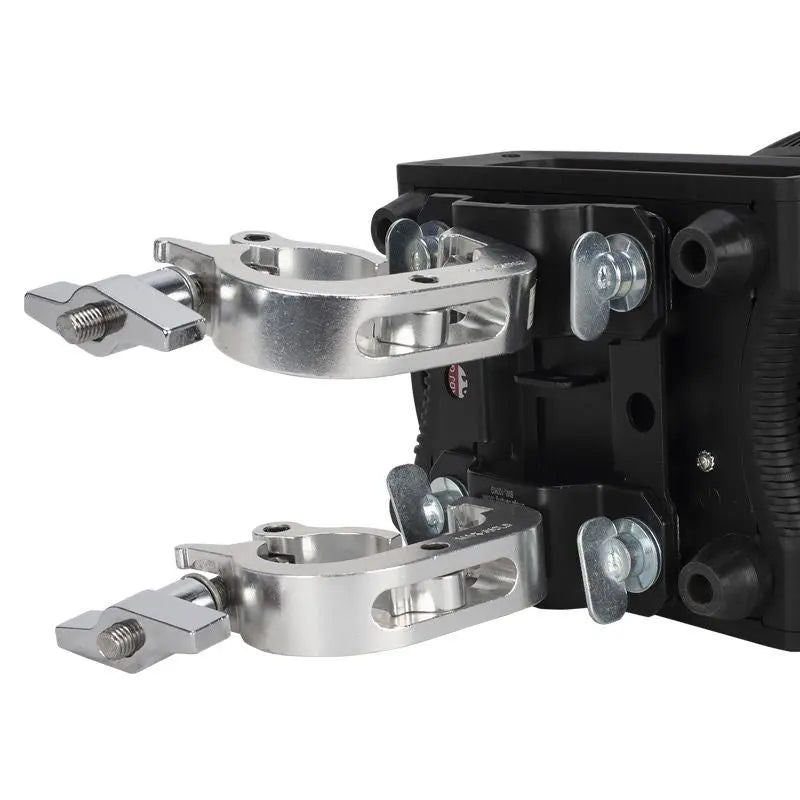

• Omega bracket with quick locks
Electrical:
• Multivoltage : 100-240V 50/60Hz
• Power Draw : 438W
Connections:
• Locking 3- & 5-pin DMX In/Out
• IP65 Locking Power In/Out
Dimensions & Weight:
• Dimensions: 213 x 278 x 568mm
• Weight: 107 kg.
Included accessories:
• Snoot
• 1x40° Linear Lens
• 2 Omega Brackets
• Safety Cable
• IP65 Locking Power Cable
