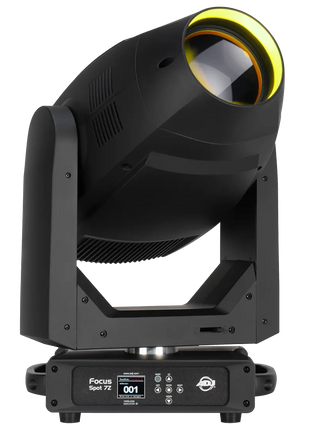

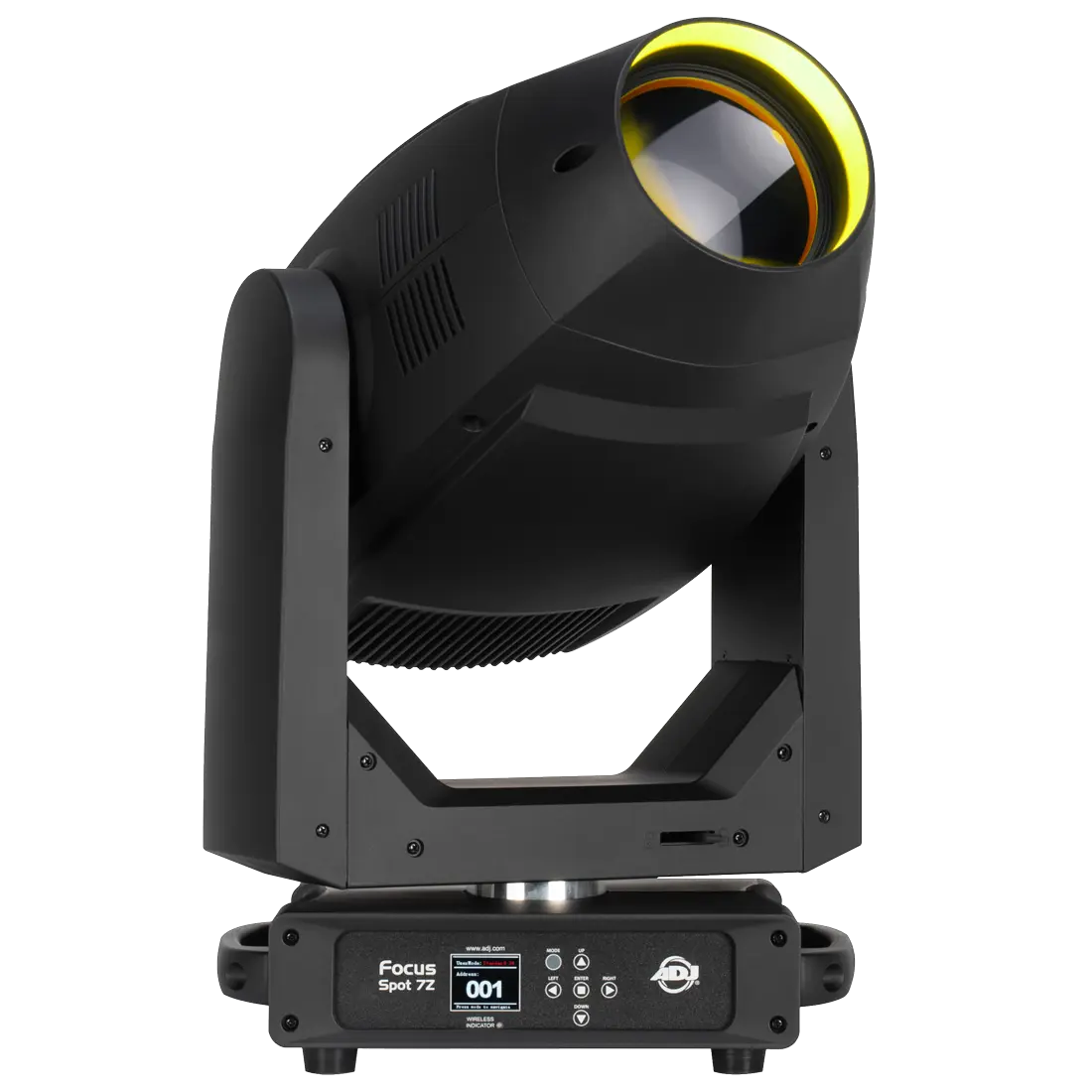

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (7.000K) LED engine which has an average operational life of 20.000 hours. Focused through precision-engineered optics it allows the fixture to generate a bright punchy and even output of 19.000 Lumens.
An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z equipping lighting designers to fully unleash their creative potential. This begins with an advanced colour selection system which combines a variable CMY and CTO (2.700K to 7.200K) colour mixing system with a colour wheel that features seven dichroic slots (including High CRI and CRB filters).
The fixture features two independent GOBO wheels each of which incorporate seven slots for interchangeable indexed-rotating patterns. In addition it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°) focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).
Weighting in at only 23.45kg the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.
Source:
420W White LED Engine 20000 Hour Average LED Life
Photometric Data:
19.000 Total Lumens 7.0000K >73CRI (without CRI Filter) 6.700K >85CRI (with CRI Filter) 50.528 LUX @5m (6° Beam) 1.799 LUX @5m (48° Beam)
Effects:
4-Facet Circular & 6-Facet Linear Rotating Prisms 2 Frost Filters (Light & Heavy) Animation Wheel (Rotatable and Indexable) Motorized Zoom (6° ~ 48°) Motorized Focus Motorized Iris Electronic Dimming & Strobe (1-20Hz)
Colour:
Full CMY colour mixing Variable CTO (2.700K to 7.000K) Colours Wheel with 7 dichroic slots (Includes High CRI and CTB Filters) CMY and Colour Wheel preset macros
Gobos:
(2) Gobo Wheels #1 - (7) Interchangeable Rotating-Indexing Glass Gobos #2 - (7) Interchangeable Rotating-Indexing Glass Gobos
Control & Connections:

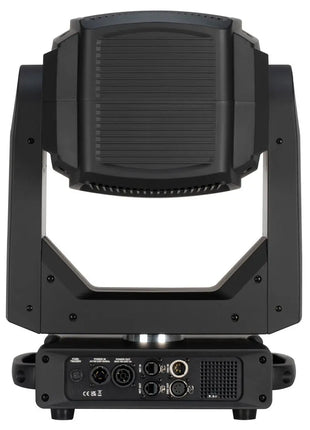

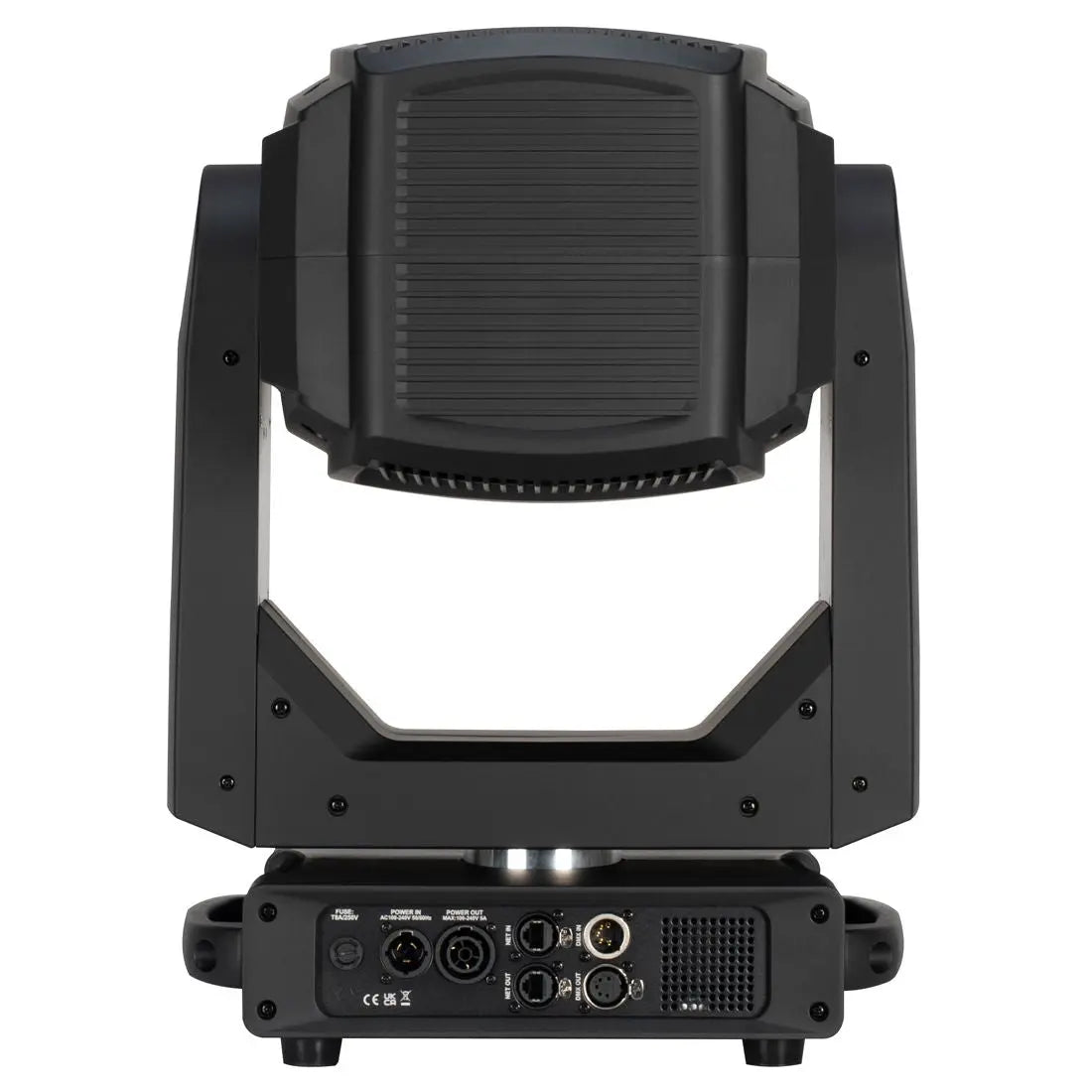

(3) DMX Channel Modes (30 / 34 / 45) DMX512 ArtNet and sACN protocols WiFLY Wireless DMX Built-in RDM (Remote Device Management) compliant 6 Button Touch Control Panel Full Colour 180° Reversible LCD Menu Display 8 / 16 Bit Resolution Adjustable Movement 5-pin XLR DMX In/Out RJ45 connectors In/Out IP65 Locking Power In/Out connections
Pan / Tilt:
Pan: 540-degrees Tilt: 270-degrees Pan & Tilt Locks
Dimensions & Weight:
Length: 374mm Width: 234mm Vertical Height: 630mm Weight: 23.45kg
Electrical & Thermal:
AC 100-240V - 50/60Hz Max Power Consumption: 524W Max ambient temperature: -10°C to 45°C Max housing temperature: 58°C
Technical Data:
DB Rating @ 1m.: 49dB BTU: 0.53 BTU/H: 1909.60
What's Included:
Locking Power cable 180mm Omega brackets (x2)
