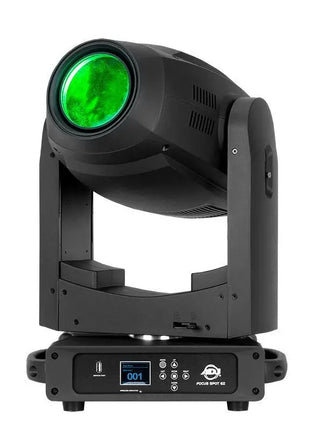

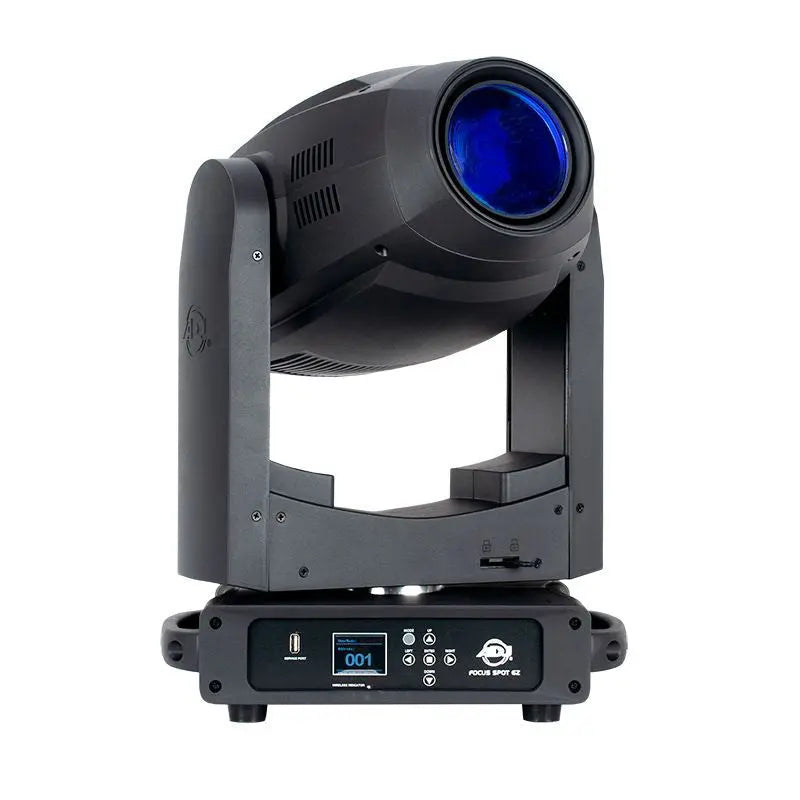

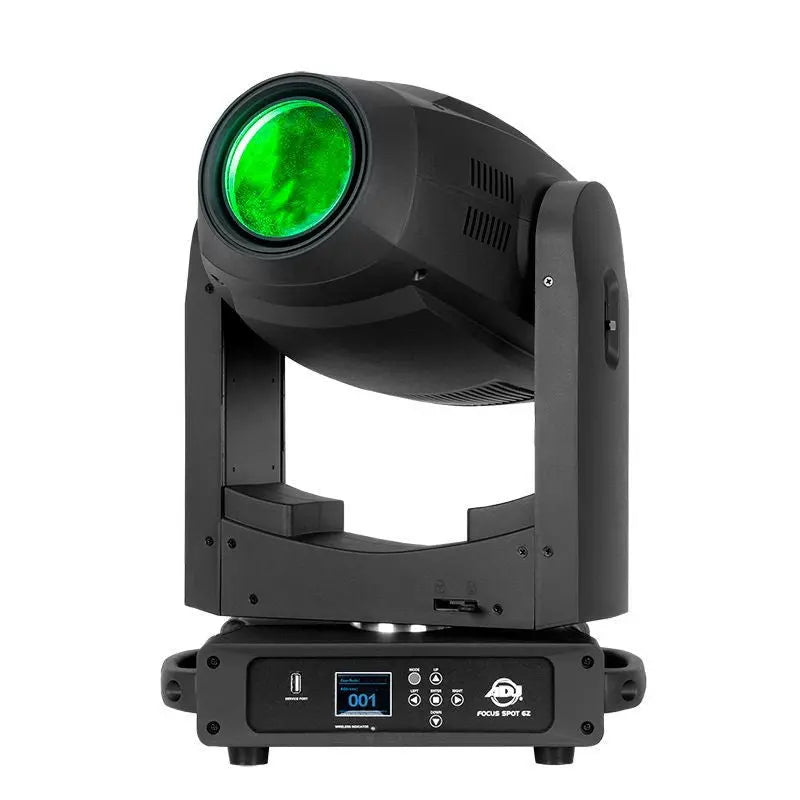

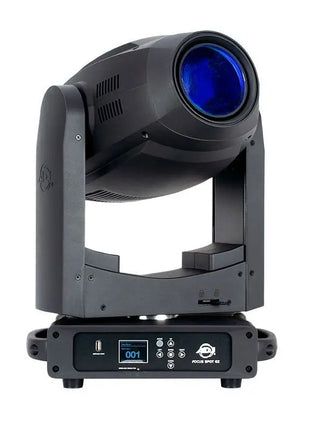

The Focus Spot 6Z is powered by a brilliant 300W cool white LED engine that produces vibrant saturated colours and is equipped with motorized focus zoom (9~28-degree zoom) Iris and two prisms. It is designed for temporary live events and fixed installations in nightclubs stages or churches. It is professionally fit with two GOBO wheels (7 GOBOs per wheel) two COLOR wheels each with 7 vibrant colours plus white and 2 rotating/indexable prisms (one 6-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).
The Focus Spot 6Z has locking power In and out connectors to daisy chain the power as well as locking 3-pin and 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. It also has RJ45 In/Out connections to control with ArtNet and KlingNet. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt multiple DMX control modes and 6 different dimming options. The Focus Spot 6Z offers a robust light output in a light weight compact foot print.
Specifications
Source:
• Source: Cool White LED Engine
• Individual LED wattage : 300W
• Lumens: 11.000
• Average lifetime: approximately 50000 hrs
Optics:
• Motorized Zoom: 9 ~ 28-degrees
• Motorized Focus
• Rotating 6-facet Linear & rotating 6-facet Circular Prism with overlay
• Linear Heavy frost for wash effect & Light frost that creates lightly blurred edges for GOBO and prism
• Motorized Iris
Control:
• 3 operational modes : DMX ArtNet or KlingNet control
• 3 DMX Channel Modes: 21 25 & 29 Channels
• RDM compatible (Remote Device management)
• 16bit dimming 0-100%
• 6 Dimming Modes: Standard Stage TV Architectural Theatre Stage 2
• Adjustable Dim Curves: Linear Square Inv. Square S-Curve
• Adjustable LED Refresh Rate from 900Hz to 25kHz for flicker free operation
• Various strobe effects
• 6-button Colour display
• Battery inside allowing to access the fixture Menu without power connection
• 16bit Pan: 540 & 630 degrees
• 16 bit Tilt: 270 degrees
• 3 Fan settings : Auto High and Low Noise
Colours:
• 2 separate colour wheels each with 7 dichroic colours + white (includes CTO CTB and UV filters)
Gobos:
• Gobo wheel 1 with 7 aluminium GOBOs + open
• Gobo wheel 2 with 7 aluminium GOBOs + open
• All gobos removable rotatable and indexable
• Metal GOBO Size: 23mm (outer) 19mm (viewable) 0.5mm (thickness)
• Glass GOBO Size: 23mm (outer) 19mm (viewable) 1.6mm (thickness)
• Gobo Shake Effect
Construction:
• Rugged metal construction with plastic covers
• Omega brackets with quick locks
Electrical:
• Multivoltage : 100-240V 50/60Hz
• Power Draw : 380W

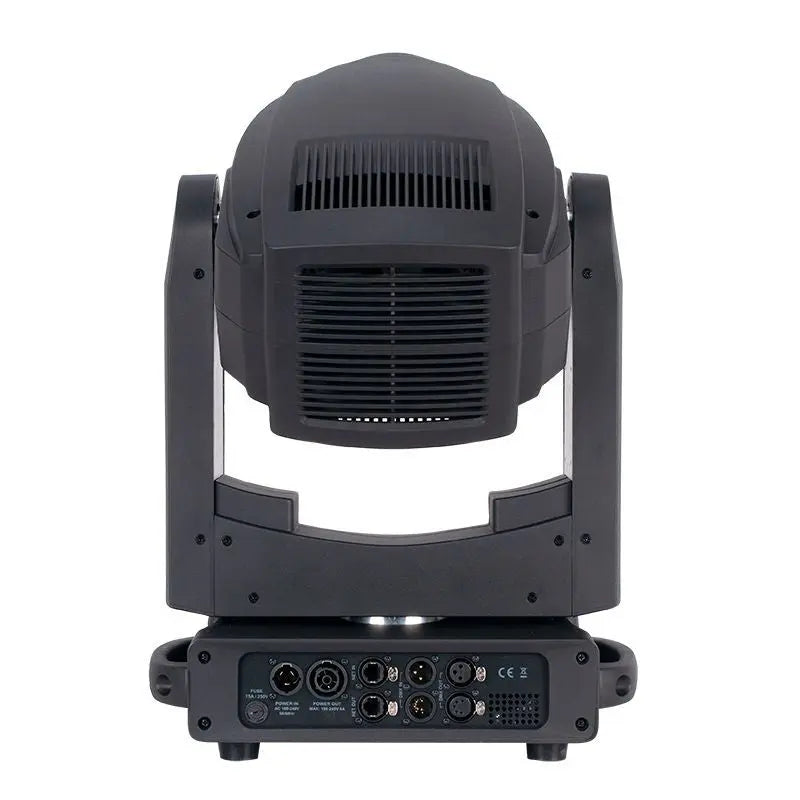

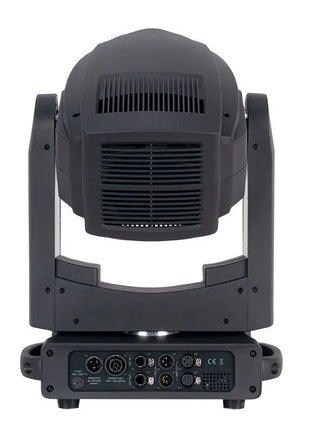

Connections:
• Locking 3- & 5-pin DMX In/Out
• IP65 Locking Power In/Out
• Locking RJ45 In/Out for ArtNet and KlingNet Operation
• USB firmware update port
Dimensions & Weight:
• Dimensions: 320 x 234 x 560mm
• Weight: 194 kg.
