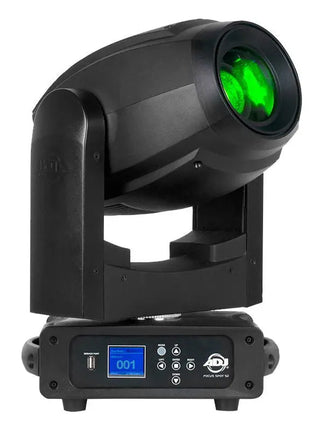

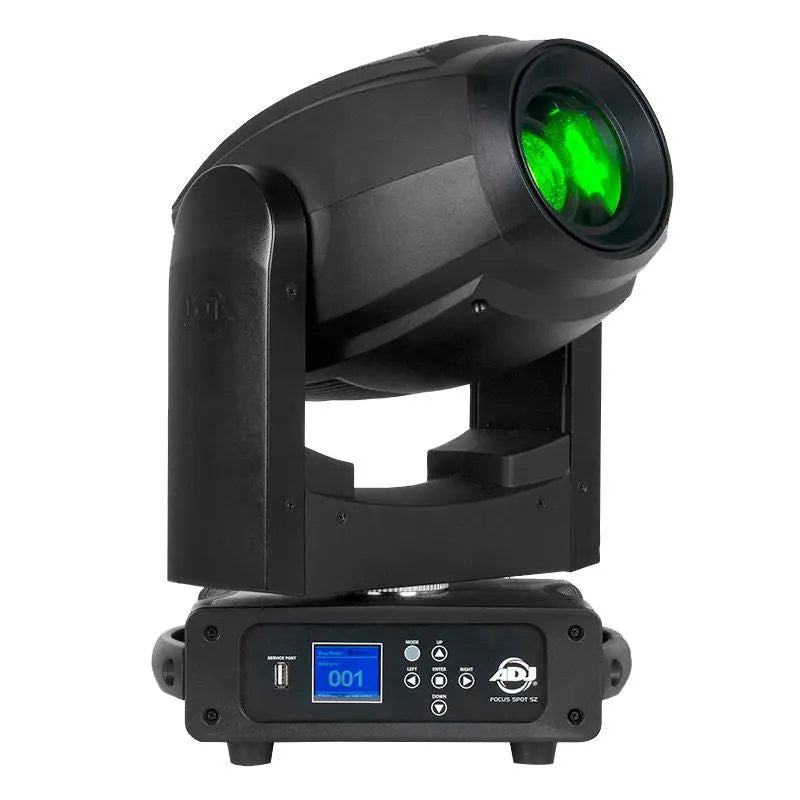

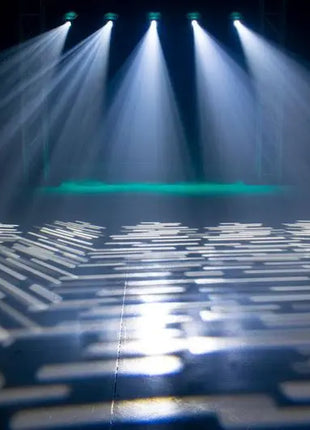

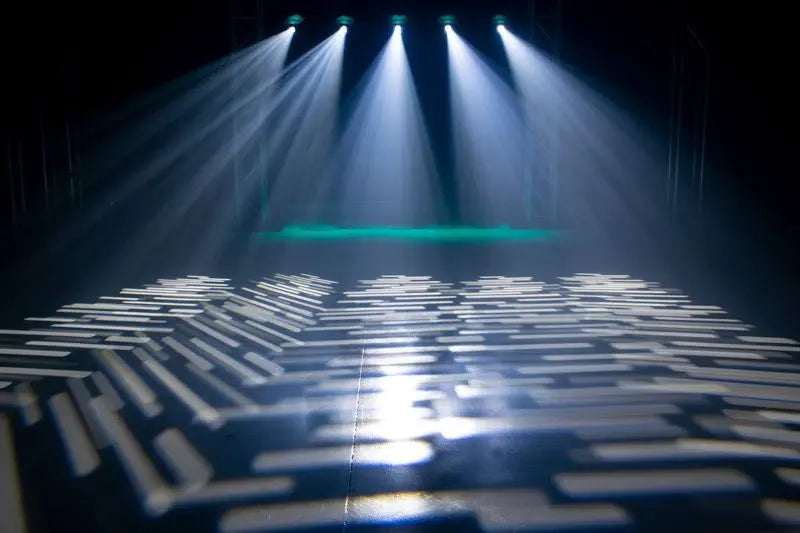

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus zoom (11 ~ 22-degree zoom) and two Frost filters(heavy frost and light frost). It is designed for temporary live events and fixed installations in nightclubs stages or churches. It is professionally fit with one GOBO wheel (7 aluminium and 1 glass GOBO) with 7 rotating/replaceable GOBOS two COLOR wheels each with 7 vibrant colours plus white and 2 rotating/indexable prisms (one 5-facet linear and one 6-facet circular).
The Focus Spot 5Z has Locking Power In and Out connectors to daisy chain the power as well as Locking 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt multiple DMX control modes and 6 different dimming curves. The Focus Spot 5Z offers a robust light output in a light weight compact foot print (18-inch high and one 23 pounds/10kg).
Specifications
Source
• Source: Cool White LED Engine
• Individual LED wattage : 200W
• Average lifetime: approximately 50000 hrs
Optics
• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• Motorized Focus
• Rotating 5-facet Linear & rotating 6-facet Circular Prism

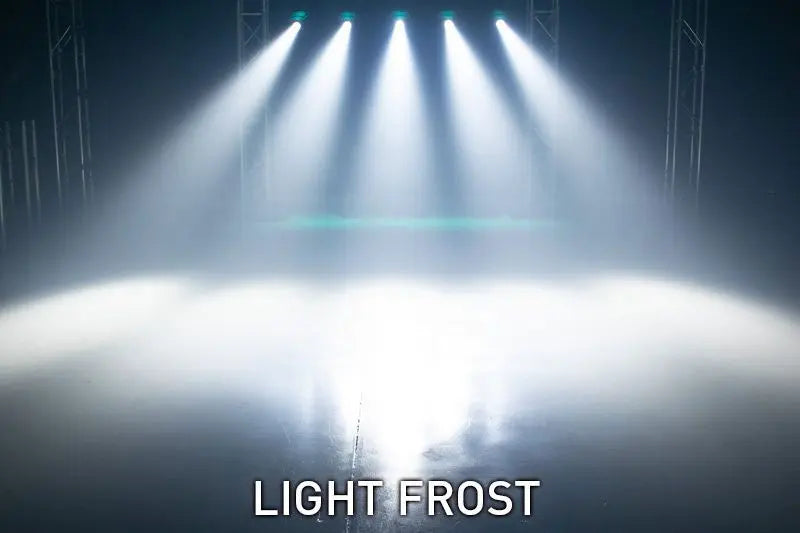

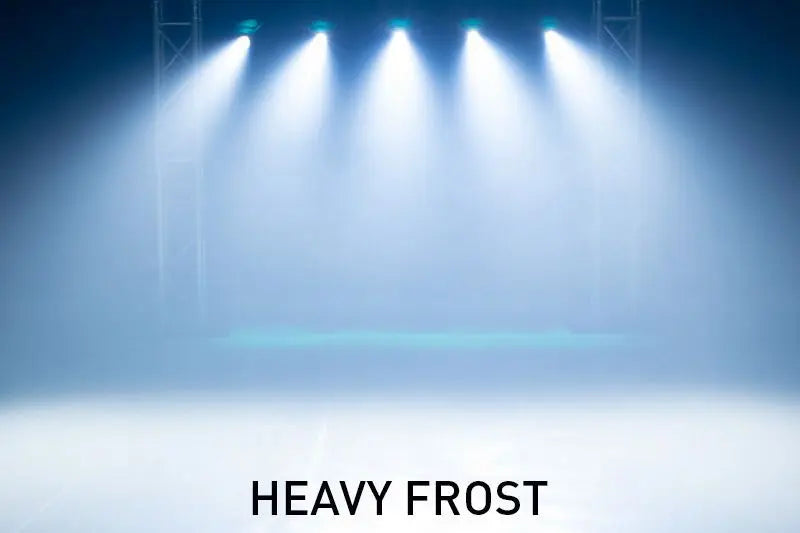

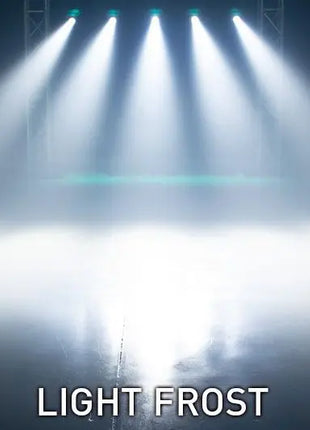

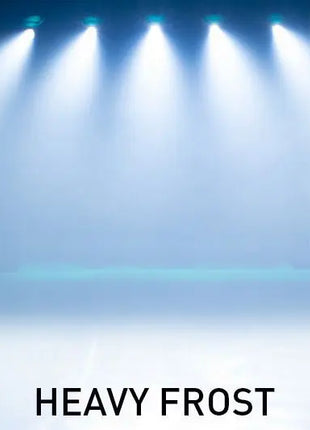

• Heavy frost for wash effect & Light frost that creates lightly blurred edges for GOBO and Prism FX
Control
• 2 operational modes : Program Mode or DMX control
• 3 DMX Channel Modes: 16/18/22 Channels
• RDM compatible (Remote Device management)
• Internal Programs with built-In DMX Recorder
• 16bit dimming 0-100%
• 6 Dimming Modes: Standard Stage TV Architectural Theatre Stage 2
• Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
• Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
• Various strobe effects
• 6-button Colour display
• Battery inside allowing to access the fixture Menu without power connection
• 16bit Pan: 540 & 630 degrees
• 16 bit Tilt: 270 degrees
• 3 Fan settings : Auto High and Low Noise
Colours
• 2 separate colour wheels each with 7 dichroic colours + white (includes CTO CTB and UV filters)
Gobos
• 1 gobo wheel with 6 aluminium GOBOs + open
• All gobos removable rotatable and indexable
• Gobo Shake Effect
• Gobo size: 225mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Construction
• White Plastic housing
• 2 cooling fans
• Omega bracket with quick locks
Electrical
• Multivoltage : 100-240V 50/60Hz
• Power Draw : 256W
Connections
• Locking 5-pin DMX In/Out
• Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
• USB firmware update port
Dimensions & Weight:
• Dimensions: 457 x 279 x 182mm
• Weight: 10 kg.
