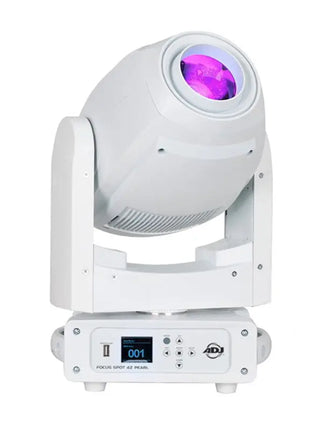

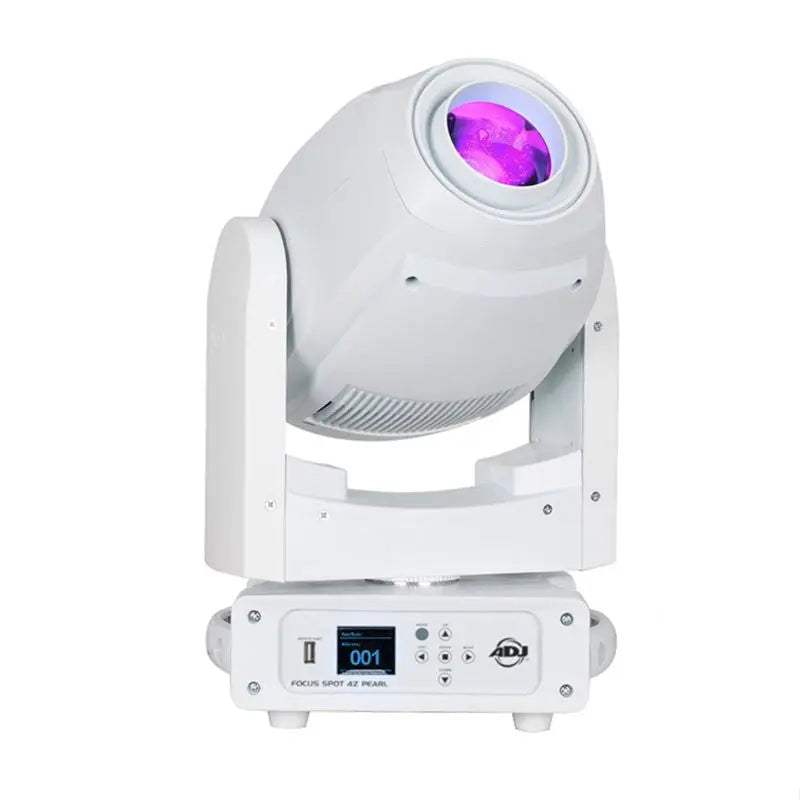

The Focus Spot 4Z Pearl is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS 8 vibrant colours plus white and 2 prism wheels (one 5-facet linear and one 6-facet circular).
The Focus Spot 4Z Pearl has Locking Power In and out connectors to daisy chain the power as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt multiple DMX control modes and 6 different dimming options. The Focus Spot 4Z Pearl offers a robust light output in a light weight compact foot print (18-inch high and one 23 pounds).
Specifications
Source
• Source: Cool White LED Engine 24.000K
• 7000 Lumen
• CRI: 76
• Individual LED wattage : 200W
• Average lifetime: approximately 50000 hrs
Optics
• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• Motorized Focus
• Rotating 5-facet Linear & rotating 6-facet Circular Prism
Control
• 2 operational modes : Program Mode or DMX control
• 3 DMX Channel Modes: 16/18/22 Channels
• RDM compatible (Remote Device management)
• Internal Programs with built-In DMX Recorder
• 16bit dimming 0-100%
• 6 Dimming Modes: Standard Stage TV Architectural Theatre Stage 2
• Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
• Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
• Various strobe effects
• 6-button Colour display
• Battery inside allowing to access the fixture Menu without power connection
• 16bit Pan: 540 & 630 degrees
• 16 bit Tilt: 270 degrees
• 3 Fan settings : Auto High and Low Noise
Colours
• 1 colour wheel with 8 dichroic colours + white
Gobos
• 1 gobo wheel with 6 aluminium GOBOs + open
• All gobos removable rotatable and indexable
• Gobo Shake Effect
• Gobo size: 225mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Construction
• White Plastic housing
• 2 cooling fans
• Omega bracket with quick locks
Electrical
• Multivoltage : 100-240V 50/60Hz
• Power Draw : 256W
Connections
• Locking 3-pin DMX In/Out
• Locking Power In/Out (Daisy chain 10 units @ 240V)
• USB firmware update port
Dimensions & Weight:
• Dimensions: 457 x 279 x 182mm
• Weight: 10 kg.
