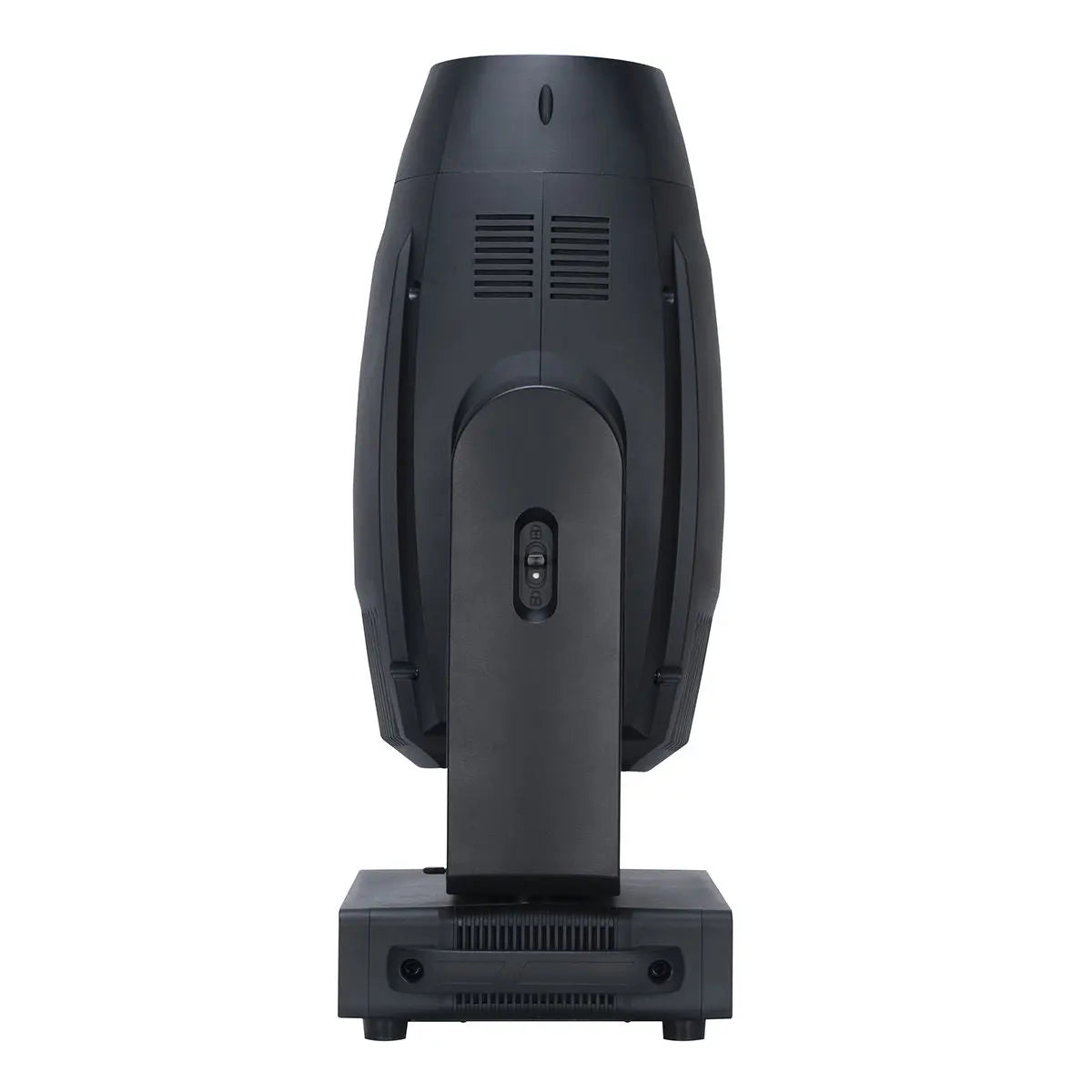

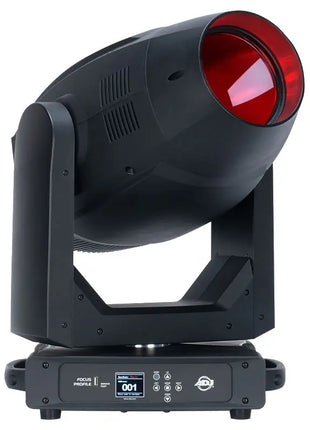

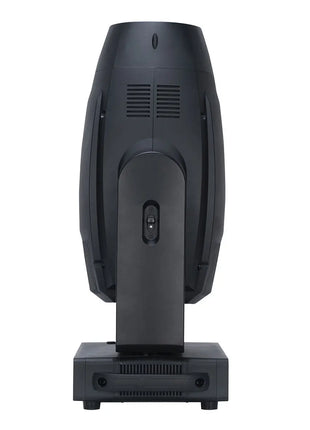

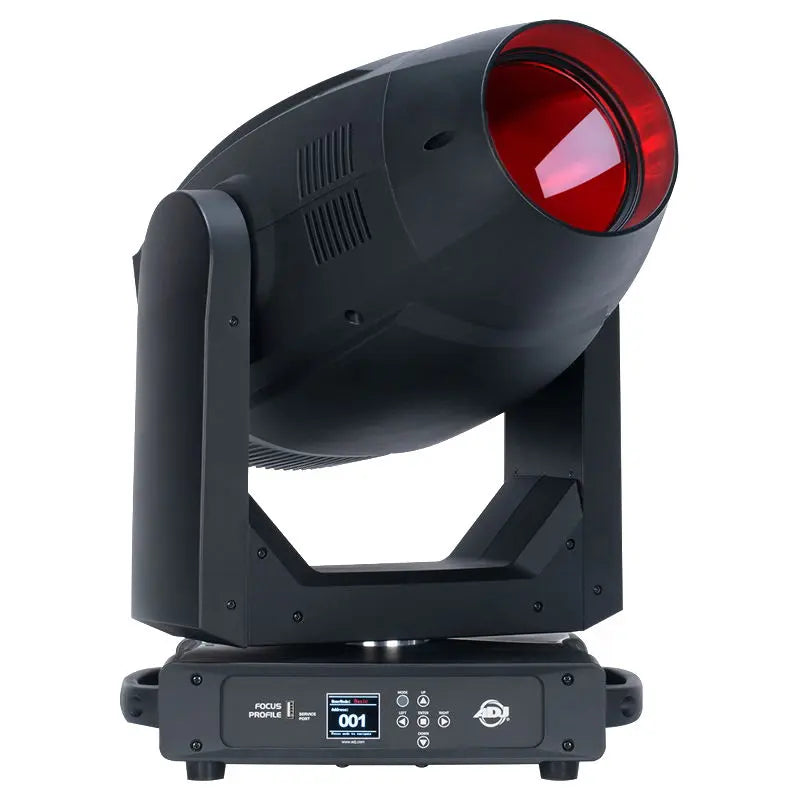

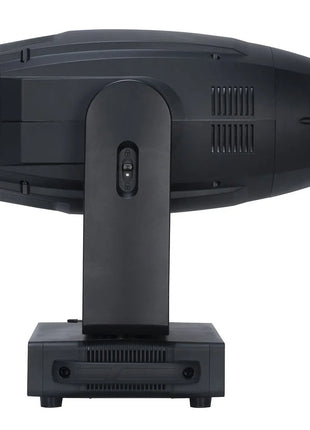

The ADJ Focus Profile is a feature-packed moving head profile fixture with framing shutters. It features a potent 400W LED engine 4 rotating framing shutters full CMY colour mixing and two prism effects.
The brightest and most feature-rich Focus Series fixture to date the Focus Profile is a professional caliber automated profile luminaire designed for theatrical concert touring and event production applications. It features a potent 400W LED engine with a native colour temperature of 6700K and a CRI in excess of 70 coupled with an exhaustive collection of beam-shaping tools. These include four independently controllable rotating full blackout framing shutter blades which can be used to precisely shape the light output. The unit offers full CMY colour mixing together with variable CTO colour temperature control (2700K to 6700K) and an additional colour wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable indexed-rotating GOBOs and 8 static GOBOs respectively while two bi-directional rotating prisms (3-facet and 6-facet) allow for the creation of a wide variety of aerial effects. Motorized focus iris and zoom (7 – 45-degrees) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.
Specifications:
Source
400W LED Engine 20000 Hour Average LED Life Variable Refresh Rate: 900Hz-1500Hz2500Hz4000Hz5000Hz6000Hz10KHz15KHz20KHz25KHz 20990 Total Lumens 6700K 70CRI without CRI filter 88 CRI with CRI filter 44330 LUX / 4118 FC @5m (7.32° Beam) 1767 LUX / 164 FC @5m (45° Beam)
Optics
Beam Angle: 7~45° 3 & 6 Facet Rotating Prisms Replaceable Medium Frost Filter (heavy frost filter included) Motorized Focus Motorized Iris Electronic Dimming & Strobe (1-20Hz)
Control
Pan 540/630° Tilt 270° 3 DMX Channel Modes (36 / 40 / 51) RDM (Remote Device Management) Battery inside allowing to access the fixture Menu without power connection 6 Button Touch Control Panel Full Colour 180° Reversible LCD Menu Display 8 / 16 Bit Resolution Adjustable Movement
Colour
Full CMY colour mixing Variable CTO Colour Wheel with 6 dichroic colours
Gobos
2 Gobo Wheels Gobo wheel 1:7 Interchangeable Rotating-Indexing Gobos Gobo wheel 2: 8 Static-Stamped Gobos
Effects
4 Full blackout Framing Shutters with rotating system (-60° ~ +60°) and 2 motors per blade Animation wheel
Construction
Housing: High-impact flame-retardant thermoplastic Colour: Black Protection rating: IP20 Pan/Tilt Locks
Electrical / Thermal
AC 100-240V - 50/60Hz Max Power Consumption: 560W Max ambient temperature: -25°C to 45°C Max housing temperature: 58°C
Connections

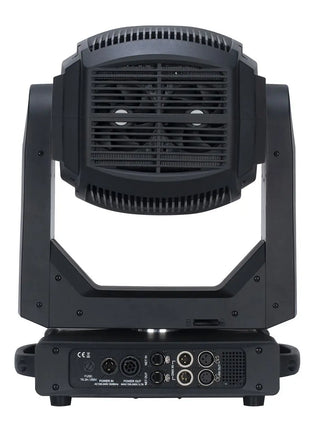

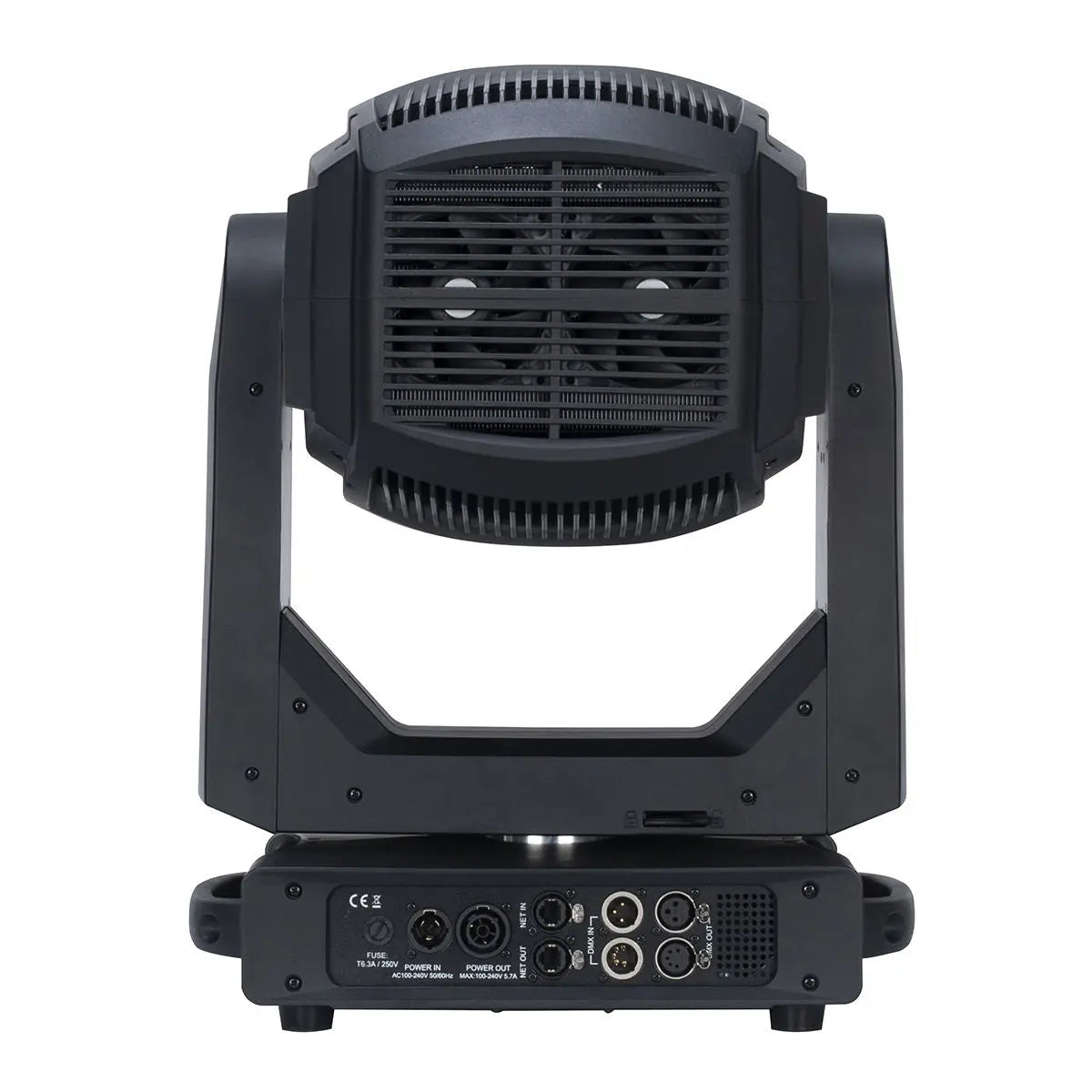

3 & 5 pin XLR DMX In/Out RJ45 Ethernet In/Out (Art-NET + sACN) IP65 Locking Power In/Out USB port for firmware updates
Dimensions & Weight
Length: 651mm Width: 400mm Vertical Height: 260mm Weight: 27.75kg
Noise level
DB Rating @ 1m: 367 dB(A)
