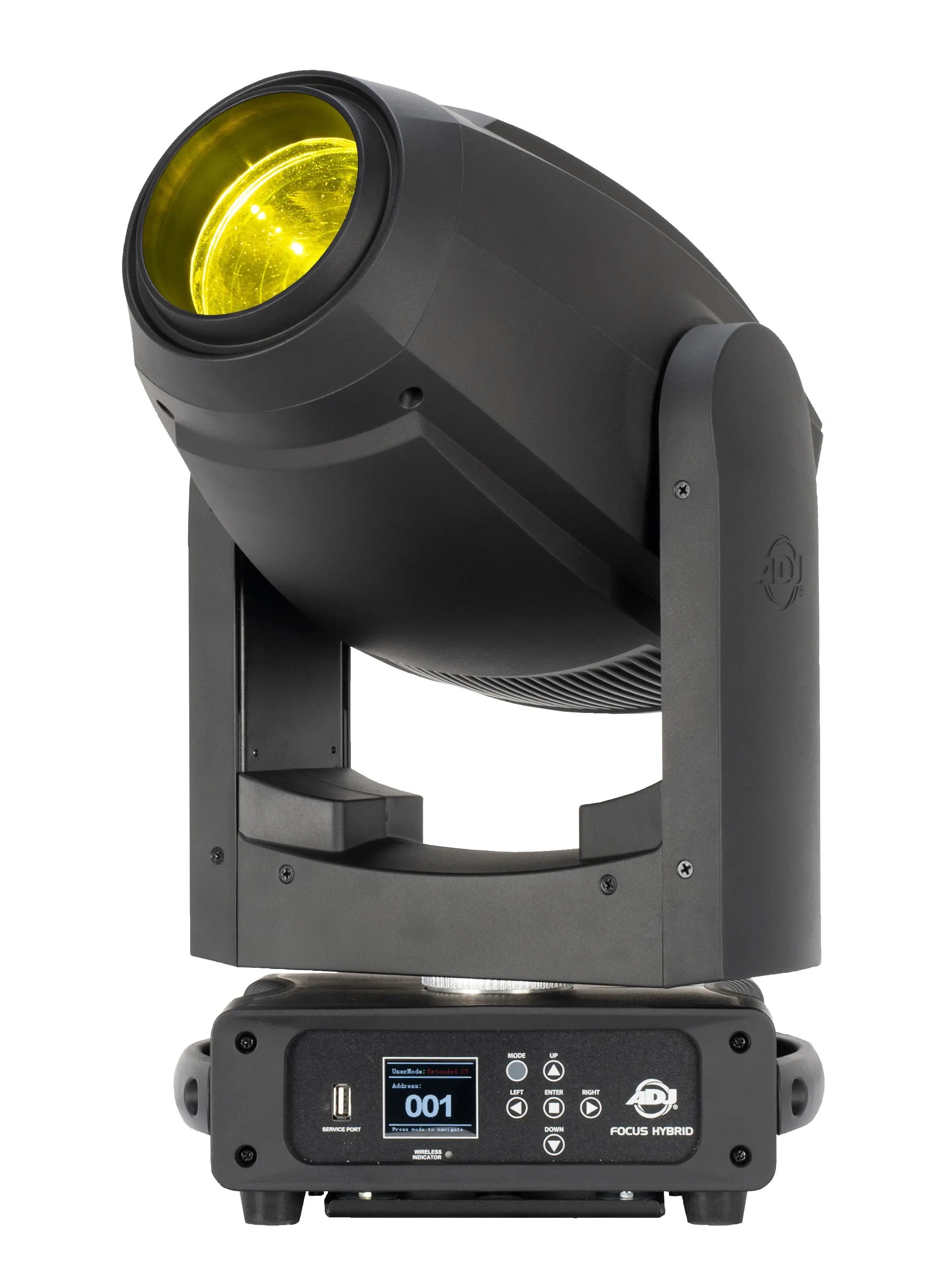

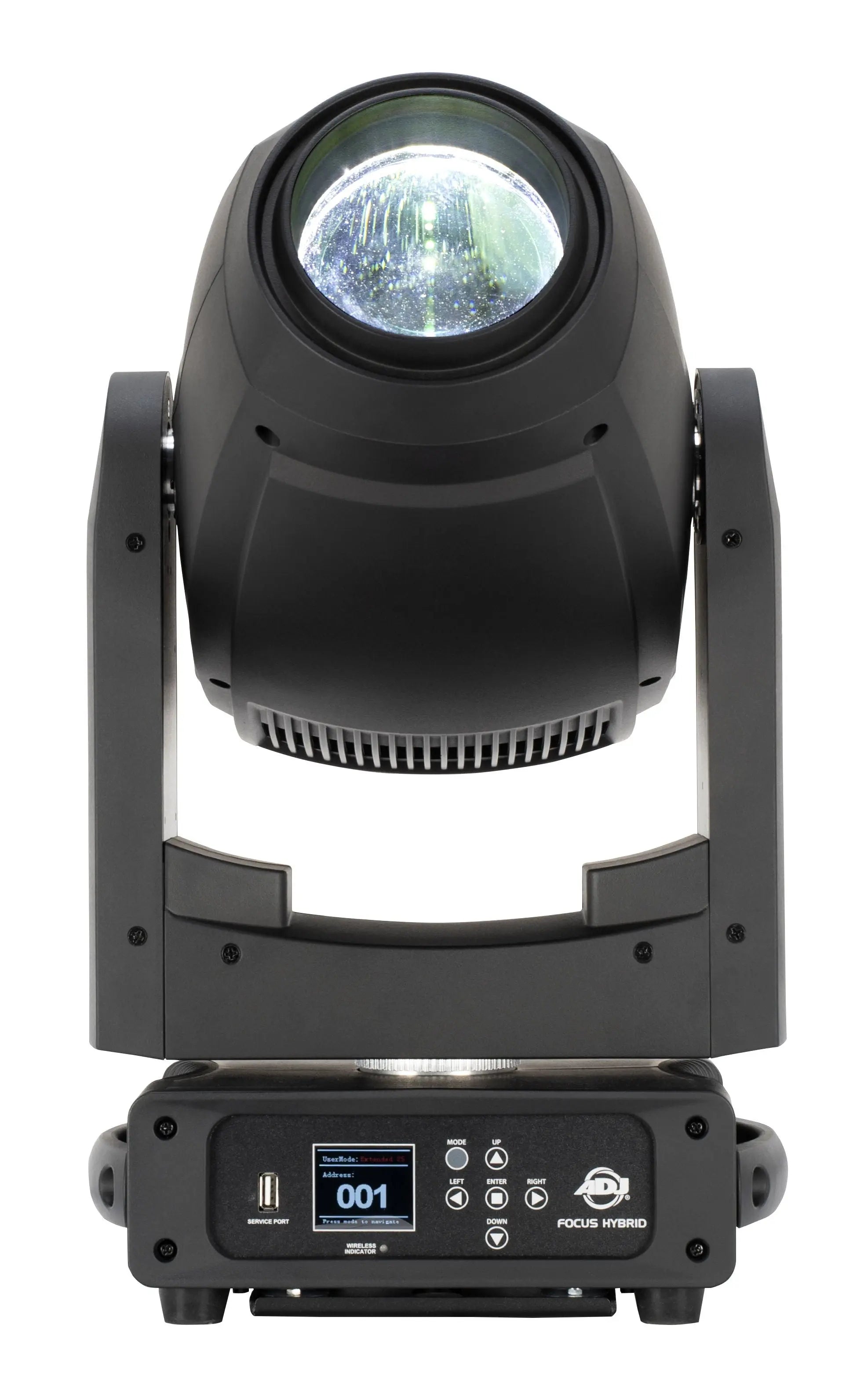

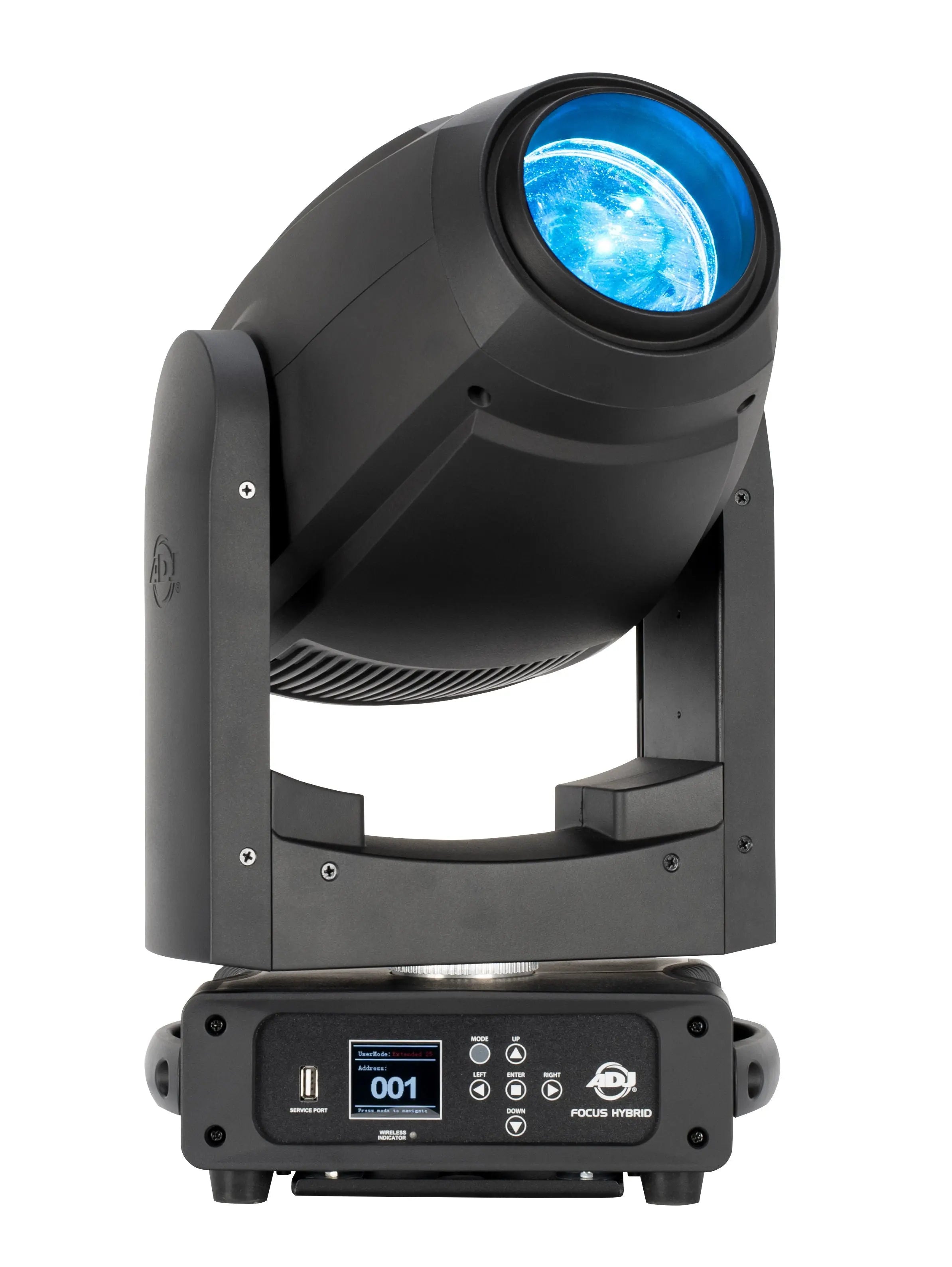

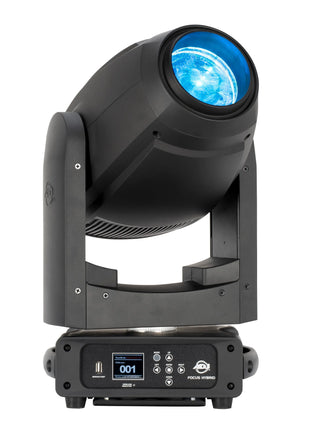

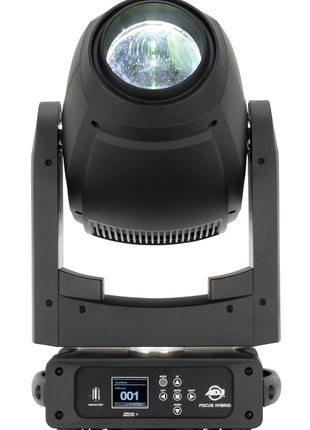

Part of ADJ’s immensely popular Focus Series of LED-powered moving heads the Focus Hybrid is a versatile fixture which can function interchangeably as a spot wash or beam luminaire. It features an efficient 200W cool white (7500K) LED engine which has an average life expectancy of 50000 hours and generates an output of 4100 lumens. This light is focused through a precision-engineered optical system and a variety of beam-shaping elements to generate a flexible output which can be used to create aerial effects surface pattern projections or colour washes.
The Focus Hybrid offers a beam angle variable between an intense 2-degrees and a significantly wider 24-degrees with motorized zoom providing quick and precise changes between beam angle settings. In addition motorized focus can be used to ensure pattern projections are sharp at variable beam angles and projection distances while a frost filter can be used to further widen the beam angle and soften the beam edge to achieve a wash output. A Heavy Frost filter is fitted as default but this can be replaced to suit the needs of specific applications and a Medium Filter is also supplied together with the fixture as standard.
A dedicated wheel offers a choice between 11 dichroic colour options (plus open) including a 3200K CTO filter for achieving a warm white output. The fixture also boasts two independent GOBO wheels one featuring 7 slots for interchangeable indexed rotating GOBO patterns and the other featuring 15 static stamped metal GOBOs (including four beam reducers). Two rotating prism options are also provided – 8-facet circular and 6-facet linear – for creating multibeam surface textures and dynamic mid-air effects. Considering its impressive output and feature set the Focus Hybrid is a compact fixture which weighs in at a very manageable 14.1kg.
Specification
Source:
200W LED Engine 50000 Hour Average LED Life
Photometric Data:
4100 Total Lumens 7500K >70CRI 57433 LUX @ 5m (3.1° Beam) 1293 LUX @ 5m (23.8° Beam)
Effects:
8-Facet Circular & 6-Facet Linear Rotating Prisms Replaceable Frost Filter (Heavy Frost Default) Motorized Zoom (2° to 24°) Motorized Focus Electronic Dimming & Strobe (1-20Hz)
Colour:
1 Colour Wheel with 11 dichroic colours includes 3200 CTO Filter
Gobos:
2 Gobo Wheels with 7 Interchangeable Rotating-Indexing Gobos and 15 Static-Stamped Gobos
Control:
Pan: 540° Tilt: 270° 3 DMX Channel Modes (19 / 23 / 25) WiFLY EXR Wireless DMX Built-in (2500 ft. 700M line of sight) RDM (Remote Device Management) 6 Button Touch Control Panel Full Colour 180° Reversible LCD Menu Display 8 / 16 Bit Resolution Adjustable Movement
Connections:
5 pin XLR DMX In/Out Locking In/Thru power connections Antenna on rear for WiFLY EXR Wireless DMX connection
Dimensions & Weight:
Length: 176mm Width: 278mm Vertical Height: 533mm Weight: 14.10kg
Electrical & Thermal:
AC 100-240V - 50/60Hz Max Power Consumption: 335W Max ambient temperature: -25°C to 45°C Max housing temperature: 58°C
Technical Data:
DB Rating @ 3ft.: 43.2dB BTU: 0.32 BTU/H: 1142.35
Included Accessories:
1 Power cable 2 Omega brackets
