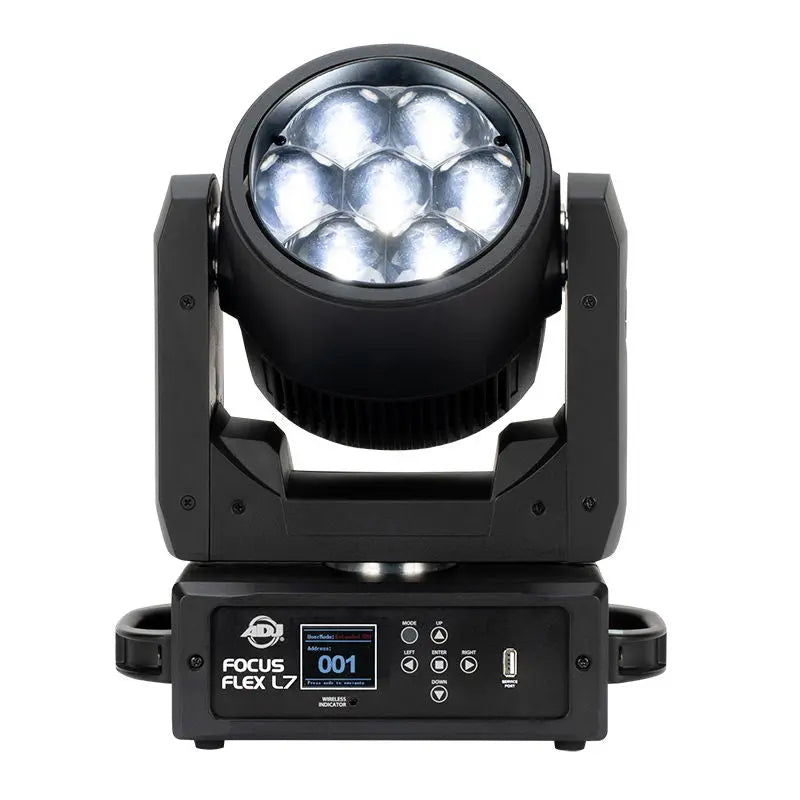

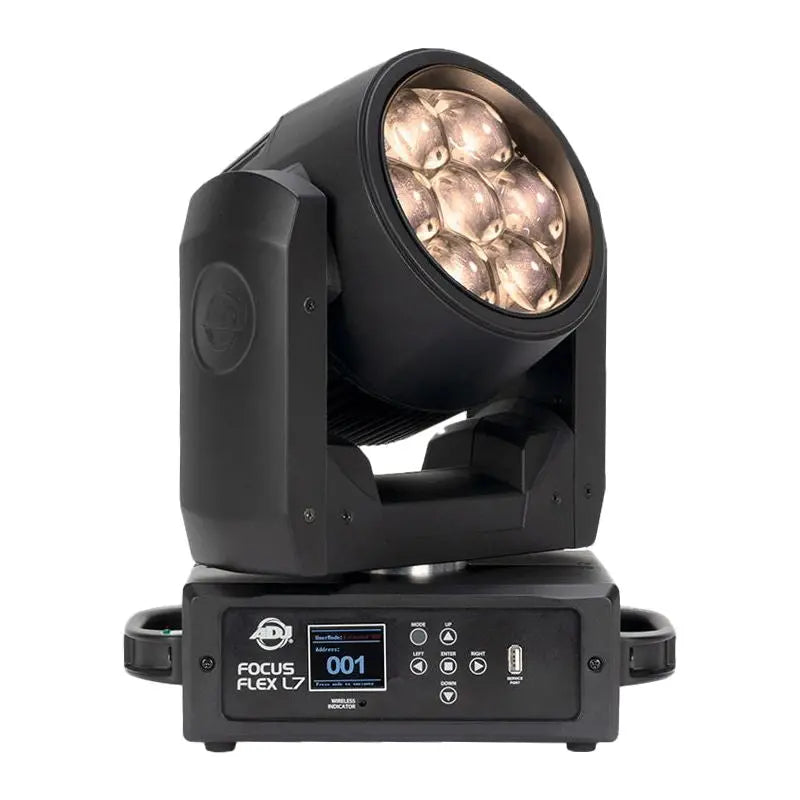

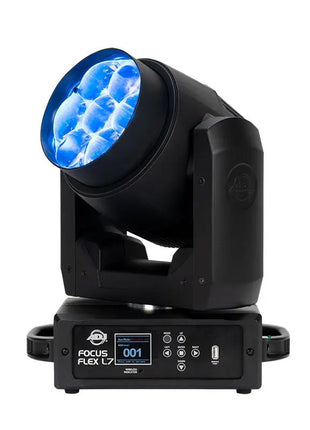

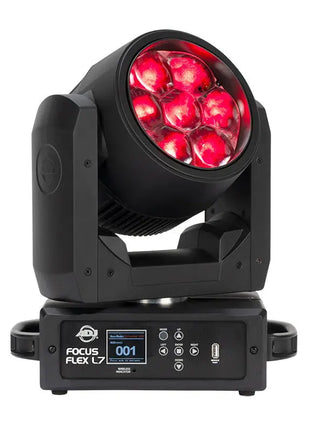

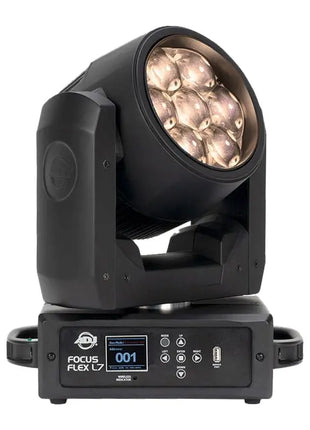

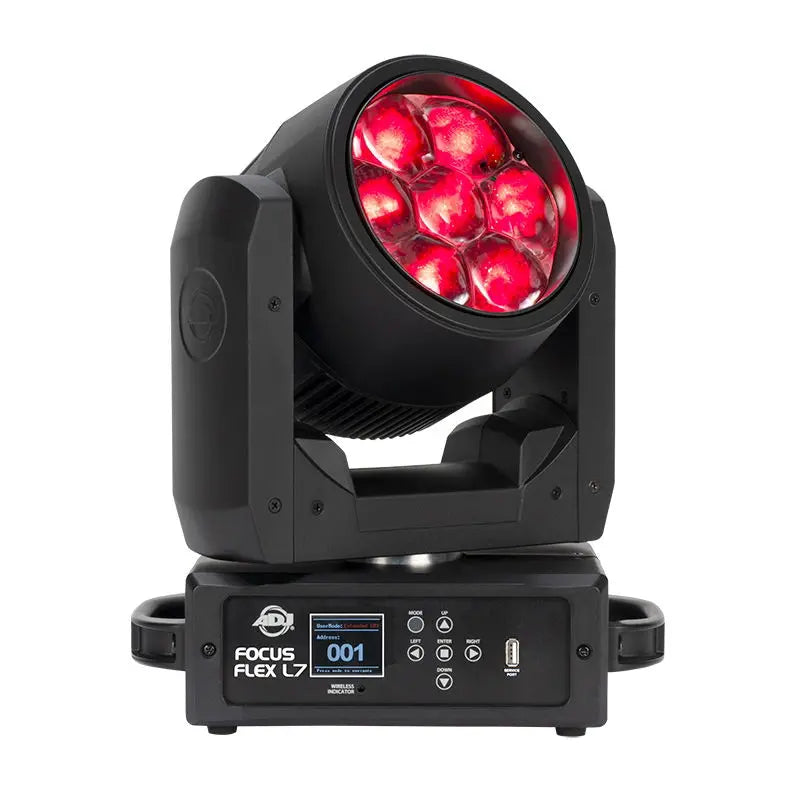

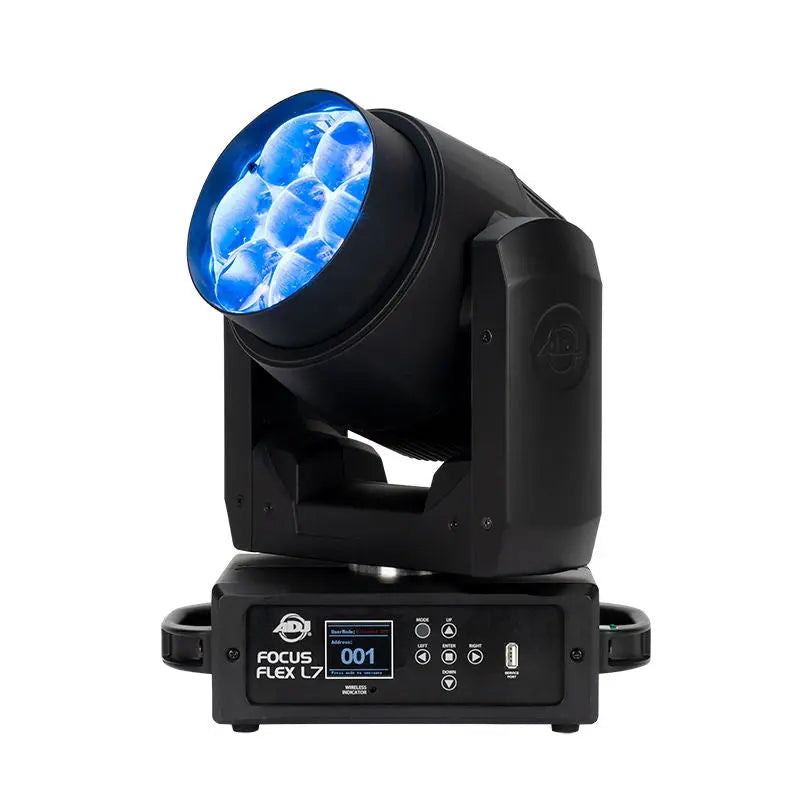

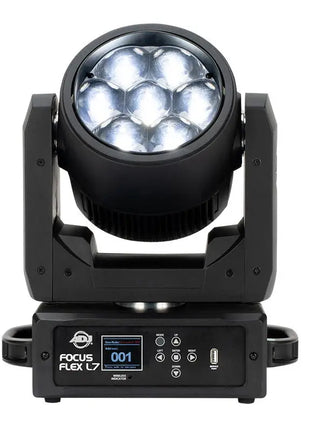

Compact quick and punchy the Focus Flex L7 from ADJ Lighting is a versatile moving head luminaire capable of creating wash beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential it is ideal for event production and rental applications as well as for permanent installation in concert halls theatres nightclubs and churches.

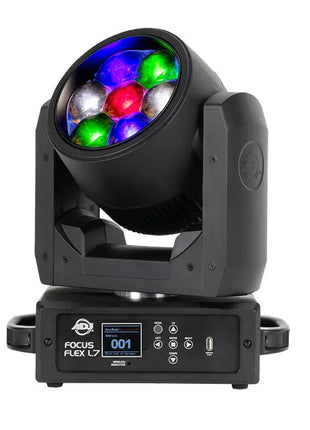

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBL colour mixing LEDs each of which can be controlled independently. Through mixing the intensity of the primary LED colours a huge gamut of output colours can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode which allows control alongside native CMY colour mixing fixtures using hardware/software CMY colour picker/pallete tools. It also offers Virtual Foreground and Background Colour Wheel control as well as white light output with variable colour temperature of between 2700K to 10000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile through controlling the seven LEDs independently the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex L7 are colour calibrated to ensure uniform output of fixtures from different batches.
Motorized zoom allows the field angle of the Focus Flex L7 to be altered remotely between a wide 55-degrees and narrow 6-degrees which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects while 16-bit fine motor control ensures precise positioning.
A flexible fixture the Focus Flex L7 offers a range of DMX mode options (requiring between 16 and 28 control channels) appropriate to different applications as well as a variety of customizable options including selectable LED refresh rate and dimming modes. These are accessed through a colour LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.
Specifications
Source
7 x 40-Watt RGBL LEDs (50000 hr.) CRI: 83.4 CT: 2700K ~ 10000K 14.326 lux / 4° beam @ 5m 367 lux / 35° beam @ 5m Lumens: 3500 (Zoom Out full on)
Features
Moving Head Pixel Wash with Pixel Effects Electronic Strobe / Dimmer Pan/Tilt: 540/630° x 265/230° Beam Angle: 4° ~ 35° Field Angle: 6° ~ 55° Colour Calibrated Pixels so units match from batch to batch Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Selectable LED Refresh Rates (900Hz~25kHz) Selectable Dim Modes: Standard Stage TV Arch. Theatre Stage 2 and user settable Dim Speed (0.1S~10S) 4 Dim Curves: Square Linear Inv. Square and S. Curve 0-100% smooth dimming Various strobe speeds USB firmware update port Fan Cooled Antenna for WiFLY EXR Wireless DMX
Colours
Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Built-In Colour Macros 2700K ~ 10000K Linear White Colour Temperature Control Colour Temperature Presets: 2700 3000 3200 4000 4500 5000 5600 6500 8000 and 10000K
Control
7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels Colour LCD display with 6-button function menu Control Mode: DMX512 or internal programs Built-In Effect Pixel Programs with Speed and Fade Control Various strobe speeds USB firmware update port Wired Digital Communication Network RDM (Remote Device Management) WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
Pan/Tilt
Pan: 540/630 degrees Tilt: 265 degrees
Connections
DMX Connections: 5-pin XLR In/Out Power Connections: Indoor Locking Power In/Out
Electrical
Multi-voltage operation: AC90-240V 50/60Hz Max power consumption: 337W
Dimensions & Weight
Dimensions (LxWxH): 233x177x349mm Weight: 7 kg
What's Included
Omega Bracket 1.83M locking power cable Safety Cable
Approvals / Rating
CE Certified / ETL (Pending) IP20
Specifications are subject to change
