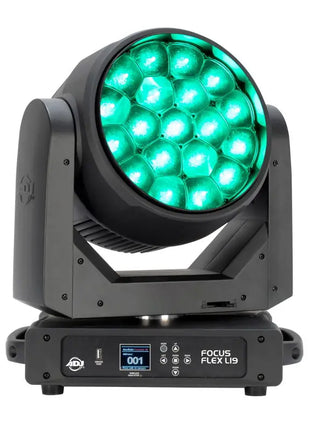

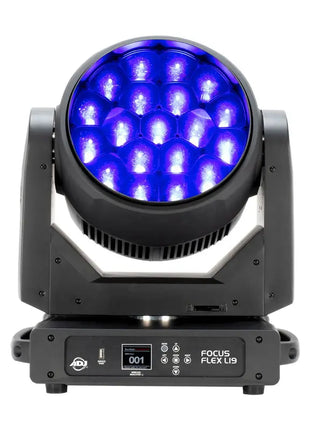

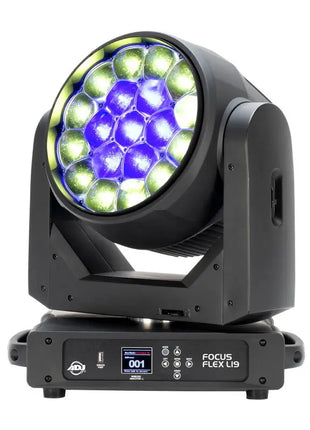

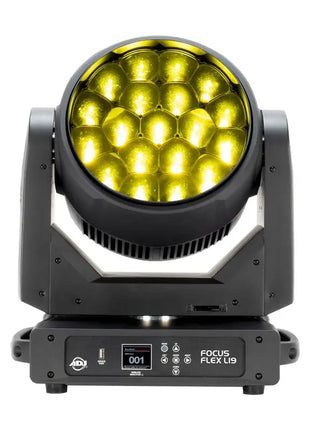

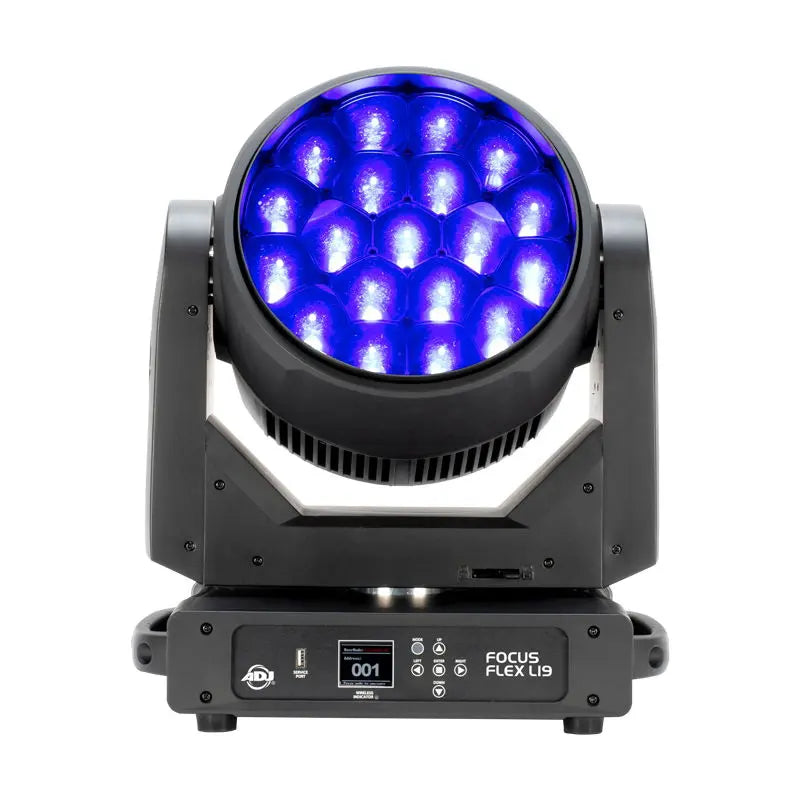

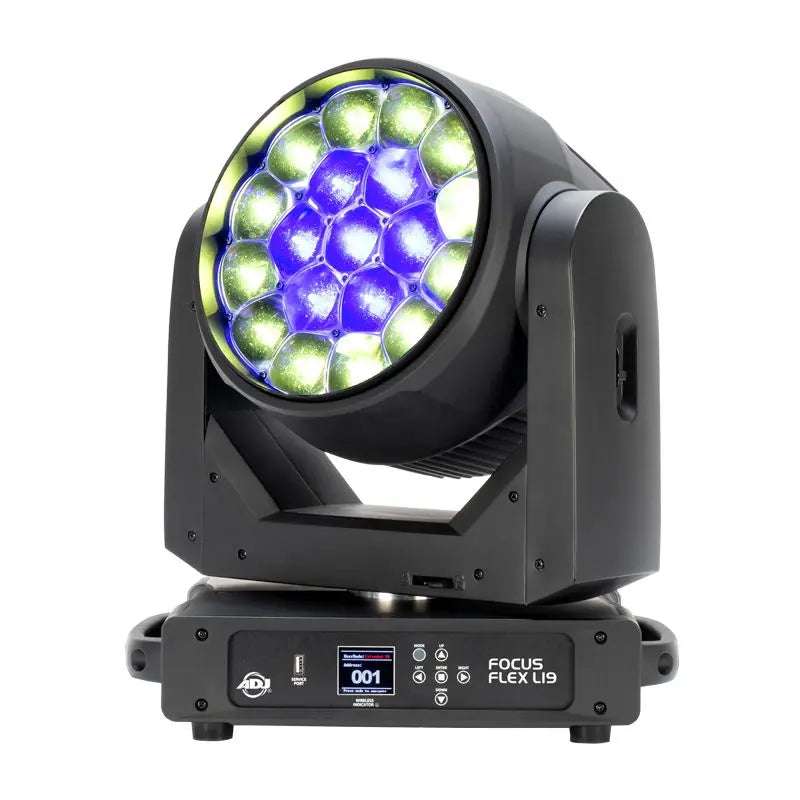

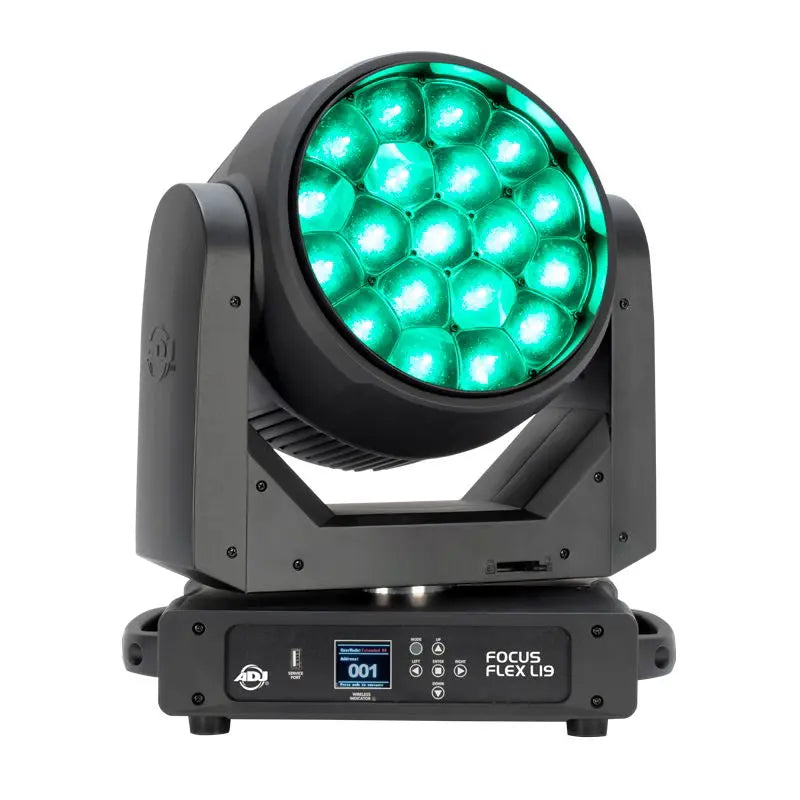

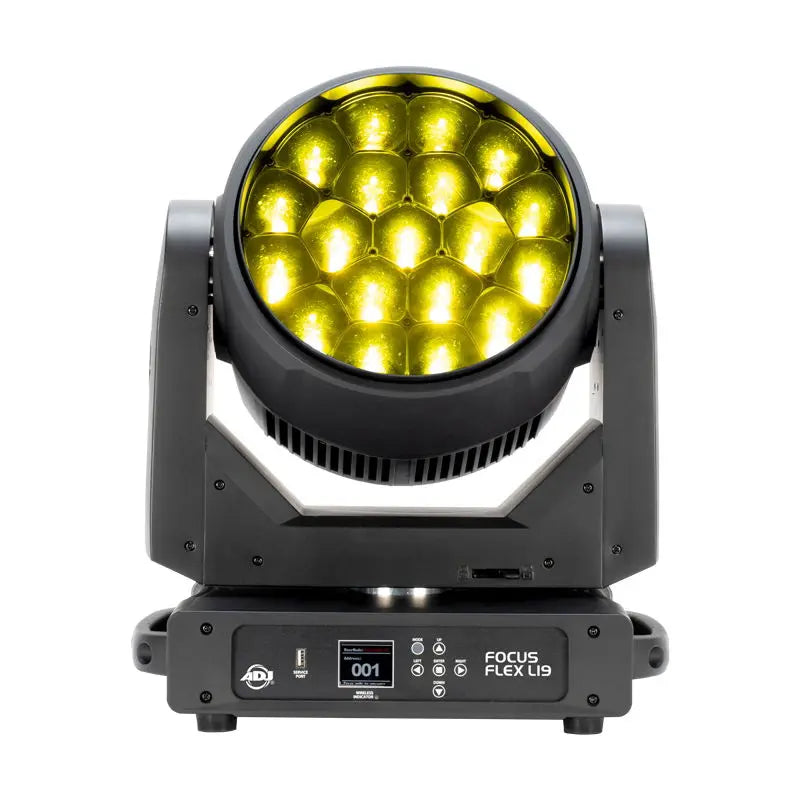

Robust and punchy the Focus Flex L19 from ADJ Lighting is a versatile moving head luminaire capable of creating wash beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential it is ideal for event production and rental applications as well as for permanent installation in concert halls theatres nightclubs and churches.

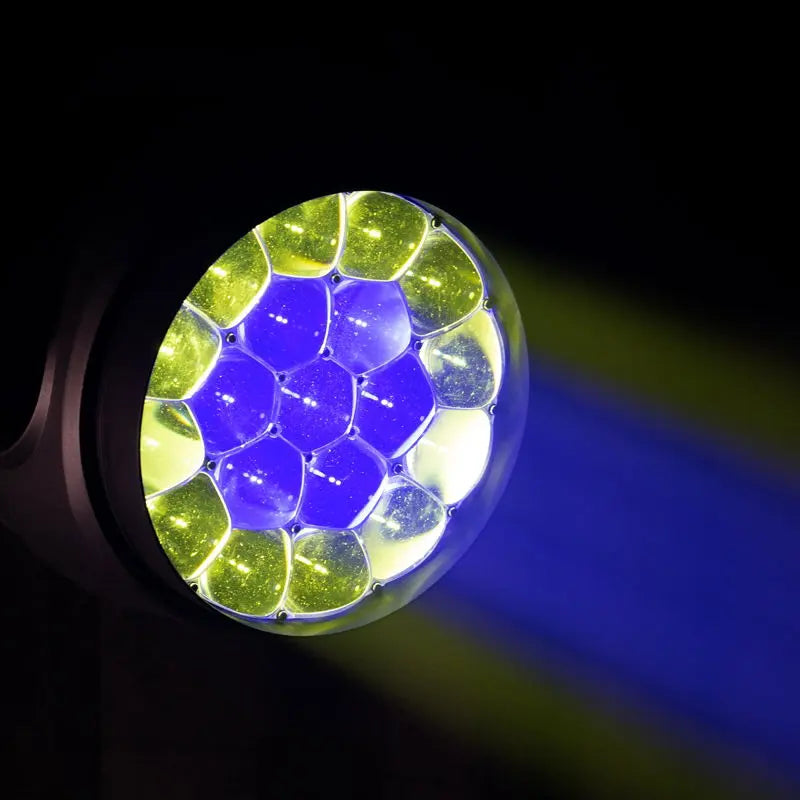

The fixture is powered by an array of nineteen potent 40-Watt 4-in-1 RGBL colour mixing LEDs each of which can be controlled independently. Through mixing the intensity of the primary LED colours a huge gamut of output colours can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode which allows control alongside native CMY colour mixing fixtures using hardware/software CMY colour picker/pallete tools. It also offers Virtual Foreground and Background Colour Wheel control as well as white light output with variable colour temperature of between 2700K to 10000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile through controlling the nineteen LEDs independently the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex L19 are colour calibrated to ensure uniform output of fixtures from different batches.
Motorized zoom allows the field angle of the Focus Flex L19 to be altered remotely between a wide 50° and narrow 5° which allows it to be used for creating both broad washes and concise beams. Its quick motor movement allows for the creation of stunning high-impact aerial effects while 16-bit fine pan & tilt motor control ensures precise positioning.
A flexible fixture the Focus Flex L19 offers a range of 5 DMX mode options appropriate to different applications as well as a variety of customizable options including selectable LED refresh rate and dimming modes. These are accessed through a colour LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.
Source:
19 x 40-Watt RGBL LEDs (50000 hr.) CRI: 83.4 Colour Temperature: 2700K ~ 10000K 39975 lux / 4.3° beam @ 16´ (5m) 1422 lux / 28.3° beam @ 16´ (5m) Lumens: 7814 (Zoomed Out Full On)
Features:

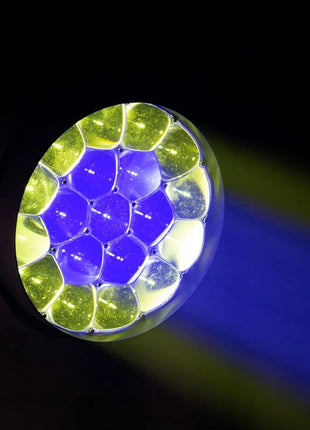

Moving Light Pixel Wash Individual Pixel Control Built-In Pixel Effect Programs Electronic Strobe / Dimmer Pan/Tilt: 540/630 x 260 Beam Angle: 4.3° ~ 29° Field Angle: 5° ~ 50° Colour Calibrated Pixels so units match from batch to batch Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Selectable LED Refresh Rates (900 Hz~25K Hz) Selectable Dim Modes: Standard Stage TV Arch. Theatre Stage 2 and user settable Dim Speed (0.1S~10S) 4 Dim Curves: Square Linear Inv. Square and S. Curve 0-100% smooth dimming Fan Cooled
Colours:
19x RGBL LEDs (Red Green Blue and Lime) Virtual CMY DMX Control Modes Virtual Foreground and Background Colour Wheel Control Built-In Colour Macros 2700K ~ 10000K Linear White Colour Temperature Control Colour Temperature Presets: 2700 3000 3200 4000 4500 5000 5600 6500 8000 and 10000K
Control:
5 DMX Modes (22 31 40 104 Standard CMY 31 Extended CMY 34) Colour LCD display with 6-button function menu Control: DMX512 ArtNet sACN and KlingNet Compatible and wireless DMX Built-In Effect Pixel Programs with Speed and Fade Control RDM (Remote Device Management) compliant With Wired Digital Communication Network
Pan/Tilt:
Pan: 540/630° Tilt: 250° 16-Bit Fine Pan & Tilt Pan & Tilt Locks
Connections:
DMX Connections: 5-pin XLR In/Out RJ45 In/Out Power Connections: Indoor Locking Power In/Out
Electrical:
Multi-voltage operation: 100-240V 50/60Hz Max power consumption: 918W @120V
Dimensions & Weight:
Dimensions (LxWxH): 258x382x470mm Weight: 19kg
What´s Included:
180mm Omega Brackets (2x) 1.83M locking power cable Safety Cable
Approvals / Rating:
CE Certified / ETL (Pending)
IP20
Specifications subject to change without notice
