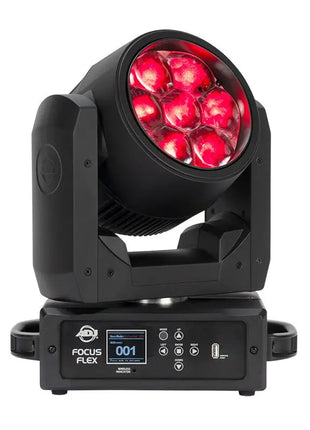

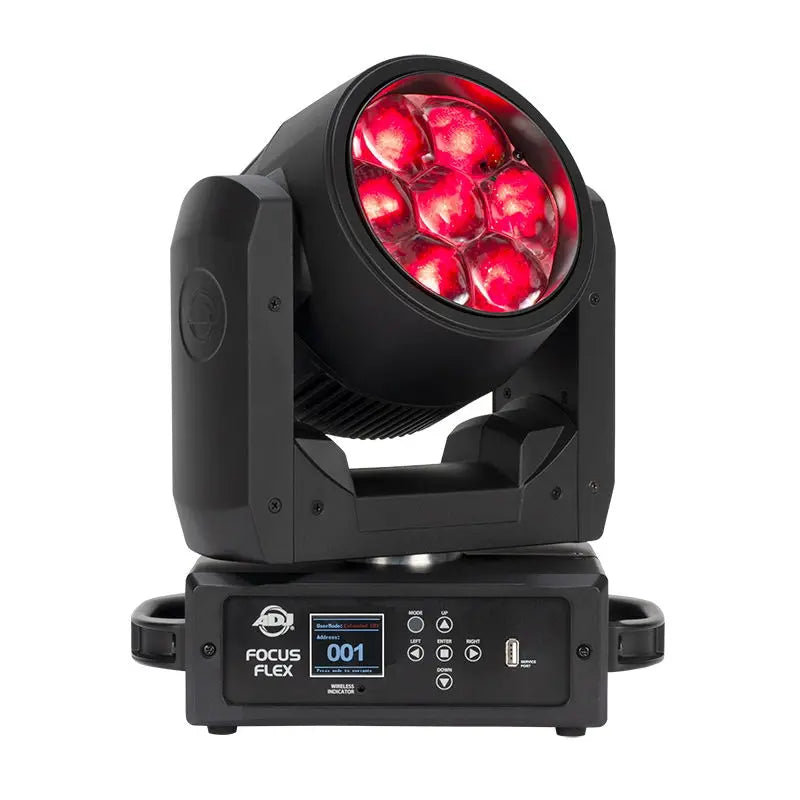

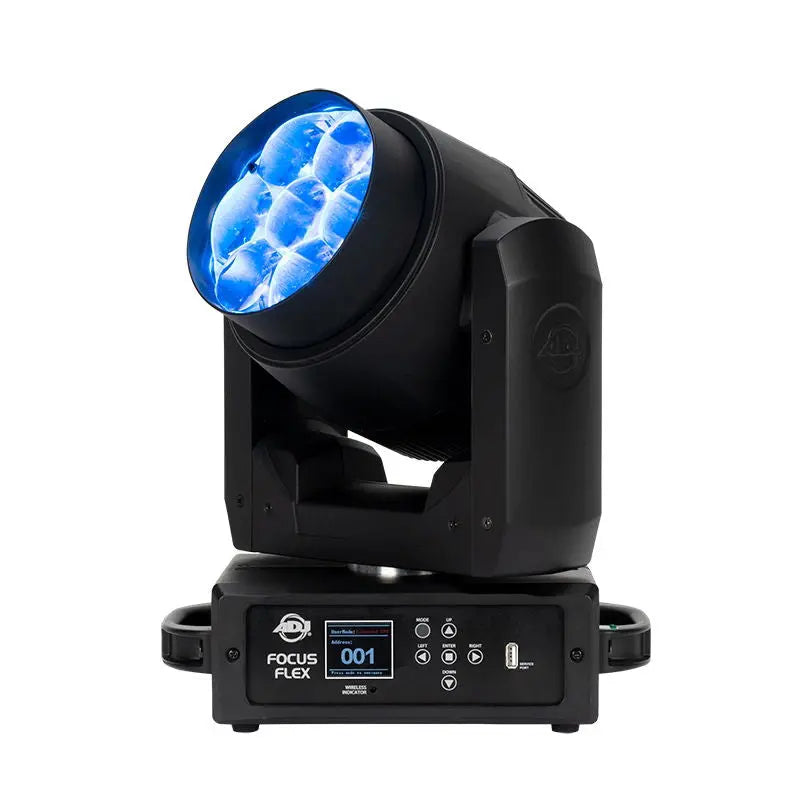

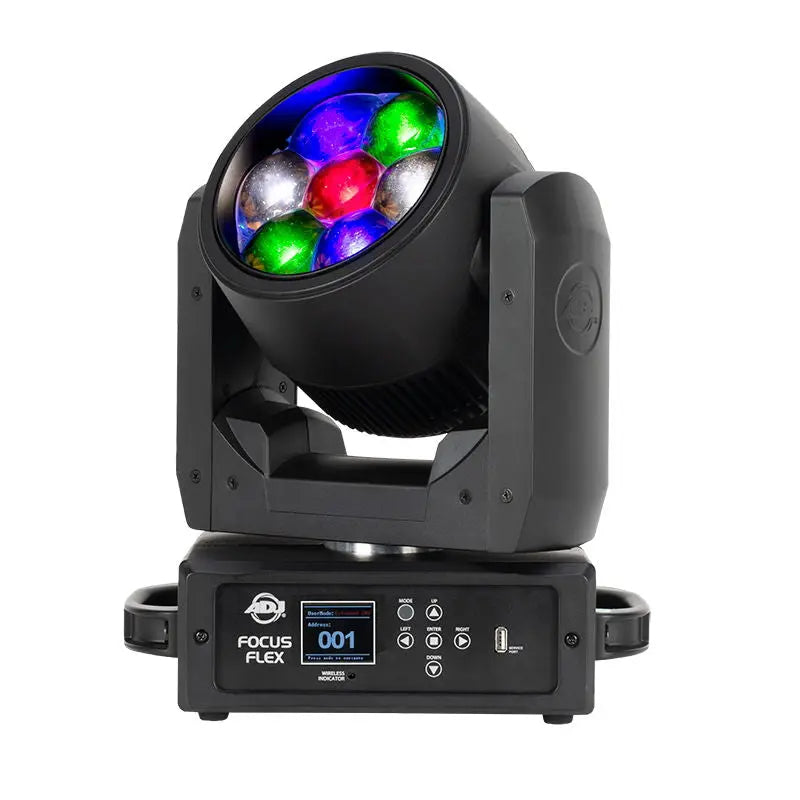

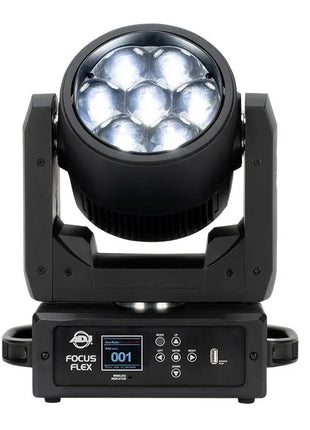

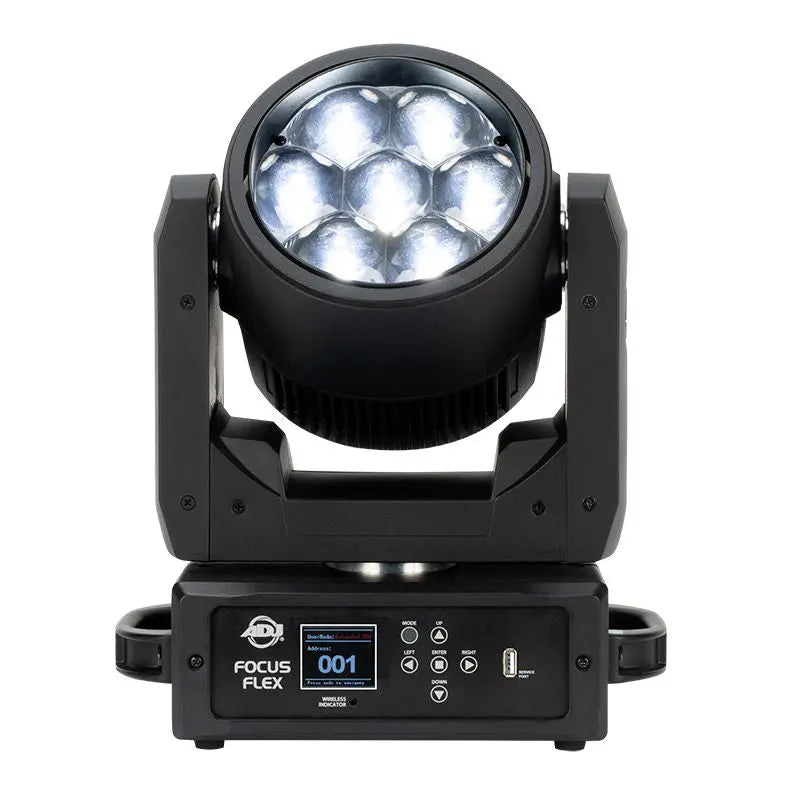

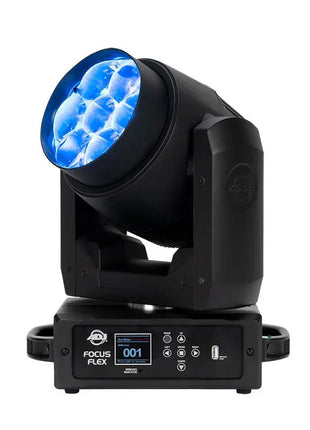

Compact quick and punchy the Focus Flex from ADJ Lighting is a versatile moving head luminaire capable of creating wash beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential it is ideal for event production and rental applications as well as for permanent installation in concert halls theatres nightclubs and churches.

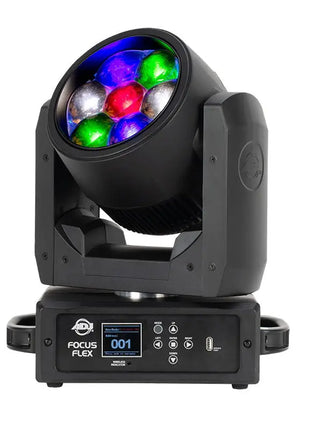

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBW colour mixing LEDs each of which can be controlled independently. Through mixing the intensity of the primary LED colours a huge gamut of output colours can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode which allows control alongside native CMY colour mixing fixtures using hardware/software CMY colour picker/pallete tools. It also offers Virtual Foreground and Background Colour Wheel control as well as white light output with variable colour temperature of between 2700K to 10000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile through controlling the seven LEDs independently the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex are colour calibrated to ensure uniform output of fixtures from different batches.
Motorized zoom allows the beam angle of the Focus Flex to be altered remotely between a wide 55° and narrow 5° which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects while 16-bit fine motor control ensures precise positioning.
A flexible fixture the Focus Flex offers a range of DMX mode options [7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels] appropriate to different applications as well as a variety of customizable options including selectable LED refresh rate and dimming modes. These are accessed through a colour LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.
Specifications
Source:
7 x 40W RGBW LEDs (50000h) CRI: 79 15140 lux @ 5m (4° beam) 378 lux @ 5m (35° beam) Lumens: 3240 (zoom out full on)
Features:
Moving head pixel wash with pixel effects Electronic strobe & dimmer Pan/Tilt: 540°/630° x 265° Beam angle: 4°–31° Field angle: 5°–55° Colour-calibrated pixels (batch consistency) Selectable LED refresh rates: 900Hz–25kHz Selectable dim modes: Standard Stage TV Architectural Theatre Stage 2 + user-settable dim speed (0.1s–10s) 4 dim curves: Square Linear Inv. Square S-Curve 0–100% smooth dimming USB firmware update port Fan cooled
Colours:
Virtual CMY DMX control modes Virtual foreground & background colour wheel control Built-in colour macros Linear white colour control: 2700K–10000K Colour temp presets: 2700 3000 3200 4000 4500 5000 5600 6500 8000 10000K
Control:
7 DMX modes: 16 / 25 / 34 / 42 / 50 / 25 (CMY) / 28 (CMY) channels Colour LCD display with 6-button menu DMX512 or internal program control Built-in pixel effect programs with speed & fade control RDM (Remote Device Management)
Pan/Tilt:
Pan: 540° / 630° Tilt: 265°
Connections:
DMX: 5-pin XLR in/out Power: locking power in/out
Electrical:
Multi-voltage: 90–240V 47/63Hz Max power consumption: 340W
Dimensions & Weight:
233 x 177 x 349mm Weight: 7kg
What's Included:
Omega bracket Locking power cable
Specifications subject to change without notice
