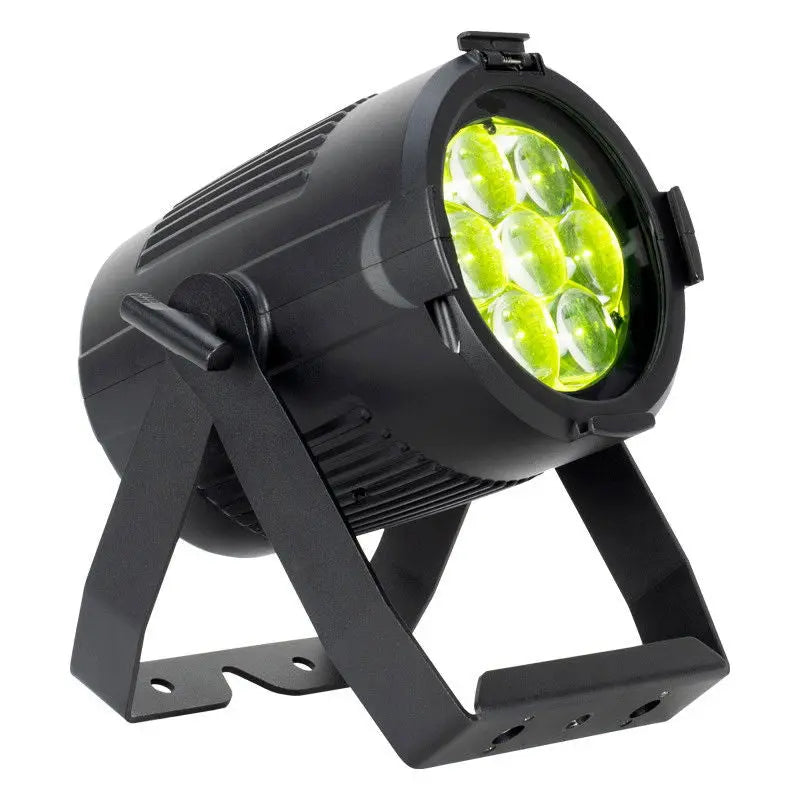

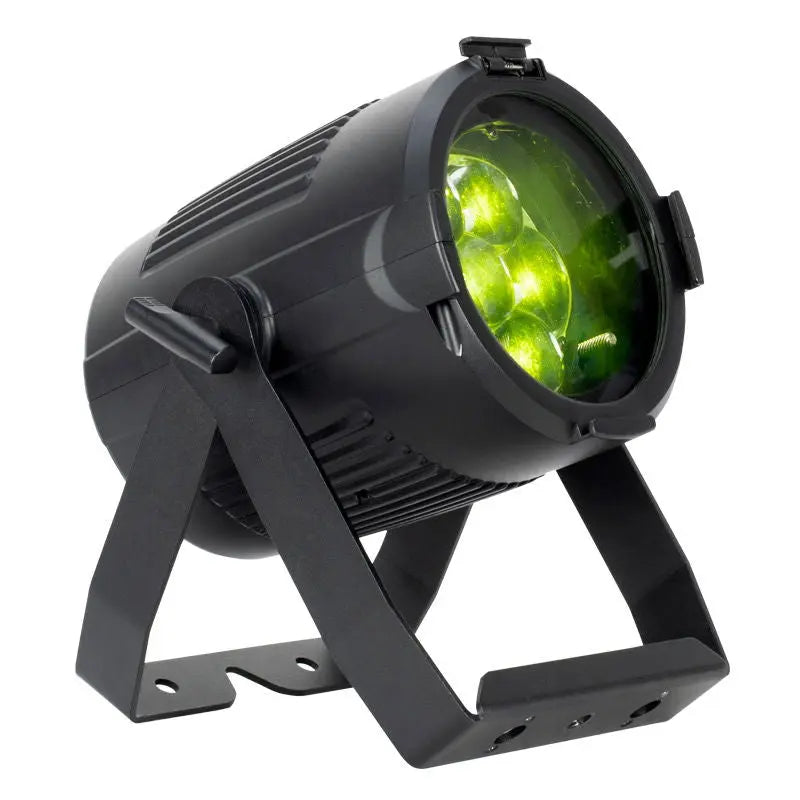

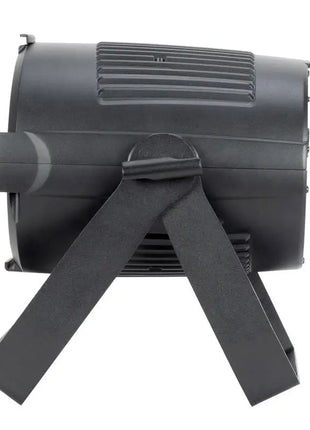

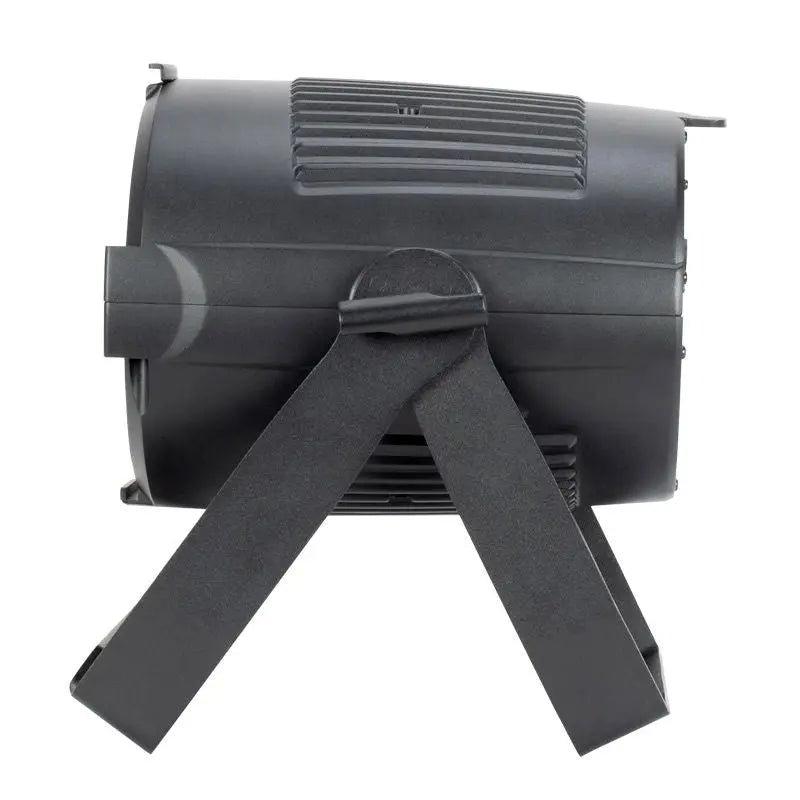

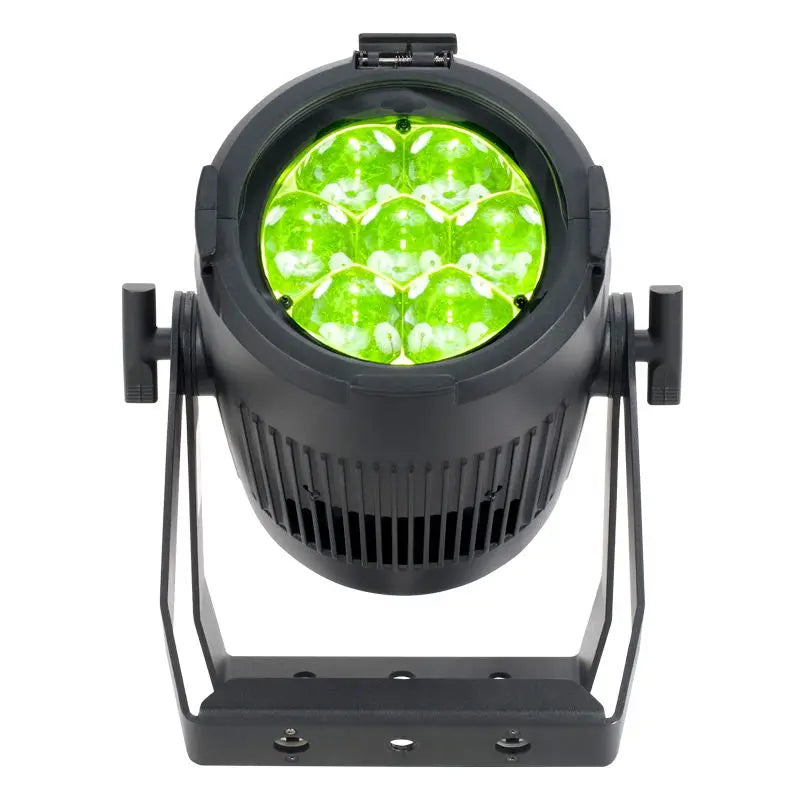

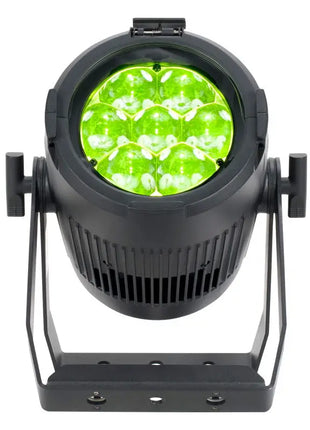

Part of ADJ’s Lime Par series of LED fixtures the Encore Z7LP is a compact and versatile professional par fixture. Its motorized zoom function allows the beam angle to be adjusted remotely via DMX between a concise 5-degrees and a wide 50-degrees. This means that the fixture can be easily utilized both to create a tight pool of light or broad wash even switching between the two for different scenes of the same production. The fixture is supplied with a variable angle scissor yoke which can be used either as a floor stand or hanging bracket as well as an optional barn door accessory for directing the light output.
The unit’s light source comprises 7 high output 4-in-1 colour mixing LEDs that each include individually controllable red green blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of colour options achieved through mixing the four primary colours at varying levels of intensity. These include white light with a variable colour temperature of 2700K to 6500K which can be easily selected using either linear control or one of 5 preset macros. Inclusion of the Lime LED element boosts CRI and perceived brightness as well as filling in gaps in the colour spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of colour possibilities while 64 built-in macros facilitate easy selection of popular options.
With a robust all metal construction the Encore Z7LP is designed for use in professional entertainment lighting environments. The fixture is ideal for rental houses production companies and event professionals as well as for installation in all kinds of performance spaces and entertainment venues.
Specifications
Source:
Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red Green Blue & Lime)
Photometrical data:
CRI: 84 CRI R9: 76.6 Lumens: 2500
Effects:
5-50 Degree Motorized Zoom Zoom Presets (Very Narrow 6° Narrow 10° Medium Flood 30° Wide Flood 40° and Very Wide Flood 50°) Linear Colour Temperature Control (2700K to 6500K) Preset Colour Temperatures (2700K 3200K 4000K 5600K and 6500K) 16-Bit Fine Colour Control (Red Green Blue & Lime) 64 built-in Colour Macros
Control/Connections:

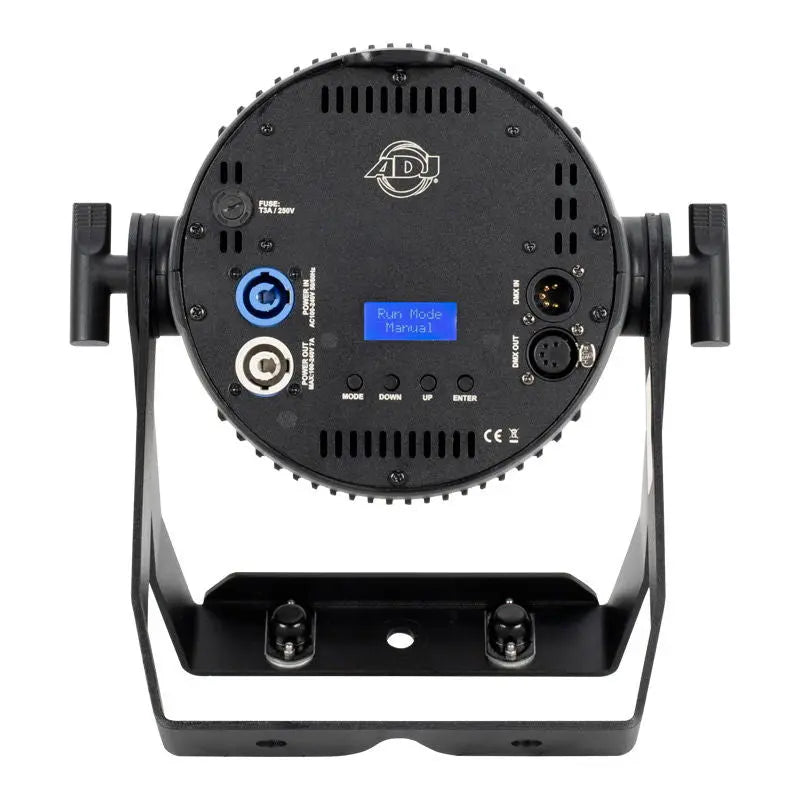

4-button DMX digital display on rear panel 4 Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode and DMX Controlled Supports RDM (Remote Device Management) WiFly EXR Wireless DMX 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Square S-Curve) Adjustable Refresh Rate (14 presets from 900 – 25000Hz) Flicker Free operation (No flickering on camera) LED pulse and strobe effect Electronic Dimming: 0 - 100% 6 DMX Modes: 6 9 10 12 15 and 18 channels Quiet fan mode
Construction:
All metal construction Locking Power In/Out connectors 5-pin XLR DMX In/Out sockets Scissor Yoke & safety eye
Electrical/thermal:
Multi-voltage operation: AC 100-240V 47/63Hz Daisy chain: 20 @ 220V Max power: 103W
Dimensions/Weight:
Dimensions (LxWxH): 220x160x242mm Weight: 6.9 kg.
Approvals/Ratings:
cETLus Pending IP20
Included Accessories
Power Cord Safety Cable Gelfilter frame
Optional accessories:
Omega Bracket Barn Door
