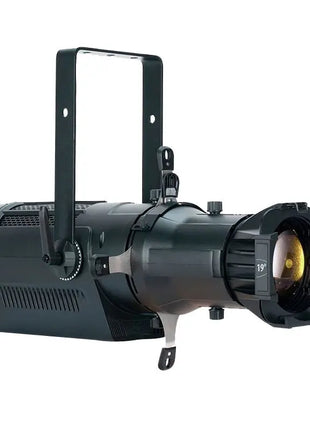

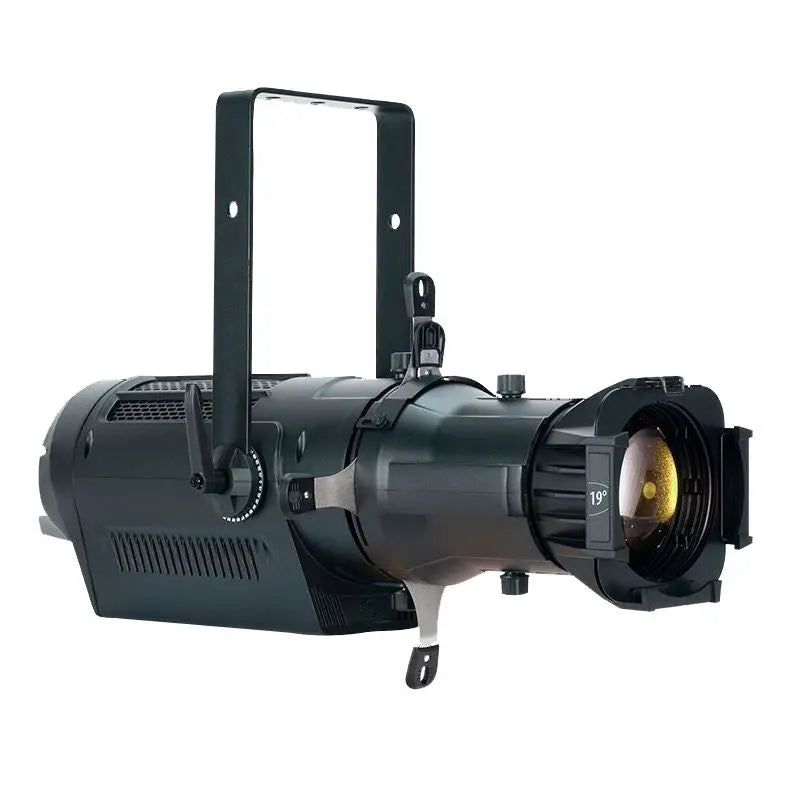

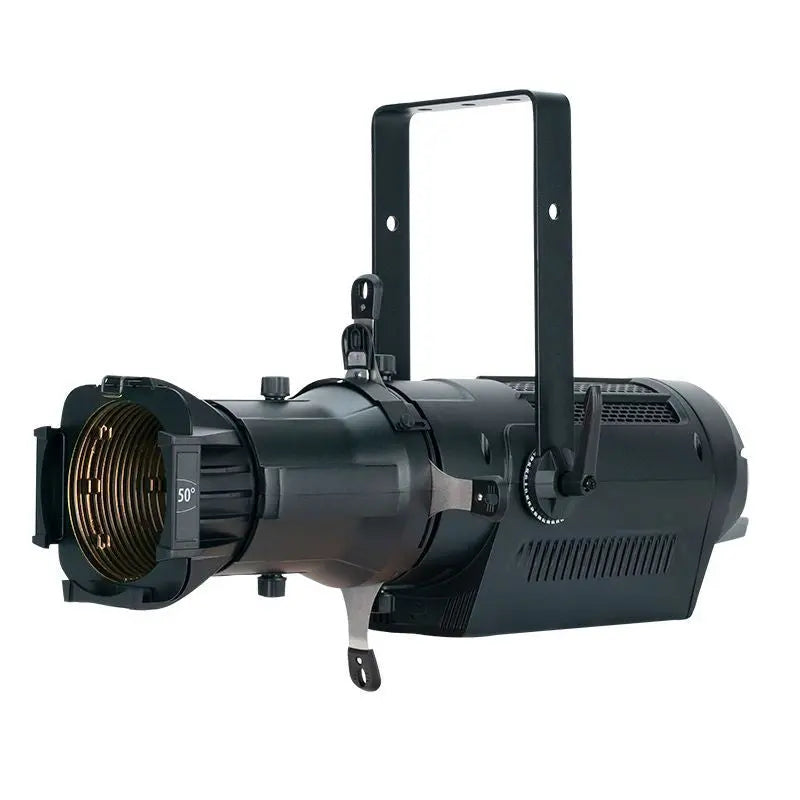

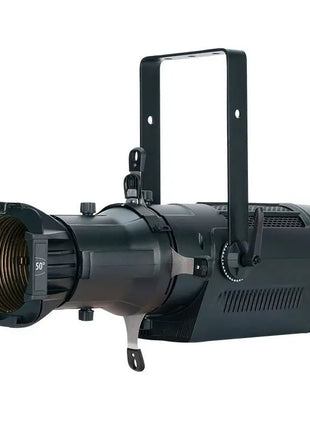

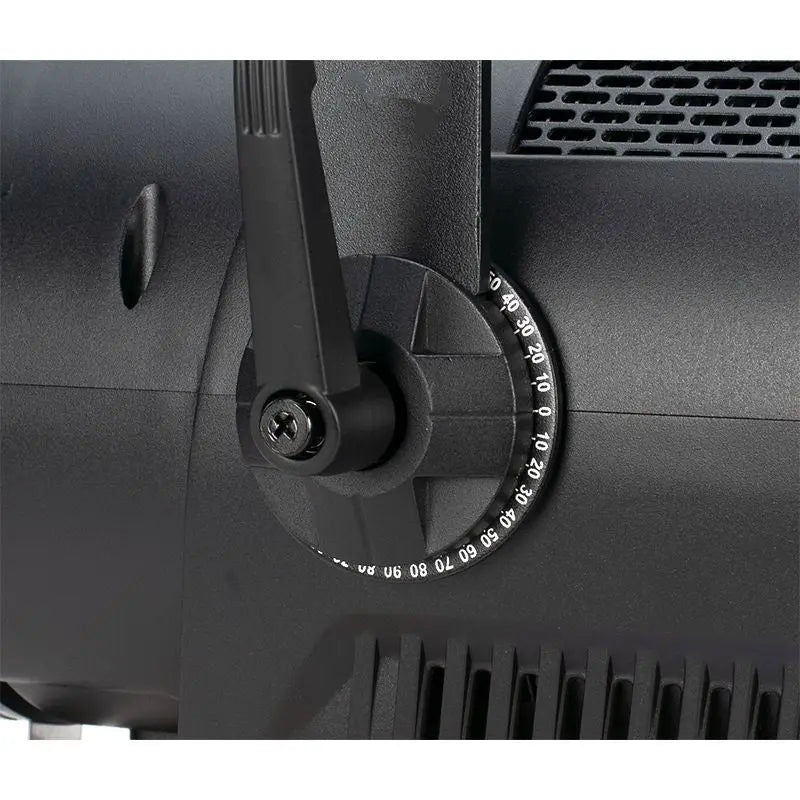

The Encore Profile Pro WW™ ellipsoidal features a high powered 260W Warm White CRI>95 3200K LED engine producing 10000+ total lumens 14° 19° 26° 36° and 50° interchangeable lens options (sold separately) (4) blade manual framing shutters manual focus supports B size metal HT transparency gobos DMX controlled electronic strobe and variable dimming curves and dimming modes adjustable refresh frequency for flicker free operation for TV and FILM Locking 5pin XLR In/Out and IP65 Locking Power In/Out (4) button LCD control display panel an integrated rigging yoke quiet fan cooling and a multi-voltage universal auto switching power supply (AC100-240v).
FIXTURE WITHOUT LENS. ALL LENSES ARE SOLD SEPARATELY.
Source:
260W Warm White LED Engine 50000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Photometric Data:
>97CRI 10000 Total Lumens 3200K Colour Temperature
Effects:
Electronic Strobe and Dimming Variable Dimming Curves and Dimming Modes
Gobos:
Supports “B” Size Metal HT Transparency Gobos GOBO Holder is included (see compatible gobo dimensions in Downloads Section) GOBOs are sold separately
Control:

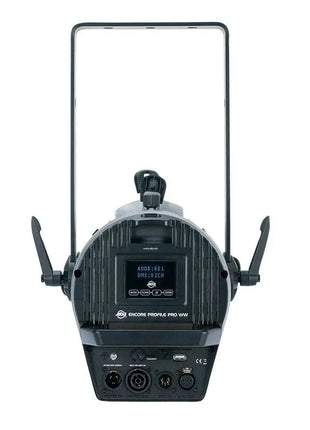

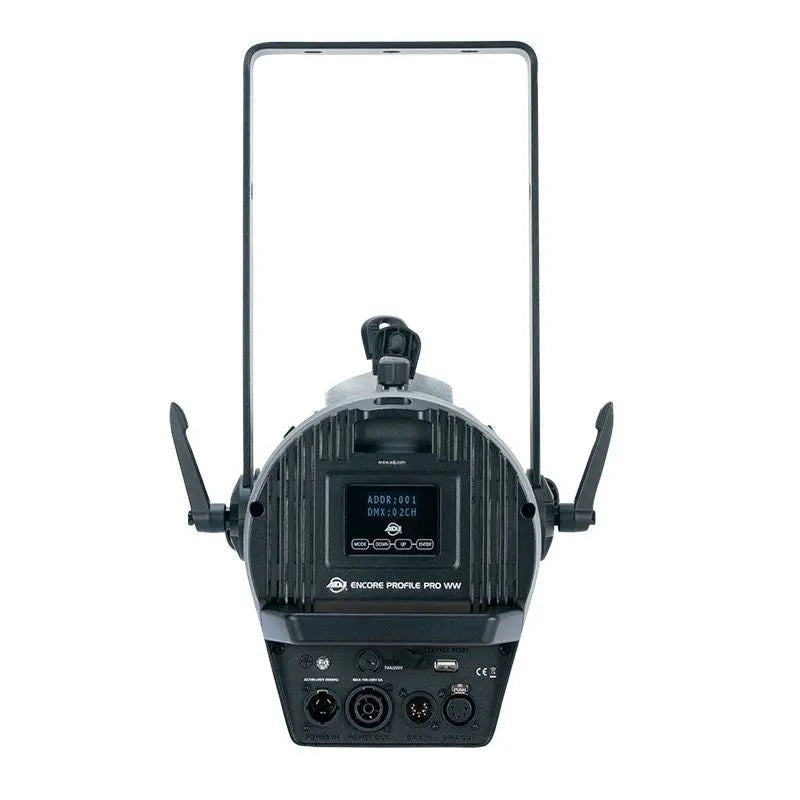

(3) DMX Channel Modes (2 / 3 / 6) Adjustable Refresh Rates (900-1500 25000 Hz) 4 Button Control Panel LED Menu Display RDM (Remote Device Management)
Connections:
5pin XLR In/Out IP65 Locking Power In/Out
Dimensions & Weight:
Length: 688mm (Lens Included) Width: 287mm Vertical Height: 450mm Weight: 9.1 kg
Electrical & Thermal:
Quiet Fan Cooling AC 100-240V - 47/63Hz 260W Max Power Consumption @ 230V Power Linking: 8pcs Max @240V Minimum and Maximum Ambient Temperatures: -10° to 45°C
Approvals & Ratings:
IP20
Included items:
(1) IP65 Locking Power Cable (1) Gobo Holder
Optional Accessories:

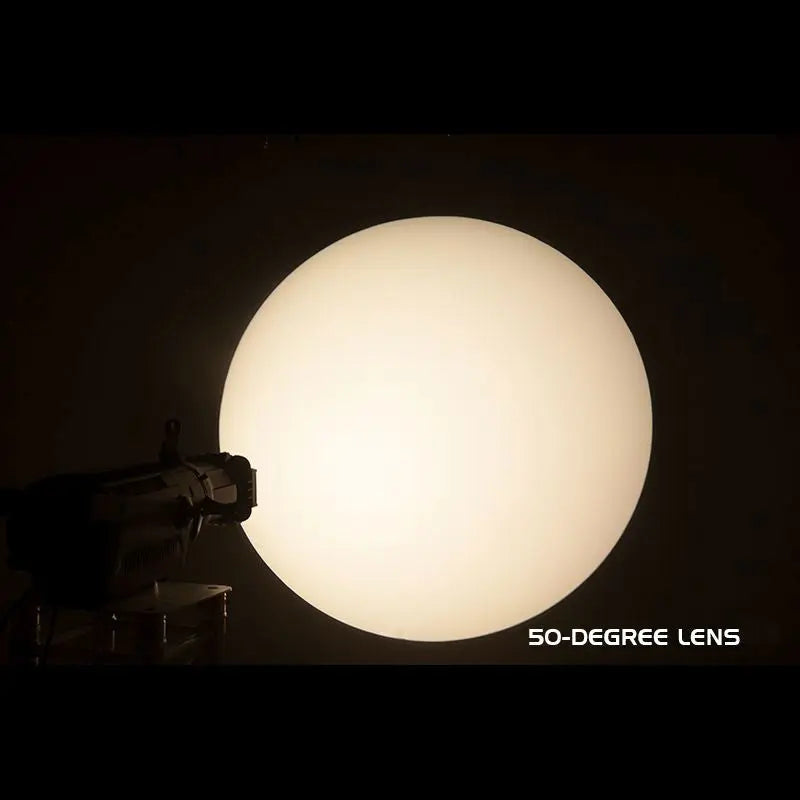

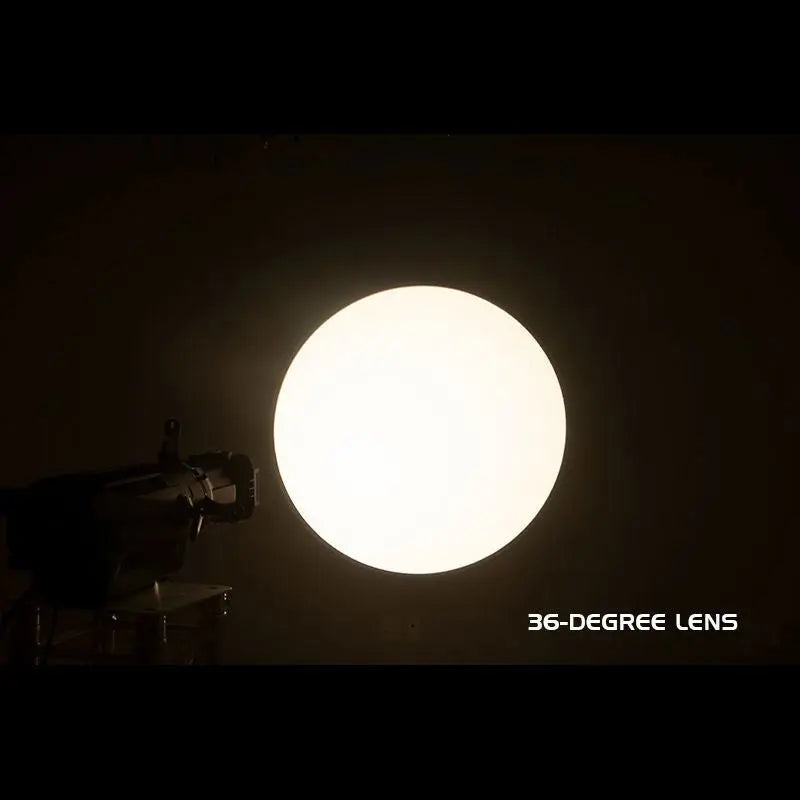

EPP IRIS EP Lens 10 (10° High Definition Lens) EP Lens 14 (14° High Definition Lens) EP Lens 19 (19° High Definition Lens) EP Lens 26 (26° High Definition Lens) EP Lens 36 (36° High Definition Lens) EP Lens 50 (50° High Definition Lens) EP Lens 15-30Z (15° to 00° High Definition Manual Zoom Lens) EP Lens 25-50Z (25° to 50° High Definition Manual Zoom Lens)
