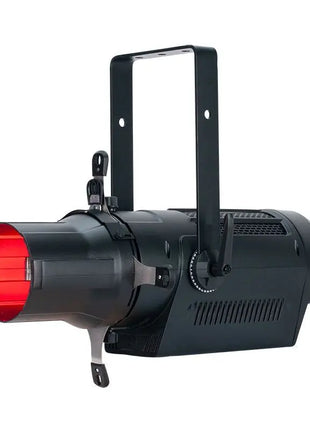

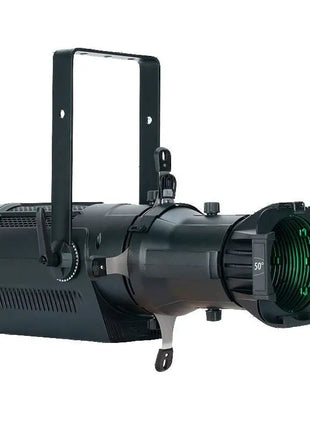

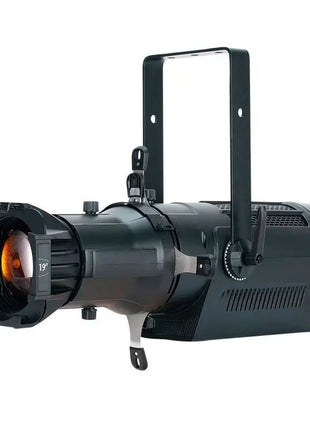

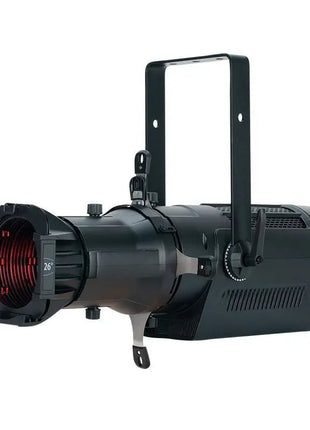

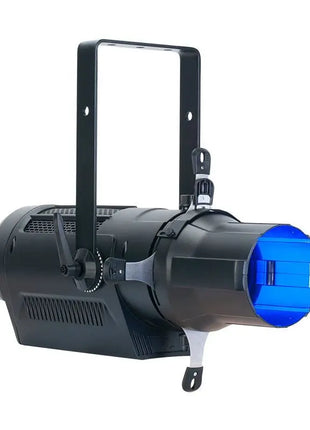

The Encore Profile Pro Color™ Ellipsoidal features a 250W RGBAWL (Red Green Blue Amber White Lime) LED engine >90CRI with 14° 19° 26° 36° and 50° interchangeable lens options (sold separately) (4) blade manual framing shutters manual focus supports B size metal HT transparency gobos DMX controlled electronic strobe dimming dimming curves and dimming modes flicker free operation for TV and FILM adjustable refresh rate frequency Locking 5pin XLR In/Out connectors and IP65 Locking Power In/Out (4) button LCD control display panel an integrated rigging yoke quiet fan cooling and a multi-voltage universal auto switching power supply (AC100-240v).
The Encore Profile Pro Colour has an independent dynamic white fader feature that achieves white colour temperatures from 2400K to 9000K.
FIXTURE WITHOUT LENS. ALL LENSES ARE SOLD SEPARATELY.
Specification
Source:
250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine 50000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage
Usage Patterns (On-Off Cycling) Control and Dimming.
Photometric Data:
>90CRI 6000 Total Lumens*
(*with 26° lens)
Effects:
Electronic Strobe and Dimming Variable Dimming Curves and Dimming Modes Independent dynamic white fader feature that creates tuneable white colour temperatures from 2400K to 9000K
Gobos:
Supports “B” Size Metal HT Transparency Gobos GOBO Holder is included (See compatible Gobo Dimensions in Downloads section) GOBOs are sold separately
Control & Connections:
6 DMX Channel Modes (2/4/6/13/14/16) Adjustable Refresh Rate (900-1500 25000 Hz) 4 Button Control Panel LED Menu Display 5pin XLR In/Out IP65 Locking Power In/Out RDM (Remote Device Management)
Dimensions & Weight:
Length: 688mm (Lens In) Width: 289mm Vertical Height: 450mm Weight: 9.1 kg
Electrical & Thermal:
Quiet Fan Cooling AC 100-240V - 47/63Hz 250W Max Power Consumption Power Linking: 8pcs Max @240V -10° to 45°C
Ratings:
IP20
Included items:
(1) Locking Power Cable (1) Gobo Holder
Optional Accessories:
EPP IRIS EP Lens 10 (10° High Definition Lens) EP Lens 14 (14° High Definition Lens) EP Lens 19 (19° High Definition Lens) EP Lens 26 (26° High Definition Lens) EP Lens 36 (36° High Definition Lens) EP Lens 50 (50° High Definition Lens) EP Lens 15-30Z (15° to 00° High Definition Manual Zoom Lens) EP Lens 25-50Z (25° to 50° High Definition Manual Zoom Lens)
