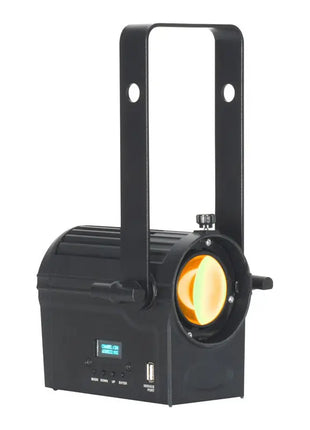

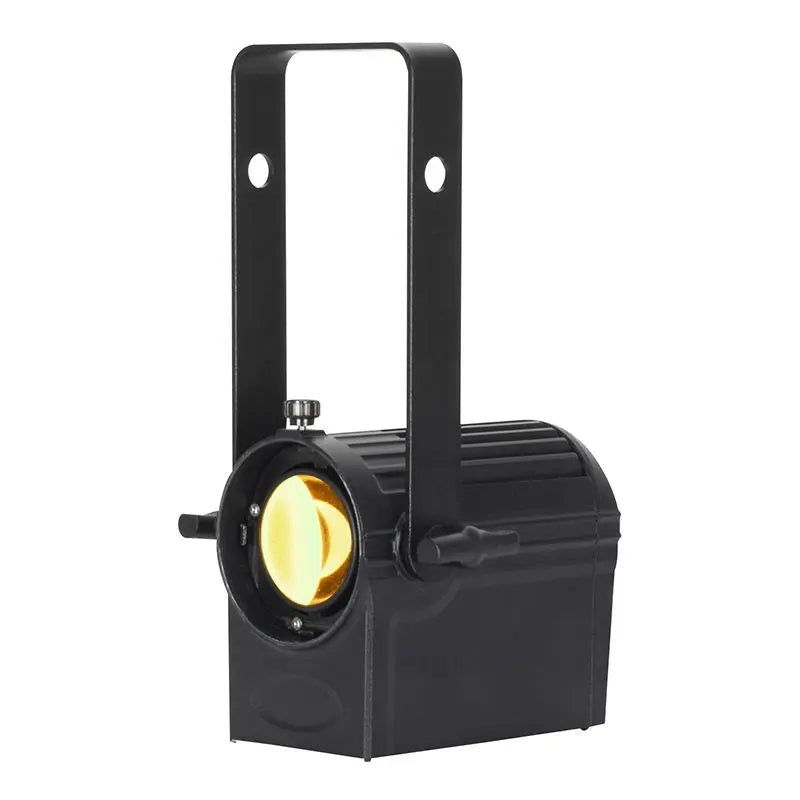

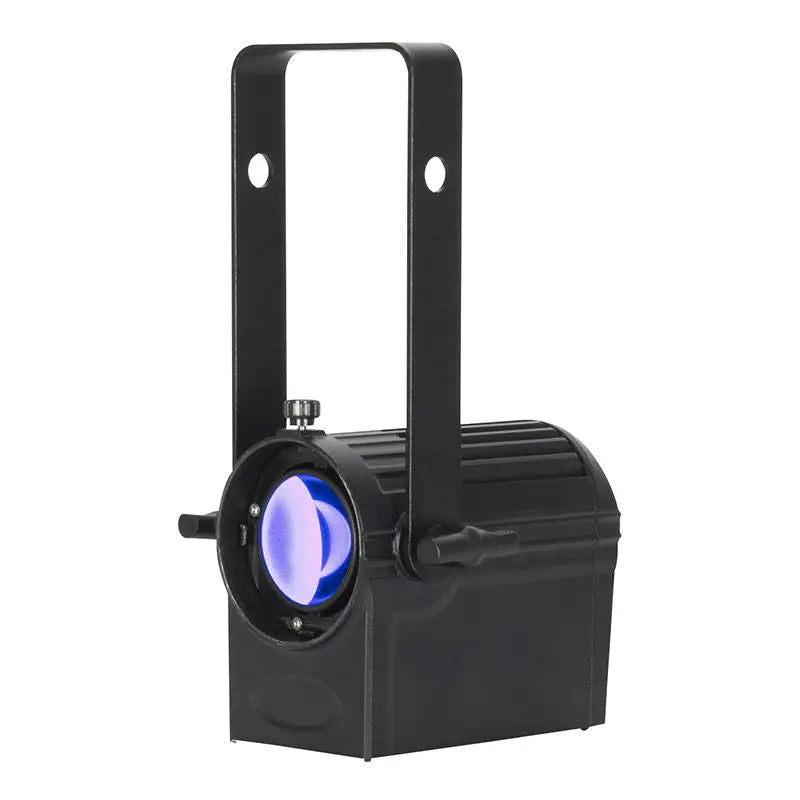

Designed for applications where size really matters the ADJ Lighting Encore Profile Mini Colour is a compact and versatile LED-powered colour ellipsoidal luminaire. It utilizes a versatile LED engine comprised of 16 x 3.5W RGBWAL (red / green / blue / white / amber / lime) LEDs that offers a 50000-hour average life expectancy. Through varying the intensity of the six LED colours an extremely wide colour palette can be achieved ranging from vibrant and bold primaries to soft and subtle pastels. It can also generate white light with colour temperatures varying from 2700K up to 7000K with a dedicated Dynamic White DMX channel provided to allow simple selection.

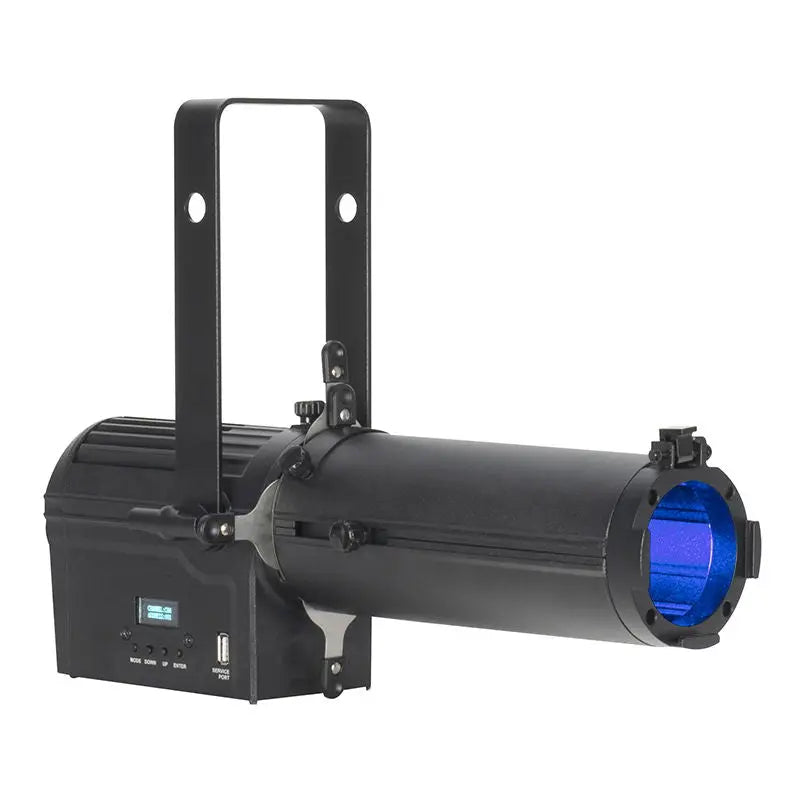

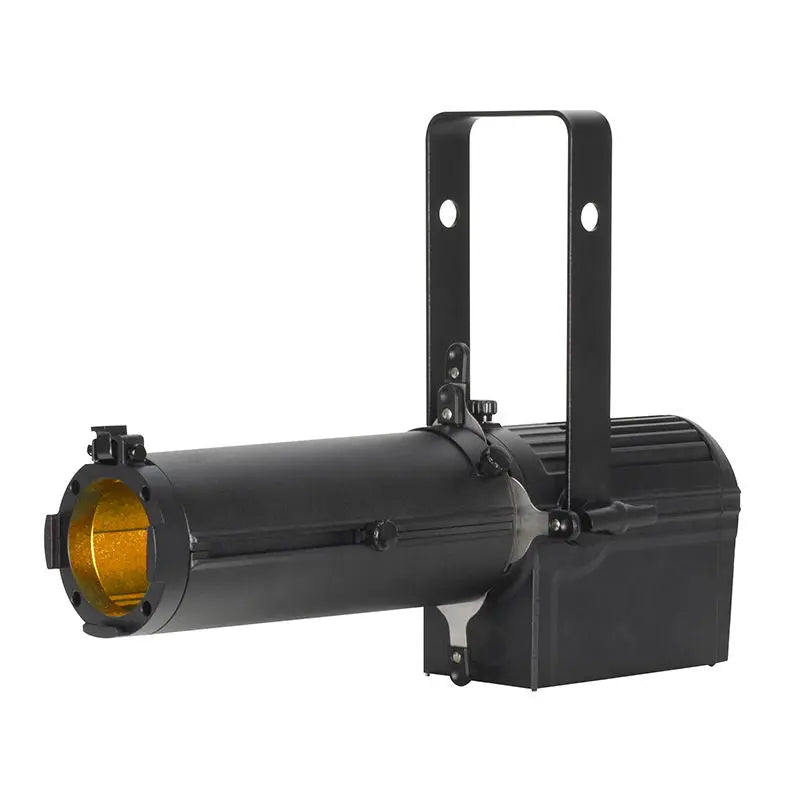

Two compatible lens options are available (sold separately) which can be used to adapt the fixture depending on the beam angle required. Both lenses offer manual zoom with the EP Mini Lens 1530 option offering a variable beam angle of 15° - 30° and the EP Mini Lens 2550 version providing wider options of 25° - 50°. The fixture can also be used to project GOBO patterns and is supplied with a holder for standard “E” size GOBOs (GOBOs sold separately).
The Encore Profile Mini Colour offers digital dimming with variable curves and a selection of dimming modes as well as variable speed strobing. It also supports adjustable refresh rates so that flicker can be avoided for filming applications. A convenient OLED menu display on the rear panel provides access to an intuitive menu interface for DMX addressing and configuration of the unit’s adjustable operating parameters and it is supplied with a variable angle hanging bracket that locks securely into place using a pair of large thumb tightening screws.
Specifications
Source:
16 x 3.5W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED engine 50000h average LED life*
*Varies with environmental conditions voltage usage patterns control and dimming.Photometrics:
>86CRI 300 total lumens (4200K CT)
Effects:
Electronic strobe and dimming Variable dimming curves and modes Independent dynamic white fader (2700K–7000K)
Gobos:
Supports “E” size GOBO holder included GOBOs sold separately
Control:
3 DMX channel modes: 6 / 8 / 12 Adjustable refresh rate: 900–1500Hz 25kHz 4-button control panel OLED menu display RDM (Remote Device Management)
Connections:

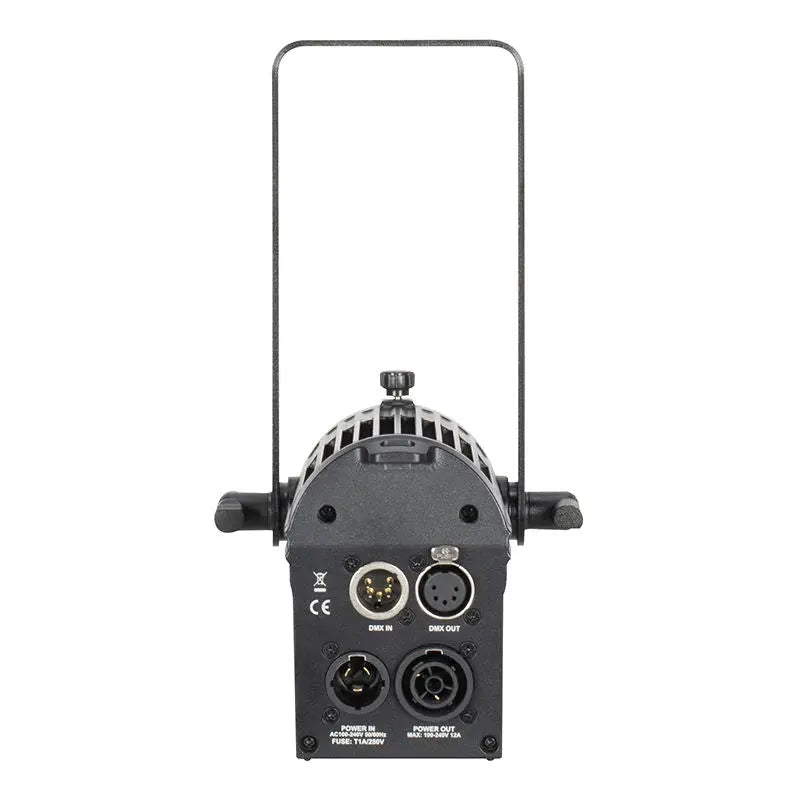

Locking 5-pin XLR in/out IP65 locking power in/out USB service port
Dimensions & Weight:
Length: 224mm (without lens) Width: 144mm Height: 276mm Weight: 1.8kg
Electrical & Thermal:
Convection cooling AC 100-240V 50/60Hz Max power consumption: 42.5W @ 240V Power linking: up to 57 units @ 230V Ambient operating temp: -10° to 45°C
Approvals & Ratings:
CE | cETLus (pending) | IP20
Included Items:
(1) Locking power cable
Accessories:
EP Mini Lens 1530 (15°–30° manual zoom) EP Mini Lens 2550 (25°–50° manual zoom)
