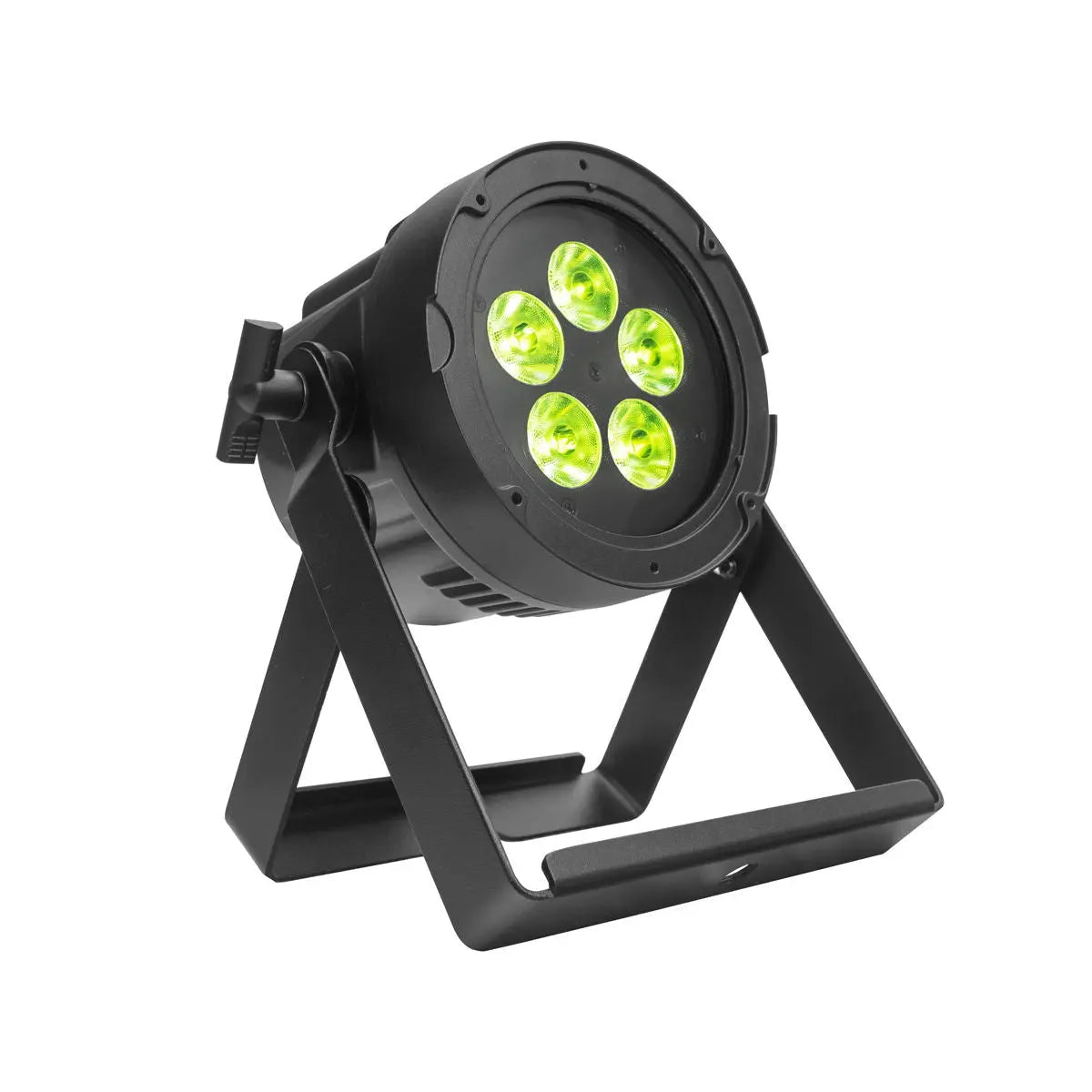

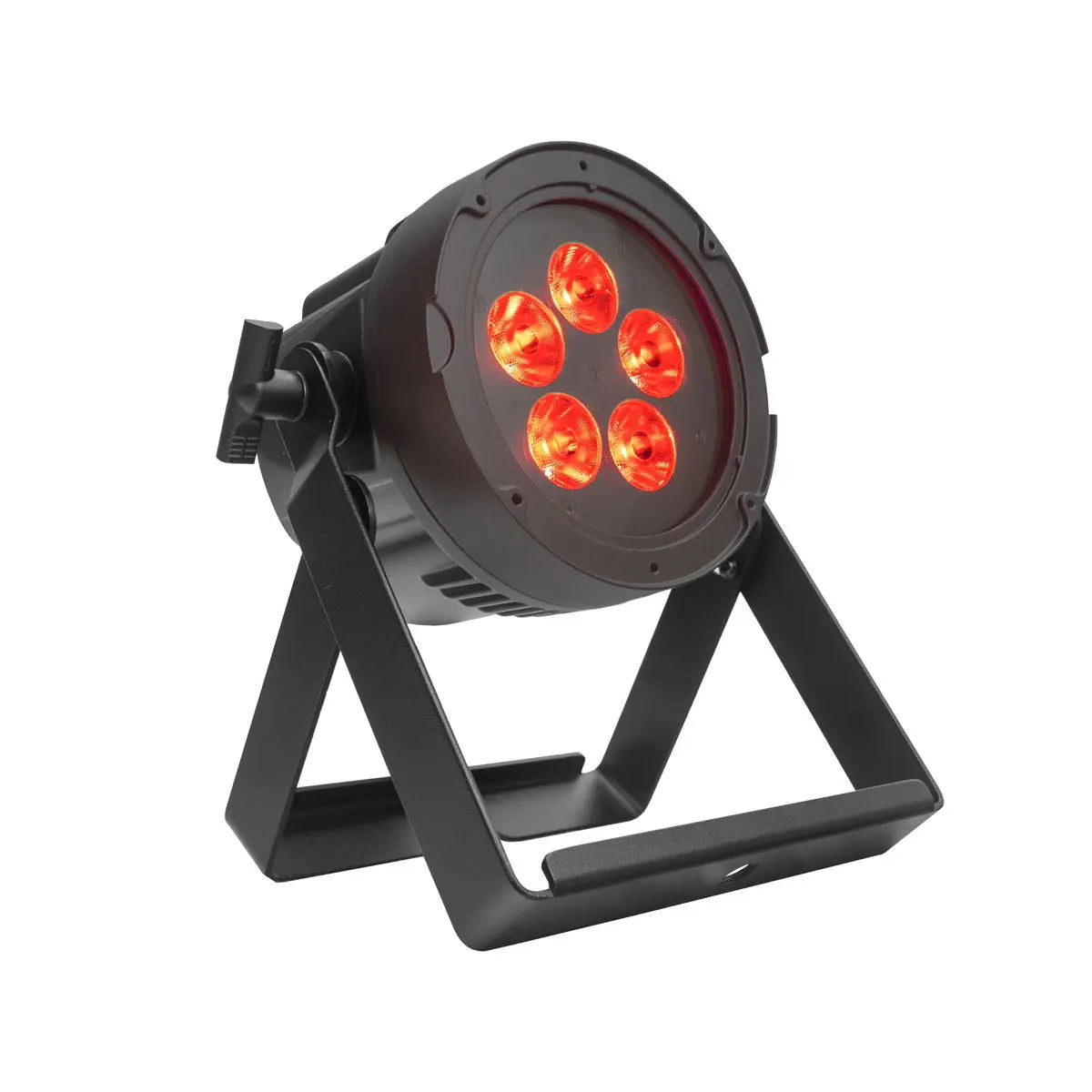

The ADJ Encore LP5 IP is a versatile heavy duty Par with 5 20W Quad LEDs (4-IN-1: Red Green Blue & Lime) a 10-degree beam angle and all metal construction. It is IP65 outdoor rated to protect against rain snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white colour temperature control from 2700K - 7000K.
The ADJ Encore LP5 IP is a versatile IP65 outdoor rated Par with 5 x 20-Watt (4-IN-1: Red Green Blue & Lime) Quad LEDs. With a 10-degree beam angle users may produce wide washes with smooth colour mixing from 64 built-in colour macros utilizing red green blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues but with its IP65 rating it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain snow and dust.
The Encore LP5 IP professional features include: 6 DMX modes 5 operational modes 6 selectable dimming modes 4 selectable dimming curves and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power connectors and IP65 rated 5-pin DMX connectors with rubber covers. IP rated power linking and DMX cables are available but standard 5-pin DMX cables may also be used for indoor applications.
There are several additional frost filter options that customize the beam angle. One 25° double frost filter is included in the package and optional 20° 60° 100° 40°x1° 60°x30° are sold separately.
SOURCE:
Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red Green Blue & Lime)
PHOTMETRIC DATA:
High CRI Data
Beam Angle: 9.7° Field Angle: 18.8° CRI: 83 CRI R9: 54 Colour Temperature: 6942K Lux: 2179 @ 3M 785 @ 5M Lumens: 771
Full ON Data
Beam angle: 9.6° Field Angle: 18.8° CRI: 67 CRI R9: -98 Colour Temperature: 21188K Lux: 1766 @ 3M 636 @ 5M Lumens: 607
EFFECTS:
Linear Colour Temperature Control (2700K to 7000K) Preset Colour Temperatures (2700K 3200K 4000K 5600K and 6500K) 16-Bit Fine Colour Control (Red Green Blue & Lime) 64 built-in Colour Macros
CONTROL / CONNECTIONS:
4-button DMX digital display on rear panel Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode and DMX Controlled Supports RDM (Remote Device Management) With Wired Digital Communication Network 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Squa S-Curve) Adjustable Refresh Rate (14 presets from 900 – 25000Hz) Flicker Free operation (No flickering on camera) LED pulse and strobe effect Electronic Dimming: 0 - 100% 6 DMX Modes: 4 7 8 10 13 & 16-channel Quiet fan mode
CONSTRUCTION:

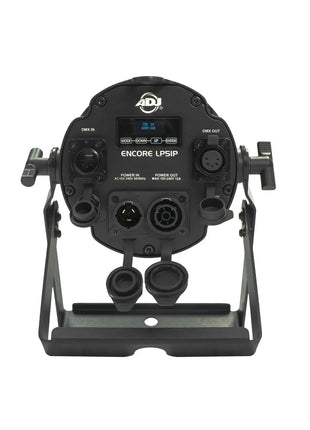

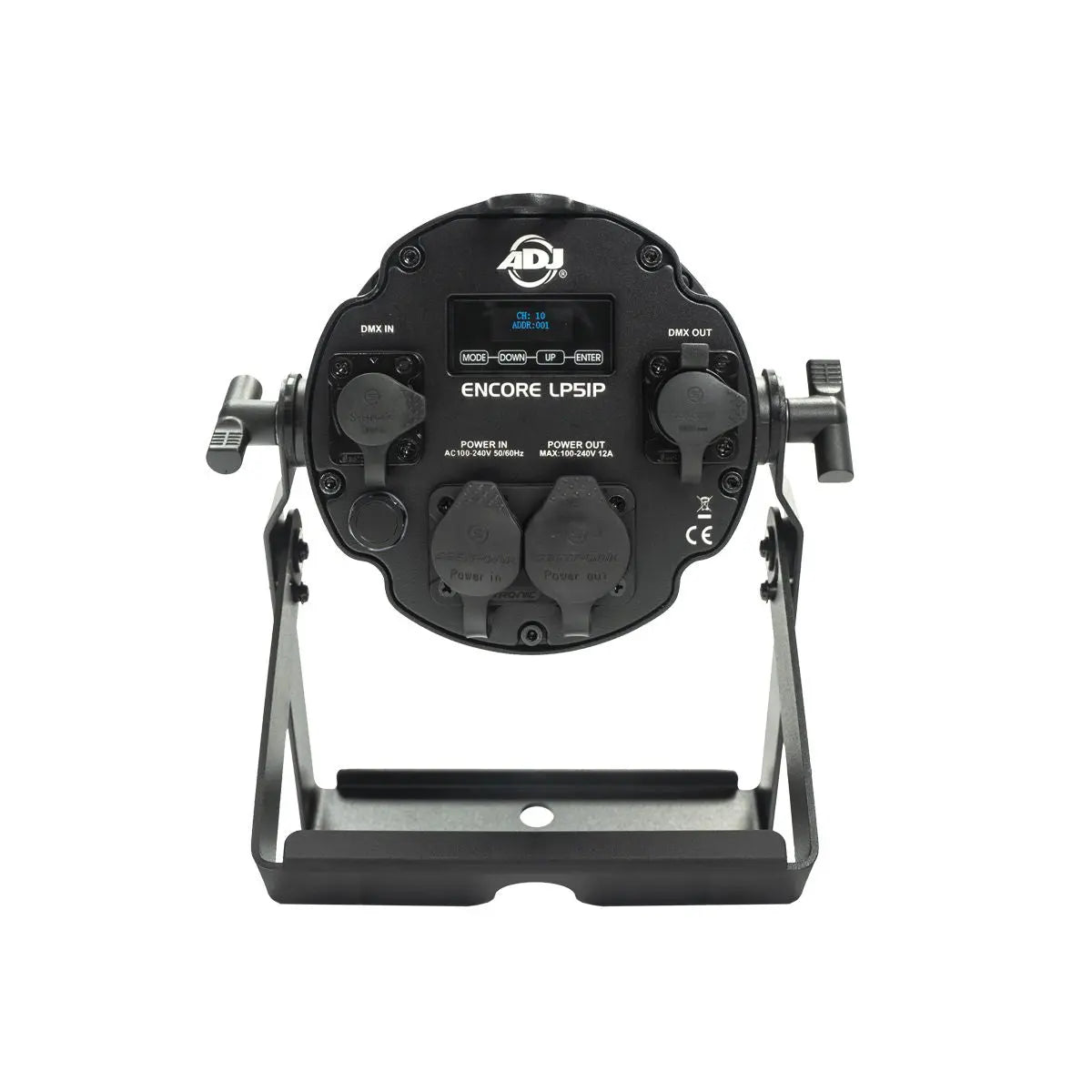

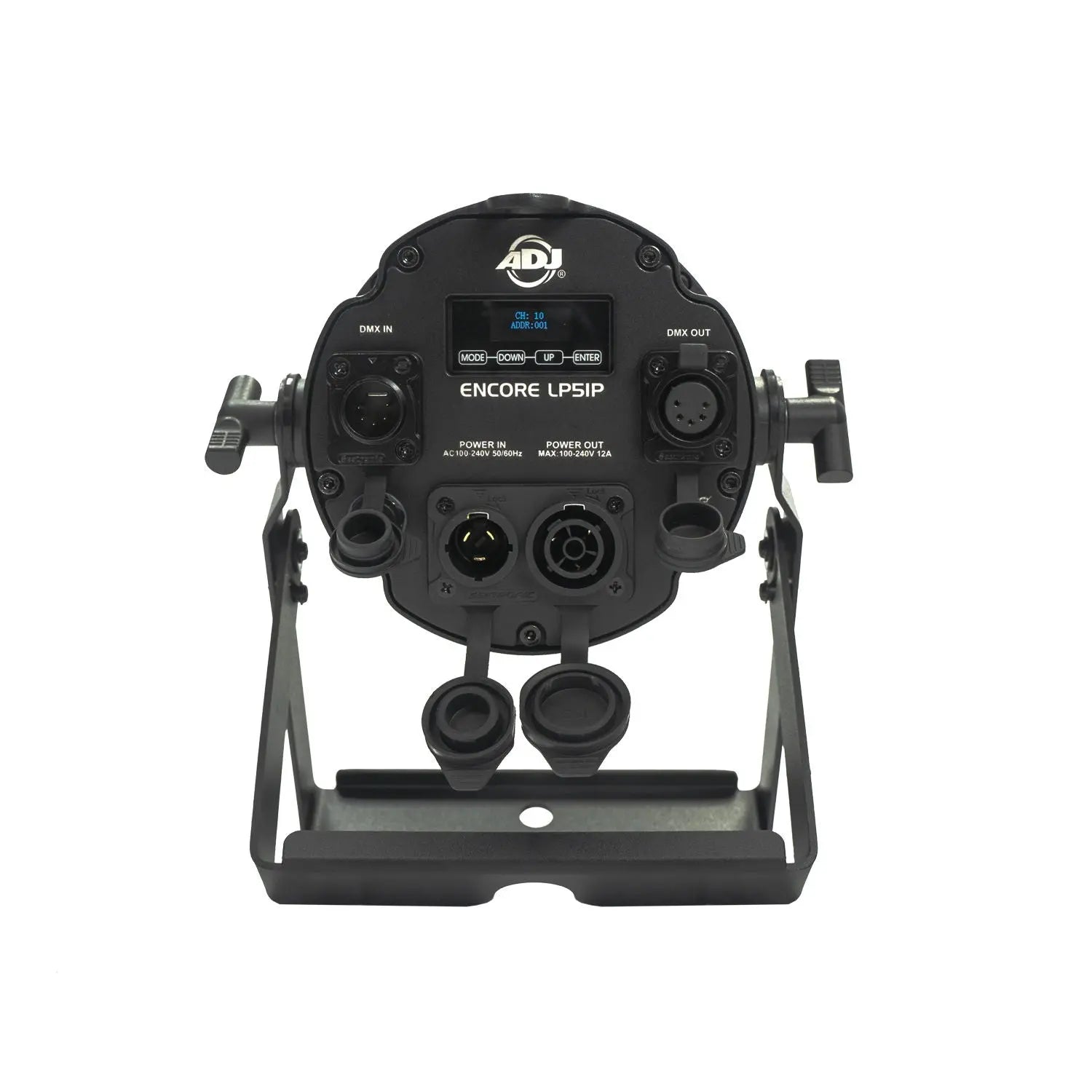

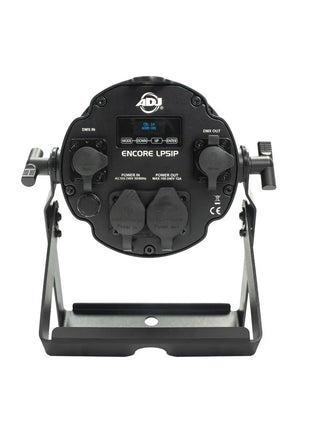

IP65 Rated: Ingress Protection against liquid snow dust and sand All metal construction IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets Locking outdoor IN/Out Power connectors Data linkable via 5-pin XLR DMX connections Scissor Yoke & safety eye
ELECTRICAL / THERMAL:
Multi-voltage operation: AC 100-240V 47/63Hz Daisy chain: 44 units max (240v) Max power: 32W
DIMENSIONS / WEIGHT:
Dimensions (LxWxH): Dimensions (LxWxH): 150.6mm x 209.0mm x 255.0mm Weight: 2.4 kgs
APPROVALS / RATINGS:
IP65
INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord
OPTIONAL ACCESSORIES:
ELP5L100: 100-degree frost filter for the Encore LP5IP
ELP5L60: 60-degree frost filter for the Encore LP5IP
ELP5L30X60: 30x60-degree frost filter for the Encore LP5IP
ELP5L1X40: 1x40-degree frost filter for the Encore LP5IP
ELP5L20: 20-degree frost filter for the Encore LP5IP
