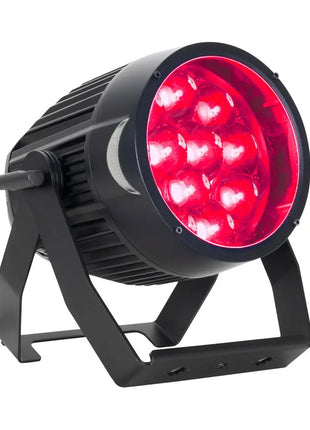

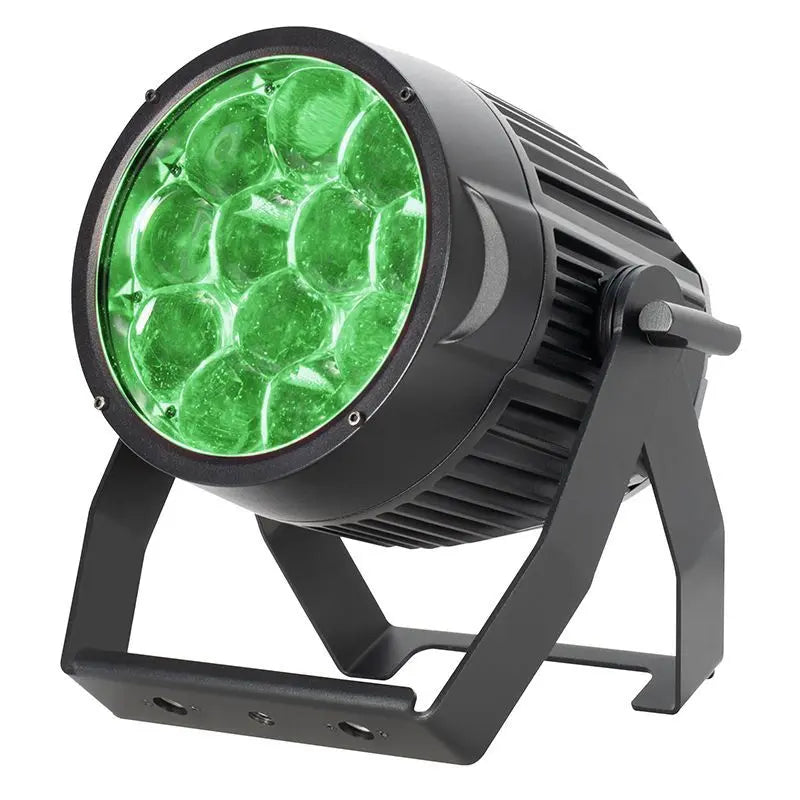

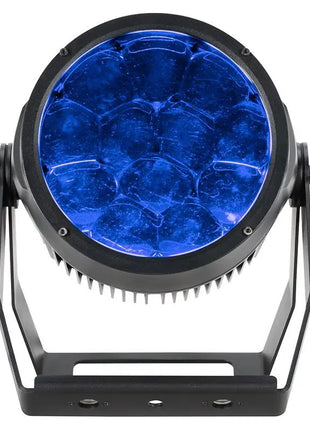

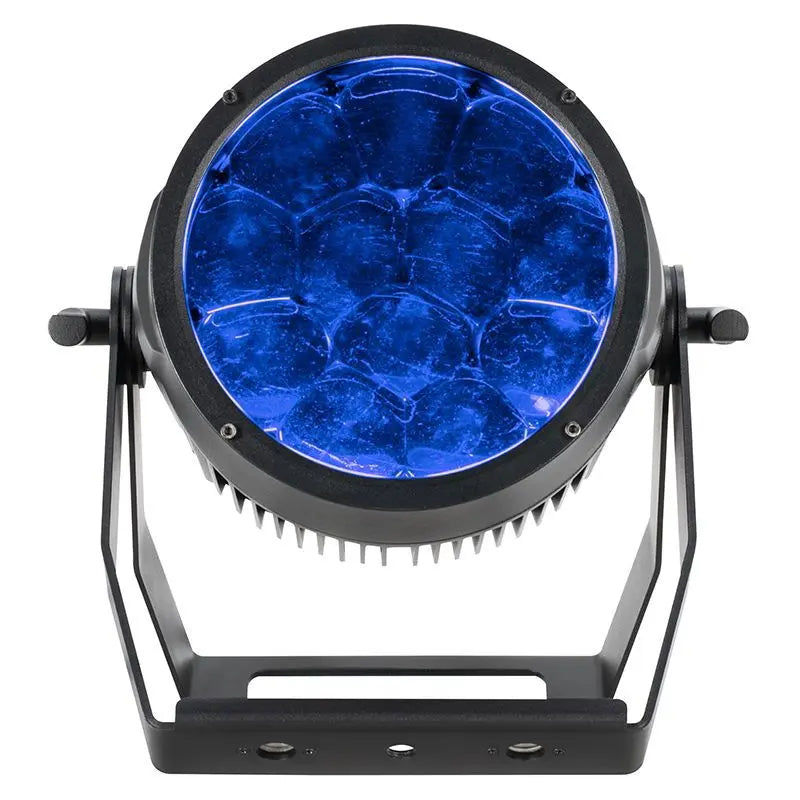

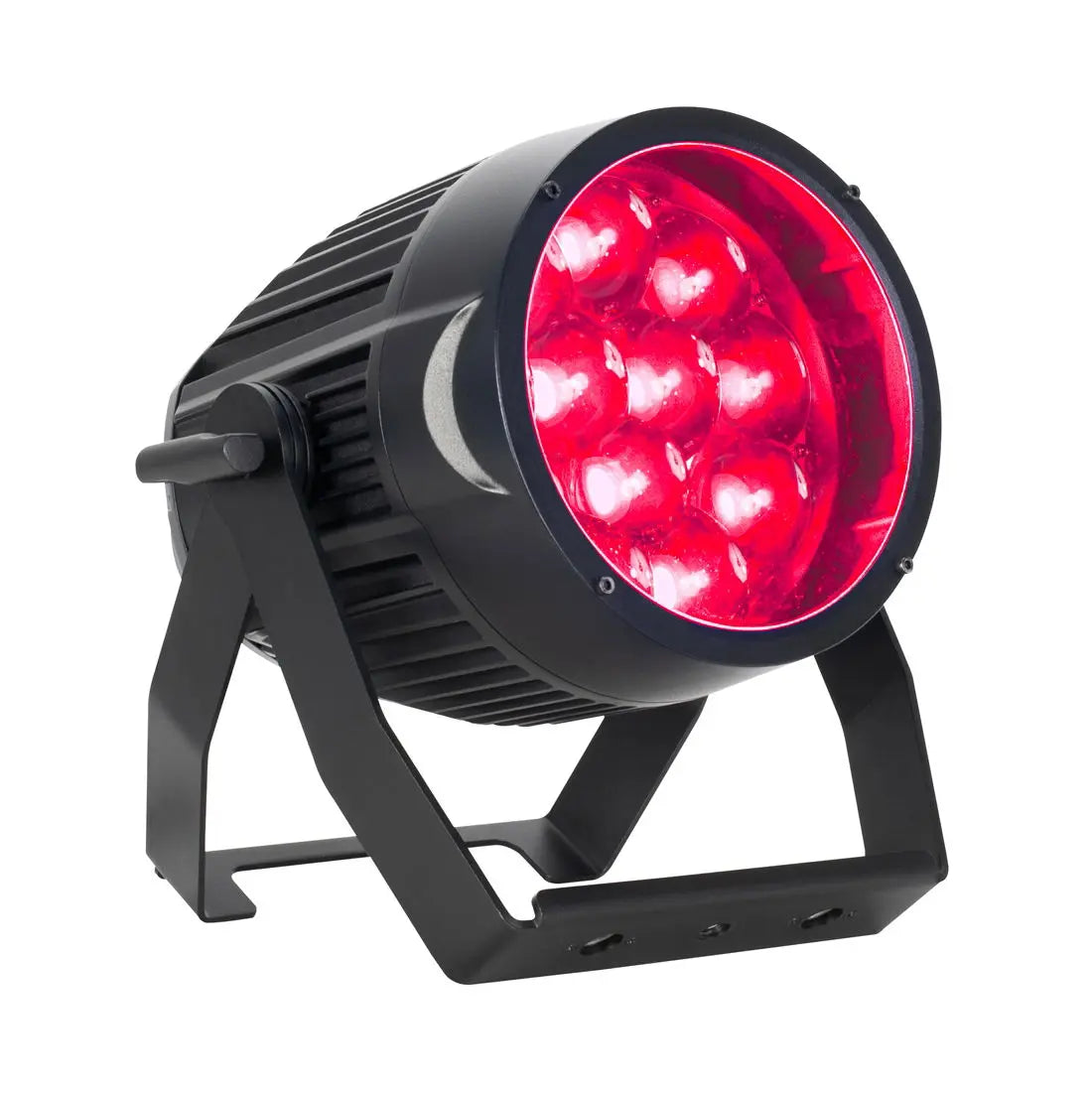

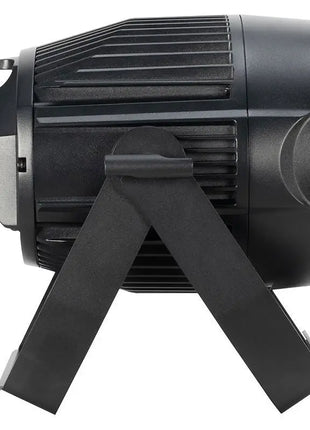

Part of ADJ’s Encore Series of stage lighting the ADJ Encore LP12Z IP is a professional LED Par wash fixture for temporary outdoor and indoor events. This IP65-rated fixture comes equipped with 12 Quad RGBL (Red Green Blue and Lime) LEDs each with a power of 20 watts offering a massive palette of colours to choose from including 64 built-in colour macros and tunable white control.
The Encore LP12Z IP has a motorized zoom feature with a beam angle of 5° to 30° and a field angle of 9° to 50° giving you the ability to control the lighting coverage of your event. Additionally the fixture has tunable white colour control allowing you to choose a colour temperature from 2700K to 6500K. You can also select from five preset colour temperatures for a quick and easy setup.
With wireless DMX onboard you can control the Encore LP12Z IP from a distance of up to 2500 ft. (700M) line of sight. It also supports RDM (Remote Device Management) and is compatible with a wired digital communication network. The fixture offers 6 selectable dimming modes and 4 selectable dim curves as well as adjustable refresh rates and flicker-free operation ensuring a smooth and seamless lighting experience.

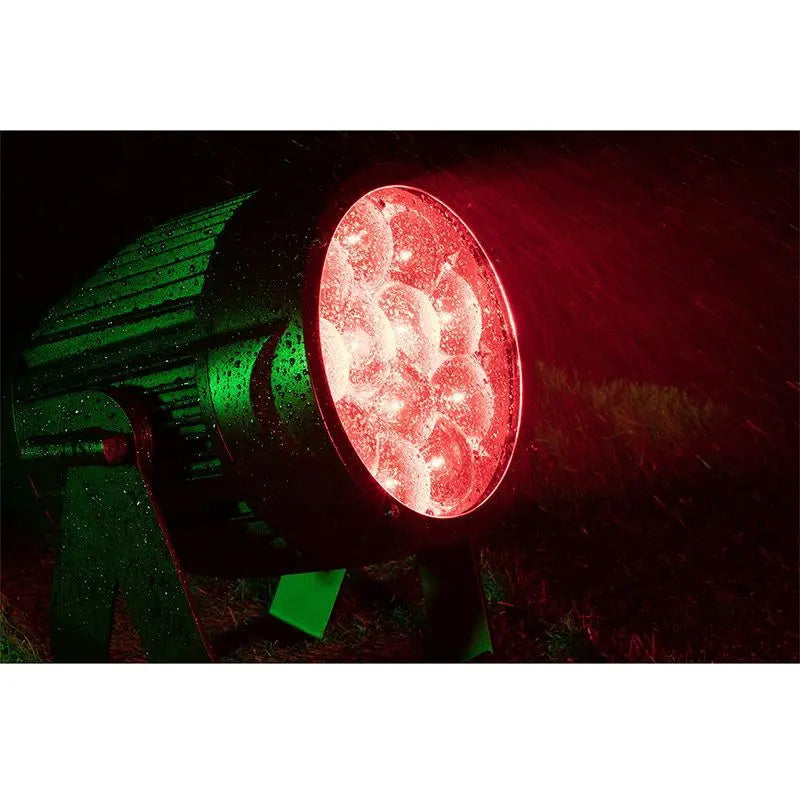

Constructed with all-metal and IP65-rated rubber covers the Encore LP12Z IP is built to withstand the toughest outdoor conditions. The fixture also features IP65-rated 5-pin sockets and locking outdoor in/out power connectors for added security. The IP65-rating provides Ingress Protection against liquid snow dust and sand. The scissor yoke and safety eye provide easy and safe mounting options.
The Encore LP12Z IP has a dimension of 8.75” x 12.45” x 14.45” (222x316x367mm) and weighs only 16.6 lbs. (7.5 kg) making it a compact and lighter weight fixtures compared to other IP65-Rated zoom pars in its class.
Overall the ADJ Encore LP12Z IP is a very versatile wash fixture for any event with its motorized zoom wireless DMX control and rugged construction making it the ideal choice for outdoor festivals concerts indoor stages and other performances.
Source:
Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red Green Blue & Lime)
Photometric Data:
Beam angle: 5° to 30° Field angle: 9° to 50° CRI: 84.4 CRI R9: 67.9 Lumens: 4900
Effects:
Motorized Zoom (5° to 30° Beam Angle 9° to 50° Field Angle) Linear Colour Temperature Control (2700K to 6500K) Preset Colour Temperatures (2700K 3200K 4000K 5600K and 6500K) 16-Bit Fine Colour Control (Red Green Blue & Lime) 64 built-in Colour Macros
Control / Connections:

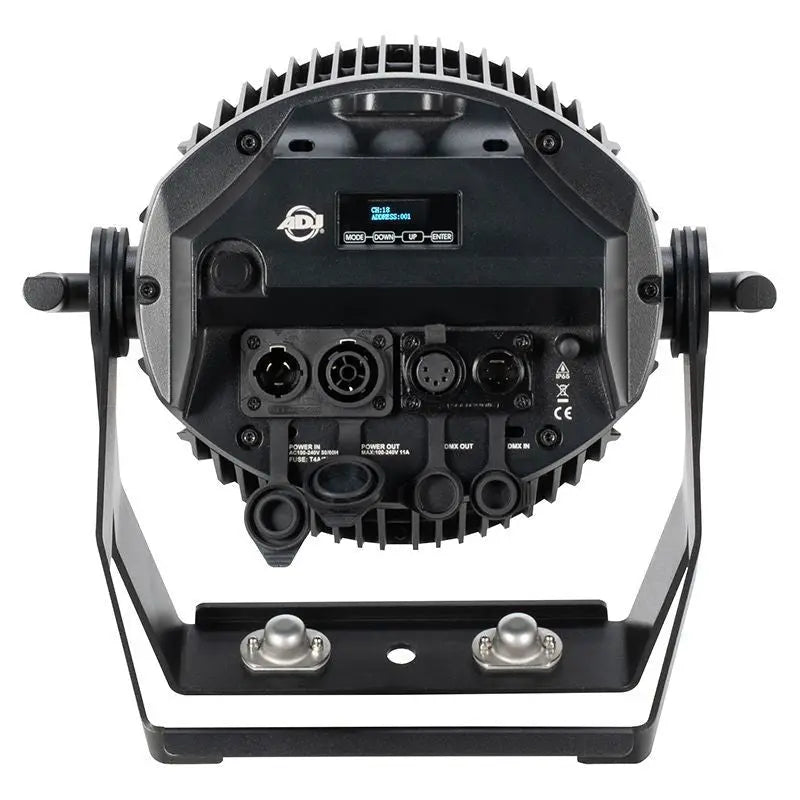

4-button DMX digital display on rear panel Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode and DMX Controlled Wireless DMX on-board Supports RDM (Remote Device Management) With Wired Digital Communication Network 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Squa S~Curve) Adjustable Refresh Rate (14 presets from 900 ~ 25000Hz) Flicker Free operation (No flickering on camera) LED pulse and strobe effect Electronic Dimming: 0 - 100% 6 DMX Modes: 6 9 10 12 15 & 18-channel Quiet fan mode
Construction:

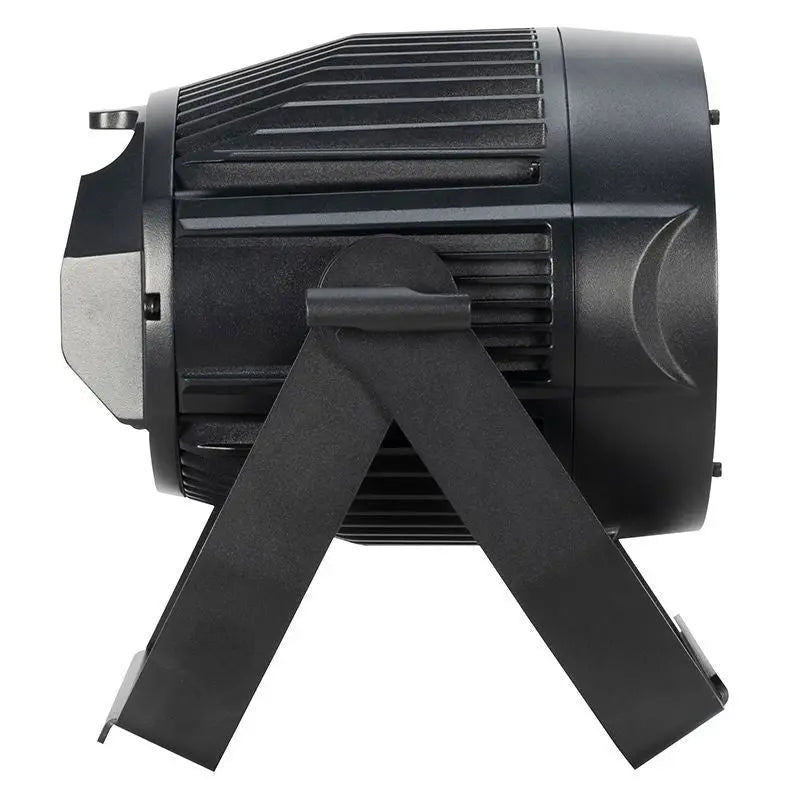

IP65 Rated: Ingress Protection against liquid snow dust and sand All aluminium construction IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets Locking outdoor In/Out Power connectors Data linkable via 5-pin XLR DMX connections Scissor Yoke & safety eye
Electrical / Thermal:
Multi-voltage operation: AC 100-240V 47/63Hz Daisy chain: 6 @ 120V 12 @ 220V Max power: 227W Ambient Operating Temperature Range: -10°C ~ 45°C
Dimensions / Weight:
Dimensions (LxWxH): 222x316x367mm Weight: 7.5 kg
Approvals / Ratings:
cETLus Pending IP65
Included Accessories:
(1) Power Cord
