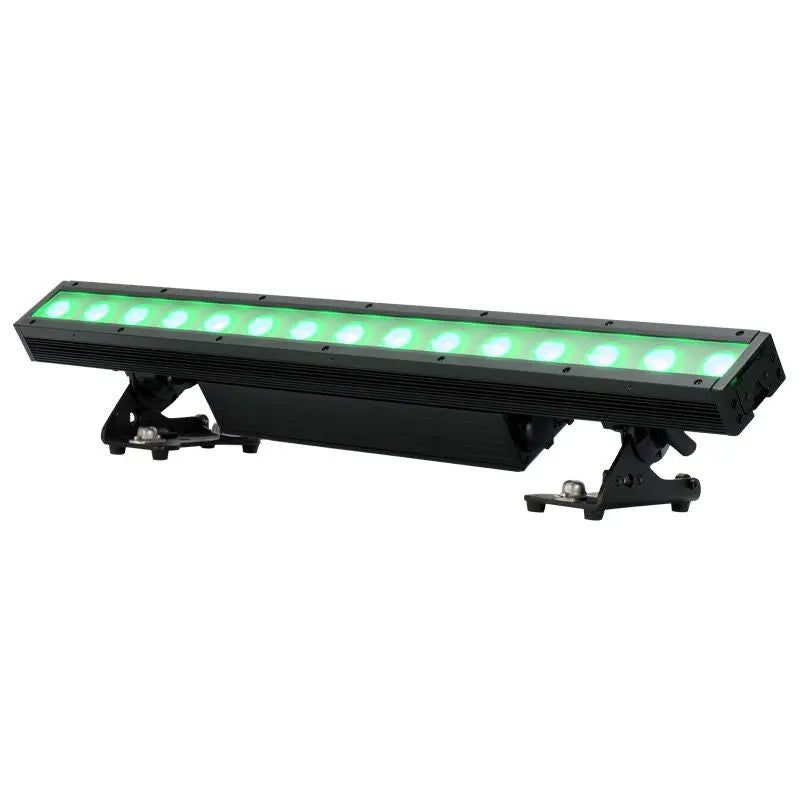

The LB15 IP is part of ADJ’s Lime Par Series of LED wash fixtures utilizing high output 4-in-1 colour mixing LEDs that each include individually controllable red green blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of colour options achieved through mixing the four primary colours at varying levels of intensity. These include white light with a variable colour temperature of 2700K to 7000K which can be easily selected using either linear control or one of six preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the colour spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of colour possibilities while 64 built-in macros facilitate easy selection of popular options. The LB15 IP features 15 LEDs with an equally spaced linear arrangement which can each be controlled independently to allow for the creation of pixel-mapped effects.

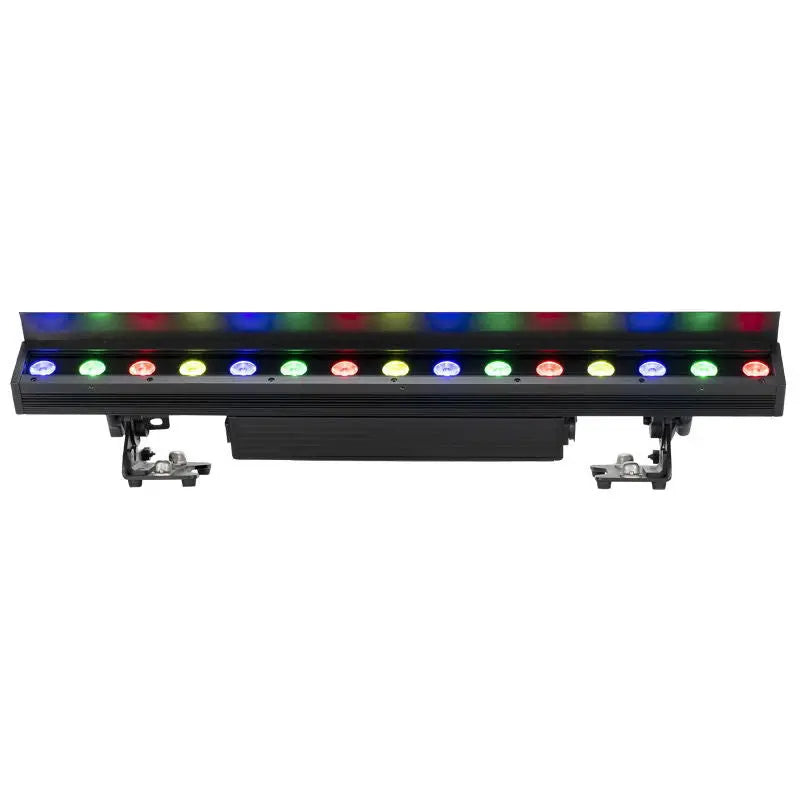

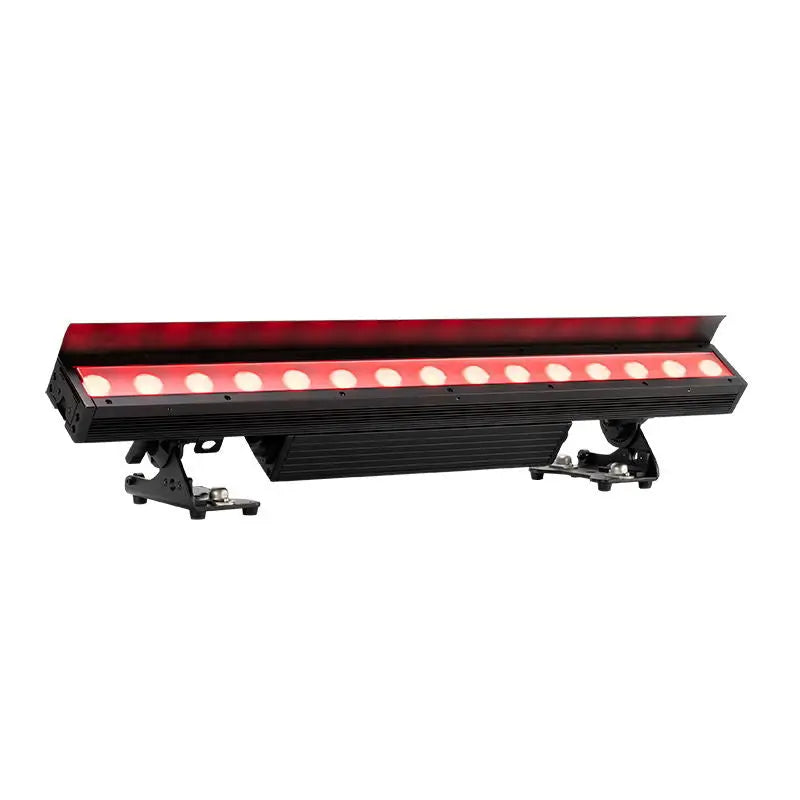

With a robust metal construction the LB15 IP is designed for use in professional entertainment lighting environments. It has an IP65 rating which means that it is sealed to prevent the ingress of liquid snow dust and sand. This makes it suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt. It is supplied with two variably-angled brackets – one on each side – that can be used to stand the fixture directly on the floor or (with the attachment of the included Omega brackets) hang it from a truss or lighting rail. The unit is also supplied with a detachable glare shield and features locking power input and output sockets allowing multiple fixtures to be connected to a single power outlet.
Specifications
Source:
15 x 20⚊Watt Quad RGBL LED's (4⚊IN⚊1: Red Green Blue & Lime)
Photometric Data:
Beam angle: 12.4° (24° with attached diffusion filter) CRI: 89.3 CRI R9: 69 Lumens: 5982 Linear Colour Temperature Control (2700K to 7000K) Preset Colour Temperatures (2700K 3200K 4000K 5600K 6500K and 7000K)
Effects:
Individual Pixel Controllable 16⚊Bit Fine Colour Control (Red Green Blue & Lime) 64 built⚊in Colour Macros
Control/Connections:

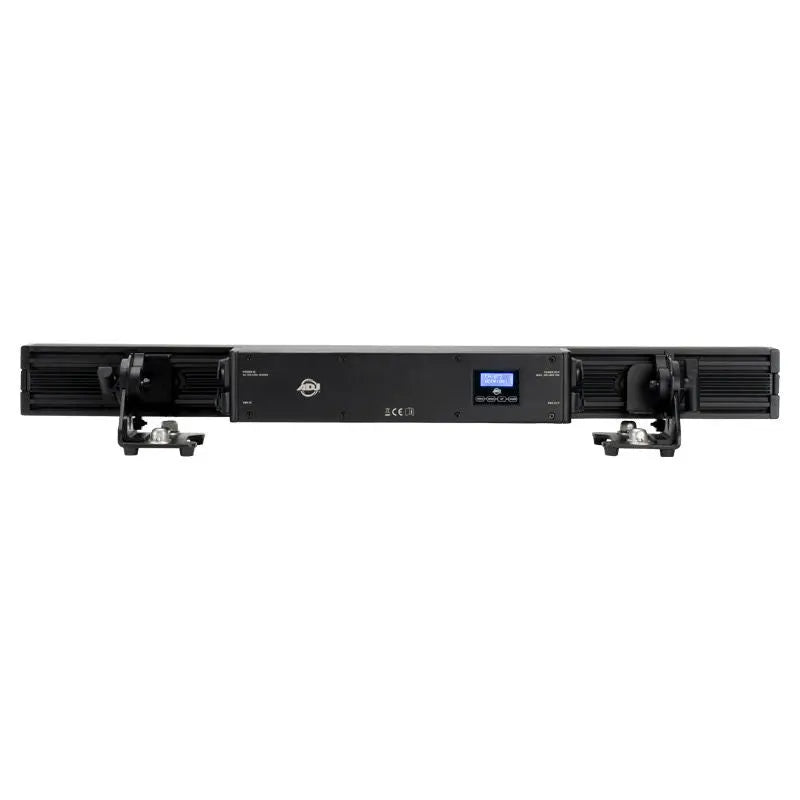

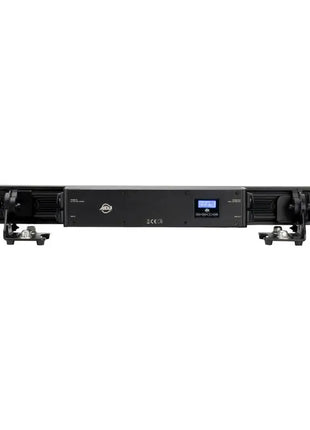

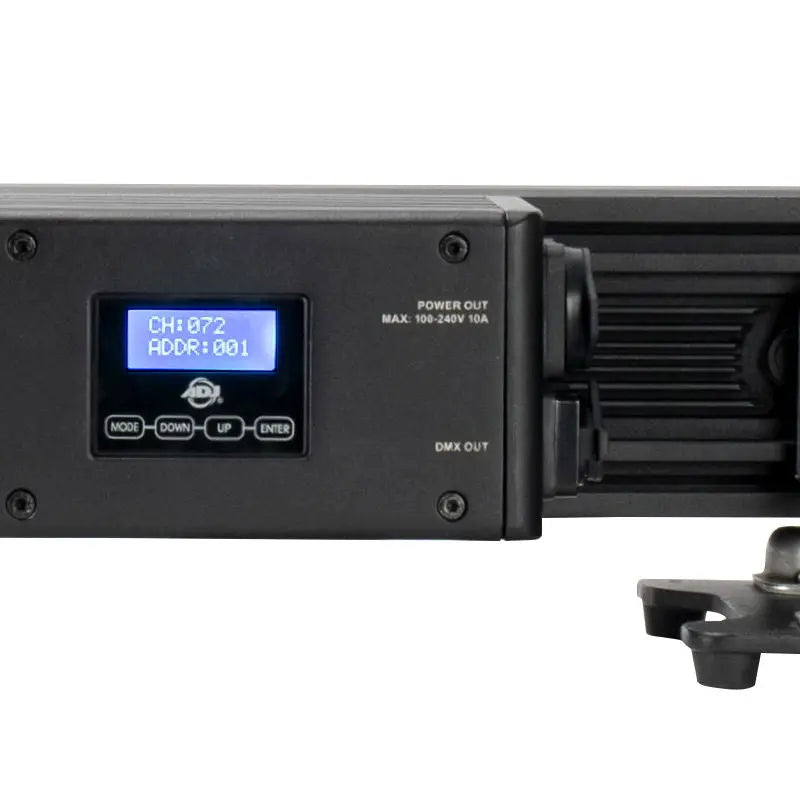

4⚊button DMX digital display on rear panel 5 Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode Sound Active Mode and DMX Controlled Supports RDM (Remote Device Management) With Wired Digital Communication Network 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Squa S⚊Curve) Adjustable Refresh Rate (14 presets from 900 ⚊ 25000Hz) Flicker Free operation (No flickering on camera) LED pulse and strobe effect Electronic Dimming: 0 ⚊ 100% 10 DMX Modes: 4 7 8 13 16 60 63 72 & 120 channel Adjustable fan modes WiFLY EXR Wireless DMX built⚊in (2500 ft. / 700M line of sight)
Construction:

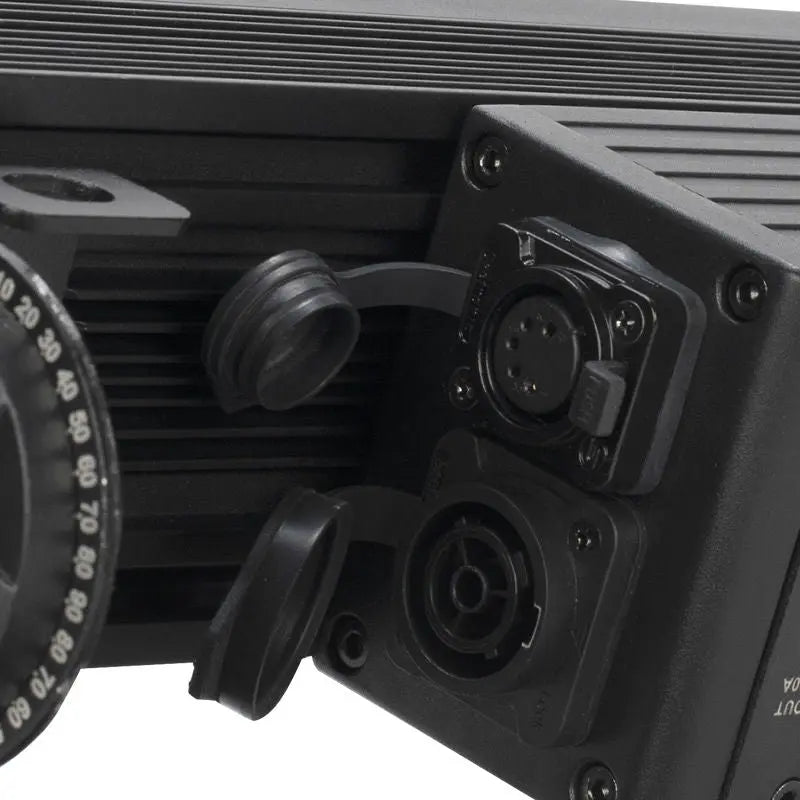

IP65 Rated: Ingress Protection against liquid snow dust and sand All metal construction IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5⚊pin sockets Locking outdoor IN/Out Power connectors Data linkable via 5⚊pin DMX connections Includes glare shield
Electrical/Thermal:
Multi⚊voltage operation: AC 100⚊240V 47/63Hz Daisy chain: 5 @ 120V 10 @ 220V Max power: 198W
Dimension/Weight:
Dimensions (LxWxH) 152x914.9x211.55mm Weight: 8.85 kg.
Included Accessories:
(2) Omega Brackets
Approvals/Ratings:
IP65
