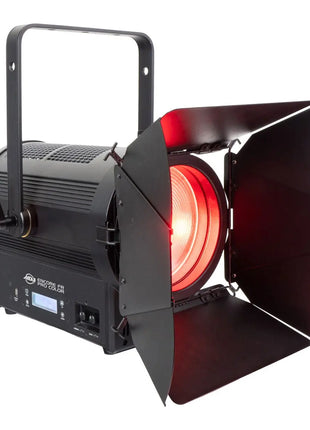

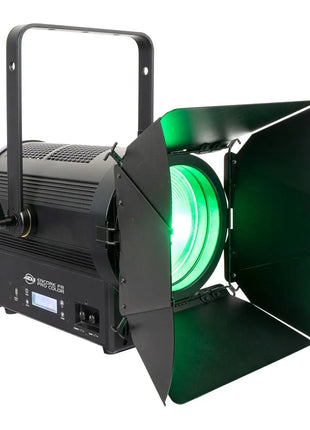

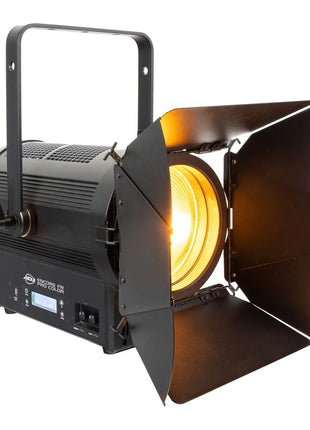

The ADJ Lighting Encore FR Pro Colour is a professional grade Fresnel fixture with a 7-inch lens designed for key light as a fill light and as a back light. It offers a full spectrum of colours with (virtual) CMY Colour Mixing DMX modes and tunable white colour temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red green blue amber lime and cyan LEDs.
The Encore FR Pro Colour has a motorized zoom range of 9~37° a high CRI rating with an output of more than 9000 Lumens. There are an abundant of on-board features such as 5 DMX control modes 6 Dim Curves preset colour macros and adjustable refresh rates.
The fixture has DMX-512 and RDM protocols a USB service port a 4-Button control panel LCD menu display 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.
A rotating 8-leaf barn door gel frame and power cord are included with the fixture.
Specifications
Source:
1X400W 6-IN-1 LED (Red Green Blue Amber Lime and Cyan) 50000 Hour Average LED Life
Photometric data:
9.237 Total Lumen Output (Full ON Zoomed Out to Full) 23.179 LUX/2.153 FC @2m (Zoomed In / Full ON) 2.860 LUX/266 FC @2m (Zoom Out / Full ON) Beam Angle 9° - 37° Max Field Angle 50° Colour Temperature: Tuneable 2400K to 8500K CRI: 94+
Effects:
Motorized zoom Electronic Dimmer and Strobe (1-20Hz) Variable 16-bit Dimming Modes and Curves Virtual CMY Colour Mixing DMX Control Modes Tuneable White Colour Temperature from 2400K to 8500K 62 Preset White Colour Temp Macros (2400K to 8500K) Virtual Colour Swatch Book with 60 preset colours 64 Preset RGBA Colour macro's
Control/Connections
Dimmer and Zoom Rotary Dials 5 DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY) 4 Button Control Panel LCD Menu Display Adjustable Refresh Rate (68 presets from 900 – 25000Hz) 6 Preset Dim Modes (Standard Stage TV Architectural Theatre and Stage 2) Dim Speed Options (0.1s to 10s) 4 Dim Curves (Square Linear Inv. Squa and S. Curve) RDM (Remote Device Management) 3/5pin DMX and IP65 Locking Power Cable In/Out Locking Power Input and Output USB Service Port
Dimensions & weight:
Length: 414.5mm Width: 360.1mm Vertical Height: 490mm Weight: 9.45kg
Electrical/Thermal:
AC 100-240V - 47/63Hz 450W Max Power Consumption -15°C to 45°C Power Linking: 5Pcs @ 240V
Included items:
Gel Frame Power Cable 8-blade Barndoor
