The ADJ Lighting Element H6 Pak Chr is a beneficial all-in-one event up lighting system that offers a powerful and versatile up lighting solution for indoor and temporary outdoor events. This package includes six IP54-rated battery-powered wireless DMX chrome fixtures that come in a durable flight case with an on-board battery charging solution. It also comes with one UCIR24 wireless remote for easy control.
The Element H6 Pak Chr fixtures boast four 20-watt RGBAW+UV LEDs with a life expectancy rated at 50000 hours. With a beam angle of 17.6° and a field angle of 28.7° these fixtures produce a LUX output of 1117 @ 2M and 298 @ 4M making them perfect for stage up lighting and wall washing.
In addition to its impressive optical features the Element H6 Pak Chr offers a range of convenient and easy-to-use features. It includes a built-in kickstand to angle the fixture when placed on the floor a 4-touch button OLED display inside cover panel and a battery charge indicator on each fixture.
The wireless DMX control protocol allows you to control your lighting system from anywhere in the room and the 63 built-in colour macros make it easy to create stunning lighting effects. With its variable RGBAW+UV colour mixing and smooth dimming capabilities the Element H6 Pak Chr offers a seemingly unlimited colour palette.
This lighting system also boasts an energy-saving mode and a battery life of up to 6 hours in normal mode and 12 hours in energy-saving mode (single colour). Each fixtures is compact and lightweight and comes in a robust IP54-rated casing with partial protection from dust and water splashes. Each fixture has a weight of 5.3 lbs (2.4kg) making it easy to transport and set up for your event.
Overall the ADJ Lighting Element H6 Pak Chr is an exceptional lighting system that offers power versatility and convenience for all your event lighting needs. With its impressive features and durable design this lighting system is perfect for event producers and anyone looking to add some excitement and style to their event.
Please note: Shipping charges may applyElement H6 Pak Chr includes:

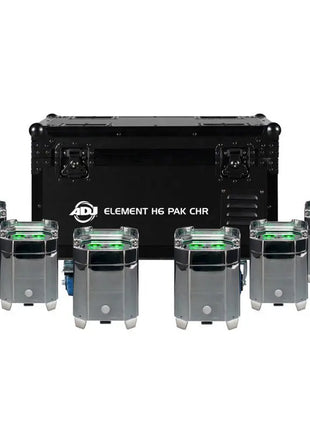

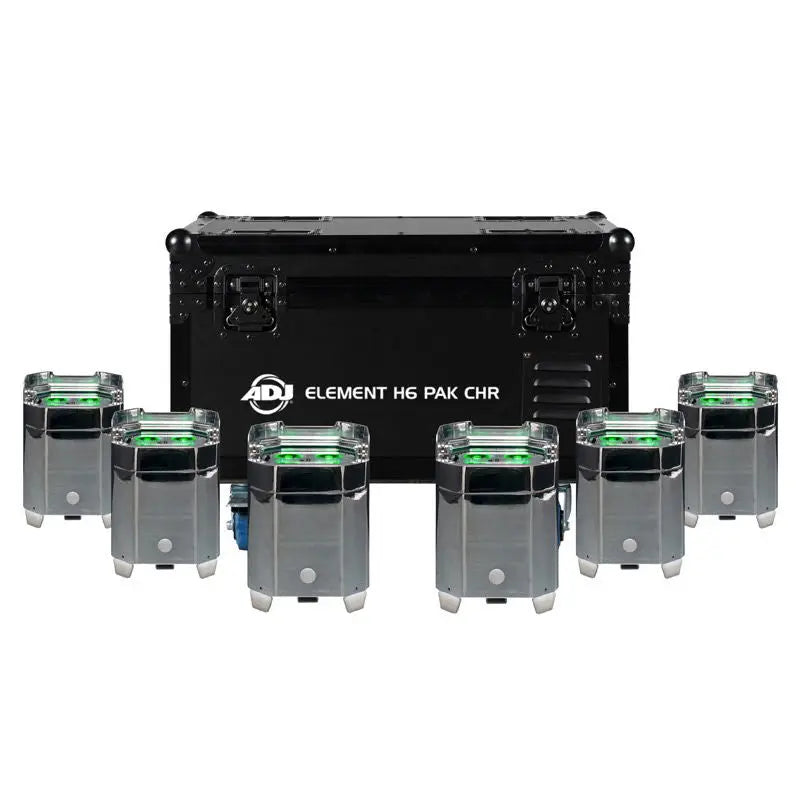

(6) Element H IP Chrome Fixtures (1) Element H6 FC charging Flight Case (6) Mirage Q6 IPCB Charging bases and power supplies (1) UCIR24 Wireless Infrared Controller (1) IP65 Locking Power Cable
Element H6 Pak Chr Features:
Houses / Transports and Charges (6) Element H IP™ fixtures
Element H6 Pak Dimensions / Weight (loaded case with 6 fixtures):
Length: 671mm Width: 461mm Vertical Height: 451mm Loaded Weight: 38.4kg
Pak Electrical / Thermal:
Power Input: AC100VAC~240VAC 50/60Hz IP65 Power Locking Input and Output Max Power Consumption: 200 Watts Power Draw: 3A max Charge status indicator -20°C to 45°C
Optical:
4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red Green Blue Amber White & UV) Life expectancy: rated at 50000 hrs. LUX: 1117 @ 2M; 298 @ 4M Beam angle: 17.6° Field angle: 28.7° Connection: DMX: Wireless DMX Contact Charging system. *Charging base and power supply included
Control:

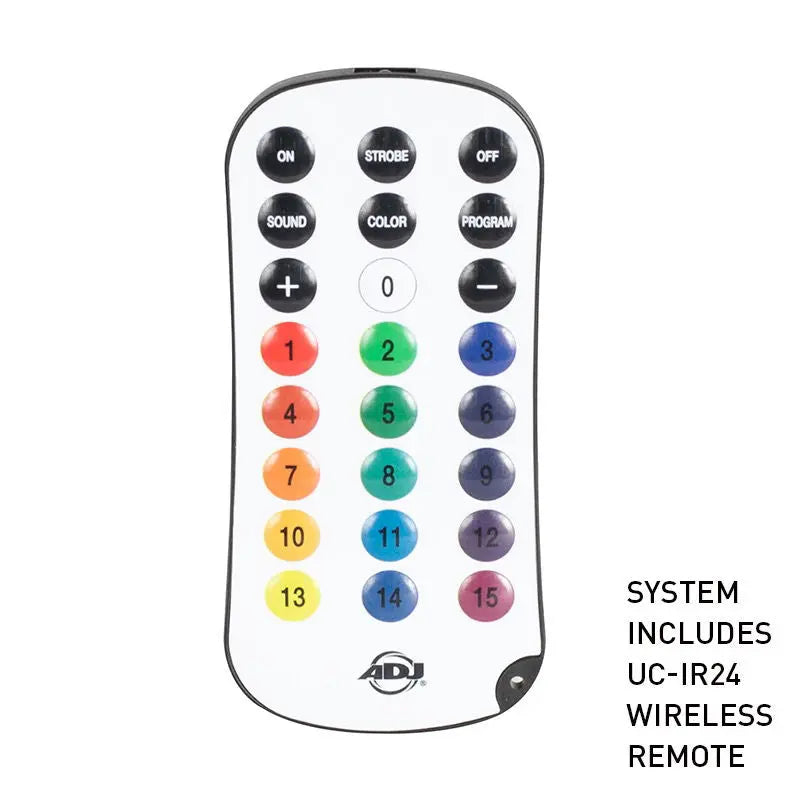

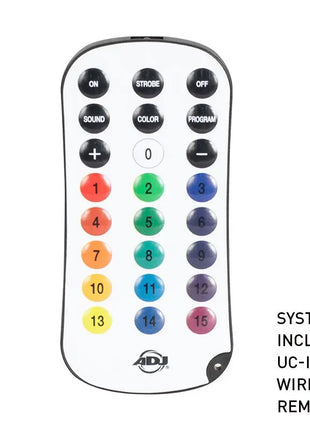

Control protocol: Wireless DMX 7 DMX Channel modes: 6 8 9 12 14 15 or 17 channels Remote control: Wireless DMX UC-IR24 (Included) 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs & 1 colour/fade combo mode); Static Colour mode; and Wireless DMX Control
Features:
IP54 Rated: partial protection from dust and water splashes Built-in kickstand to angle fixture when sitting on the floor 4-touch button OLED display inside cover panel Built-in wireless DMX with signal LED indicator 63 built-in Colour Macros Variable RGBAW+UV colour mixing offers a smooth seemingly unlimited colour palette - Great for Stage or Wall Washing! LED pulse and strobe effect (0.2Hz-11Hz) Flicker Free Operation Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves Run all night - No duty cycle Battery charge indicator on each fixture Energy Save Mode
Battery:
Battery Type: fixed polymer lithium battery Battery Energy: 59.2WH (Watt Hours) Battery Weight: 0.24 kg Battery Voltage: 14.8V Battery Capacity: 4000mAh (Typical Capacity) Total Lithium Ion Cells: 4 pieces Battery Wrap Material: PVC sleeving + highland barley paper Battery Charge Time: 6 Hours Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single colour)
Electrical:
Power Draw Total (All LED's @ Full On): 20W Voltage operation: DC17V Dimensions / Weight: Dimensions (LxWxH): 140 x 140 x 190.5mm Weight: 2.4kg Certifications: IP54 Outdoor rated
