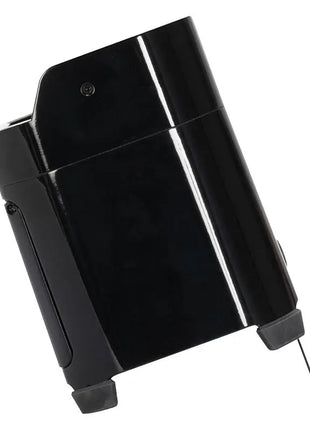

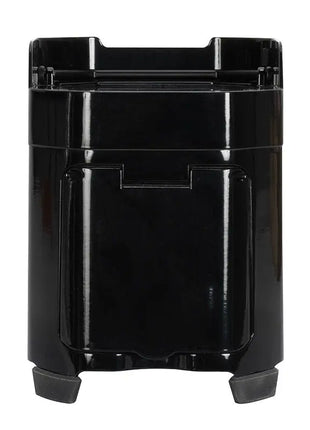

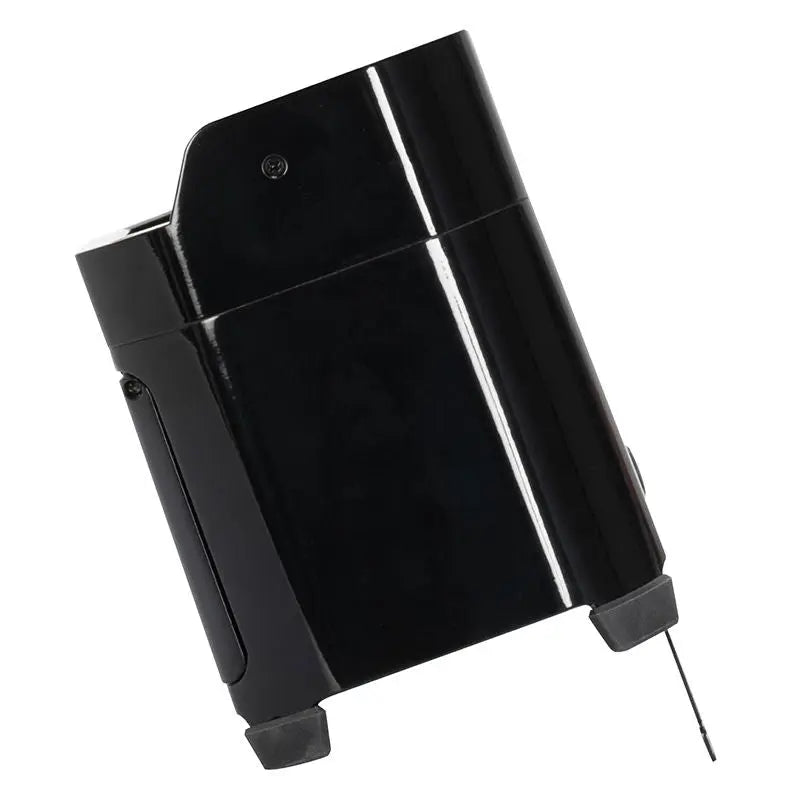

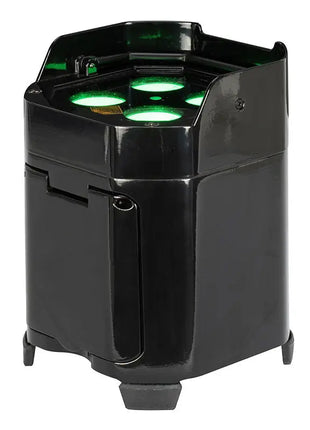

The ADJ Lighting Element H IP is a high-performance battery-powered wireless DMX-controlled uplighting fixture with advanced features suitable for various events such as weddings concerts theatres and more. Housed in a shiny black rugged metal casing with four 20-Watt RGBAW+UV LEDs it creates vibrant and dynamic lighting effects that can be controlled remotely through Wireless DMX. Its built-in Wireless communication protocol ensures a stable and secure connection allowing you to control the lighting fixtures from up to 2500ft/700m away.
_x005F

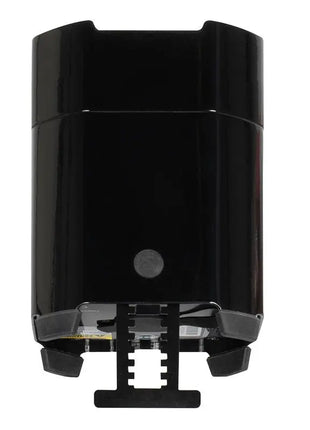

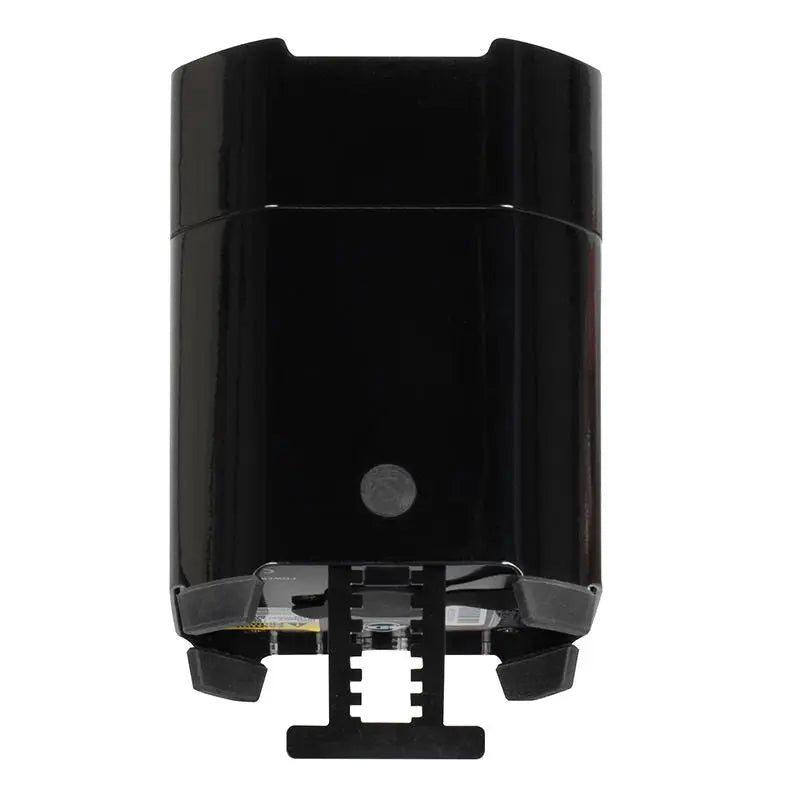

The fixture's variable RGBAW+UV colour mixing provides an infinite colour palette making it perfect wall washing. With a beam angle of 17.6 degrees and a field angle of 28.7 degrees it can cover a wide area and the built-in kickstand allows you to angle it when sitting on the floor. The fixture's IP54 rating makes it dust and water-resistant making it suitable for both indoor and temporary outdoor use.
_x005F
With its battery life of up to 12 hours in energy saving mode or 6 hours in performance mode you can run the fixture all night without worrying about looking for places to plug it in. The battery charge indicator on each fixture lets you know when it needs to be charged and the energy-saving mode helps conserve battery life. The charging base and power supply included in the package make it easy to recharge the battery.
_x005F

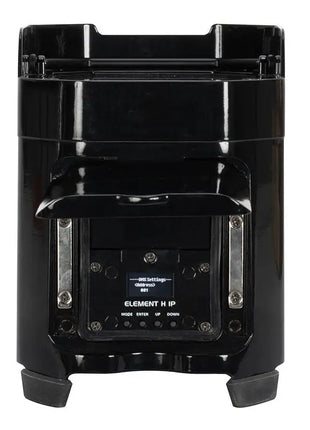

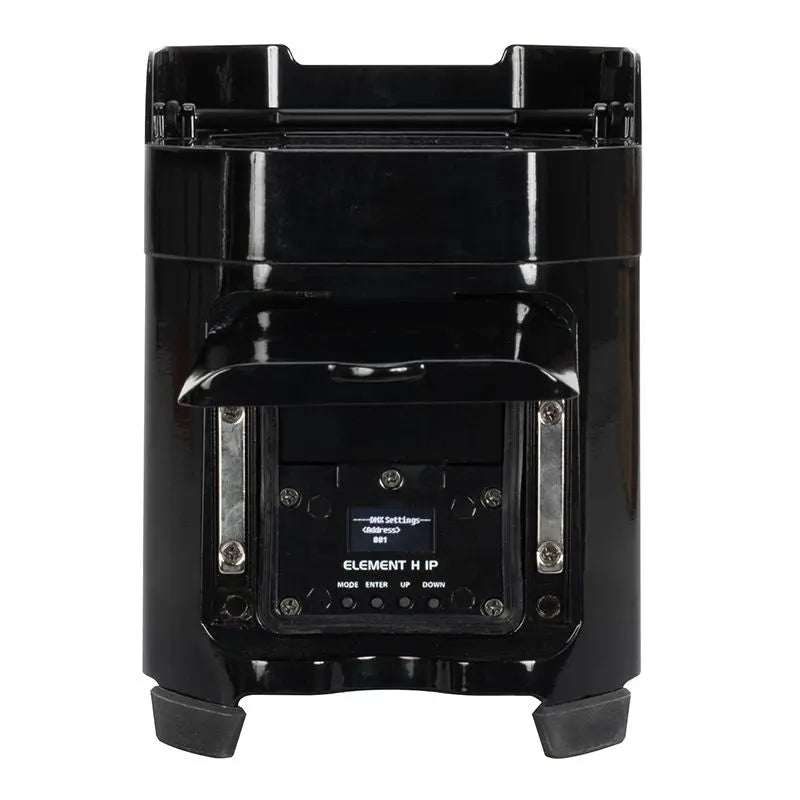

The Element H IP fixture is easy to operate with the 4-touch button OLED display and remote control. With seven DMX channel modes 63 built-in colour macros and five operational modes you have endless possibilities to create impressive lighting displays. The flicker-free operation electronic dimming and LED pulse and strobe effects (0.2Hz-11Hz) ensure smooth transitions and a professional look.
_x005F
In summary the ADJ Lighting Element H IP is a reliable and high-performance uplighting fixture that offers impressive features for various events. It's easy to operate wireless and battery-powered making it a very convenient “true wireless” option for event professionals. Six Element H IP fixtures fit inside the Element H6 FC charging flight case.
_x005F
Optical:

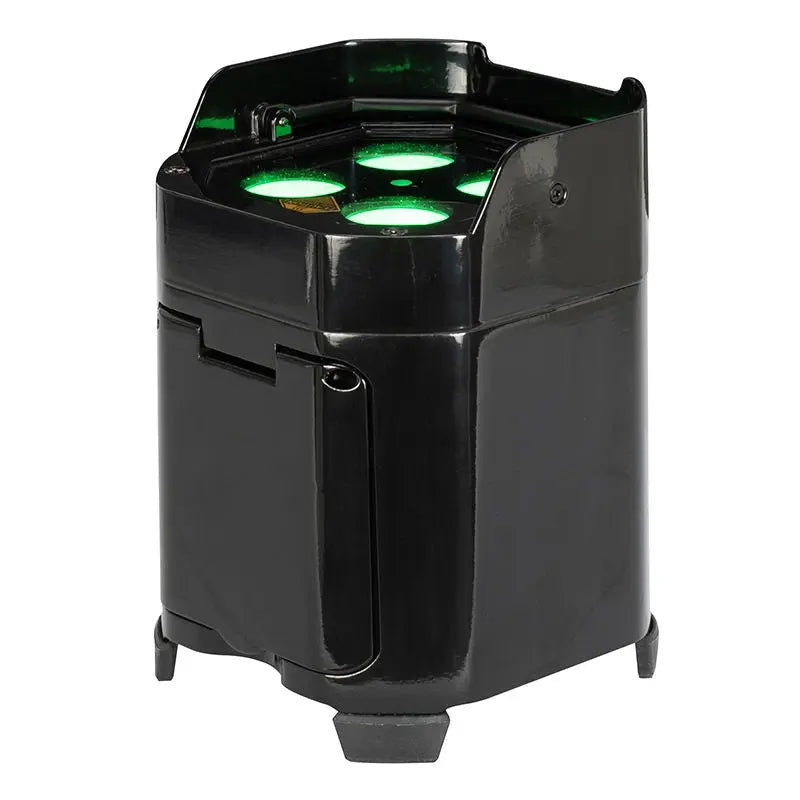

4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red Green Blue Amber White & UV) Life expectancy: rated at 50000 hrs. LUX: 1117 @ 2M; 298 @ 4M Beam angle: 17.6° Field angle: 28.7°
Connection:

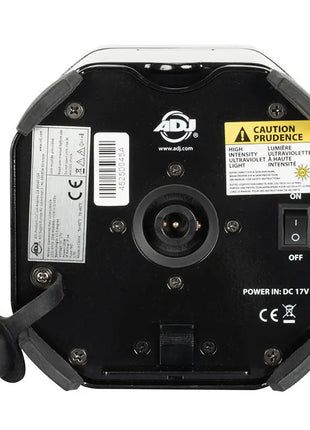

DMX: Wireless DMX Contact Charging system. *Charging base and power supply included
Control:
Control protocol: Wireless DMX 7 DMX Channel modes: 6 8 9 12 14 15 or 17 channels Remote control: Wireless DMX UC-IR24 (Included) 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs & 1 colour/fade combo mode); Static Colour mode; and Wireless DMX Control
Features:
IP54 Rated: partial protection from dust and water splashes Built-in kickstand to angle fixture when sitting on the floor 4-touch button OLED display inside cover panel Built-in wireless DMX with signal LED indicator 63 built-in Colour Macros Variable RGBAW+UV colour mixing offers a smooth seemingly unlimited colour palette - Great for Stage or Wall Washing! LED pulse and strobe effect (0.2Hz-11Hz) Flicker Free Operation Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves Run all night - No duty cycle Battery charge indicator on each fixture Energy Save Mode
Battery:
Battery Type: fixed polymer lithium battery Battery Energy: 59.2WH (Watt Hours) Battery Weight: 0.24 kg Battery Voltage: 14.8V Battery Capacity: 4000mAh (Typical Capacity) Total Lithium Ion Cells: 4 pieces Battery Wrap Material: PVC sleeving + highland barley paper Battery Charge Time: 6 Hours Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single colour)
Electrical:

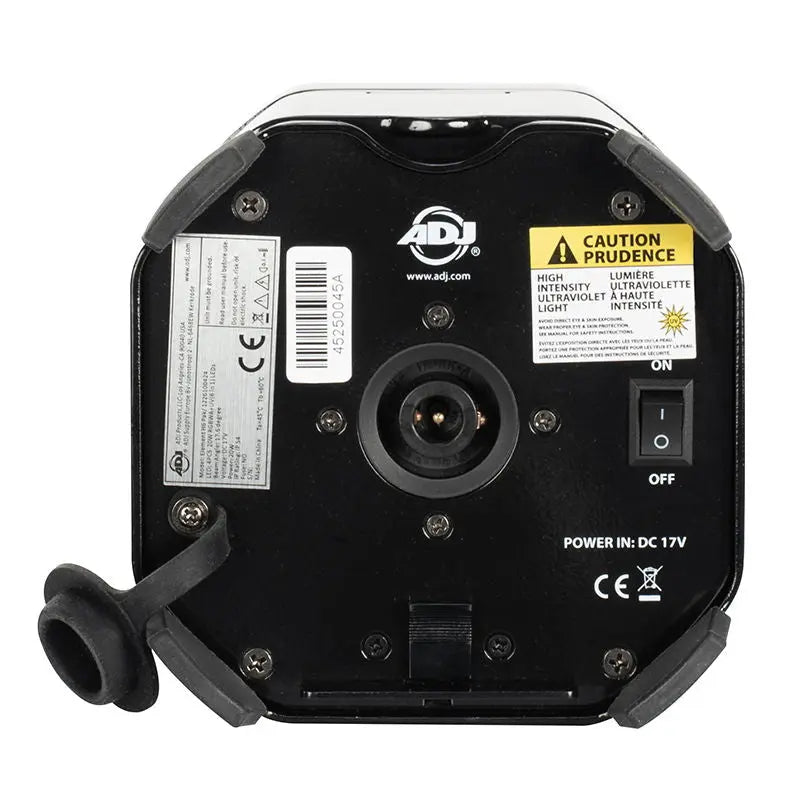

Power Draw Total (All LED's @ Full On): 20W Voltage operation: DC17V
Dimensions / Weight:
Dimensions (LxWxH): 140 x 140 x 190.5mm Weight: 2.4kg
Certifications:
IP54 Outdoor rated
Package Includes:
Single Black Element H IP fixture 1x 17.3V 1A Power Adapter 1x Charging base 1 x UCIR24 wireless remote
