PRELIMINARY DATA - SPECIFICATIONS SUBJECT TO CHANGE

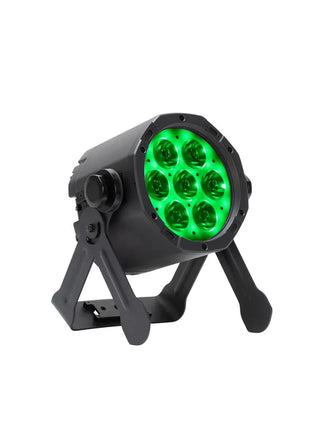

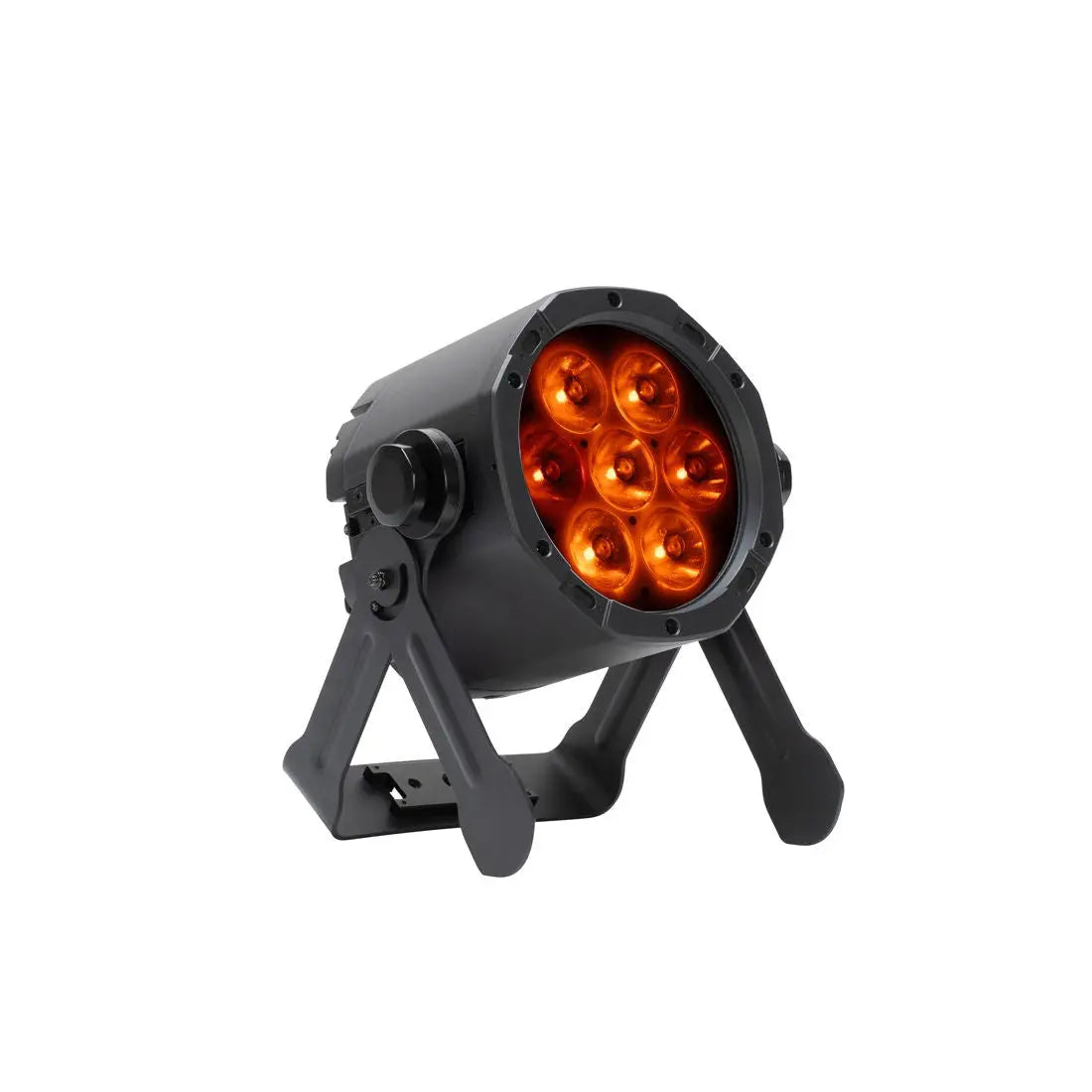

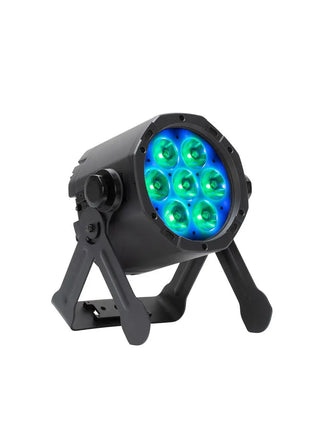

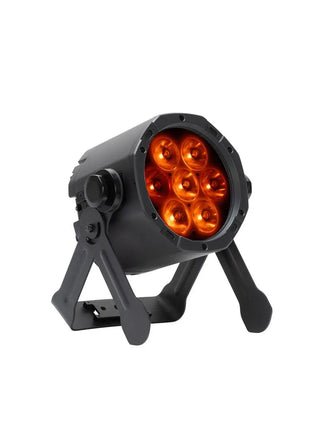

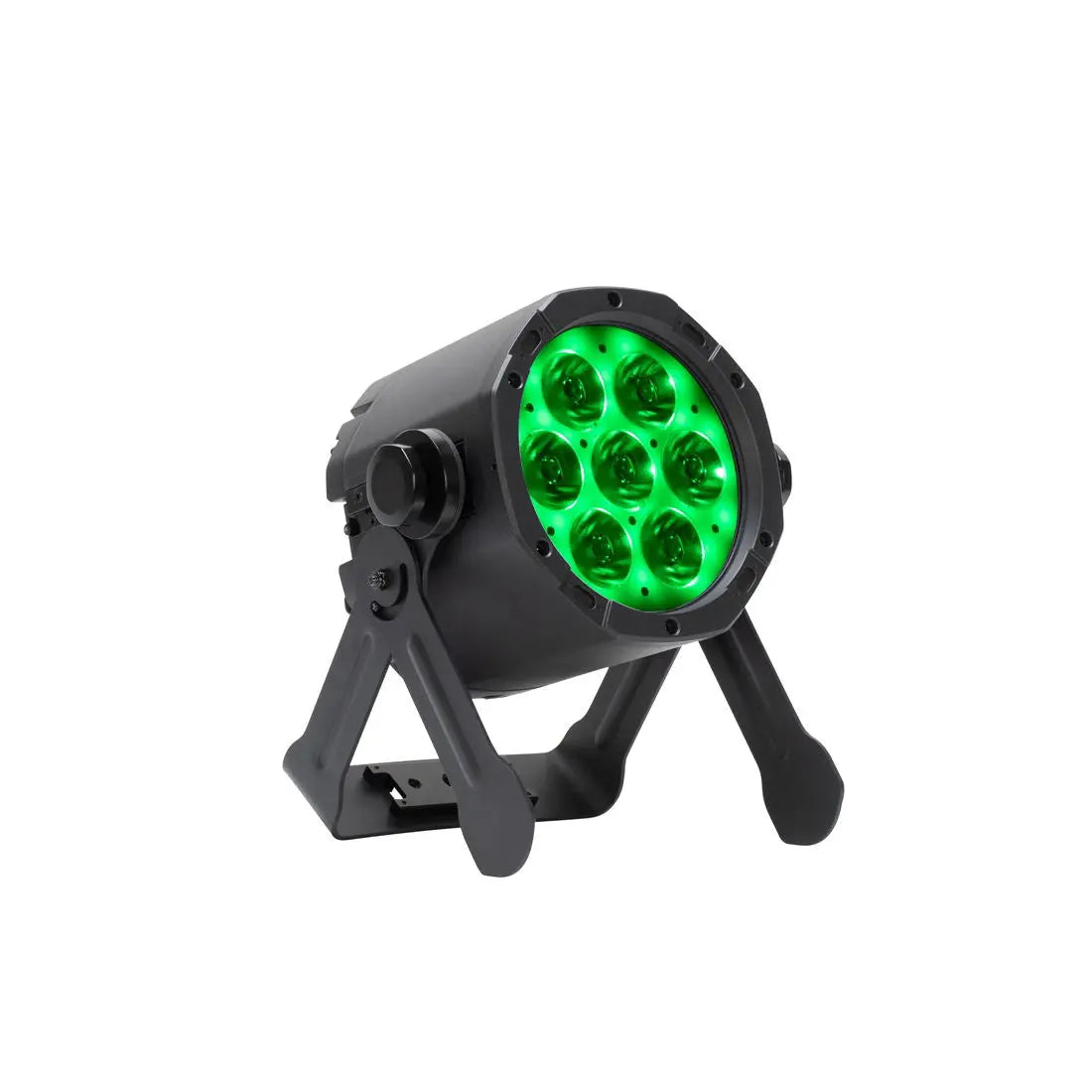

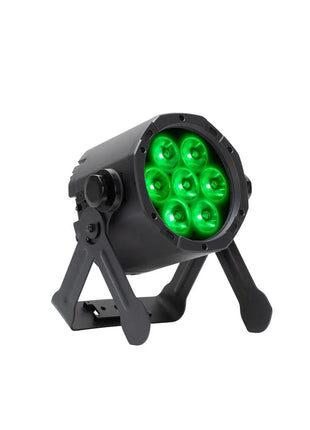

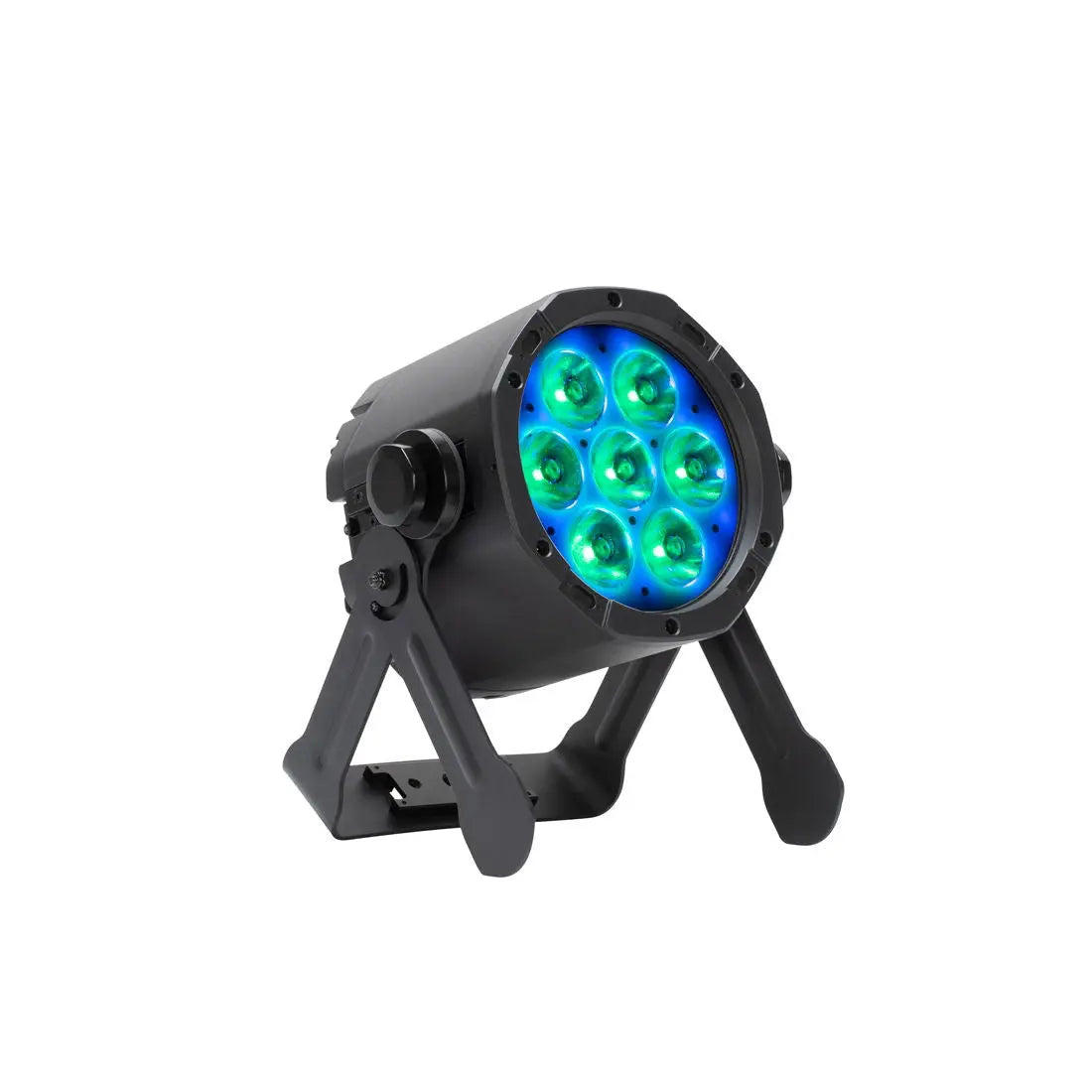

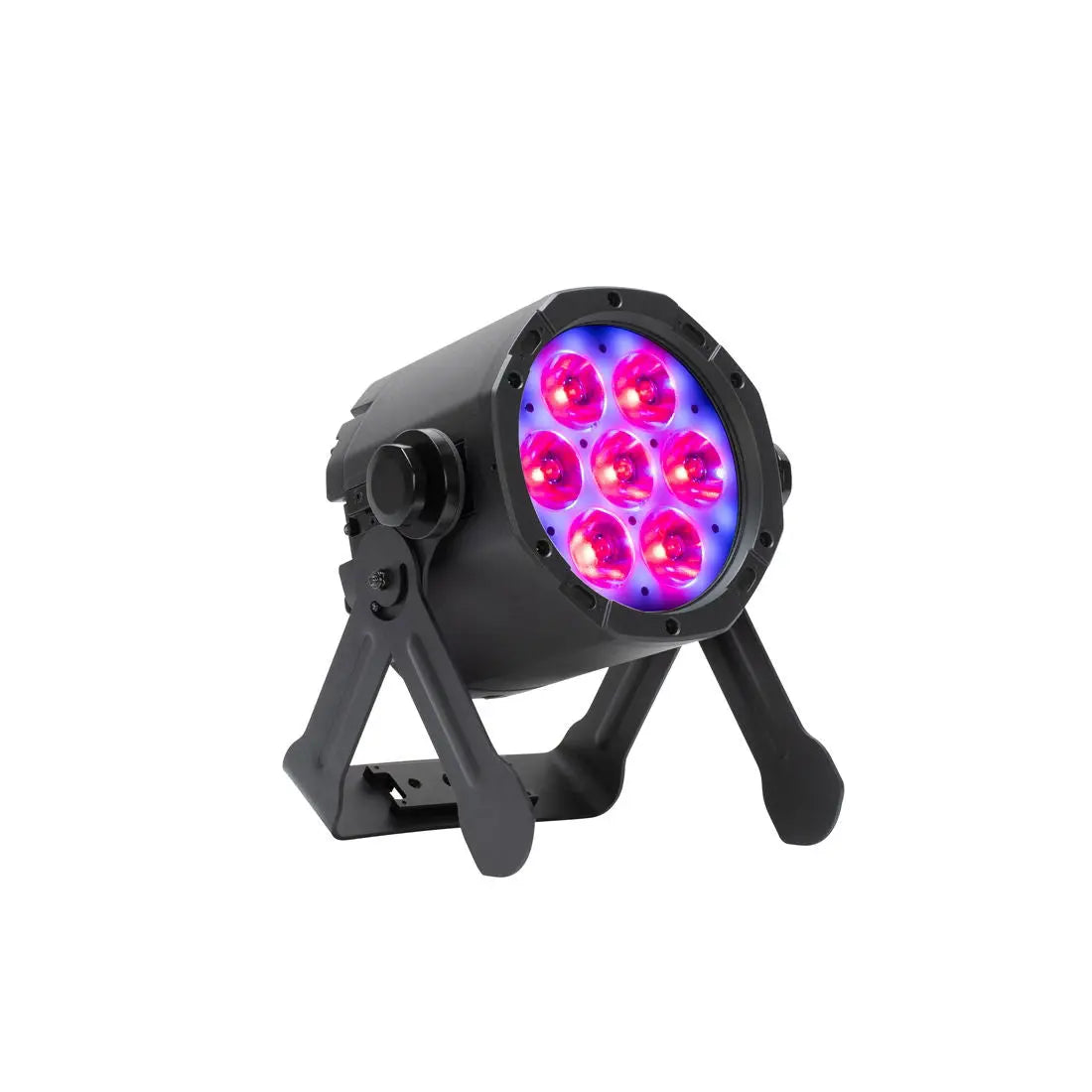

The ADJ Lighting ElectraPix Par 7 LED Par is a cutting-edge wireless DMX lighting solution. Packed with advanced features this fixture boasts seven 20-Watt Hex Colour LED (RGBAL+UV) providing unparalleled control and creativity. Powered by either batteries or wall outlets it offers 5 hours of standard battery operation or an extended 10-hour saver mode.
With individual pixel control built-in foreground and background LED programs and a variable white colour temperature range the ElectraPix Par 7 ensures dynamic lighting possibilities. Its colour-calibrated LEDs user-selectable dim modes and electronic strobe/dimming enhance versatility.
Designed for adaptability the IP65-Rated housing OLED digital display L Track system and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512 Aria X2 Wireless DMX Bluetooth RDM compatibility and an included UCIR24 wireless remote.
The ElectraPix Par 7 guarantees reliability with certifications such as CE FCC and pending cETLus while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote along with optional add-ons make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7 where innovation meets performance.
Specifications:
Features:
7 Pixel Hex Colour LED (RGBAL+UV) LED Par Battery or Wall Powered 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option) Individual Pixel Control Built-In Foreground LED Programs Built-In Background LED Programs Variable White Colour Temperature Control (2700K ~ 9900K) English & Spanish User Menu Built-In Alarm Colour Calibrated LED's User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (0.3Hz ~ 11Hz) Electronic Dimming
Source:
(7) 20W Hex Colour RGBAL+UV Foreground LED's (29) 0.2W RGB Background LED's 50000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Optical:
2300K ~ 9900K White Colour Temperature Range 17° Beam Angle 45mm Lens Diameter x8
Physical:
IP65 Housing OLED Digital display L Track system for locking accessories / rigging Gel Frame Holder Adjustable hanging / kick stand bracket
Control:
DMX512 Aria X2 Wireless DMX Bluetooth RDM and RDM Net Compatible IR (Includes UCIR24 wireless remote) (4) DMX Channel Modes (5 6 9 13 21 24 42 45 & 54 Channel modes) On-board Manual Control Mode Primary / Secondary Mode
Connections:

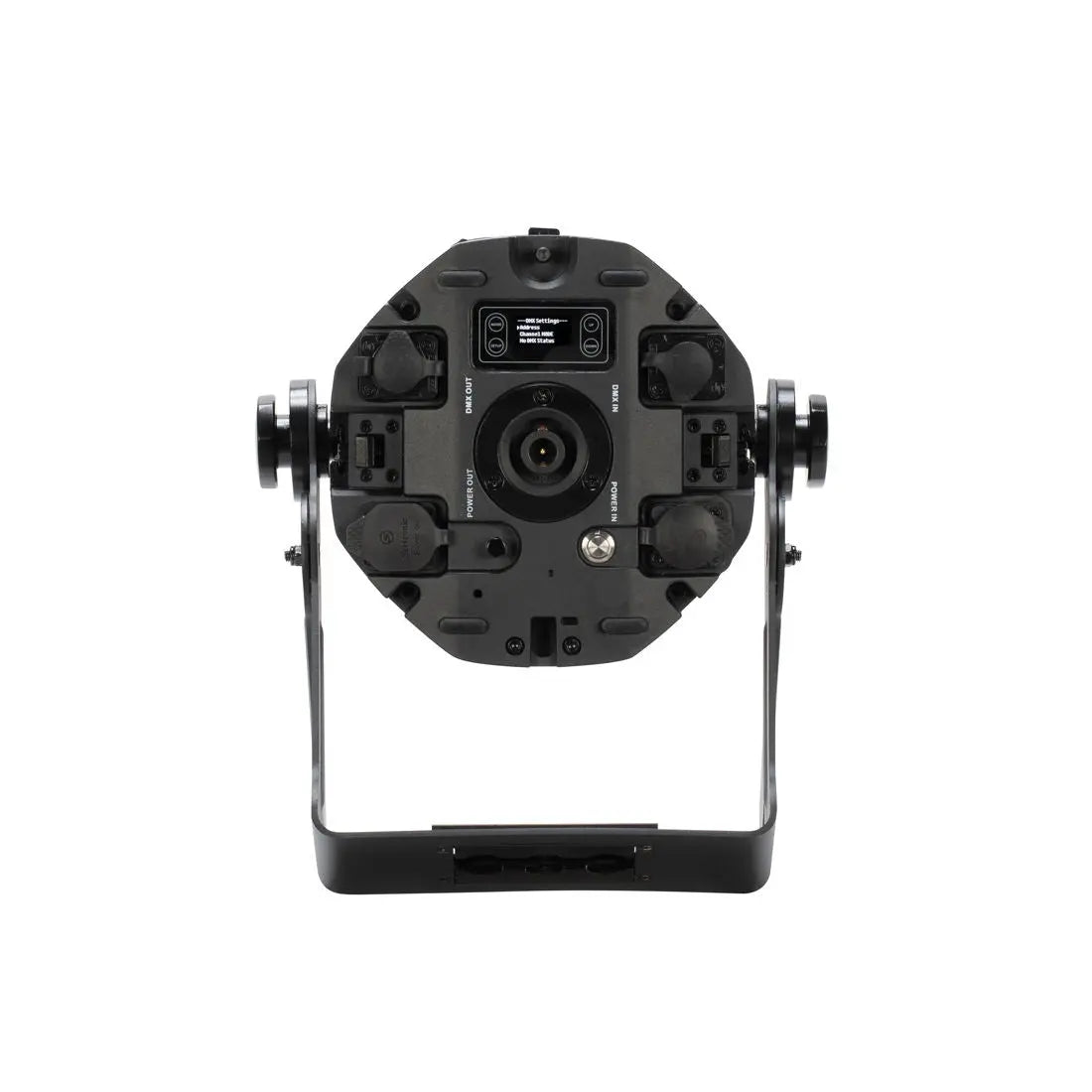

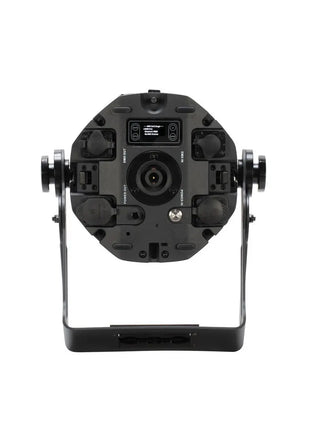

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx 5pin DMX cables to create IP65 seal) Outdoor Locking Power Sockets Battery Charging Socket
Dimensions & Weight:
Length: 282.1mm Width: 590.3mm Height: 189.5mm Weight: 8.2 kg
Power:
AC100-240V/50Hz-60Hz Input 60W Power Consumption Link 28 pieces @ 230VAC
Battery:
Rechargeable Lithium ion Battery Capacity: 7000mAh Battery Voltage: 22.2V Charge Time: 6 Hours (To Full) 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu Battery Cycles: 500
Thermal:
Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°C
Certifications & IP Rating:
IP65
Included Accessories:
(1) Outdoor Locking Power Cable (1) UCIR24 Remote (1) Gel Frame (1) 20° Diffusion Filter
Optional Accessories:
LTrack A2 (LTrack Adapter Only) LTrack CA2 (LTrack Adapter with Narrow Clamp) ELP12IPBDA (Barn Door and Gel Frame Assembly Sku: ELP404)
Specifications and documentation subject to change without notice.
